DORMA-Glas 800.52.055.6.32 Stand/Issue 02/03 Seite/Page 1/7

FSW Installation instructions

Track rail 75 x 72 mm

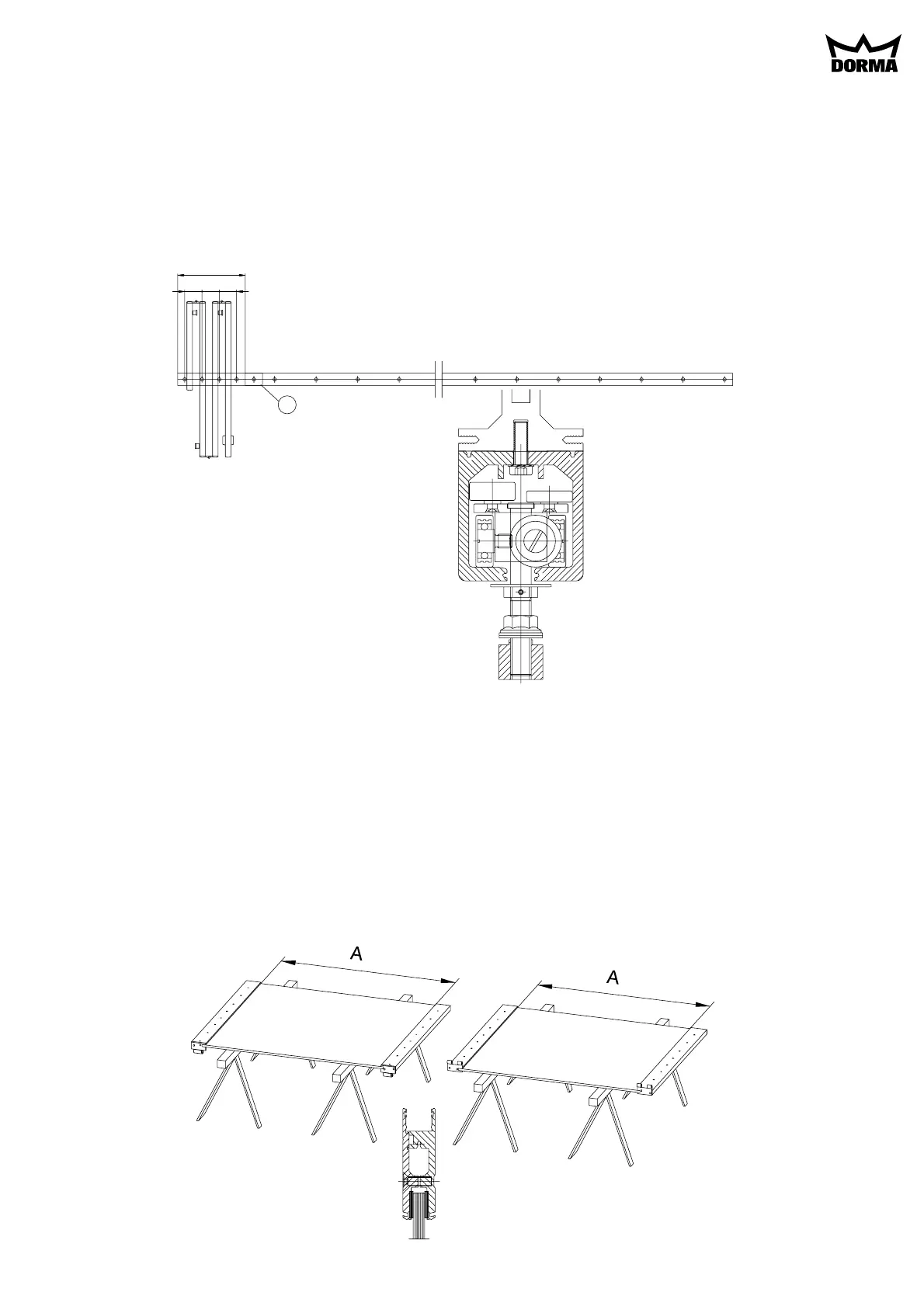

1. Ceiling substructure and installation of the track rail (Fig. 1):

The track rail must be bolted over its entire length (including the stacking track area) to a correctly

aligned ceiling substructure of steel. The steel substructure should be designed to accommodate the

total weight of all the panels. The substructure fixing point intervals for the track rail should be approx.

100 mm in the stacking area and approx. 300 mm along the remaining track sections. The maintenance

end piece (a) can be detached for panel installation, removal and servicing.

400

100100 100

Fig. 1

2. Fitting the hinged door rails to the glass panel (Fig. 2):

The door rail with either a panel hinge section or a frame hinge section consists of two profile sections

which are bolted together. (In order to avoid scratching, the cover profiles are clipped on only after the

system has been completely installed.) Slightly loosen the screws on the hinges and the door rails. Slide

the upper door rail onto the glass and clamp tightly. Glass insertion length: 25 mm. It is particularly

important to clamp the upper door rail correctly due to its bearing function. If the system is likely to be

subjected to vibration, silicone must be applied to the glass panels at the upper door rail for added

adhesion at the clamped connection.

Slide the lower door rail onto the glass and align it with the upper door rail. When aligning the door

rails, ensure that measurement A is the same for each folding panel.

A = total height of the system –353 mm.

After aligning the door rails, firmly tighten the M8 hex socket screws on both sides so that the rails

clamp the glass securely. (5 mm Allan key, tightening torque 20 Nm)

Fig. 2

DORMA-Glas 800.52.055.6.32 Stand/Issue 02/03 Seite/Page 2/7

3. Lower floor pivot assembly for the pivoting end panel (Fig. 3):

The distance from the pivot point to the wall (67 mm) can be corrected by adjusting the floor pivot (a)

as follows:

Loosen both fixing screws (b).

Adjust the position of the floor pivot and re-tighten the screws. Adjust the height using the shims

provided (c) (3 shims of 1 mm thick each).

Fig. 3

4. Installing the folding end panel (Fig. 4):

Slide the upper pivot assembly (a) of the end panel into the end of the track rail.

Securely clamp the pivot assembly (using a 6 mm Allan key) in position at a distance of 67 mm from

the wall. Install the floor pivot directly underneath the upper pivot assembly with a distance of 67 mm

between the pivot point and the wall (Fig. 3.1). Wind down the bolt (b). Insert the end panel with bolt

(b) in the upper pivot assembly (Fig. 4.2), align vertically and set down on the floor pivot (Fig. 4.3).

Turn bolt (b) until it comes into contact with rollpin (f), then turn it back one revolution (1 mm

clearance); tighten nut (d) using a 17 mm spanner.

Next firmly tighten the set screw in the suspension block (c) using a 5 mm Allan key.

Fix securing plate (e) with bolt (g) onto the upper pivot assembly.

Fig. 4.1 Fig. 4.2 Fig. 4.3

Fig. 4
