Side 1/8

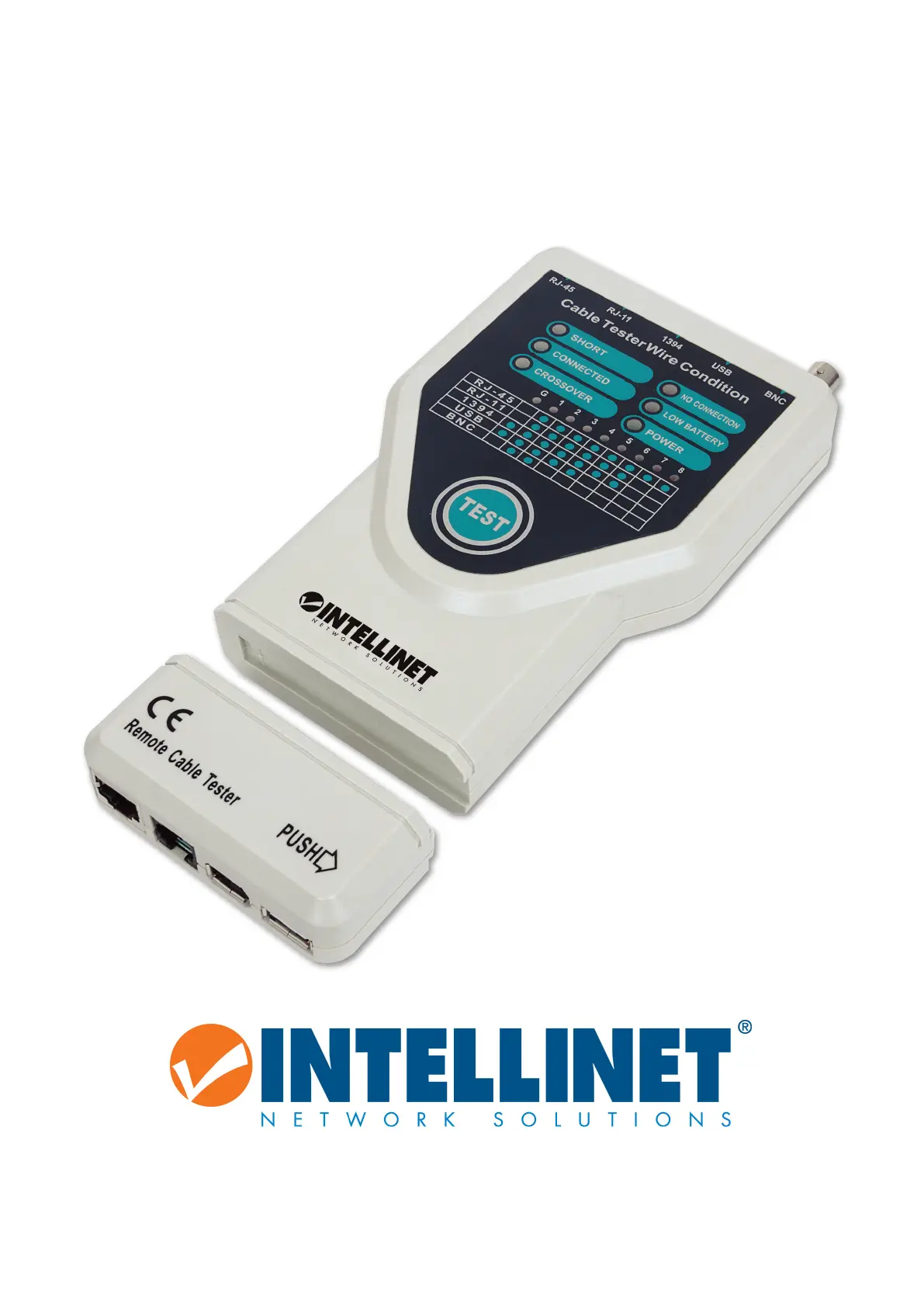

5-in-1 Cable Tester

User Manual

Mo del 78 0 094

INT_780094_UM_0119_REV_5.01

intellinetsolutions.com

5-in-1 Cable Tester

User Manual

INTRODUCTION

The 5-in-1 Cable Tester performs tests on ve common types of LAN and computer cables:

• RJ45

• R J11

• FireWire/1394

• USB Type A to B

• BNC

The product consists of a Main unit (A) and a Remote unit (B). A plastic insert on the Remote unit ts a

track at the bottom of the Main unit to keep the two units together and to test both ends of a cable that

are within reach of the tester. The Remote unit slides o the Main unit to test cables installed in walls,

ceilings, etc., where the two ends may be in separate locations. The 5-in-1 Cable Tester can only test

one cable at a time.

PRODUCT DIAGRAM

A: Main unit

B: Remote unit

C: Battery compartment; requires a 9V battery (not included)

D: RJ45 jacks; tests Cat5, Cat6 and ISDN connections

E: FJ11 jacks; tests most telephone cables

F: FireWire / 1394 jacks; tests FireWire cables

G: USB Type B to Type A ports; tests the standard USB Type-B to Type-A cable

H: BNC jack; tests BNC cables using the included coaxial adapter

I: Test button; performs cable tests & turns the unit on

J: Short LED

K: Connected LED

L: Crossover LED

M: No Connection LED

N: Low Battery LED

O: Power LED

P: Numbered LEDs

Q: Chart for Numbered LEDs (P) that should light based on cable type

Produkt Specifikationer

Mærke:	Intellinet
Kategori:	Ikke kategoriseret
Model:	780094
Bredde:	31 mm
Dybde:	185 mm
Højde:	100 mm
Vægt:	200 g
Brugervejledning:	Ja
Produktfarve:	Grå
Skærmtype:	LED
Produkttype:	UTP/STP-kabeltester
LED-indikatorer:	Ja
Etui til opbevaring:	Ja
Testtype:	Short circuit testing, Transmission testing
Understøttede stik:	BNC, IEEE-1394, RJ-11, RJ-45, USB
