PAN08 – 19“ DI-BOX/LINE ISOLATOR 4 KANAL AKTIV
SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that
wall mounts are properly installed and secured. Make certain that the equipment is installed securely and
cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make
certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment
- in this case, observe the special instructions noted below. Do not expose this equipment to flammable
materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with
liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Open the device for changing the battery, do not modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to
tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage
and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if
it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a
powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
22. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do
not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the
equipment until it has reached room temperature.
23. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the
mains outlet and/or power adapter and the equipment connector.
24. When connecting the equipment, make certain that the power cord or power adapter is always freely acces-
sible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want
to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug
or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
25. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter
from the power outlet.
26. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or
before extended periods of disuse.
CAUTION:
CAU T I O N
RIS K OF SELE CTRIC HOCK
DO N O NOT PE
There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.
CAUTION – HIGH VOLUME LEVELS WIT H AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the
respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is ob-
ligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume
and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that
can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid
prolonged exposure to volumes in excess of 90 dB.
MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at: http://www.adamhall.com/media/shop/
downloads/documents/manufacturersdeclarations.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach
/ Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WAST E ELECT RICAL AND ELECTRONIC EQUIPMENT )
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.
APPLICATION
The PAN08 is universally useable as a DI box, booster and line isolator. The outputs are balanced using highquality
transformers. The output voltage is adjustable within broad limits from microphone level to professional studio
level. For this, on the one hand, there is a PAD switch with 20db (10-fold) attenuation. On the other hand, it is also
possible to boost the level in three 6-db increments by a total of 18 dB. The PAN08 has four identical channels.
It is powered by an external DC power supply that should have a voltage between 9 and 18V. Thus the PAN08
is also ideal for battery powered operation without mains power. A9V power adapter is included in the package.
CONNECTORS
The following description applies for each of the channels, A, B, C and D. There is a combination connector for the
input signal. It is configured as a balanced connection. XLR cables and stereo instrument cables can be connected
to the input if the input signal is balanced. If a mono jack plug is used, the input automatically becomes unbal-
anced. An unbalanced XLR plug (bridge in plug between PIN3 and PIN1) can also be used. Thus in general, both
ordinary microphone cables and instrument cables can be connected to the inputs of the PAN08 depending on the
source. To avoid ground loops due to double grounding, PIN 1 of the XLR input socket or the ground connection of
the jack plug can be disconnected from the electronic ground. To do this, press the switch labelled GND LIFT next
to the combination socket. There are dual outputs for each channel. There is one balanced XLR/m socket each on
the front and rear panels. Both sockets are connected in parallel. In principle, they can be used simultaneously,
provided that the connected devices do not interfere with one another. PIN1 of both sockets is connected to
the electronic ground. If this leads to undesired ground loops, then the GND LIFT switch at the input of the next
device must be switched on or PIN1 of the XLR connecting cable must be disconnected from the shield on one
end. If the output is to be connected using an unbalanced connection, then a cable is required with the following
pinout: XLR PIN2 = hot, PIN3 = ground. Depending on the connected device, a bridge in the XLR plug between
PIN1 and PIN3 is required for hum-free operation. Next to the rear output socket is a switch labelled -20dB. This
can be used to attenuate the signal accordingly for both outputs. This attenuation is necessary if you connect a
LINE signal to the input, but the output is connected to a microphone input. Without attenuation, the microphone
input, for example, on a mixing desk, may very quickly become overloaded. If, on the other hand, the output of
the PAN08 is connected to a LINE input, the signal delivered may be too weak. To boost the level, there are two
pushbuttons labelled GAIN on the front panel for amplification. The switch labelled +6dB provides 2-fold, the 12dB
switch 4-fold amplification. If both switches are pressed, the amplification increases to 18dB. This is equivalent to
an approx. 8-fold amplification factor. On the back of the housing is the connection for the external power supply.
The connector socket is an ordinary input for a DC barrel plug with a 5.5 mm shaft and a 2.1 mm pin receiver. The
outside must have positive and the inside negative polarity. The power adapter included is perfectly matched to
the PAN08. It ensures trouble-free operation using mains power, thus it alone should be used. For battery powered
operation, a corresponding cable must be fabricated. Please send us your corresponding request if necessary.
TECHNICAL SPECIFICATIONS
Product type: DI box
Type: active
Channels: 4
Inputs: 4
Input connectors: 6.3 mm Jack, XLR
Max. input level: +12 dBu
Input impedance: Balanced: 20k Ohm(s)
Outputs: 8
THRU outputs/channel: 0
Output connectors: XLR
Max. output level: +12 dB
Output impedance: 600 Ohm(s)
Frequency response: 20 - 20000 Hz
Transformer balanced: yes
Ratio: Variabel
Indicators: Power
Controls: ground lift, 2 x gain, attenuator
Operating voltage: 9 V DC power supply
Cabinet material: sheet steel
Cabinet surface: powder coated
Width: 480 mm / 19”
Depth: 90 mm
Height: 45 mm / 1 U
Weight: 1.59 kg
© Palmer Musical Instruments, Adam Hall GmbH, D-61267 Neu-Anspach, Daimlerstr. 9, Germany TEL: ++49 (0)6081 94190
FAX: ++49 (0)6081 43280 WEB: www.adamhall.com, www.palmer-germany.com EMAIL: info@palmer-germany.com

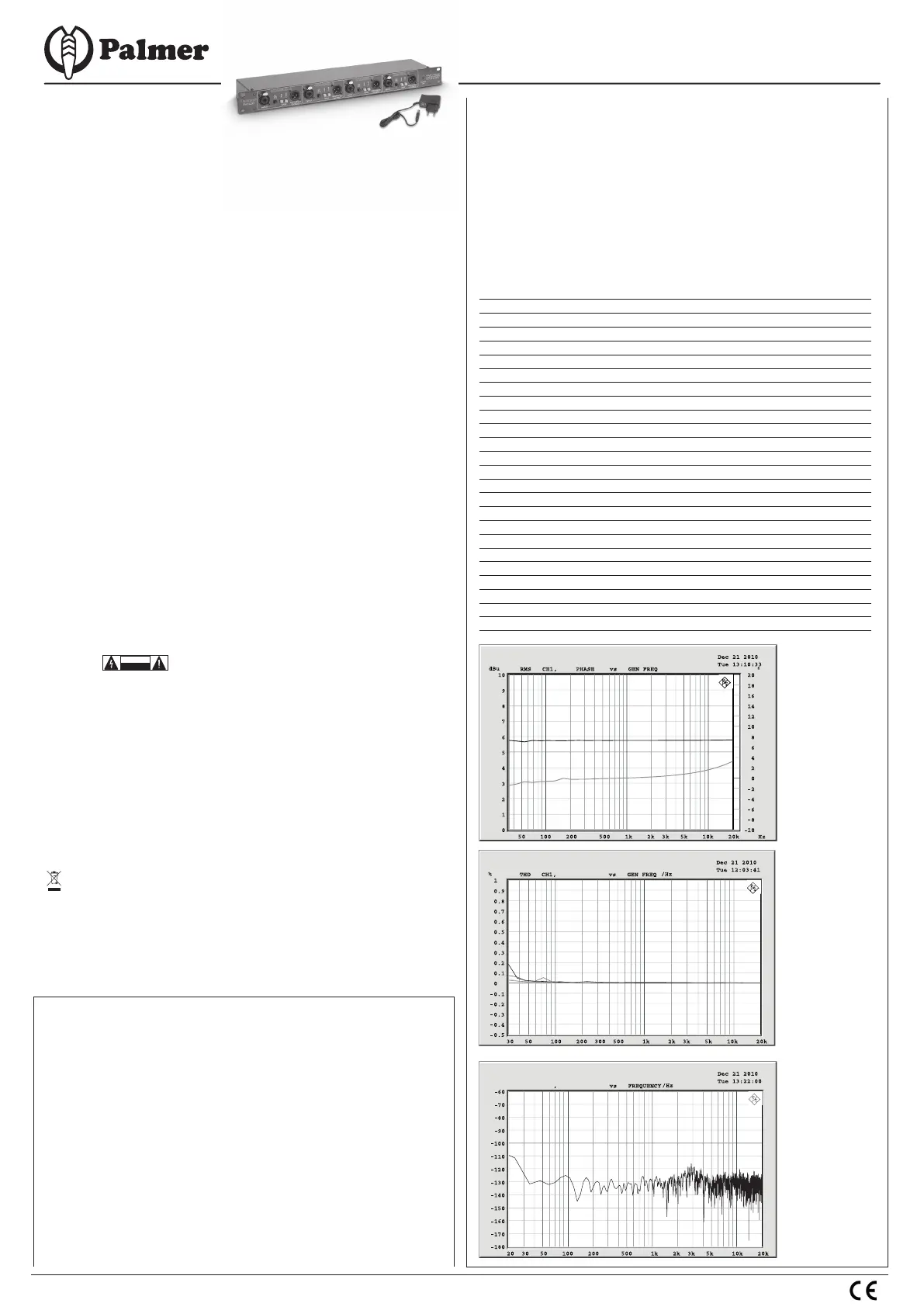

FREQUENCY RESPONSE
PHASE RESPONSE
THD
BLACK: @ +12dBu
DARK GREY: @ +6dBu
GREY: @ -10dBu
LIGHT GREY: @ -30dBu
NOISE SPECTRUM
Frequence and phase
response
Source 600 Ω / +6 dBu
THD
Source 600 Ω
FFT spectrum
@ 0 dB amplifi cation
open input
