Side 1/4

Before installing your speakers, you should consider their place-

ment carefully, taking into account the location of electrical,

plumbing and other fixtures. Contact your Dealer for assistance

if you are unsure of the best location for your particular listening

environment.

Placement In Wall: When installing your speakers into the wall,

ideal sound will be achieved when the tweeters are placed at ear

level or slightly higher and the primary listening area is no closer

to the wall than the distance between the speakers themselves.

(See Diagram 1)

If the speakers are positioned far away from the primary listening

area, adjust the pivoting tweeters so they are pointed towards it.

Note: To avoid possible damage to the pivoting tweeters, read the

section entitled in this manual prior to “SPEAKER ADJUSTMENTS”

performing the tweeter adjustment.

New Construction - Unfinished Walls

A Pre-Construction Bracket, available from your Dealer, may be

installed prior to drywall application across studs (up to 24" on-

center) where a speaker will be located. After the hole is cut and

the drywall is installed, the speakers are then easily installed fol-

lowing the instructions for mounting in “Finished Walls” below.

Note: If the speakers are to be mounted more than 24" on-center, a

special “Extra Long Wing” is available from your Dealer.

Finished Walls

Prior to the actual installation of the speakers, it will be necessary

to run cables to the speaker locations. See your Dealer for more

information about cable installation. After the cable has been

properly installed, you are ready to mount the speakers. Following

the simple steps listed below will result in a professional looking

installation:

1. Determine the best area to mount your speakers. This area of

the wall should be free of obstructions such as electrical con-

duit, HVAC ducts, or water lines. This can best be determined

by noting the placement of fixtures and gaining access to an

attic or crawl space for further analysis of the location of such

obstacles.

2. Find the studs nearest the desired speaker mounting location.

We highly recommend using a good stud-finder tool for this

procedure. If you are lining up the speakers to some other

object or molding in the room, make sure you consider the size

of the baffle flange which extends beyond the mounting hole

on all four sides.

3. Mark the hole. A template for setting the hole is provided in the

box (along with two paint mask inserts for use when painting).

Position the template in the desired position and pencil an

outline on the wall.

4. Cutting the hole. CAUTION: This is the most important part

of the entire installation. If you are not certain whether any

obstructions exist behind the desired mounting area, you

should start by cutting a small hole in the center of your pen-

ciled mounting hole with a drywall saw. Cut at a 45˚ angle

towards the inside of the hole . Cutting the small (See Diagram 2)

hole at this angle will make drywall repair much easier as the

piece cut out can be installed neatly back into the hole. Once

you have determined there aren’t any obstructions in your

desired mounting location, start cutting the finished hole at a

90˚ angle to the wall surface.

5. Add insulation. If the area in the wall is not already insulated,

add an adequate amount of insulation material to fill the cavity.

If the insulation material used is faced with foil or paper, posi-

tion the foil or paper away from the speaker.

SPEAKER PLACEMENT

MOUNTING SURFACE PREPARATION

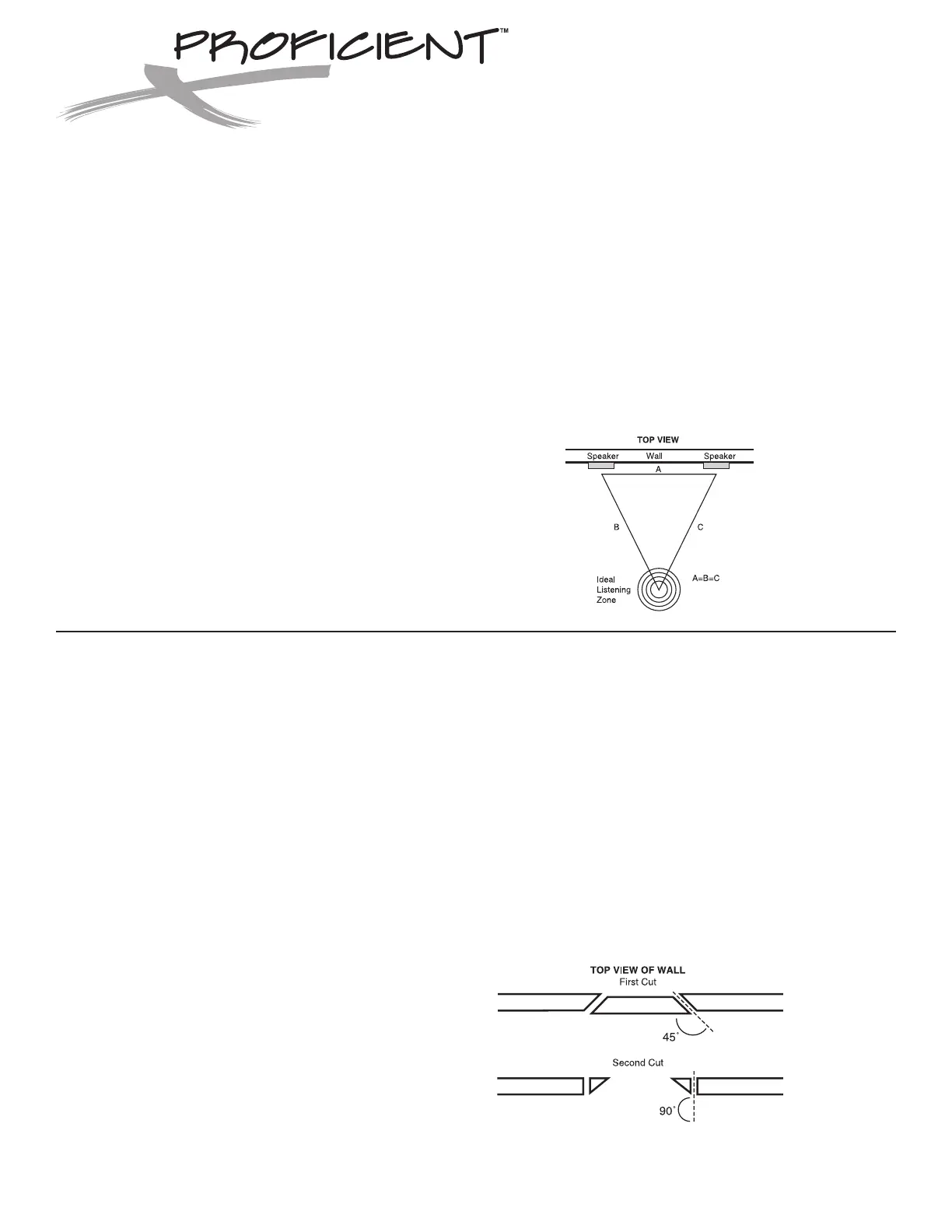

Diagram 2:

Wall Cut Out

Diagram 1:

Ideal Placement

Audio Systems

OWNER’S MANUAL

INWALL SPEAKERS

W665 • W670 • W680 • W690

W800 • W850

Your Wall Series speakers come from the factory with the tweeter

facing straight out from the baffle. This will result in the overall

smoothest response. However, depending on your particular pri-

mary listening area, room acoustics, ceiling height, or personal

preference, you may find the sound more pleasing by pointing

the tweeters in a particular direction. If additional treble is desired

in the primary listening area, point the tweeter towards that area;

and if less treble is required, point the tweeter away. When used in

a home theater environment as side or rear channel speakers, the

best result will be obtained by pointing the tweeters toward an

adjacent wall. Push gently at the edge of the tweeter to point it in

the desired direction. (See Diagram 3)

CAUTION: Avoid touching metal dome tweeters, as damage may

occur (W680, W690, W800 & W850).

Tweeter Adjustment (W680, W690, W800 & W850):

The switch labeled TREBLE allows for 3dB of treble adjustment.

Your speakers were shipped with the treble switch in the “–”

position, providing the most linear frequency response. If you

desire more treble, move the switch to the “+” position, and the

tweeter will play 3dB higher. To return to the neutral setting, push

the switch back to the “–” position. (See Diagram 4)

Woofer Adjustment (W680, W690, W800 & W850):

The switch labeled BASS allows for 3dB of bass adjustment. Your

speakers were shipped with the bass set to “–”. This setting pro-

vides the flattest bass frequency response. If you desire more

bass, push the switch to the “+” position and the bass will play 3dB

higher. To return to the neutral setting, push the switch back to

the “–” position. (See Diagram 4)

SPEAKER ADJUSTMENTS

The unique integral six-foot mounting system incorporated into

each Wall Series speaker allows for a quick installation by following

these easy steps:

1. Remove the grille. It may be necessary to push one or two of

the mounting screws and its attached foot towards the baffle

and against the inside surface of the grille to force the grille out

of its retaining groove.

2. Attach the speaker cable (observing the proper polarity with

your amplifier, + to + and – to –). Make sure the left channel

of the amplifier is connected to the left speaker, and the right

channel is connected to the right speaker.

3. Make sure the mounting feet are turned inward to clear the

opening, and insert the speaker into the wall. Position the

speaker into the hole.

Note: The flange of the speaker is designed to flex and conform to

any small imperfections in the wall’s surface. Tighten the six screws

on the front of the baffle only enough to make the flange become

snug against the wall. As you tighten the screws, the feet will

automatically flip into an outward position , thereby (See Diagram 5)

clamping the drywall between the feet and the flange. CAUTION:

Over-tightening may warp the baffle, crack the wall, cause

the flange to distort, and make the grille difficult to install.

4. Push the grille firmly into the slot in the speaker baffle.

SPEAKER INSTALLATION

Diagram 5:

Mounting Feet

Diagram 3:

Tweeter

Push Tweeter Here

Diagram 4:

Adjustment Switches

Bass Adjustment Switch

Treble Adjustment Switch

If you plan to paint your speakers, we recommend that it be done

prior to installation. If you plan to paint your speakers sometime in

the future, it is best to remove them by simply reversing the steps

for “SPEAKER INSTALLATION” above.

If it is necessary to paint the speakers when they are in the wall,

the paint masks provided in the carton must be installed between

the grille and flange while they are being painted with the wall.

Before painting your speakers, remove the material under the

grilles. Once the speakers have been painted, return the material

back into place.

Great care should be taken not to clog the holes of the grille, as

this will reduce the sound quality of the speakers.

Proficient Audio Systems recommends only light spray painting

using 5 parts thinning agent to 1 part paint.

PAINTING THE SPEAKERS
