QUICK START GUIDE
CB-MXSA-07 Rough-In Box and Cover Plate for 7" Wall Mount
Modero X/S Series Touch Panels & AMX RoomBook Scheduling Panels
Overview
The CB-MXSA-07 Rough-In Box (FG039-18) is an optional accessory for MXD-701
(Modero X Series) and MSD-701 (Modero S Series) 7” Landscape Wall Mount Touch
Panels, as well as the RMBK-701 7” AMX RoomBook Scheduling Panel. It allows the
panel back box to be mounted directly to the studs/pre-wall and includes a wall box and
mounting screws.
The back of the Modero X/S/RMBK 7” Wall Mount Touch Panel is contained within a
plastic outer housing or back box, and the back box attaches to the Rough-In Box. The
Rough-In Box kit includes a wall box and cover and mounting screws.
WARNING: In order to guarantee a stable installation of the touch panel, the distance
between the CB-MXSA-07 and the outer wall surface must be a minimum of .50 inches
(1.27cm) and a maximum of .1.50 inches (3.81cm).
Refer to the 95-5968-35 diagram for detailed installation dimensions.
Specif ications
Pre-Wall Installation of the CB-MXSA-07 Rough-In Box
1. Remove the rough-in box cover (B in FIG. 1) before installation of the Rough-In
Box (A). Note: the cover MUST be removed before drywall installation. The cover
may be reinstalled after drywall installation using 4-40 screws (not included).
2. Fasten the CB-MXSA-07 rough-in box to the stud through the holes on the Stud
Mounting tabs, using either nails or screws (not provided).
Additional framing or blocking may be desired for a more robust mounting.
3. Remove the appropriate wiring knockouts from the rough-in box to accommodate
the cables being threaded through to the Touch Panel.
4. Thread the incoming Ethernet and USB wiring through the knockouts. Using the
left wiring knockouts for USB connector cables and the right wiring knockouts for
the LAN/PoE In cable is very highly recommended with this installation. Leave
enough slack in the wiring to accommodate installation of the docking station.
5. Install the drywall/sheetrock before inserting the back box for the CB-MXSA-07.
Cut out the opening for the Wall Mount Touch Panel back box where the wall has
been placed over the Rough-In Box. Cutting out the surface slightly smaller than
what is outlined in the installation drawings, so that you can make any necessary
cutout adjustments, is very highly recommended.
NOTE: The front cover of the CB-MSA-07 (B in FIG. 1) should be installed after the
appropriate wiring is pulled to the Rough-In Box. The cover should then be removed
prior to the installation of the touch panel back box and discarded.
Do not discard the cover screws.
6. Remove the matching knockouts on the touch panel’s Back Box. Install the touch
panel’s Back Box into the opening, allowing the stand-ups for the cover screws to
pass through the back of the Back Box. Secure the Back Box to the Rough-In Box
with the cover screws, pass the touch panel’s wiring through the Back Box
knockouts, and install the touch panel.

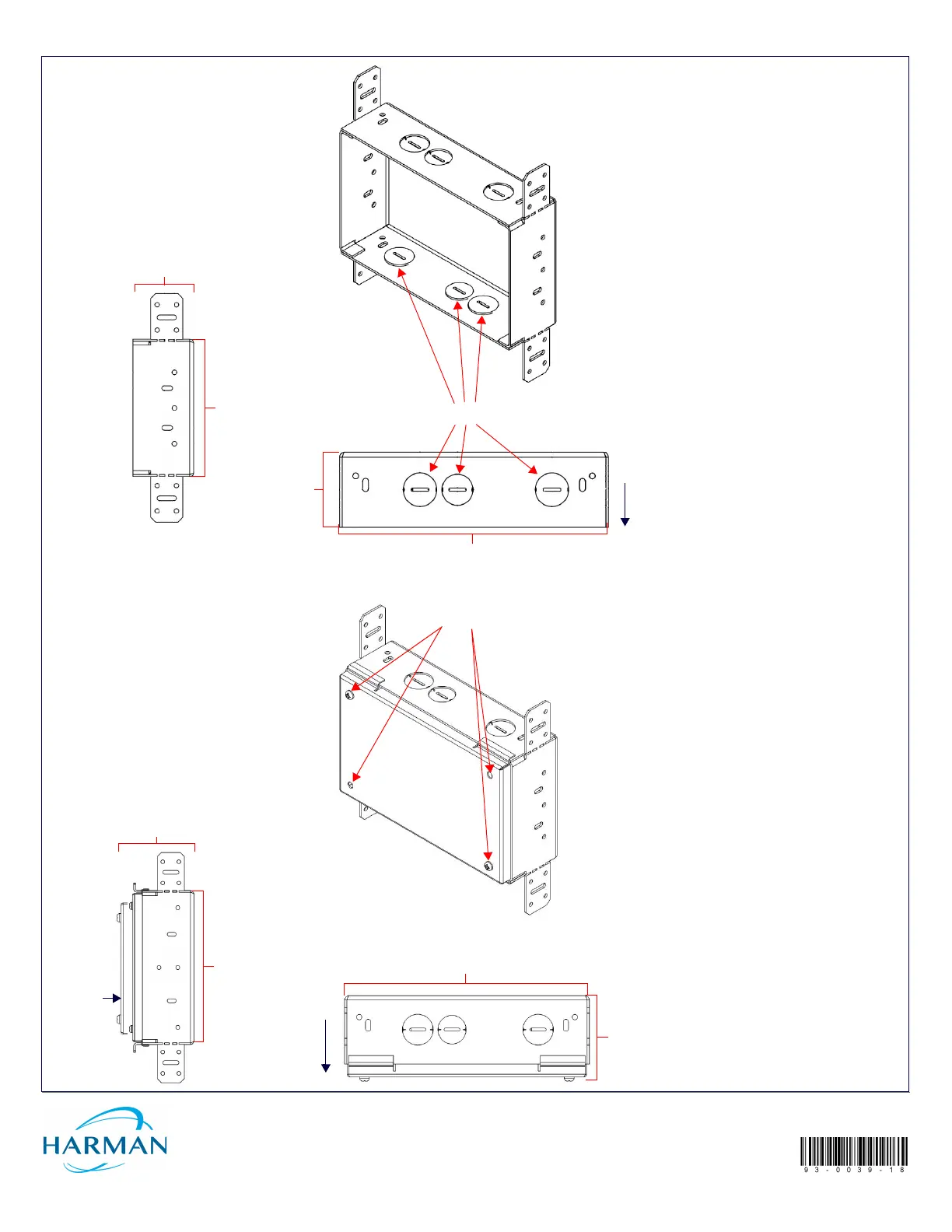

FIG. 1 CB-MXSA-07 ROUGH-IN BOX - WITH FRONT COVER
7.19”
(18.27 cm)
A
B
6.81”
(17.30 cm)
4.32”
(10.97 cm)
Rough-In Box
Rough-In Box
Cover
With Cover
Without Cover
CB-MXSA-07 SPECIF ICATIONS
Touch Panel
Compatibility
• MXD-701-L Modero X Series 7” Wall Mount (FG5968-55)
• MSD-701-L2 Modero S Series 7” Wall Mount (FG2265-32)
• MSD-701-L Modero S Series 7” Wall Mount (FG2265-02)
• RMBK-701 7” AMX RoomBook Scheduling Touch Panel (FG2265-37)
Dimensions (HWD) • Rough-In Box: 7.19" x 6.81" x 1.90" (18.27cm x 17.29cm x 4.82cm)
• Cover Plate: 4.44” x 6.81” x 0.36” (11.28cm x 17.29cm x 0.91cm)
Weight • With cover: 1.65 lbs (0.75 kg)
• Without cover: 1.20 lbs. (0.54 kg)
Certifications • cTUVus Listed
• UL Listed
Included
Accessories:
• Cover Plate for Rough-in Box (62-5968-37)
• Mounting Screws (8), #8-32 X 2.00 (80-5967-03)

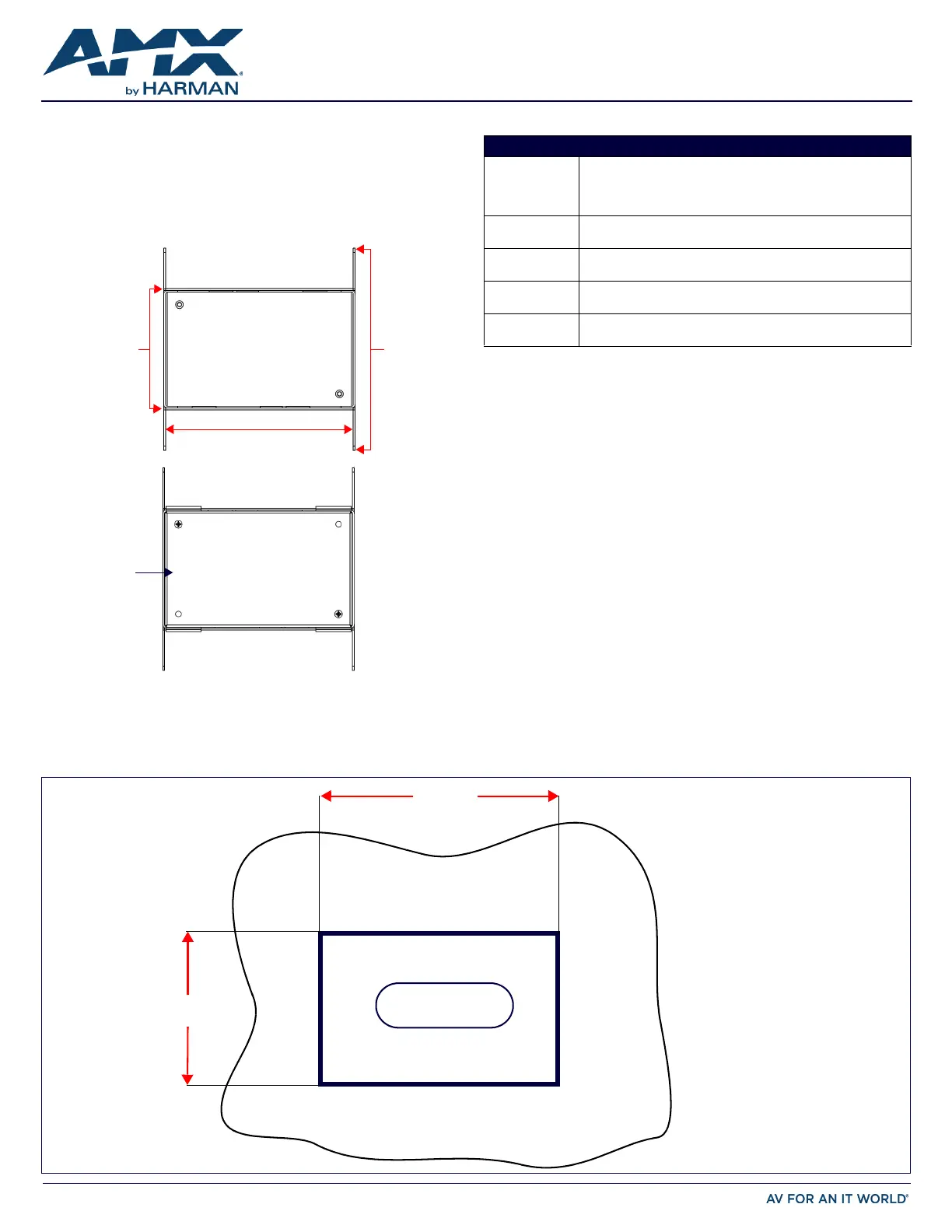

Recommended
Wall Cutout
for the CB-MXSA-07
4 3/8”
(11.20 cm)
6 13/16”
(17.30 cm)
