QUICK START GUIDE
UPX Universal Transmitter Wallplates
Overview
The UPX Universal Transmitter Wallplates convert one audio/video source over a single
Cat5 cable with power supplied from the receiver. There are three types of wallplates,
each supporting a different type of connection: Component (FG1402-52), Composite
(FG1402-50), and RGB (FG1402-51). Each type of wallplate is available in US, UK,
European, and Decora versions (see FIG. 1).
Note: AMX has evaluated several types of category cable for use with UPX wall plates. Of
the cable types tested, CAT-5e offers optimal performance for UPX analog signal routing
and AMX recommends Belden part number 1583a for best performance. CAT-6 category
cable however has demonstrated wide variance in performance across manufacturers
and cable part numbers, and therefore AMX recommends that customers needing to
install CAT-6 cable pre-test the desired cable model with UPX wall plates at the desired
lengths prior to installation.
AMX is currently evaluating additional Cat-6 and Cat-7 model numbers for compatibility,
and will publish recommended model numbers upon results of the evaluation.
The following table lists the specifications for the UPX Universal Transmitter Wallplates:
NOTE: Extended Display Identif ication Data (EDID) is not passed by the UPX Universal
Transmitter Wallplates.
Mounting Specifications
The dimensions for each wallplate version are identical, regardless of connection type.
Refer to the following images for dimensions of the wallplates:
US Version

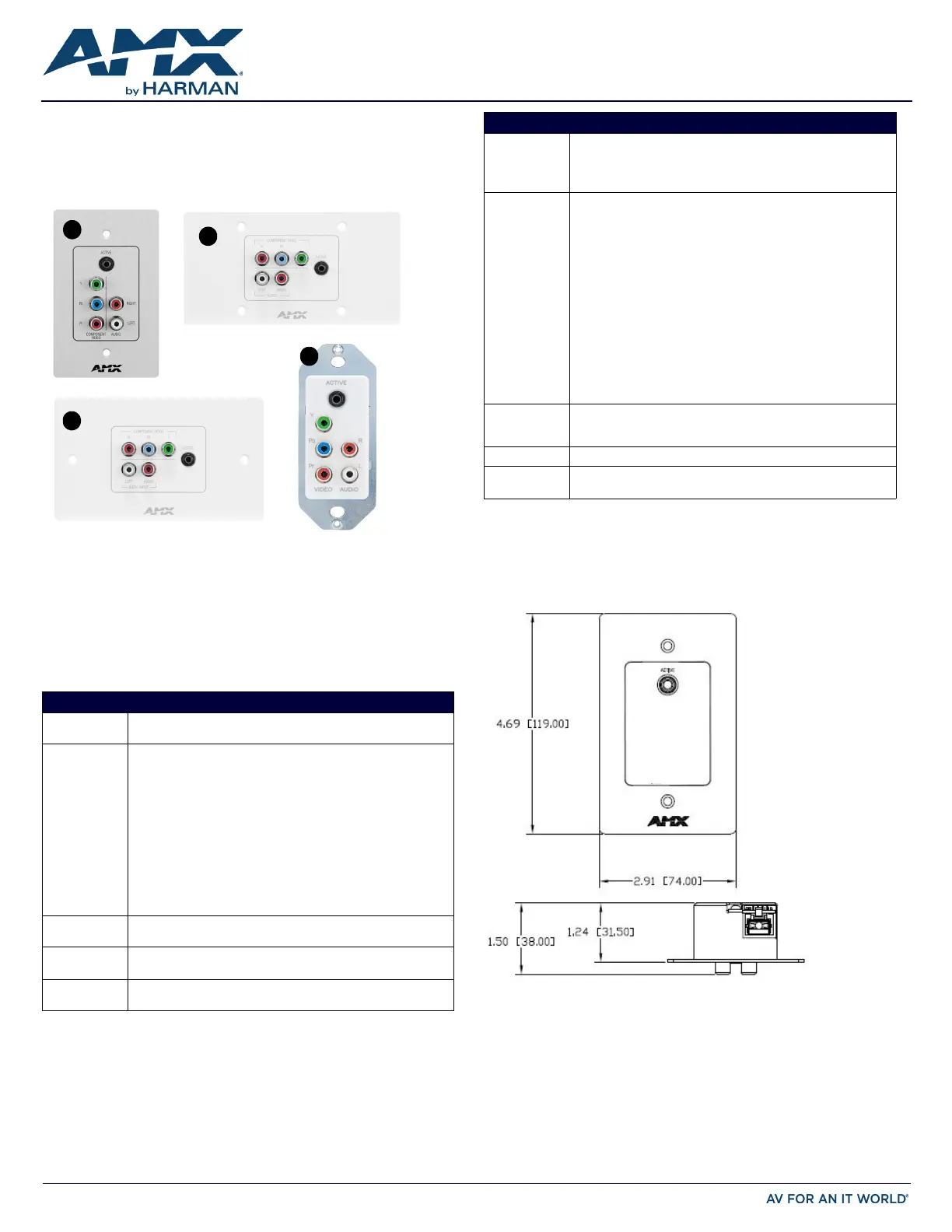

FIG. 1 COMPONENT WALLPLATE VERSIONS
UPX UNIVERSAL TRANSMITTER WALLPLATE SPECIF ICATIONS
Power: Power received over Cat5 connection from either the AVX-400 Cat5
Presentation Switcher or DVX-2100HD Total Environment Controller.
Front Panel
Components:
Component Wallplate (UPX-CN+A):
1 Active button
3 female RCA connectors for component video signals
2 female RCA connectors for audio signals
Composite Wallplate (UPX-CS+A):
1 Active button
1 RCA (Y) connector for connecting to a composite source
2 female RCA connectors for audio signals
RGB Wallplate (UPX-RGB+A):
1 Active button
1 HD-15 connector for connecting to the source
1 3.5mm/1/8" Stereo jack for source audio connection
Rear Panel
Components:
1 RJ-45 connector for receiving power from the receiver and
transmitting audio and video source signals
Operating
Environment:
Storage Temperature: -10º C to 7 C (14º F to 158º F)
Operating Temperature: 0º C to 40º C (32º F to 104º F)
Mounting: Mounts into US single gang and UK and European double gang back
boxes.
Continued
12
3
1 - US
2 - EU
3 - UK
4 - DE
4
UPX UNIVERSAL TRANSMITTER WALLPLATE SPECIFICATIONS (CONT.)

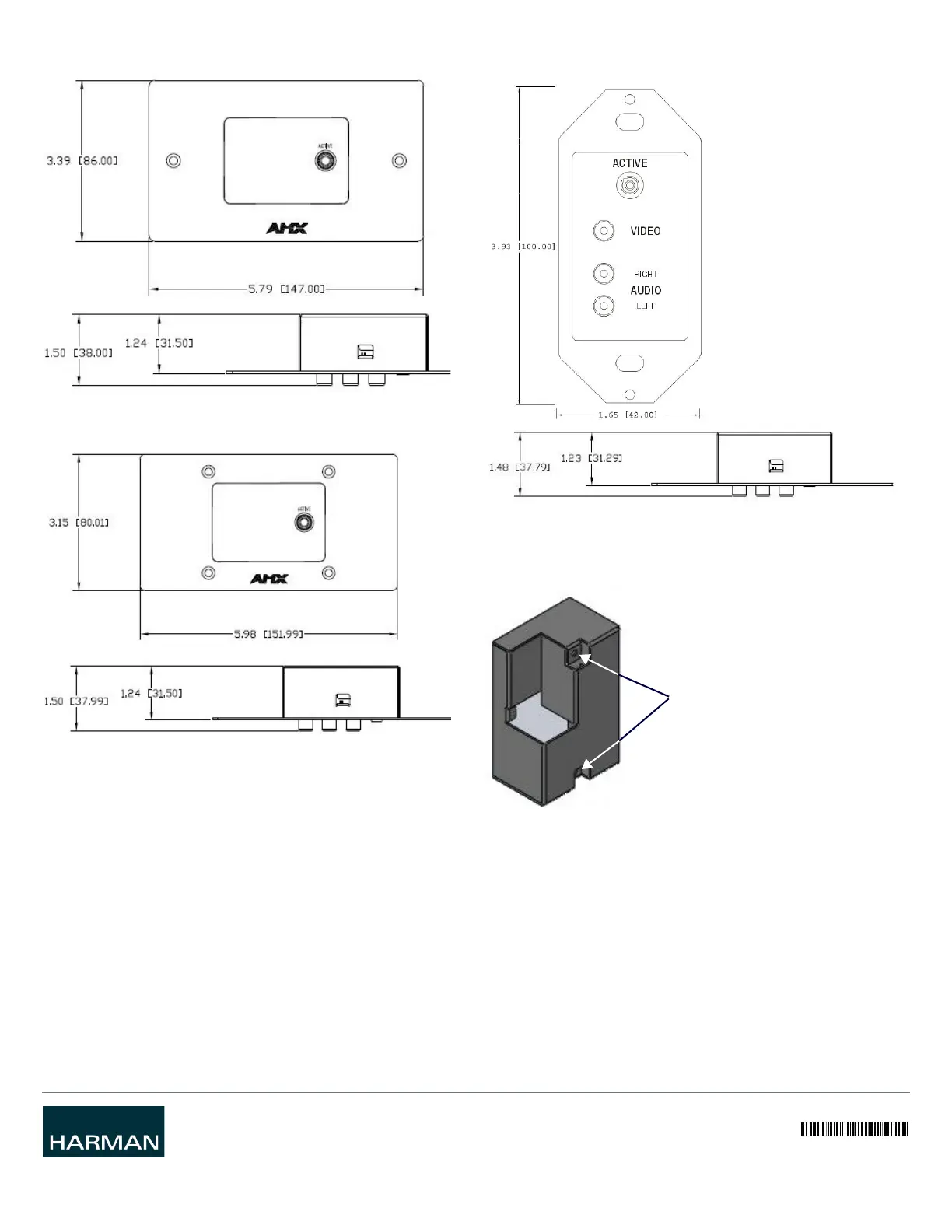

Dimensions
(HWD):
US: 4 11/16" (11.9 cm) x 2 15/16" (7.4 cm) x 1 1/4" (3.15 cm) HWD
UK: 3 3/8” (8.6 cm) x 5 13/16” (14.7 cm) x 1 1/4" (3.15 cm) HWD
EU: 3 1/8” (8 cm) x 6” (152 cm) x 1 1/4" (3.15 cm) HWD
DE: 3 15/16” (10 cm) x 1 5/8” (4.2 cm) x 1 1/4” (3.13 cm) HWD
Weight: Component Wallplate (UPX-CN+A):
US: 3.32 oz. (0.0942 kg)
UK: 4.66 oz. (0.1322 kg)
EU: 4.41 oz. (0.1252 kg)
DE: 3.24 oz. (0.1918 kg)
Composite Wallplate (UPX-CS+A):
US: 3.06 oz. (0.0868 kg)
UK: 4.36 oz. (0.1238 kg)
EU: 4.26 oz. (0.1208 kg)
DE: 3.02 oz. (0.0855 kg)
RGB Wallplate (UPX-RGB+A):
US: 3.31 oz. (0.0938 kg)
UK: 4.73 oz. (0.1343 kg)
EU: 4.52 oz. (0.1283 kg)
DE: 3.23 oz. (0.0915 kg)
Color Schemes: The US, EU, and UK wallplates are available in three color schemes:
Black (B), White (W), and Brushed Aluminum (AL). Decora wallplates
are available in Black (B), and White (W).
Certifications: FCC Class B, CE, and IEC60950
Included
Accessories:
UPX Universal Transmitter Wallplates Installation Guide (93-1402-50)
Main to I/F Grounding Cable (64-2250-32)
FIG. 2 US DIMENSIONS
