Overview
The HPX-600/900/1200 family of HydraPort Connection Ports (FG560-xx-
cc) are built to accommodate the diverse connection needs of conference
and meeting room visitors.
The HPX-600/900/1200 is designed to be mounted into a horizontal
surface such as a conference room table or lectern in order to provide
connectivity for power, networking, Audio/Video and control.
Specific connectivity is accomplished by populating the HPX Base
Assembly with various modules.
AMX offers 6 versions of the HPX-600/900/1200 Hydraport Base
Assemblies with a variety of compatible modules:
ATTENTION: Only a professional, AMX-qualified installer should
perform this installation. Installation must conform to all local codes.
This product may not be installed by the end-user.
Product Specifications
Compatible HPX Modules and Panels
HPX-600/900/1200 Hydraport Base Assemblies are compatible with the
following HPX Modules and Panels:
FIG. 1 HPX-600/900/1200 Hydraport Base Assembly
HPX-600/900/1200 Hydraport Base Assemblies
HPX-600-BL FG560-01-BL Hydraport Base Assembly, 6M Capacity,
Black Trim
HPX-600-SL FG560-01-SL Hydraport Base Assembly, 6M Capacity,
Silver Trim
HPX-900-BL FG560-02-BL Hydraport Base Assembly, 9M Capacity,
Black Trim
HPX-900-SL FG560-02-SL Hydraport Base Assembly, 9M Capacity,
Silver Trim
HPX-1200-BL FG560-03-BL Hydraport Base Assembly, 12M Capacity,
Black Trim
HPX-1200-SL FG560-03-SL Hydraport Base Assembly, 12M Capacity,
Silver Trim
HPX-600/900/1200 Specifications
Number of Modules
Supported:
Module sizes are provided in "HydraPort units".
Modules range in size from 1/2 to 4 1/2 HydraPort units
• HPX-600 - six (6) single-space modules
• HPX-900 - nine (9) single-space modules
• HPX-1200 - twelve (12) single-space modules
Enclosure • Black anodized metal frame with matte black plastic end
caps (HPX-600/900/1200-BL - FG560-xx-BL).
• Clear anodized metal frame with matte black plastic end
caps (HPX-600/900/1200-SL - FG560-xx-SL).
• Matte black module face plates on all I/O modules.
Optional Accessories: Compatible HPX Modules and Panels (see below)
Dimensions (HWD):
Max above mounting
surface:
• 0.31" (7mm) with lid open
• 0.13" (3mm) with lid closed
Max below mounting
surface:
6.94" (175 mm)
Mounting surface
footprint:
• HPX-600 - 8.19" x 5.44" (208mm x 138mm)
• HPX-900 - 11.16" x 5.44" (283mm x 138mm)
• HPX-1200 - 14.09" x 5.44" (358mm x 138mm)
Min. mounting
surface thickness:
• Min: 0.75" (19mm)
• Max: 2.0" (51 mm)
Table Cutout
Dimensions:
• HPX-600 - 7.64" x 4.84" (194mm x 123mm)
• HPX-900 - 10.59" x 4.84" (269mm x 123mm)
• HPX-1200 - 13.54" x 4.84" (344mm x 123mm)
Weight:
Base Assembly only: • HPX-600 - 1.8lbs (0.82Kg)
• HPX-900 - 2.4lbs (1.1Kg)
• HPX-1200 - 2.8lbs (1.3Kg)
Typical Installation: • HPX-600 = 2.6lbs (1.2Kg)
• HPX-900 = 3.3lbs (1.5Kg)
• HPX-1200 = 4lbs (1.8Kg)
Certifications: UL 962A
HPX-AV101-HDMI FG552-24 Single HDMI Module with Integrated Cable
HPX-AV101-DVI Single DVI Module with Integrated Cable
HPX-AV101-DVI+A FG552-22 DVI with Stereo Module with Integrated Cables
HPX-AV101-RGB+A FG552-21 RGB with Stereo Module with Integrated Cables
HPX-C5400-CS+A FG552-50-BL-K Composite with Stereo UPX Cat5 Kit with HPX
Carrier Module
HPX-C5400-VGA+A FG552-51-BL-K RGBHV with Stereo UPX Cat5 Kit with HPX
Carrier Module
HPX-C5400-CN+A FG552-52-BL-K Component with Stereo UPX Cat5 Kit with HPX
Carrier Module
HPX-N100-RJ45 FG553-01 Single RJ-45 Module
HPX-N102-RJ45 FG553-02 Dual RJ-45 Module
HPX-N100-USB FG553-11 Single USB Module
HPX-CPT200-W FG562-41 HydraPort Cable Pass-Thru Module
HPX-U200-MOD FG554-81 Modero Connection Module
HPX-P200-PC-US FG561-01 Power Outlet (US) Module
HPX-P250-PC-UK FG561-11 Power Outlet (UK) Module
HPX-P200-PC-EU FG561-21 Power Outlet (EU) Module
HPX-P200-PC-AU FG561-31 Power Outlet (AU) Module with Cord
HPX-P250-PC-IN FG561-41 Power Outlet (IN) Module
HPX-B050 FG558-01 1/2 M Blank Panel
HPX-B100 FG558-02 1 M Blank Panel
HPX-B200 FG558-03 2 M Blank Panel
HPX-B050-L FG558-11 1/2 M Custom Label Panel
HPX-B100-L FG558-12 1 M Custom Label Panel

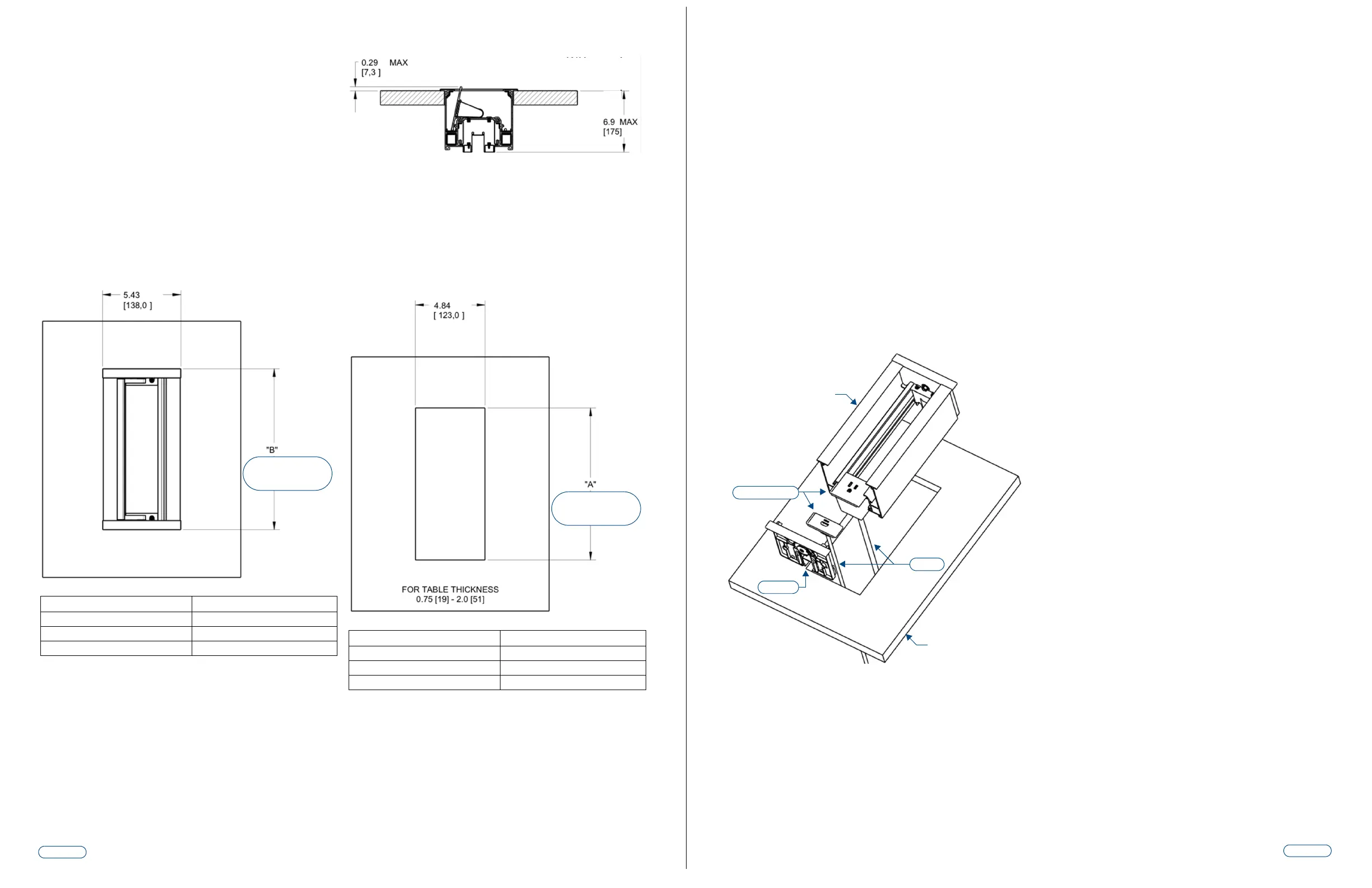

5) Install the System Into The Mounting Surface
1. Install the unit into the cutout in the mounting surface.
• Make sure that all cables from the backside terminations pass through
the cutout.
• For terminations for which the far end of the cable is not accessible
(either because the cable has been run under carpet, in a conduit or
structure, or is otherwise fixed), the cable must be placed through the
cutout in the table prior to installation, as indicated in FIG. 5.
2. Open the door and rotate the four mounting screws located inside and
at each end of the HPX base assembly in order to rotate the retaining
tabs out under the mounting surface.
Note: Make sure that the retaining tabs are down and folded out of the
way prior to installing the unit in the mounting surface.
3. Continue to tighten the mounting screws until the mounting tabs
contact the backside of the mounting surface to retain the HPX
Assembly (FIG. 6).
Note: For surfaces less than ¾" (19mm) thick, use the supplied plastic
spacers by fixing them to each end of the cutout using the supplied double
sided tape (FIG. 7).
6) Install the System Into the Mounting Surface
1. Terminate the backside connections as required for each cable exiting
the HPX system.
2. Secure these cables and the power cable to either of the end caps
using the supplied wire ties (FIG. 8).
3. Secure the cables in at least one additional location after they have
been secured to the system so as to prevent undue stress on the
system if the cables are inadvertently kicked, snagged or pulled.
Note: The socket-outlet (Connection to Mains Power branch circuit) shall
be installed near the equipment and shall be easily accessible.
Additional Documentation
For more detailed installation instructions with additional drawings, please
refer to the HPX-600/900/1200 Installation Guide, available to view or
download from www.amx.com.

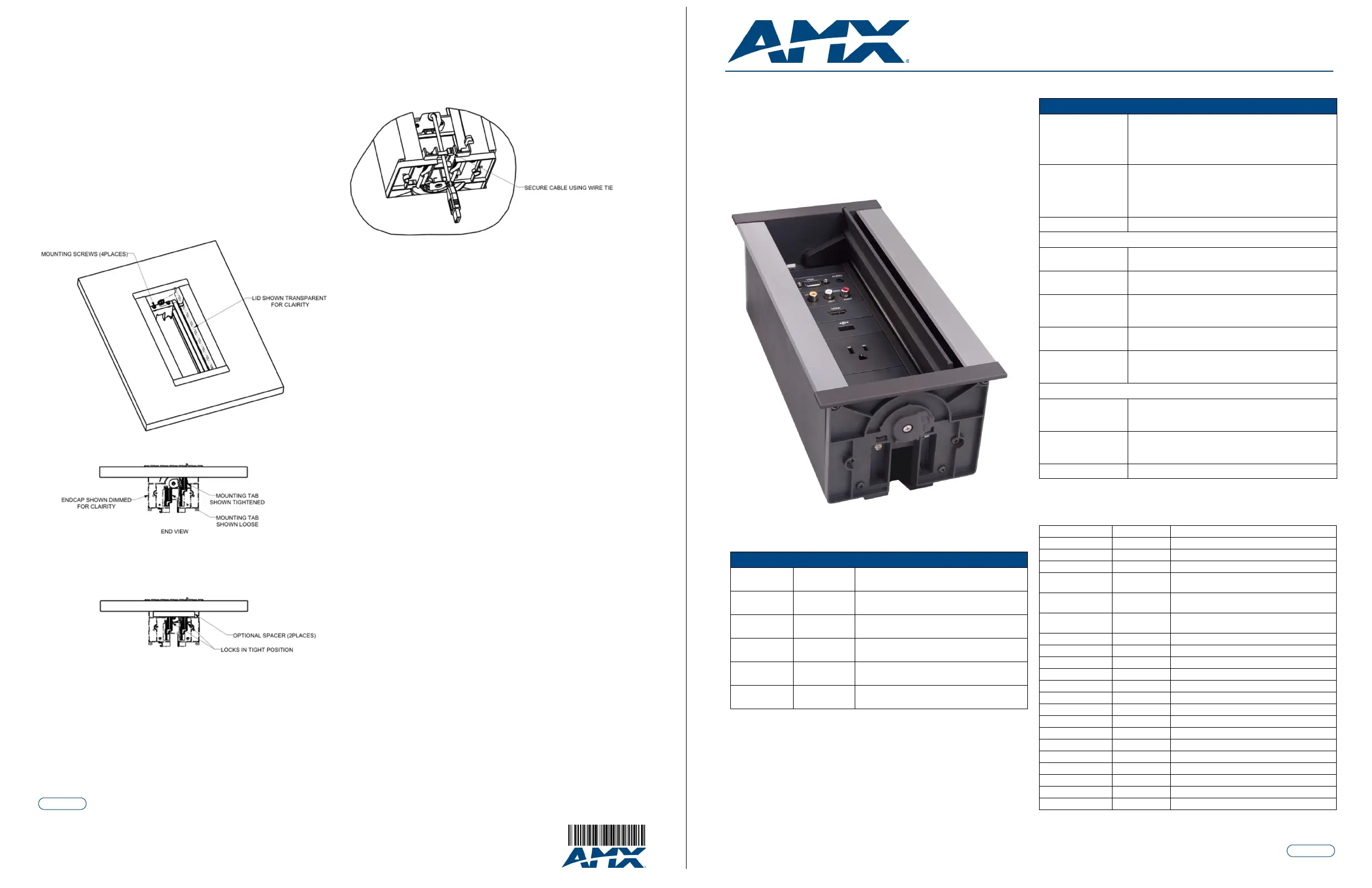

FIG. 6 Mounting Screws & Mounting Tabs
FIG. 7 Optional spacer and mounting tabs deployed
FIG. 8 Bottom view with cables exiting and secured
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
4/12
©2012 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
93-0560-01 REV: B
