QUICK START GUIDE
MSA-MMK/2-xx Multi Mount Kits for Wall Mount
Modero S Series Touch Panels & AMX RoomBook Scheduling Panels
MSA-MMK/2 Multi Mount Kits
The MSA-MMK/2-xx Multi Mount Kits are designed to mount Modero S Series Wall
Mount Touch Panels and AMX RoomBook Scheduling Panels to any smooth surface
without drilling or cutting, enhancing the beauty and functionality of glass, marble and
stone architecture with the sleek style of an AMX control interface (FIG. 1).
Models Available/Panel Compatibility
There are several versions of the Multi Mount Kits available to accommodate both
Modero S Series and AMX RoomBook Scheduling Touch Panels:
“MMK2” Multi Mount Kits
The MSA-MMK2-10 and MSA-MMK2-07 Multi Mount Kits are intended for use with
second-generation “-L2” Modero S Series (Landscape/Wall Mount), as well as all AMX
RoomBook Scheduling touch panels.
Note that the installation procedure for the second-generation MMK2 versions of the
kits is essentially the same as the first-generation MMK kits, with only a minor change
to the top hook design.
Product Specifications
Dimensions
MSA-MMK/2-10
FIG. 2 provides the dimensions of the MSA-MMK-10 and MSA-MMK2-10:
MSA-MMK/2-07
FIG. 3 provides the dimensions of the MSA-MMK-07 and MSA-MMK2-07:
MSA-MMK-43
FIG. 4 provides the dimensions of the MSA-MMK-43:
Surface Preparation
Since the Multi Mount Kits are designed to be installed onto smooth surfaces, special
considerations must be made to prepare the surface. Before installation, place the back
of the Back Box to the surface and verify the final placement of the Multi Mount Kit and
touch panel.
The Back Box should not be placed anywhere where it may interfere with foot traffic or
with the operation of doors or other items in the immediate environment.
The surface where the Multi Mount Kit needs to be installed should be cleaned with
alcohol or another solvent that will not damage the surface, and then allowed to dry
fully before the Multi Mount Kit is installed.
Note: Do not touch the installation area or the tape strips with bare hands, as skin oil
from your fingers may interfere with adhesion of the tape used for installation.

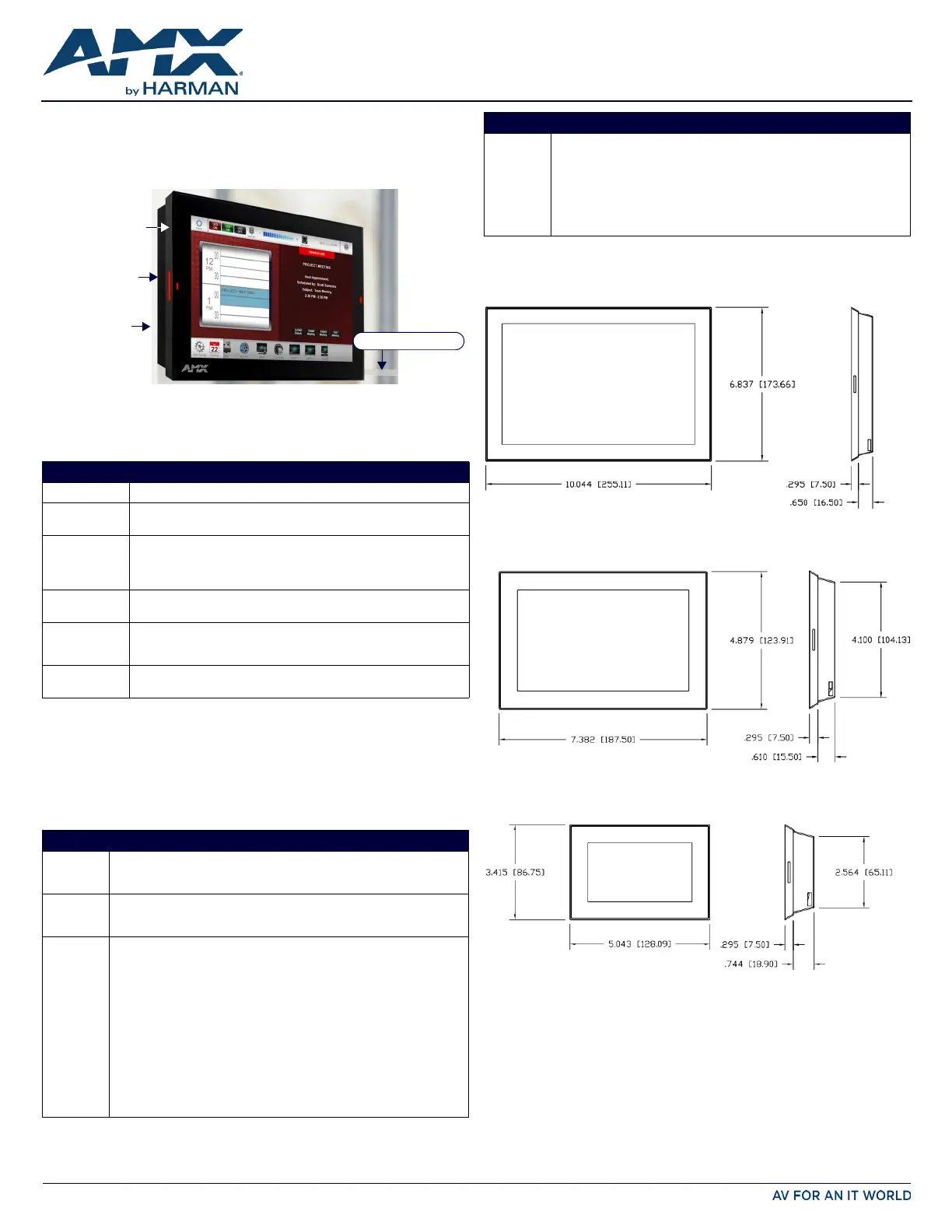

FIG. 1 MSA-MMK MULTI MOUNT KIT (EXAMPLE INSTALLATION)
MODELS AVAILABLE/PANEL COMPATIBILITY:
Multi Mount Kit For use with:
MSA-MMK-10
(FG2265-11)
MSD-1001-L (FG2265-01): 10.1" Modero S Series Landscape Wall
Mount Touch Panel
MSA-MMK2-10
(FG2265-21)
MSD-1001-L2 (FG2265-31): 10.1" Modero S Series Landscape Wall
Mount Touch Panel
RMBK-1001 (FG2265-40): 10.1” AMX RoomBook Scheduling Touch
Panel
MSA-MMK-07
(FG2265-12)
MSD-1001-L (FG2265-01): 10.1" Modero S Series Landscape Wall
Mount Touch Panel
MSA-MMK2-07
(FG2265-22)
MSD-701-L2 (FG2265-32): 7" Modero S Series Landscape Wall Mount
Touch Panel
RMBK-701 (FG2265-37): 7” AMX RoomBook Scheduling Touch Panel
MSA-MMK-43
(FG2265-13)
MSD-431-L (FG2265-03): 4.3" Modero S Series Landscape Wall Mount
Touch Panel
PRODUCT SPECIF ICATIONS
Dimensions
(HWD):
MSA-MMK/2-10: 6.84” x 10.04” x 0.95” (17.37cm x 25.51cm x 2.40cm)
MSA-MMK/2-07: 4.88” x 7.38” x 0.91” (12.39cm x 18.75cm x 2.25cm)
MSA-MMK-43: 3.42” x 5.04” x 1.04” (8.68cm x 12.81cm x 2.64cm)
Weight: MSA-MMK/2-10: 0.25 lbs (113.40 g)
MSA-MMK/2-07: 0.10 lbs (45.36 g)
MSA-MMK-43: 0.03 lbs (22.68 g)
Included
Accessories:
MSA-MMK/2-10:
Back Box (60-2265-11)
Modero S Multi Mount Cable Cover (2) (60-2265-32)
Ethernet Cable, Clear, with 8-pin Flat Connector (ECA2265-02)
UTP CAT.5E Black Snap-In Coupler (64-5968-01)
Tape, Double-Sided (66-2265-25)
HPG-10 HydraPort .75-Inch Grommet (FG570-10)
MSA-MMK/2-07:
Back Box (60-2265-12)
Modero S Multi Mount Cable Cover (2) (60-2265-32)
Ethernet Cable, Clear, with 8-pin Flat Connector (ECA2265-02)
UTP CAT.5E Black Snap-In Coupler (64-5968-01)
Tape, Double-Sided (66-2265-25)
HPG-10 HydraPort .75-Inch Grommet (FG570-10)
MSA-MMK
Multi Mount Kit
Mounting surface
Modero S Series
Touch Panel
Clear Ethernet cable

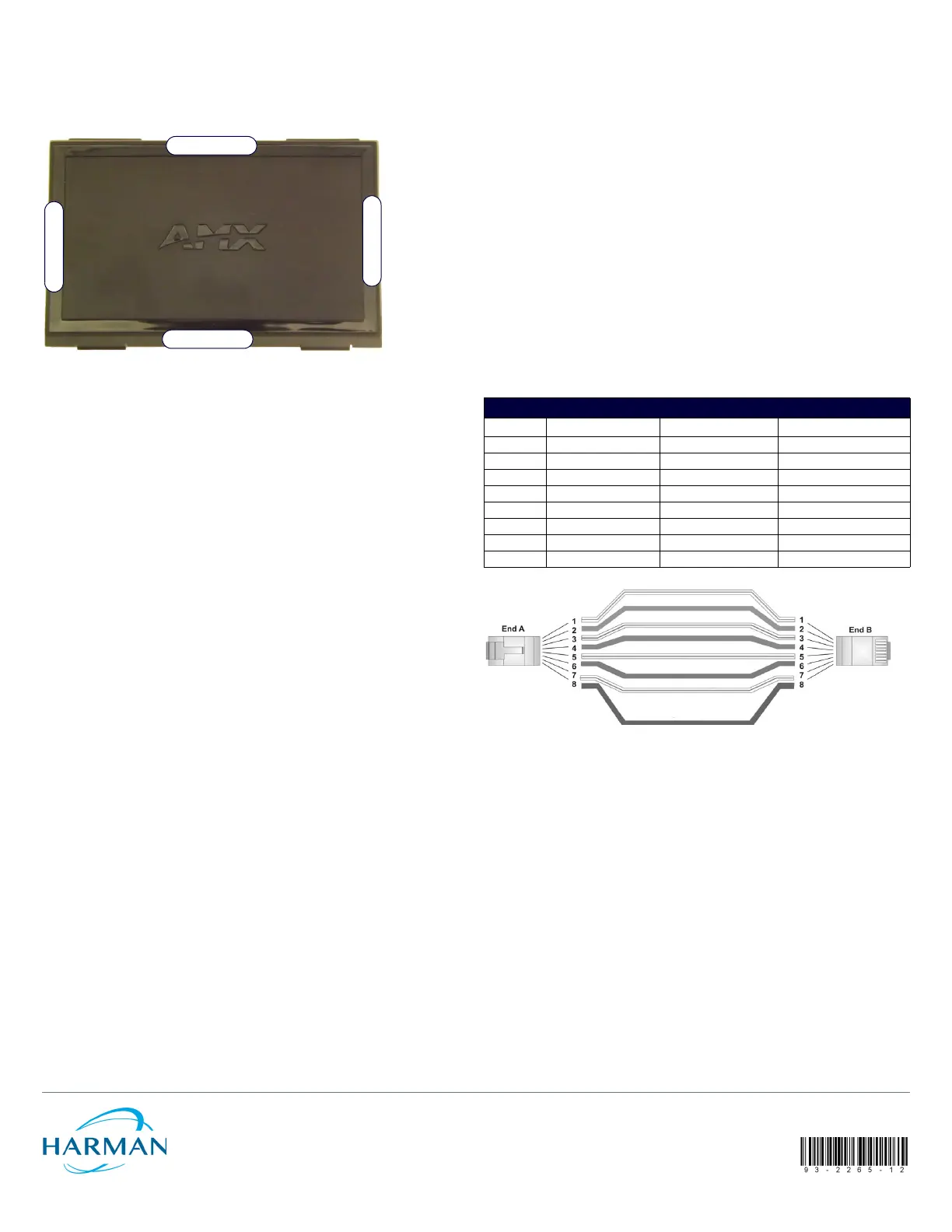

PRODUCT SPECIF ICATIONS (CONT.)
Included
Accessories:
MSA-MMK-43:
Back Box (60-2265-13)
Modero S Multi Mount Cable Cover (2) (60-2265-32)
Ethernet Cable, Clear, with 8-pin Flat Connector (ECA2265-02)
UTP CAT.5E Black Snap-In Coupler (64-5968-01)
Ferrite (04-0052)
Tape, Double-Sided (66-2265-25)
HPG-10 HydraPort .75-Inch Grommet (FG570-10)
FIG. 2 MSA-MMK/2-10: DIMENSIONS
FIG. 3 MSA-MMK/2-07: DIMENSIONS
FIG. 4 MSA-MMK-43: DIMENSIONS
