QUICK START GUIDE
MSA-STMK-07 Secure Table Mount Kit
MSA-STMK-07
The MSA-STMK-07 Secure Table Mount Kit (FG2265-17) is a beautifully styled plate
that, when attached to the Modero S MST-701 7” Tabletop Touch Panel (FG2265-06)
and secured with the under-table tamper-resistant bolts, will make it virtually theft-
proof (FIG. 1). If drilling into the table is not feasible, the secure mounting plate can be
attached to the touch panel (but not the table) and then secured with a Kensington ®
Lock. Both methods may be used simultaneously for extra security
Installation
The MSA-STMK-07 may be mounted in one of two ways: it can be affixed to a table or
other surface using the included hex head bolts and tamper-proof nuts, or it can be
allowed to move freely but constrained by a Kensington Lock cable. For additional
security, both options may be used at the same time.
NOTE: For the table mount installation, the tools necessary include a drill with a 1/4” bit,
a Phillips head screwdriver, and an adjustable-head box wrench. The Kensington Lock
installation requires use of a Phillips head screwdriver.
Table Mount Installation
To install the MSA-STMK-07 to a table or other surface:
1. Place the security mount base in the location where it is to be installed, taking
care not to put the mount base past the edge of the table.
2. Mark the location of the hex head bolt holes going through the security mount
base, such as by drilling through the holes into the table (FIG. 2). When drilling
through the holes, use a 1/4” drill bit to allow the bolts to pass through. Clean out
the drilling debris from the holes and from the surface of the table.
3. On the touch panel, turn the touch panel upside down and remove the 2 Phillips
head screws from the bottom of the device.
4. Install the hex head bolts through the security mount base (FIG. 2). Do NOT
secure the bolts in the table at this time.
5. Using the two Phillips flat head screws included in the kit, secure the security
mount base to the bottom of the touch panel from the underside of the base.
6. Pass the hex head bolts through the table.

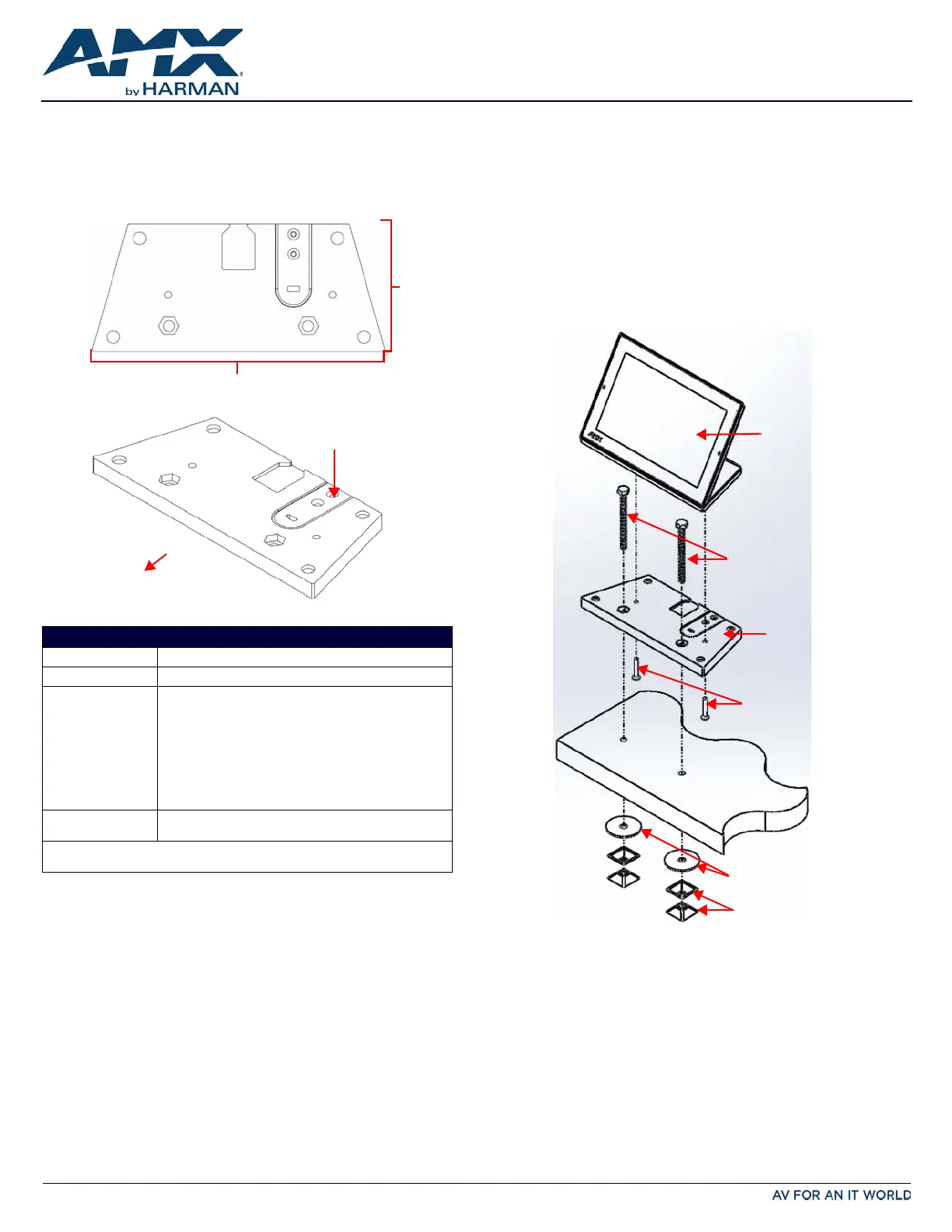

FIG. 1 MSA-STMK-07 SECURE TABLE MOUNT KIT
PRODUCT SPECIF ICATIONS
Dimensions (HWD): 0.43” x 7.34” x 3.20” (1.08 cm x 18.64 cm x 8.13 cm)
Weight: 0.95 lbs (0.43 kg)
Included Accessories: • Security Mount Base (62-2265-17)
• Kensington Lock Bracket (60-5968-50)
• Screw, 8-32 X .1.00, Torx Flat Head, Black (2) (80-5004)
• Screw, 6-32 X .375, Phillips Flat Head, Black (2)
( )80-5006
• Nut, 1/4-20, Tamper Proof (3) (80-5007)
• Washer, 1.5 Dia X .312 Thick , Nylon (2) (80-5008)
• Bolt, 1/4-20 X 3.00 Hex Head, Black (2) (80-5009)
• MSA-STMK-07 Quick Start Guide (93-2265-17)
Other AMX Equipment: • MST-701 7" Modero S Series Tabletop Touch Panel (FG2265-
06)
For more information on the MST-701 7" Modero S Series Tabletop Touch Panel, refer to
the MSD/T-701 Operation Reference Guide (available to view/download at www.amx.com).
Kensington
Lock Bracket
Front
3.20”
(8.13 cm)
7.34”
(18.64 cm)
Top
Oblique

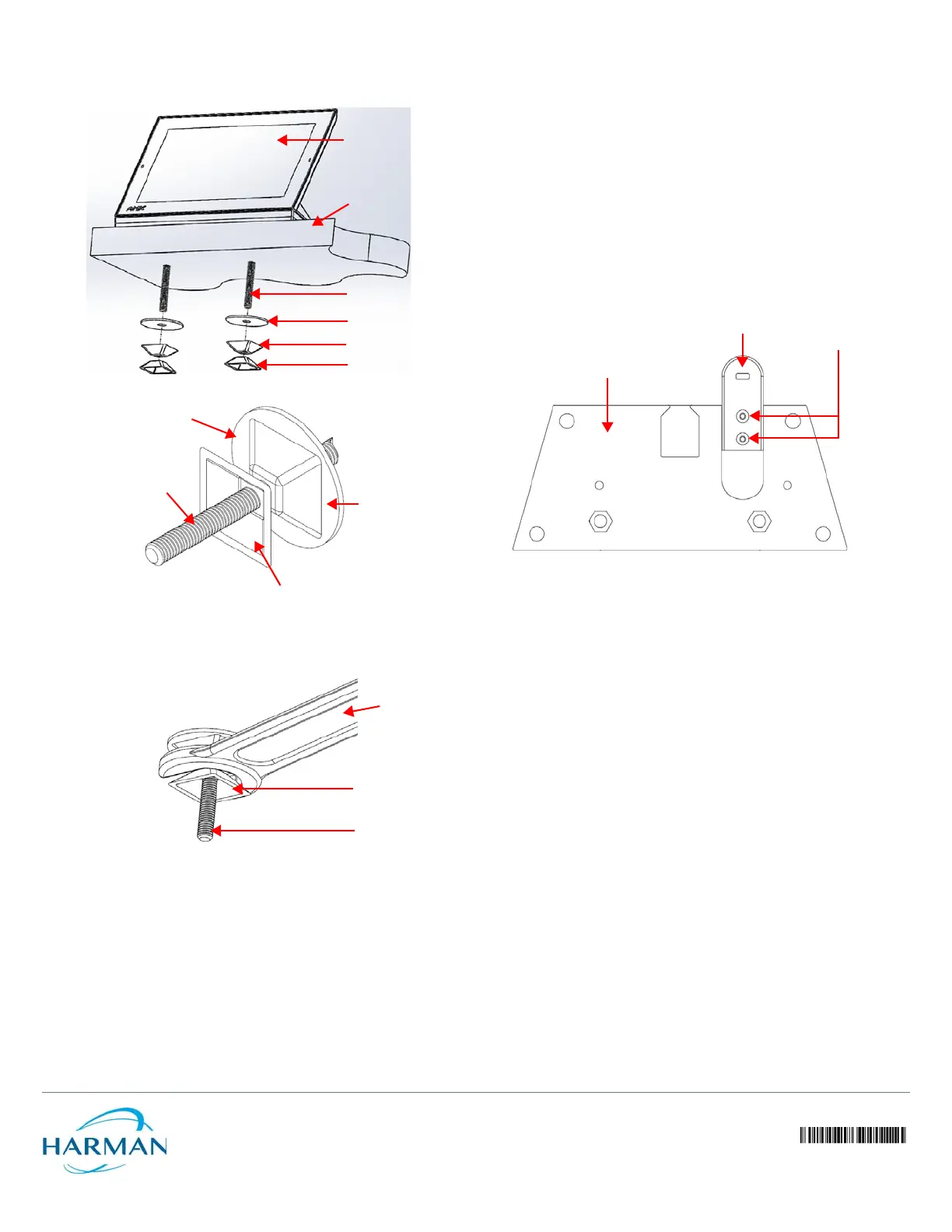

FIG. 2 INSTALLATION PROCEDURE, EXPLODED DIAGRAM
Washers
Tamper-Proof Nuts
Table surface
MST-701
Security Mount Base
Hex Head Bolts
Phillips Flat Head Screws
Table-side nut
Outside nut
