QUICK START GUIDE

MXA-FMK-43 Modero X Series® Flush Mount Kit

Overview

The MXA-FMK-43 Flush Mount Kit (FG5968-72) mounts the MXD-430 Modero X 4.3”

Wall Mount Touch Panel flush with the wall. Once installed, simply press lightly on the

touch panel and the spring-loaded mechanism extracts the panel just slightly for

access to the side buttons and enhanced speaker exposure.

This document describes a standard wall installation of the MXA-FMK-43 Flush Mount

Kit. For details on Installation Options for solid wall placement, refer to the MXA-FMK-

43 Solid Wall and Rough-In Box Installation Quick Start Guide.

Installation of the Flush Mount Kit

The MXA-FMK-43 Flush Mount Kit (“FMK”) is designed to attach the panel to most

standard wall and solid surface materials. The FMK has two locking tabs (one on each

side) to help lock the FMK to the wall.

• These locking tabs are only extended AFTER the Flush Mount Kit is inserted into

the wall.

• Using the locking tabs is highly recommended for standard mounting surfaces

such as walls.

WARNING: When installing the Flush Mount Kit, make sure that the assembly is in the

correct position and in the correct place. Once the locking tabs are extended and

locked into place, removing the Flush Mount Kit may be diff icult without having

access to the back of the wall or causing damage to the wall.

Note: In order to guarantee a stable installation of the MXA-FMK-43, the thickness of the

wall material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches

(2.22cm). The surface should also be smooth and flat.

1. After ensuring proper placement, cut out the mounting surface, using the MXA-

FMK-43 Cutout Template (68-5968-08) as a guide (FIG. 1).

CAUTION: The cutout dimensions shown will allow the unit to pass through without any

dragging or interference. The outer (dotted) lines show the perimeter of the mounting

flange. If any part of the cutout extends up to or beyond that perimeter, the cut edge will

be visible after installation, or the unit could fall through the opening.

A larger cutout reduces the available surface to support the unit when mounted, so the

cut should be as close to the indicated dimensions as possible. If the cutout is too small,

forcing the unit into place could result in mechanical binding, faulty operation, or damage

to the product. Always check for a proper fit before f inal installation.

2. Remove the knockout at the bottom right of the FMK, and thread the incoming

wiring through the knockout hole (FIG. 2).

3. Thread the incoming Ethernet wiring through the surface opening and through

the knockout.

4. Push the FMK flat into the mounting surface and secure with the locking tabs

(FIG. 3).

5. In order to prevent damage to the touch panel, make sure that any screws used

are flush with the FMK, and the FMK goes freely into the opening.

WARNING: The maximum recommended torque to screw in the locking tabs on the

plastic Flush Mount Kit is 5 IN-LB [56 N-CM]. Applying excessive torque while

tightening the tab screws, such as with powered screwdrivers, can strip out the

locking tabs or damage the plastic.

6. Insert each connector into its corresponding port on the back of the touch panel.

For more information, please refer to the Modero X Series G4 Touch Panels

Instruction Manual.

7. Test the incoming wiring by attaching the panel connections to their terminal

locations and applying power. Verify that the panel is receiving power and

functioning properly to prevent repetition of the installation.

Note: Do not disconnect the connectors from the touch panel. The unit must be

installed with the attached connectors before being inserted into the drywall.

PRODUCT SPECIF ICATIONS

Dimensions (HWD): 5.68” x 4.21” x 3.25” (14.43 cm x 10.69 cm x 8.25 cm)

Weight: 0.55 lbs (0.25 kg)

Included Accessories: • MXA-FMK-43 Cutout Template

• MXA-FMK-43 Drilling Template

• Mounting Screws (2) - #8-32 X 1.25", PPH, Black

• Spacers (2)

• Push-on Retainers (2) - #8, Nylon

Other AMX Equipment: • CB-MXP-43-F Flush Mount Rough-In Box/Cover Plate

(FG5968-82)

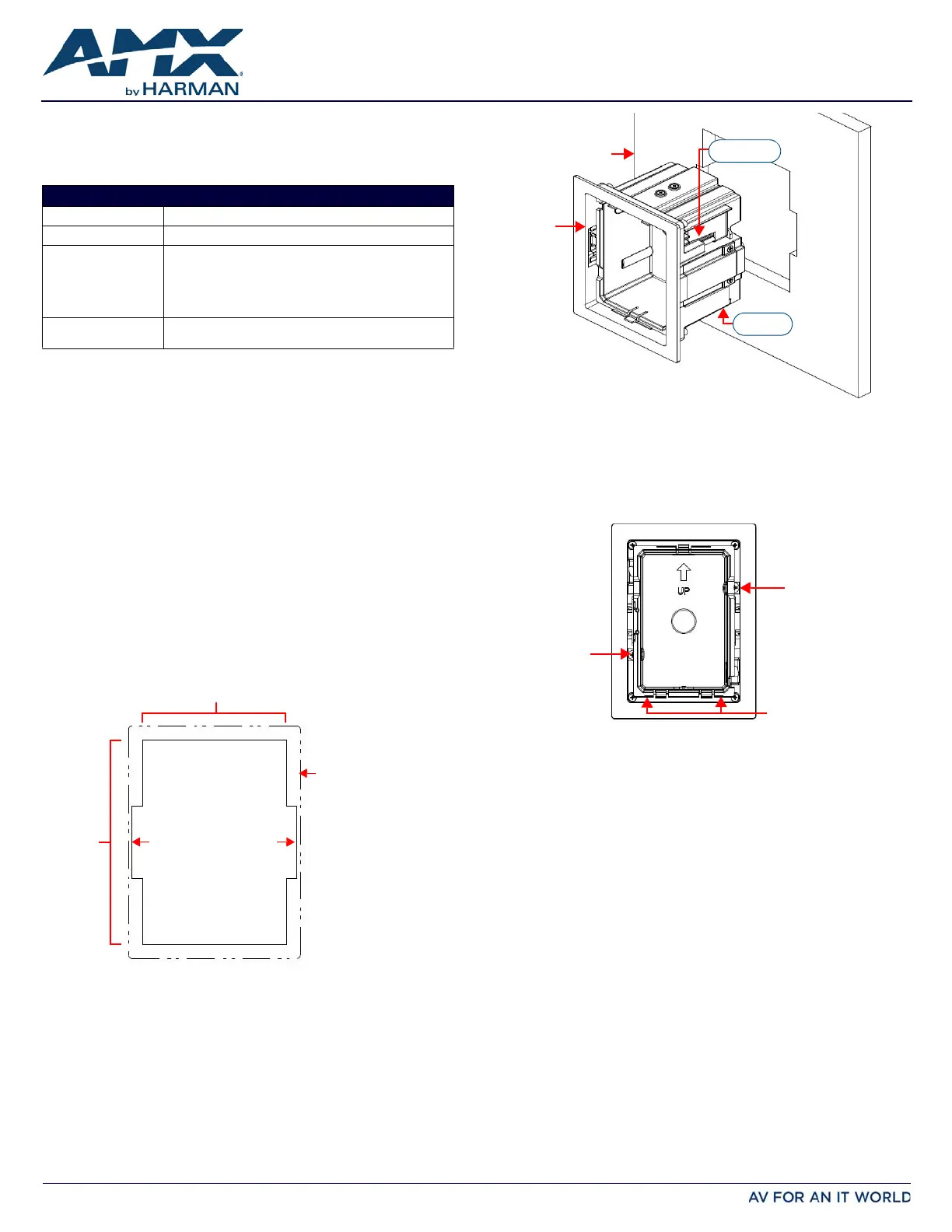

FIG. 1 MXA-FMK-43 CU TOUT TEMPLATE

5.00”

(12.69 cm)

3.52” (8.95 cm)

Perimeter of Flush

Note: Cut additional tabs

Mount Kit flange

on each side to allow room

for locking tabs.

FIG. 2 INSERTING THE MXA-FMK-43 INTO THE WALL SURFACE

FIG. 3 LOCKING TAB LOCATION ON THE MXA-FMK-43

Wall Surface

MXA-FMK-43

Locking Tab

Knockout

Locking Tab Screw

Use a screwdriver

or other flat tool

to hold the lower

edge of the back

box above the

case while snapping

down the touch panel.
