QUICK START GUIDE
MXA-RMK-07 Rack Mount Kit for 7" Modero X Series Landscape Touch Panel
Overview
The MXA-RMK-07 Modero X Series ® Rack Mount Kit (FG5969-63) is an optional accessory for
the MXD-700 7” Modero X Series Wall/Flush Mount Touch Panel (FIG. 1). The kit allows the
touch panel to be mounted directly on an equipment rack, and includes a rack mount frame,
screws and washers.
Product Specif ications
Installation of the MXA-RMK-07
The MXA-RMK-07 offers a stable installation mount for the MXD-700 through the panel’s Back
Box.
NOTE: The MXA-RMK-07 Rack Mount Kit may only be used with the landscape mount of the
MXD-700 touch panel (FG5968-14). It cannot be used with the portrait mount of the MXD-700.
NOTE: All doors, covers, and other obstacles preventing installation of the Rack Mount Kit should
be removed before installation is attempted. Due to the size of the Modero X Series panel, it may
not be possible to close racks that contain a rack door, once installation is complete.
To install the MXA-RMK-07:
1. Secure the Rack Mount Panel to the rack with #10 screws. Make sure that the
installation flanges (FIG. 2 and FIG. 3) face away from the front of the rack (FIG. 1).
2. Insert the Back Box into the Rack Mount Panel, making sure that the Back Box is in the
correct orientation. The standoffs on the installation flanges will pass through the Back
Box and help anchor it in place.
3. Pass a washer through a #6 screw and insert it in a standoff screw hole (FIG. 2). Repeat
this procedure at the opposite of the Back Box. Note that the Rack Mount Panel has only
two standoffs, located opposite each other on the Installation flanges.
WARNING: The maximum recommended torque to be used on the Back Box installation
screws is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the screws, such
as with powered screwdrivers, can strip out the screw holes or damage the plastic back
box. .
4. With the Back Box anchored in the Rack Mount Panel (FIG. 4), you may now install the
MXD-700 into the Back Box.
NOTE: For more information on installing the MXD-700 into its back box, please refer to the
MXD/T-700 Operation Reference Guide, available from www.amx.com.

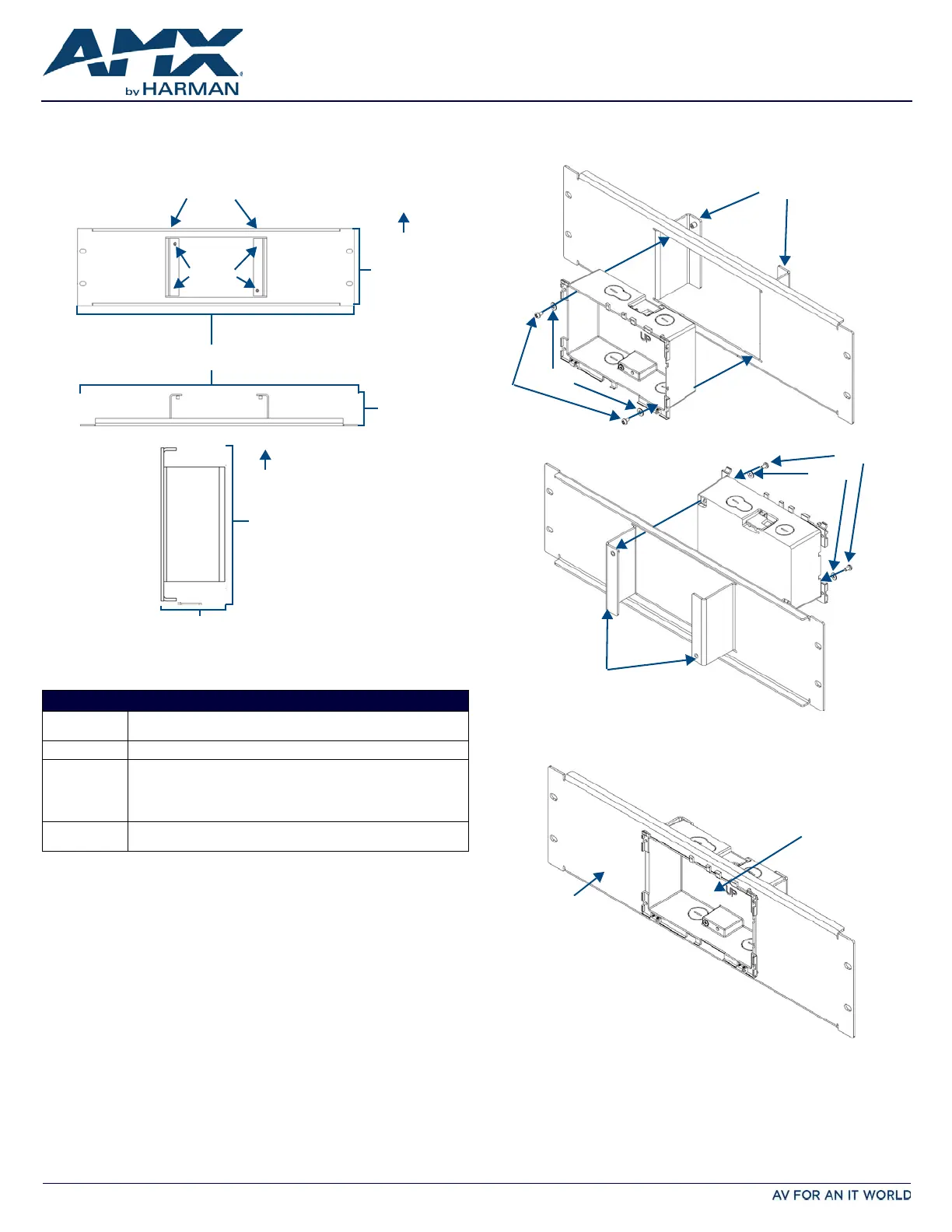

FIG. 1 MXA-RMK-07
MXA-RMK-07 (FG5969-63) SPECIF ICATIONS
Dimensions
(HWD):
6.97” x 19.00” x 2.09” (17.70 cm x 48.26 cm x 5.31 cm)
Weight: 2.75 lbs (1.25 kg)
Included
Accessories:
MXA-RMK-07 Installation Guide (93-5969-63)
Rack Mount Panel, 7" Modero Wall Touch Panel (62-5968-43)
Screws, #10-32 PFH 1.75" Long, Black (4) (80-5968-01)
Screws, #6-32 x .375, PPH, Black (2) (80-0138)
Washers, #6, Flat, 3/8 Diameter, .03 Thick, Stainless Steel (2) (80-0322-01)
Other AMX
Equipment:
MXD-700 7” Modero X Series Panoramic Wall Touch Panel, Landscape Mount
(FG5968-14)
19.00” (48.26 cm)
5.22”
(13.26 cm)
2.11”
(5.37 cm)
Front View
Top View
Side View
6.97”
(17.70 cm)
2.11”
(5.37 cm)
Up
Installation
Flanges
Standoffs
Up
FIG. 2 INSTALLATION OF THE BACK BOX INTO THE MXA-RMK-07, FRONT VIEW
FIG. 3 INSTALLATION OF THE BACK BOX INTO THE MXA-RMK-07, REAR VIEW
FIG. 4 FINAL ASSEMBLY OF THE MXA-RMK-07 WITH BACK BOX
Installation
Flange
Screws
Washers
Installation
Flange
Screws
Washers
Rack Mount Panel
Back Box


Produkt Specifikationer

Mærke: AMX
Kategori: Ikke kategoriseret
Model: MXA-RMK-07

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MXA-RMK-07 stil et spørgsmål nedenfor, og andre brugere vil svare dig
