QUICK START GUIDE
MXA-RMK-20 Rack Mount Kit for 20.3" Modero X Series Landscape Touch Panel
Overview
The MXA-RMK-20 Modero X Series® Rack Mount Kit (FG5969-60) is an optional accessory for
the MXD-2000XL-PAN 20.3” Modero X Series Panoramic Wall/Flush Mount Touch Panel
(FIG. 1). The kit allows the touch panel to be mounted directly on an equipment rack, and
includes a rack mount frame, screws and washers.
Product Specif ications
Installation of the MXA-RMK-20
The MXA-RMK-20 offers a stable installation mount for the MXD-2000XL-PAN through the
panel’s Back Box.
NOTE: The MXA-RMK-20 Rack Mount Kit may only be used with the landscape mount of the
MXD-2000XL-PAN touch panel (FG5968-11). It cannot be used with the portrait mount of the
MXD-2000XL-PAN.
NOTE: All doors, covers, and other obstacles preventing installation of the Rack Mount Kit should
be removed before installation is attempted. Due to the size of the Modero X Series panel, it may
not be possible to close racks that contain a rack door, once installation is complete.
To install the MXA-RMK-20:
1. Secure the Rack Mount Panel to the rack with #10 screws. Make sure that the
installation flanges (FIG. 2 and FIG. 3) face away from the front of the rack. The thinner
flange of the Rack Mount Panel should be at the top (FIG. 1).
2. Insert the Back Box into the Rack Mount Panel, making sure that the Back Box is in the
correct orientation. The standups on the installation flanges will pass through the Back
Box and help anchor it in place.
3. Pass a washer through a #6 screw and insert it in a standup screw hole (FIG. 2). Repeat
this procedure at each corner of the Back Box.
WARNING: The maximum recommended torque to be used on the Back Box installation
screws is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the screws, such
as with powered screwdrivers, can strip out the screw holes or damage the plastic back
box.
4. With the Back Box anchored in the Rack Mount Panel (FIG. 4), you may now install the
MXD-2000XL-PAN into the Back Box.
NOTE: For more information on installing the MXD-2000XL-PAN into its back box, please refer to
the MXD/T-2000XL-PAN Operation Reference Guide, available from www.amx.com.
FIG. 1 MXA-RMK-20 MODERO X SERIES RACK MOUNT KIT
MXA-RMK-20 RACK MOUNT KIT (FG5969-60) SPECIF ICATIONS
Dimensions
(HWD):
10.47” x 21.00” x 2.09” (26.59 cm x 53.34 cm x 5.31 cm)
Weight: 4.30 lbs (1.95 Kg)
Included
Accessories:
• MXA-RMK-20 Installation Guide (93-5969-60)
• Rack Mount Panel, 20.3" Modero Wall Touch Panel (62-5968-46)
• Screws, #10-32 PFH 1.75" Long, Black (4) (80-5968-01)
• Screws, #6-32 x .375, PPH, Black (4) (80-0138)
• Washers, #6, Flat, 3/8 Diameter, .03 Thick, Stainless Steel (4) ( )80-0322-01
Other AMX
Equipment:
• MXD-2000XL-PAN 20.3” Modero X Series Panoramic Wall Touch Panel,
Landscape Mount (FG5968-11)
21.00” (53.34 cm)
10.47”
(26.59 cm)
2.09”
(5.31 cm)
Front View
Top View
Side View
10.47”
(26.59 cm)
2.09”
(5.31 cm)
Up
Installation
Flanges
Standups
Up

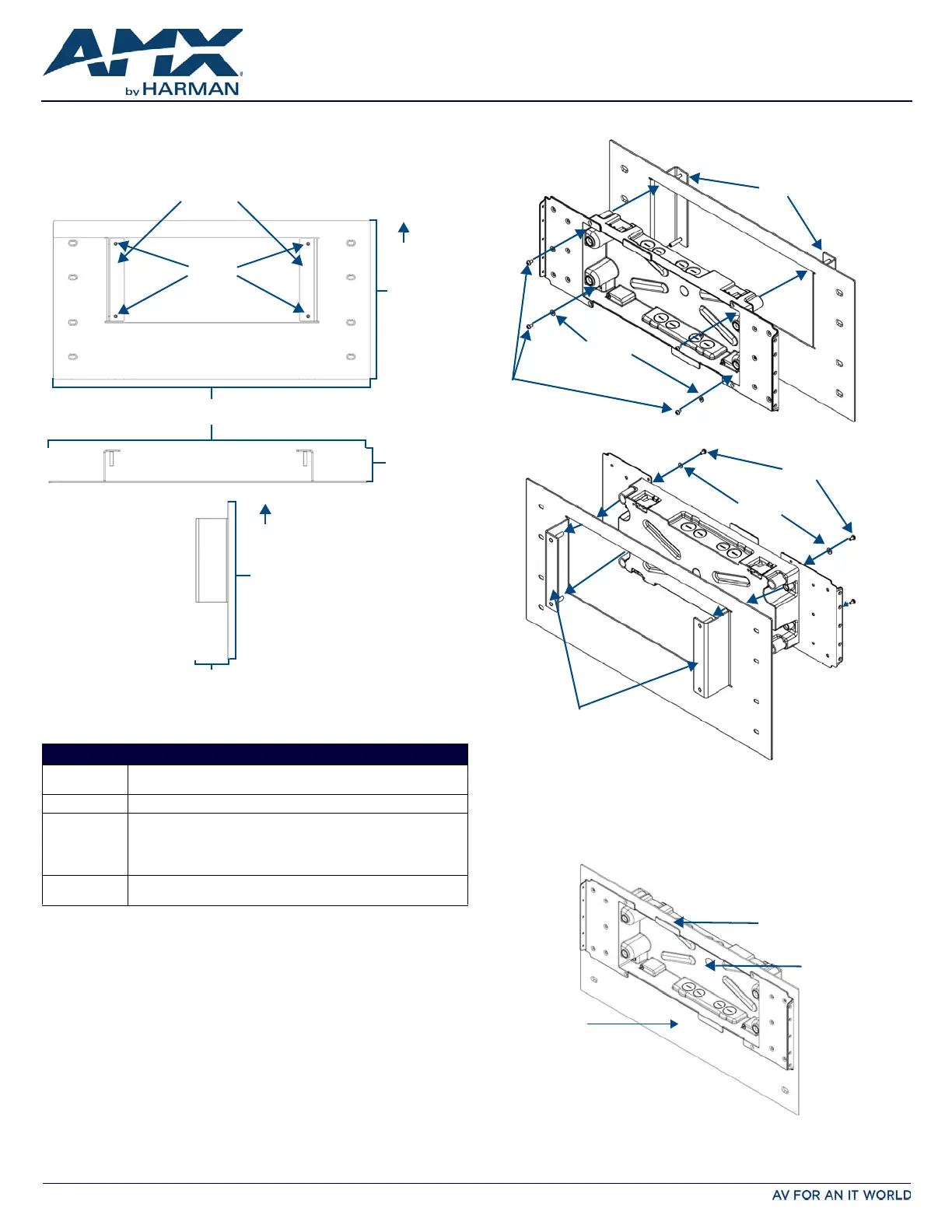

FIG. 2 INSTALLATION OF THE BACK BOX INTO THE MXA-RMK-20, FRONT VIEW
FIG. 3 INSTALLATION OF THE BACK BOX INTO THE MXA-RMK-20, REAR VIEW
FIG. 4 FINAL ASSEMBLY OF THE MXA-RMK-20 WITH BACK BOX
Installation
Flange
Screws
Washers
Installation
Flange
Screws
Washers
Rack Mount Panel
Back Box
Bottom Flange
