QUICK START GUIDE
N-Series N1134A MPC Encoder
Overview
The N-Series N1134A MPC (Minimum Proprietary Compression) Encoder features input
and output scaling, serial, balanced audio, HD-SDI video connection, and Power-over-
Ethernet (PoE). This unit also offers 1G SFP support for uncompressed networked AV
video and USB control inputs for KVM keyboard and mouse over IP.
The P1 port on the rear of the unit is an SFP network connection. FIG. 1 shows the front
and rear views of the unit.
Basic Installation Guidelines
Establishing Connection
N1134A devices are shipped with as their default IP mode. The IP address is DHCP
assigned automatically based on the network DHCP server. If no DHCP server is found,
the unit will use mode instead (with a default IP address of 169.254.xxx.xxx).Auto IP
Before using your N1134A unit, it must be configured using the free N-Able device
management software. However, you will not be able to configure units until they are in
the same subnet as the host computer.
The sample steps below show how the required changes (to the host computer's IP
settings) are made in a Windows environment.
Steps for IP address configuration:
1. From the Control Panel > Network and Internet dialog box, select Network and
Sharing Center.
2. Select .Change adapter settings
3. Select the wired interface connected to your AV network.
4. Click the button.Properties
5. Scroll down in the list to the Internet Protocol Version 4 (TCP/IPv4) option.
Highlight it and click the button.Properties
6. Enable the option, and enter the static IP address Use the following IP address
provided to you by your network administrator.
NOTE: If the computer does not need Internet access, you can simply enter a unique
169.254.xxx.xxx IP address with a 255.255.0.0 Subnet mask. Please contact your
network administrator if you are unsure of how to configure the existing interface. If the
computer has a statically-assigned IP address, click on the Advanced button. Then click
Add to enter a unique 169.254.xxx.xxx address with a subnet of 255.255.0.0.

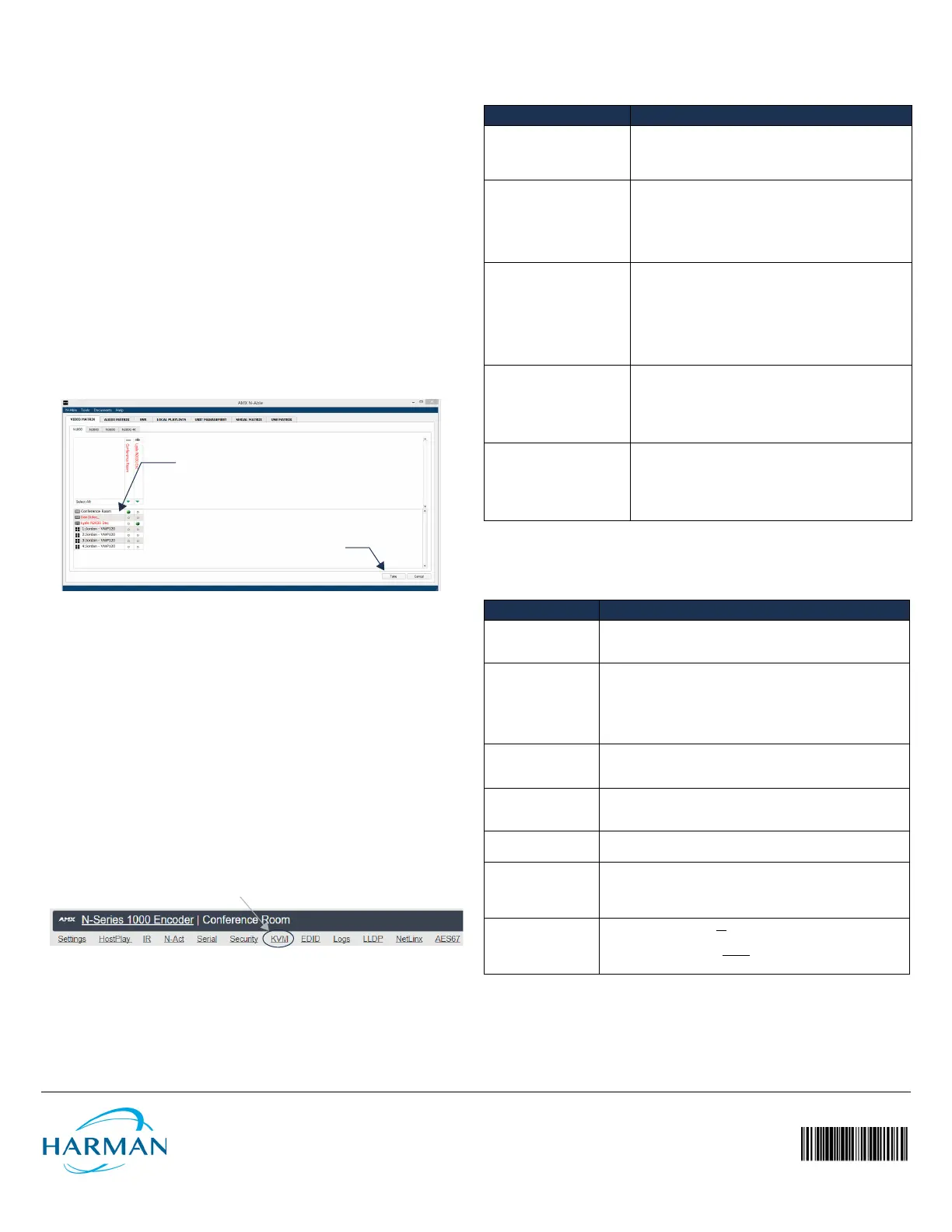

Logging in Using N-Able Software
Once the host IP address is configured properly, you can view all discovered units using
the N-Able software. Access the N1000 MPC units from the following tabs:
• tab - is listed in the Unit Management N1000 Encoder/Decoder Type field.
• tab - N1000 MPC units are found on the sub-tab of this Video Matrix N1000
screen.
Double-click the unit’s name (in one of the lists mentioned above) to view its Settings
page. If prompted, enter admin and password for the default username and password.
Once logged in, you can change the username and password (using the options on the
unit’s page). From this page, you can access any of the main pages of the Settings
unit’s GUI.
NOTE: If you would like for N-Able to support auto-login to your units, make sure N-Able’s
Device Auto-login settings match the unit’s username and password (by selecting N-Able
> Settings from the N-Able tool bar).
NOTE: N1000 MPC units force HTTPS connections, so your web browser may give you a
security warning. N-Able on Windows will ask you to download OpenSSL for Windows to
connect HTTPS.

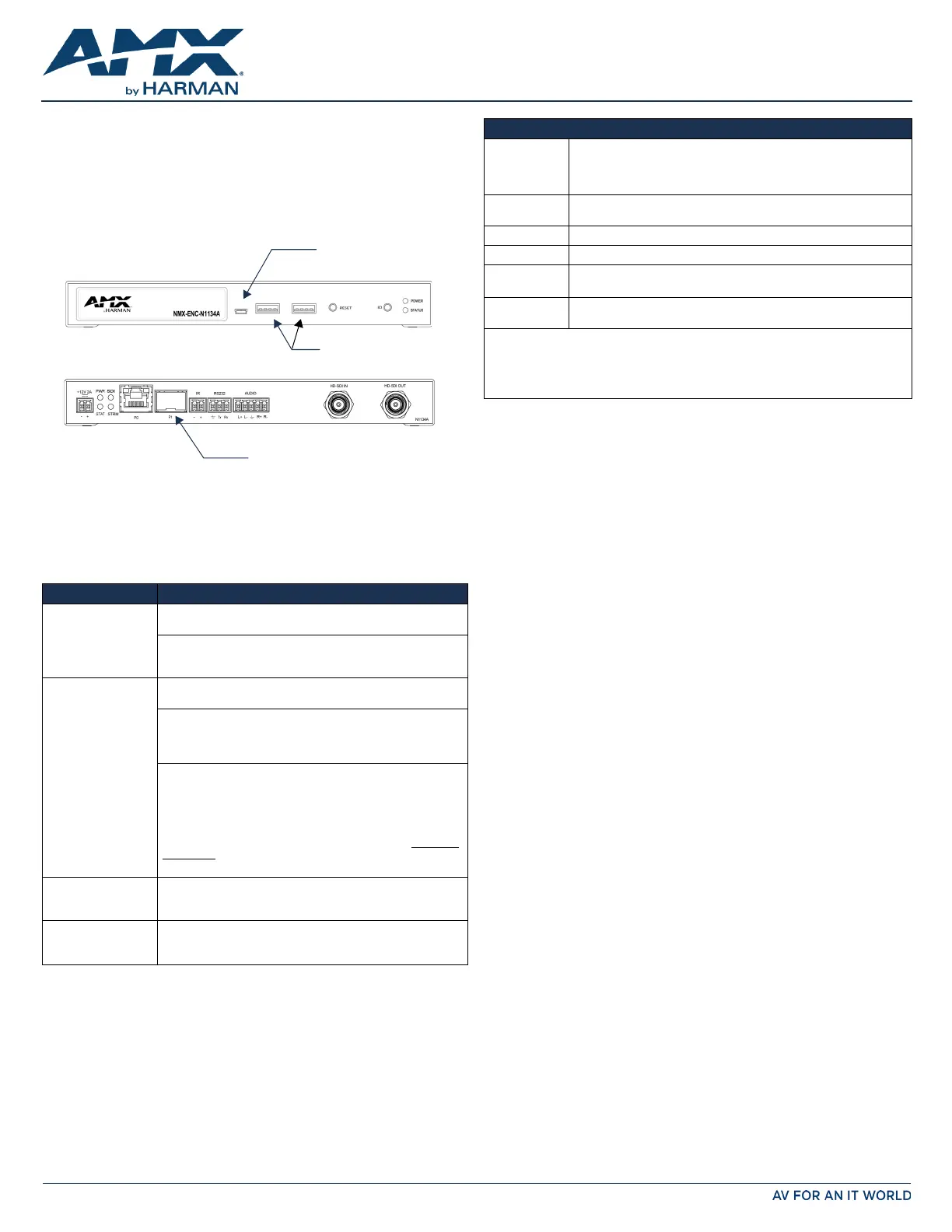

FIG. 1 N1134A USB AND SFP PORTS
Connections Options
Power: PoE: Connect the unit’s P0 port to an active, PoE-enabled network
switch
External power supply: If not using PoE for power, connect a 12V
regulated power supply (part number N9312) to the unit’s two-pin
terminal block plug connector labeled .+12V 2A
Network: If using PoE to power the unit, you should already have a PoE:
network connection.
External power: P0 If not using PoE, connect the port to the
network using an Ethernet cable, or connect the port to the P1
network with the appropriate cable (fiber transceiver or direct-
attach cable is required for SFP connections).
Daisy-chain configuration: Once network connection is
established to one unit, you can daisy-chain additional units by
connecting Ethernet cables between devices using their P0 and/or
P1 ports. Keep in mind that the number of units supported in this
configuration is limited by bandwidth (total aggregate streams
must be less than 1 Gb/s).
NOTE: PoE power is only supplied to the unit connected directly to
the network. All other units in the daisy-chain must have an
external power supply.
Video: • For video encoding of a digital source, connect the source to the
Encoder’s port using a video cable with a BNC HD-SDI IN
connector (or adapter).
Audio: • For audio encoding, connect a line level analog audio source to
the input terminal block plug connector, or Audio
• Use the embedded audio from the video source.
One USB Mini-B Port
Two USB Standard-A Ports
Supported by N1233 Decoders
N1134A Front View
1G SFP ports accepts compatible
fiber transceivers or direct attach
cables (fiber or copper cabling)
N1134A Rear View
(inactive for N1134A Encoder)
Product Specifications
Power
Requirements:
PoE: Can be powered via a PoE switch or other equipment with a PoE
source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1).
External power supply: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC power
supply; Part number N9312 (sold separately).
Dimensions
(HWD):
1.05” x 7.888” x 5.5” (2.67cm x 20.04cm x 14cm)
Weight: 1.55 lbs (0.7kg)
Certifications: FCC, CE, and NTRL
Environmental: Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Mounting
Options:
Stand alone, surface mount, wall mount, or rack mount.*
*Mounting wings (part number N9101) required for surface and wall mounting. Rack
shelf (part number N9102) or card cage (part number N9206) required for rack
mounting. Shelf accommodates two side-by-side N-Series Encoders and Decoders.
Card cage accommodates up to six N-Series Encoder and Decoder cards (mix and
match any series).
NOTE: The SFP port supports 1000BASE-X or 1000BASE-T connections only.
