QUICK START GUIDE

PDXL-2 Dual Power over DXLink Controller

Overview

The PDXL-2 (FG1090-170) is a Power over DXLink injector which allows for remote

powering of any two DXLink devices. The device simplifies installation by allowing the

DXLink Transmitters and Receivers to be placed anywhere even where there are no AC

power outlets—simply install a PDXL-2 in any convenient place within the 100 meter

path to provide power.

The PDXL-2 provides power for DXLink devices by “injecting” power through the twisted

pair cable. The PDXL-2 also accepts I/O control from a NetLinx controller allowing

power down capabilities to either (or both) of the connected DXLink devices to achieve

power savings when the devices are not in use.

Specif ications

The following table lists the specifications for the PDXL-2:

* Cable runs with a minimum specif ication of ANSI/TIE/EIA 568A-5 and ratings of 250

MHz or better (for HD content) and 500 MHz or better (for UHD content) may be used

with DXLink equipment. However, cable run topology and environmental influences can

affect the overall successful distance capabilities of these runs. For successful

deployments up to 100 meters (for HD content) and 80 meters (for UHD content) without

consideration to outside variables, AMX requires the use of shielded Cat6 category cable

(for HD content) and shielded Cat6A category cable (for UHD content) for DXLink runs.

For more details and helpful cabling information, please contact your AMX representative

for a copy of the white paper titled "Cabling for Success with DXLink".

Important Safety Information

• The PDXL-2 should be connected to DXLink devices only. Outside network

connections are not supported.

• Only qualified personnel can install or remove the PDXL-2.

• AC Power Cord Set:

* The power cord must have regulatory agency approval for the specific country

in which it is used (for example, UL, CSA, VDE, etc.)

* The power cord must be a three-conductor type (two current-carrying

conductors and one ground conductor) terminated on one end by an IEC 60320

appliance coupler (for connection to the PDXL-2), and on the other end by a plug

containing a ground (earthing) contact.

* The power cord must be rated for a minimum of 250 VAC RMS operation, with a

minimum rated current capacity of 5 amps or a minimum wire gauge of 18 AWG

(0.75 mm2).

• A PDXL-2 installed in Australia requires power cords with a minimum wire gauge

of 16 AWG (1.0 mm2).

• The PDXL-2 DATA and DATA & POWER ports are shielded RJ45 data sockets. They

CANNOT be used as Plain Old Telephone Service (POTS) telephone sockets. Only

RJ45 data connectors may be connected to these sockets.

• The AC wall socket-outlet must be near the PDXL-2 and easily accessible. You can

remove AC power from the PDXL-2 by disconnecting the AC power cord from

either the wall socket-outlet or the PDXL-2 appliance coupler.

• The PDXL-2 “DATA” and “DATA & POWER” interfaces are qualified as Safety

Extra-Low Voltage (SELV) circuits according to IEC 60950-1. These interfaces

may only be connected to SELV interfaces on other equipment.

• AMX only supports the use of our Enova DGX, Enova DVX, DXLink or Power over

DXLink solutions as the use of any other power supplies or non-compatible

standard PoE solutions may potentially damage the DXLink equipment.

WARNINGS

• The PDXL-2 should only be connected to devices compatible with this product.

Using the PDXL-2 with incompatible devices may cause damage to the device.

• Read the installation instructions before connecting the PDXL-2 to its power

source.

• Follow basic electricity safety measures before connecting the PDXL-2 to its

power source.

• A voltage mismatch can cause equipment damage and may pose a fire hazard. If

the voltage indicated on the label is different from the power outlet voltage, do

not connect the PDXL-2 to this power outlet.

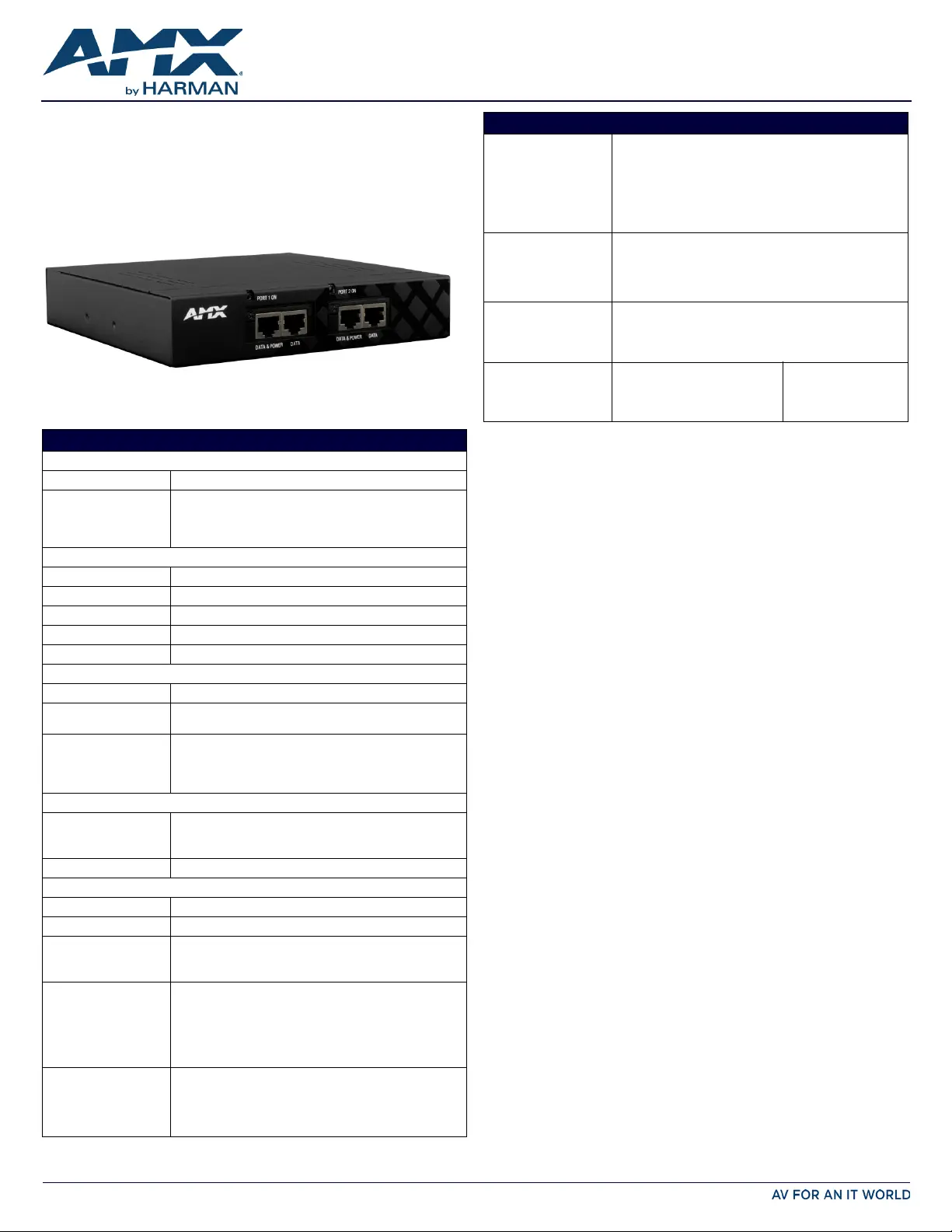

FIG. 1 PDXL-2 DUAL POWER OVER DXLINK CONTROLLER

PDXL-2 Specifications

Active Power Requirements:

Power Connector (1) 100-240V, 50/60 Hz, 1.6A

Power Capabilities • Maximum Current Draw: 1.0A

• Typical Current Draw: 0.35A

Note: Power consumption depends on the device connected to

the DXLink port.

Environmental:

Temperature (Operating) 32° to 104° F (0° to 40° C)

Temperature (Storage) –4º to 158ºF (–20º to 70ºC)

Humidity (Operating) 90%, Non-condensing (maximum)

Humidity (Storage) 95%, Non-condensing (maximum)

Operating Altitude –1000 to 10,000 ft. (–304.8 to 3048 m)

DXLink:

DXLink ports (2) sets of 2 RJ-45 DXLink connectors

Transport Layer

Throughput

10.2 Gbps pass thru

Power over DXLink Output

(per output)

• Pin Assignment & Polarity 4/5 (+), 7/8 (-)

• Output Power Voltage 55 VDC

• Output Power 30 Watts (guaranteed)

• Output Current 0.6 A (maximum)

Indicators:

AC Power Indicator 2 LED (1 for each DXLink Powered Output)

• Yellow (On): power is on and active

• Green (On): A remote terminal is connected

Channel Power Indicator (1) LED green

General:

Dimensions (HWD) 1 7/16” x 7” x 6 13/16” (3.63cm x 17.78cm x 17.24cm)

Weight 2.25 lbs (1.02 kg)

Front Components • AC Power Indicator

• Channel Power Indicator

• DXLink ports

Back Components • (4) 3.5 mm (female) captive-wire connectors. 1 each for:

* Ground

* Relay port 1 (to be fed from I/O connection)

* Relay port 2 (to be fed from an I/O connection)

* +12V power feed

• (1) Power connector

Mounting Options • Rack: MPA-VRK Rack Mounting Tray (FG5968-30)

• Surface: AVB-VSTYLE-SURFACE-MNT Surface Mount

Brackets (FG1010-722)

• Pole: AVB-VSTYLE-POLE-MNT Single Module Pole Mounting

Kit (FG1010-723)

PDXL-2 Specifications (Cont.)

Compatible AMX Products • DXLink HDMI Transmitter Module

• DXLink Multi-Format Transmitter Module

• DXLink Multi-Format Decor Style Wallplate Transmitters (US)

• DXLink Multi-Format Wallplate Transmitters

• DXLink HDMI Receiver Module

• DXLink 4K HDMI Decor Style Wallplate TX

• DXLink 4K HDMI RX

Twisted Pair Cable Type* • Shielded Cat6A minimum for 4K signal support.

• Shielded Cat6 minimum for 1080p and below.

For more details and helpful cabling information, reference the

white paper titled "Cabling for Success with DXLink" available at

www.amx.com or contact your AMX representative.

Twisted Pair Cable

Length*

• Up to 262 ft. (80 m) for full 4K signal support.

• Up to 328 ft. (100 m) for 1080p and below.

Important: DXLink twisted pair cable runs for DXLink

equipment should only be run within a common building.

Certifications • FCC Part 15 Class A

• CE EN 55022 Class A

• C-Tick CISPR 22 Class A

• UL 60950-1

• CE EN 55024

• CE EN 60950-1

• IEC 60950-1
