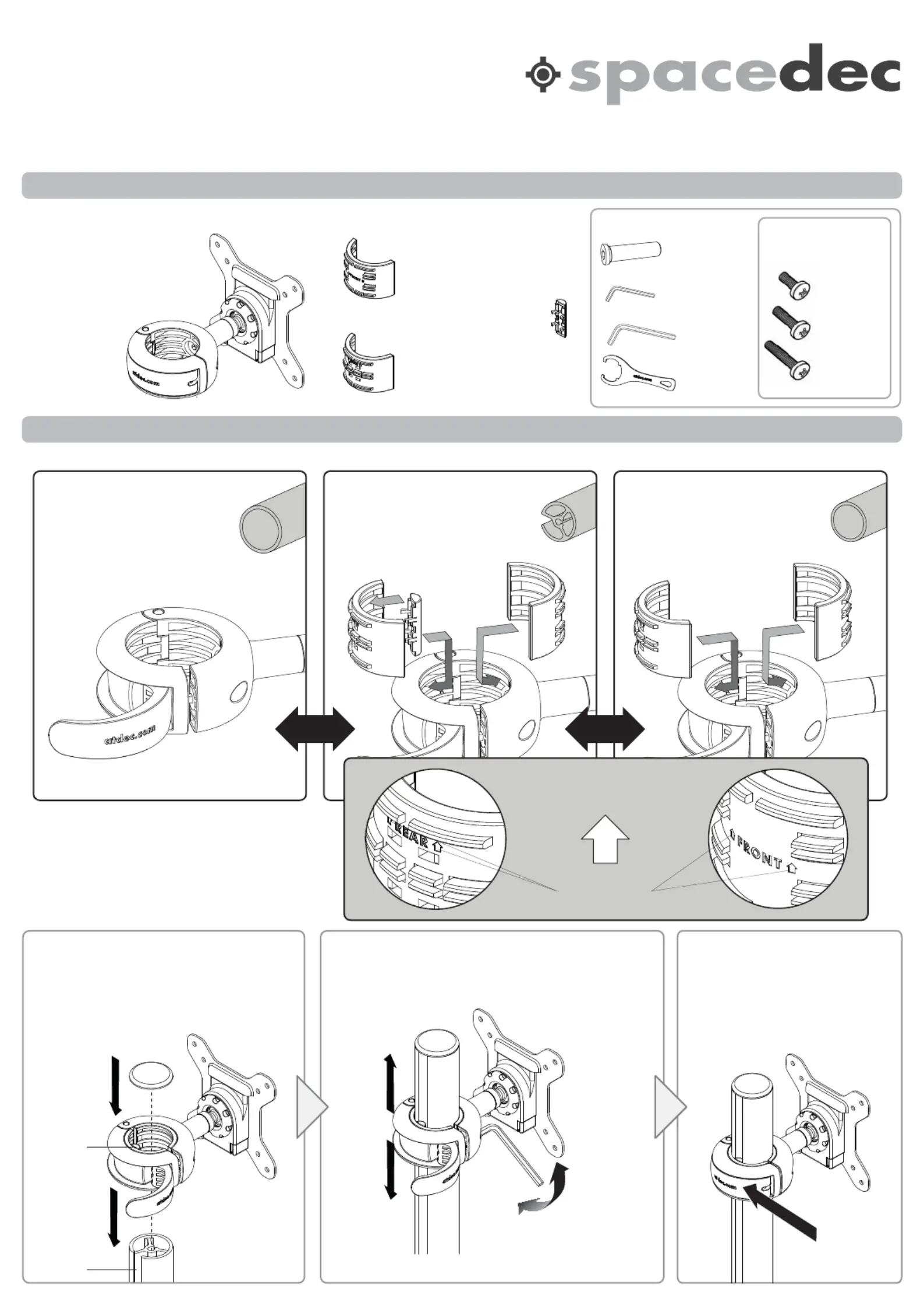

Component Checklist
Installation Instructions
A. Use this configuration with a
standard 50mm pole
(No inserts required)
B. Use this configuration with a
Visidec 42mm extrusion
pole
C.
Use this configuration with a
standard 42mm pole
Step 1. Install Quickshift Donut
42mm Front
Donut Insert (x1)
Visidec Groove
Lock (x1)
42mm Rear
Donut Insert (x1)
5mm Allen
Key (x1)
Hardware Mounting
Screws
M4x10mm
Screw (x4)
M4x12mm
Screw (x4)
M4x16mm
Screw (x4)
Select your correct product configuration: A, B, or C.
Rear Donut
Insert
Rear Donut
Insert
Front Donut
Insert Front Donut
Insert
Groove
Insert
Check you have received all parts against this Component Checklist prior to installation.
Tightening
Tool (x1)
2mm Allen
Key (x1)
Slide the Quickshift Donut onto the pole
(with the lever open), removing the End
Cap if necessary.
Rear groove insert must align with slot in
the Pole.
(Visidec 42mm pole shown)
TIGHTEN
LOOSEN
Once in place, close the lever
to lock the Quickshift Donut
in the desired position.
Slide the Quickshift Donut into the desired position.
If necessary, adjust the tension between the
Quickshift Donut and the Pole using the 5mm Allen
Key supplied.
Slot
OR OR
Groove
Insert
Security
Screw (x1)
CLOSE
WARNING: Be careful not to overtighten
! The Spacedec Display Quickshift Donut is to be used on 42mm and 50mm diameter poles only.
! The Manufacturer accepts no responsibility for incorrect installation.
Display | Quickshift Donut
Quickshift
Donut (x1)
Note: Ensure inserts are fitted
in correct orientation.
Arrows point
to top surface
SD-DO
