Atdec TH-1040-CTL/S Manual

Atdec Ikke kategoriseret TH-1040-CTL/S

Læs nedenfor 📖 manual på dansk for Atdec TH-1040-CTL/S (2 sider) i kategorien Ikke kategoriseret. Denne guide var nyttig for 7 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/2

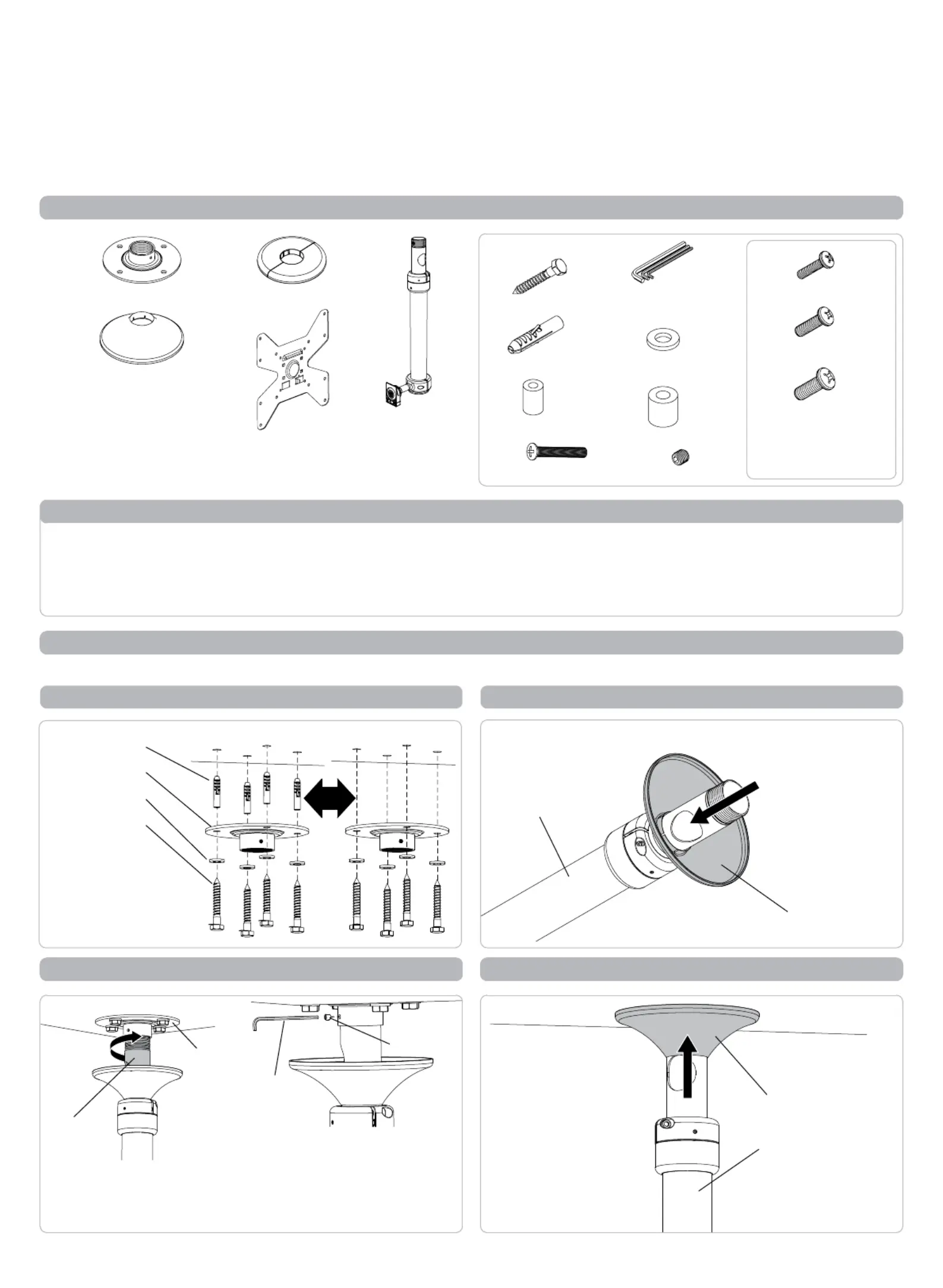

Component Checklist
Mounting Plate
Pole Assembly
VESA Plate
Mounting Plate Cover
Coach Screw (x4)
Nylon Anchor (x4)
M4/5/10 Washer
(x4 each)
Set Screw
M5/6 Spacer (x4)
M4/5 Spacer (x4)
(optional) Security Screw
2.5/3/5mm
Allen Key
M4x16/25mm (x4 each)
M5x16/25mm (x4 each)
M6x16/30mm (x4 each)
Pole Assembly
Mounting Plate Cover
PUSH
Screw Pole Assembly
A.
into Mounting Plate by
twisting top half of the
Pole Assembly only.
Pole
Assembly
Mounting Plate
TWIST
3mm
Allen Key
Set Screw
Insert Set Screw into the
B.
Mounting Plate to lock the
Pole Assembly in position.
Pole Assembly
Mounting Plate
Cover
PUSH
TH-1040-CTS
TH-1040-CTL
Ceiling Tilt Short Mount / Ceiling Tilt Long Mount
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Install Mounting Plate

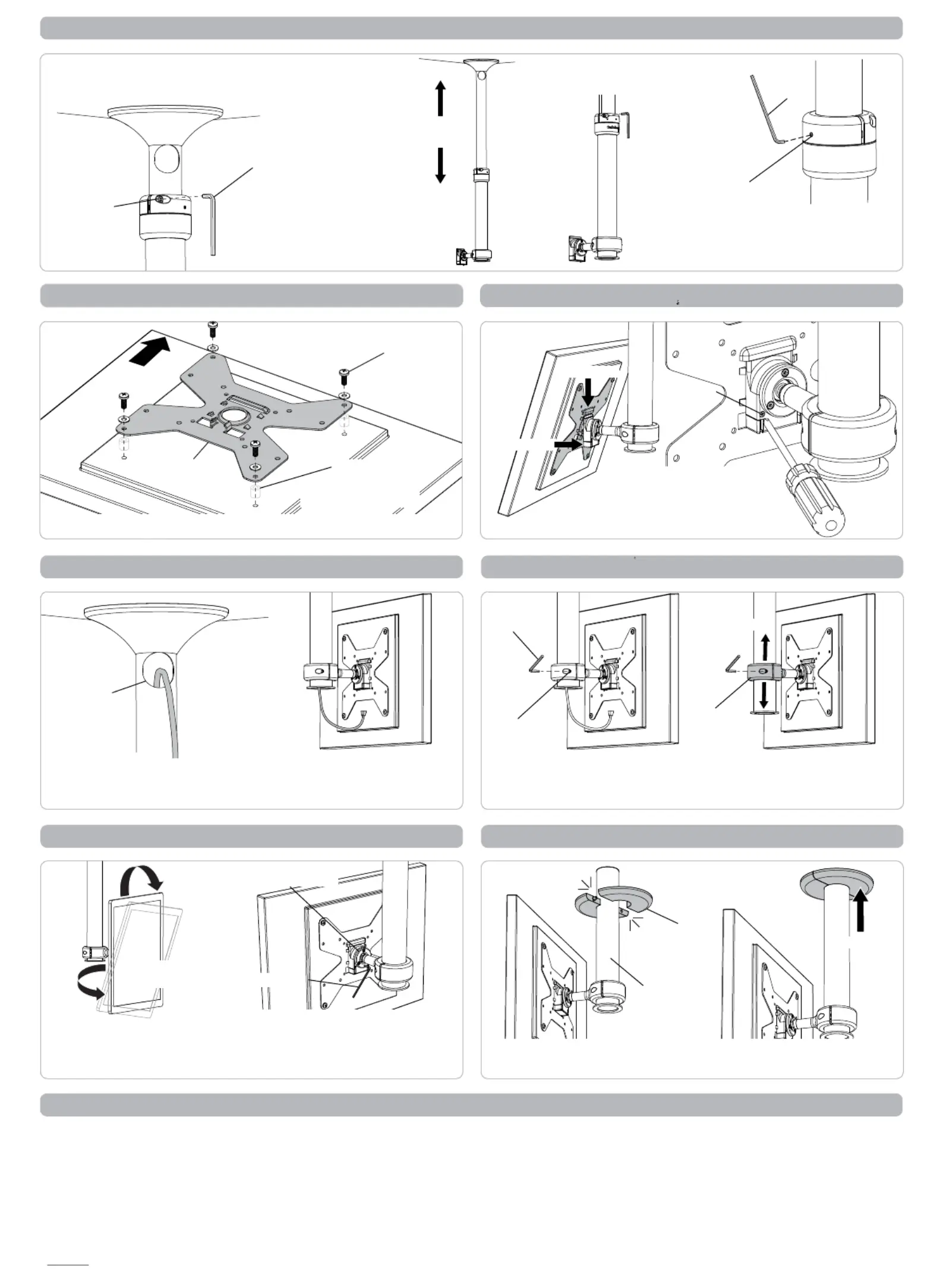

Step 4.
Attach Pole Assembly to Mounting Plate
! IMPORTANT - Install 1040 Ceiling Tilt Mount (Short/Long) as per Installation Instructions.
! This product supports a maximum load of 25kg (55lbs).
! This product supports VESA mounting hole configurations 75x75mm, 100x100mm, 200x100mm, 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 5. Position Mounting Plate Cover
Step 3. Install Mounting Plate Cover
Display Mounting
Screws
Hardware
Tools Required:
Power drill
7mm
(¼”)
drill bit
12mm
(½”)
masonry drill bit
Phillips head screw driver
17mm (11/16
”) Socket Wrench or Shifter
Masonry Ceiling
Timber Ceiling
Using the Mounting
Plate
as a template, mark
out
and drill
4x Ø7mm
(¼”)
holes,
Ø12mm
(½”)
for masonry
ceilings,
70mm (2.75”) deep.
OR
Nylon Anchor
Mounting Plate
Coach Screw
M10 Washer
False Ceiling Cover
TH-1040-CTSW
TH-1040-CTLW
Installation Instructions
