Side 1/4

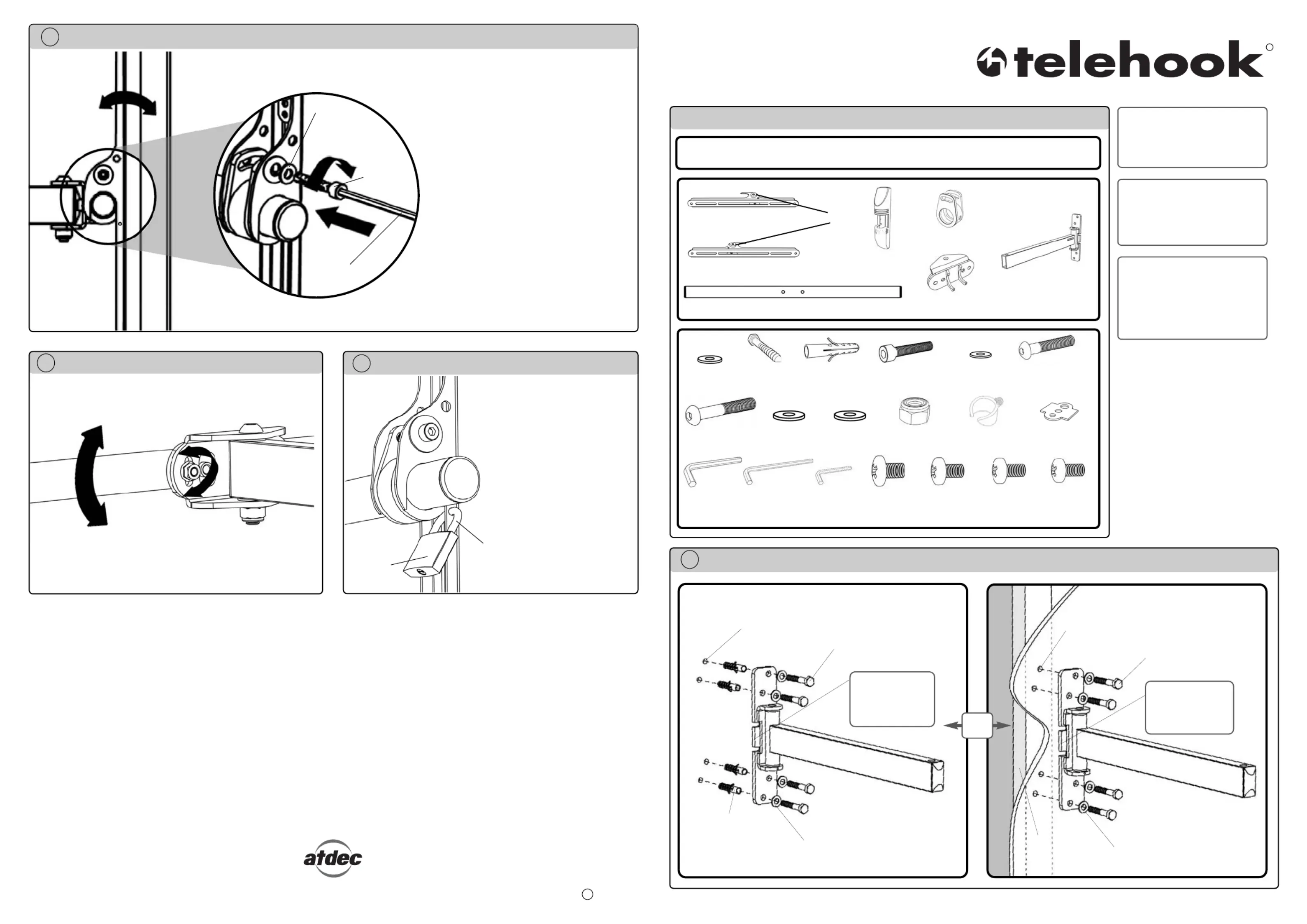

G Fix the Tilt angle of the Display
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 29.08.08 c
Step 1
Fit two M8x45mm Locking screws
into brackets behind Display. Adjust
the Tilt angle of the Display. Tighten
two locking screws with the Long
6mm Allen Key provided.
WARNING: Do not attempt to
adjust tilt angle without firstly
loosening locking screws.
Doing so may damage
product.
M8 Small
Washer
M8x45mm
Screw
Long 6mm
Allen Key
Tighten
TM

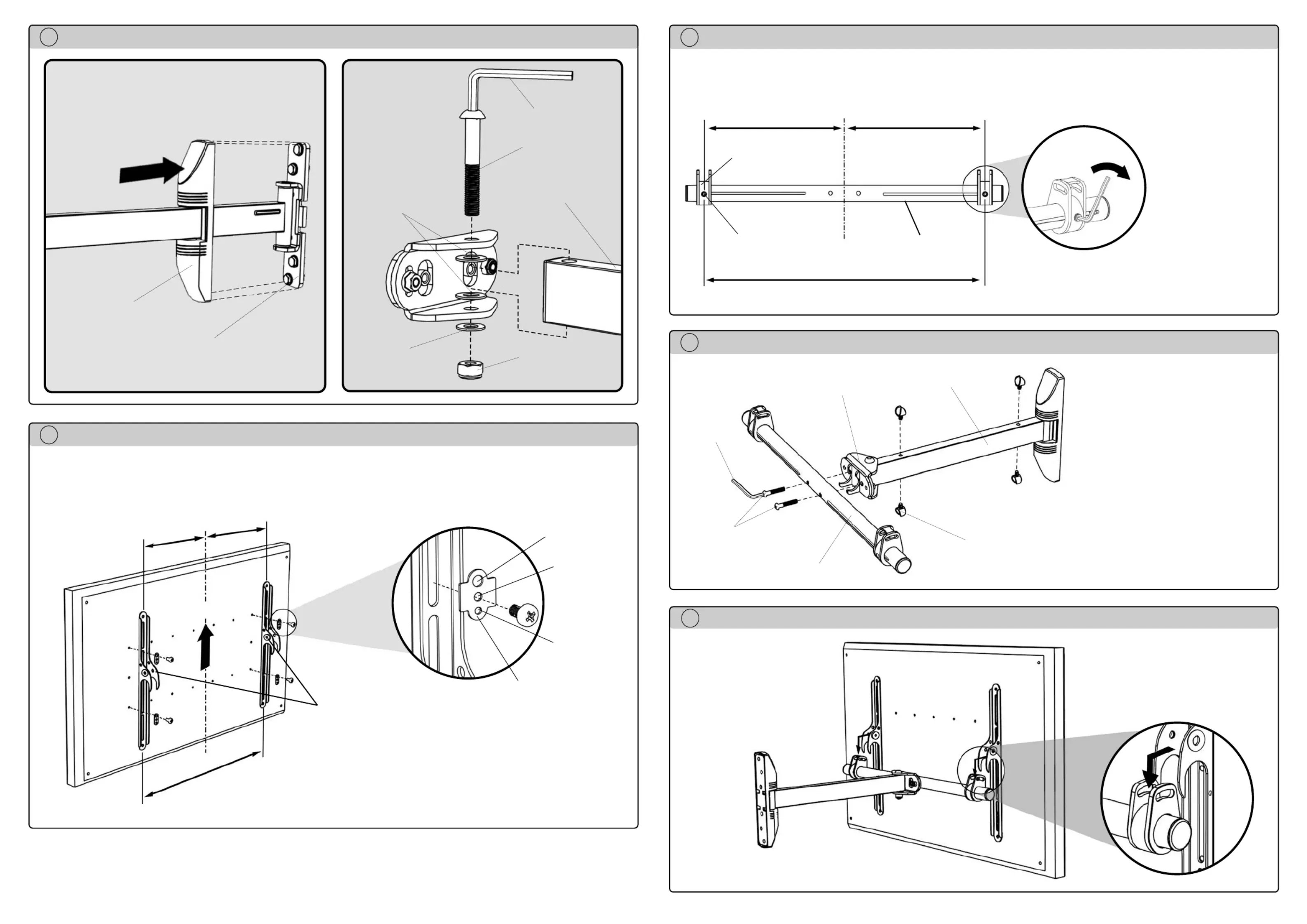

A Attach Telehook Swing Arm Unit to the Wall
NOTE:
The manufacturer does
not accept responsibility
for incorrect installation.
Telehook Flat Screen
Wall Mount Swing Arm
supports a maximum
weight of 65kgs (143lbs)
TOOLS REQUIRED:
zPower Drill
z12mm (1/2”) Drill Bit
z7mm (9/32”) Drill Bit
zAdjustable wrench
12mm (1/2”) hole
Wall Plug
Tip: Use a Spirit
Level to ensure
this surface is
vertical.
M10 Coach Screw
M10 Steel Washer
Masonry Wall
OR
Timber Stud Wall
Timber Stud
M10 Coach Screw
Tip: Use a Spirit
Level to ensure
this surface is
vertical.
M10 Steel Washer
7mm (9/32”) hole
..
H Horizontal Adjustment Feature
TIGHTEN
LOOSEN
If necessary, once the display is mounted, adjust the horizontal
angle as shown.
ADJUST
ANGLE
-5° to 25°
Tilt
Padlock
(not supplied)
5mm (3/16”)
diameter shackle
For added security, you may
choose to attach a padlock
to one or both brackets to
prevent theft of the display.
It is recommended that the
padlock should have a
shackle diameter of 5mm
(3/16
”).
I Security Option
Component Checklist
Wall Mount Horizontal Bar
Wall Mount Bracket (Left)
Wall Mount Bracket (Right)
Slider (x2)
5mm
Allen Key
M10 Steel
Washer (x4)
M8 x45mm
Locking Screws (x2)
Multi
Washer (x6)
M5 x16mm
Mounting
Screws (x6)
M6 x16mm
Mounting
Screws (x6)
M8 x16mm
Mounting
Screws (x6)
M10 Coach
Screw (x4)
M4 x16mm
Mounting
Screws (x6)
Bit Box
IMPORTANT:
Ensure you have received all parts against the component checklist prior to installing.
Clinch Nuts
M12 Steel
Washer
M12 Plastic
Washer (x2)
M12 x80mm
Screw
M12
Locking Nut
Cable Manager
Clip (x4)
8mm
Allen Key
Long 6mm
Allen Key
Wall Mount
Cover Telehook Swing Arm
Pivot Head
Installation Instructions
Flat Screen Wall Mount | Swing Arm
M8 x45mm
Button Screws (x2)
M8 Small
Washer (x2)
Wall Plug (x4)
Produkt Specifikationer
| Mærke: | Atdec |
| Kategori: | Flad panel støtte |
| Model: | TH-3060-SAU |
