Side 1/2
Note:
Use a stud finder to accurately locate the centre of
the stud. Ensure that all screws fix securely into the stud.
TH-3060-UT

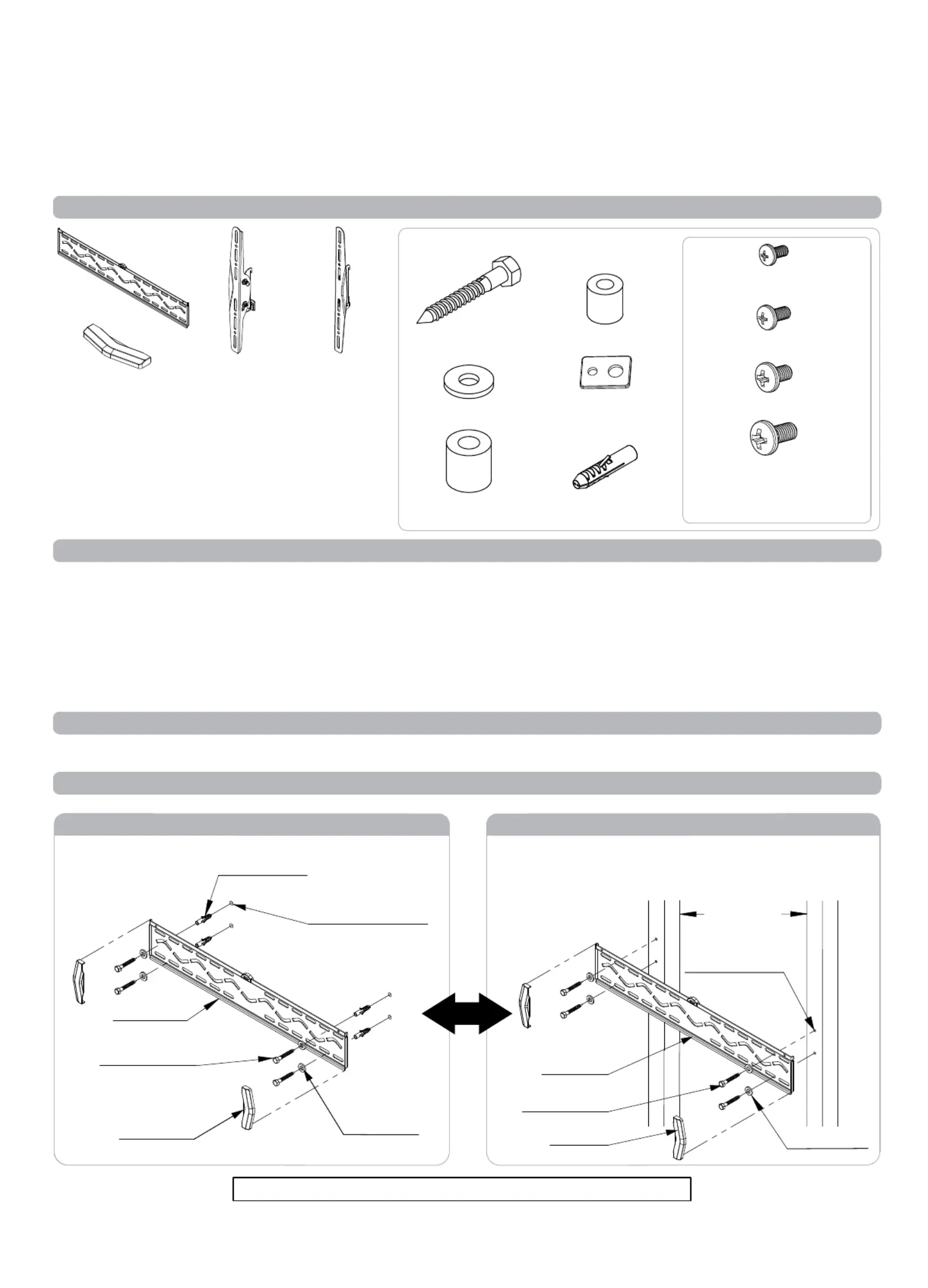

Component Checklist
Wall Plate

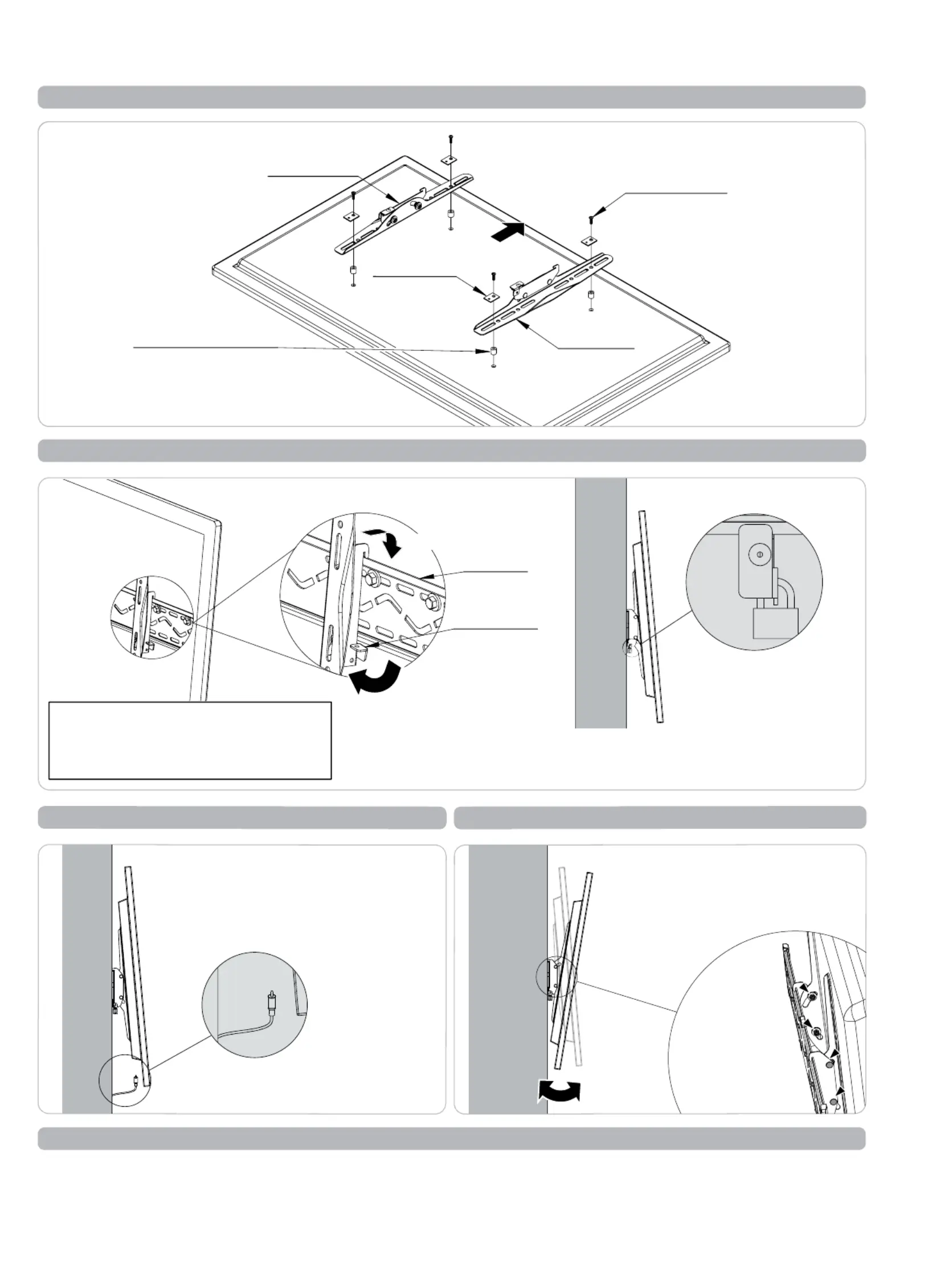

Right Mounting
Bracket
IMPORTANT INFORMATION
! IMPORTANT - Install 3060 Wall Mount as per Installation Instructions.
! This product supports a maximum load of 50kg (110lbs).
! This product only supports displays with mounting hole configurations from 100mm wide x 100mm
high up to 600mm wide x 400mm high.
! The manufacturer does not accept responsibility for incorrect installation.
! Before installing this product, please check the display ventilation requirements with your
LED/LCD manufacturer.
Step 1. Check Components
Step 2. Mounting the Wall Plate
Tools Required:
Power Drill
5mm ( ”) drill bit
Phillips Head screwdriver
10mm
( ”)
masonry drill bit
10mm
( ”)
Socket Wrench or Shifter
Tip: Use the built-in spirit level to ensure wall plate is horizontal
Masonry Wall
Timber Stud
Check you have received all parts against the Component Checklist and Hardware above.
Left Mounting
Bracket
Timber Stud
Wall Plate
Coach Screw
OR
Nylon Anchor
Coach Screw
Wall Plate
M6 Washer
Flat screen wall mount | Tilt
10mm
( ”)
hole
depth: 55mm (2.2”)
5mm
( ”)
hole
depth: 55mm (2.2”)
M6 Washer
End Cap (x2)
End Cap
End Cap
0.2
0.2
0.39
0.39
0.39
Display Mounting
Screws
Hardware
Nylon Anchor (x4)
M6 Washer (x4)
M5/M6 Spacer (x4)
M8 Spacer (x4)
Coach Screw (x4)
Multi-washer (x4)
M4x16/25/30mm (x4 each)
M5x14mm (x4 each)
M6x14/30mm (x4 each)
M8x 20/30mm (x4 each)
Installation Instructions


Produkt Specifikationer

Mærke: Atdec
Kategori: niet gecategoriseerd
Model: TH-3060-UT
