Bits Bag
Component Checklist
Installation Instructions

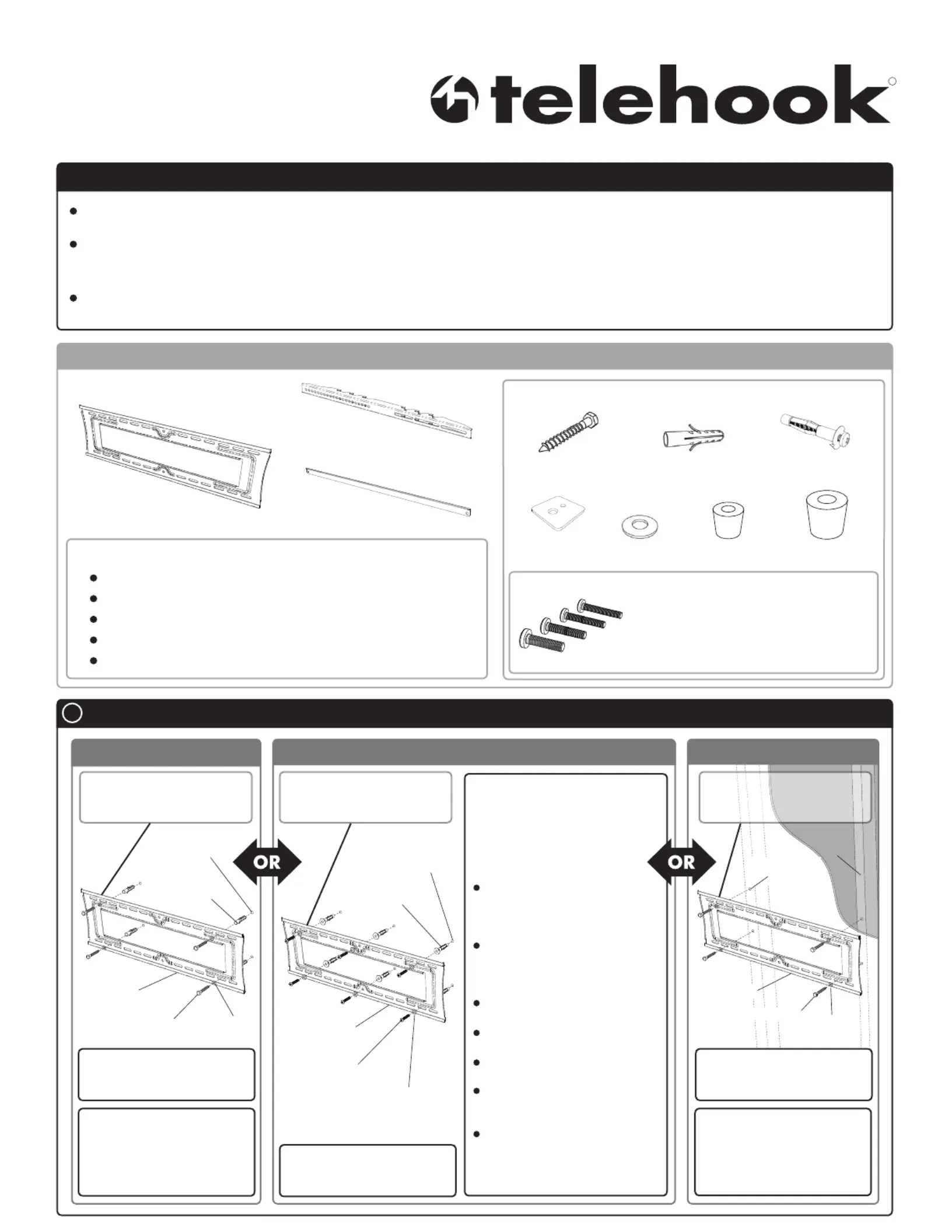

FLAT SCREEN WALL MOUNT | FIXEDTH-3070-UF
Display Bracket (x2)
Wall Plate
Important Notes
TOOLS REQUIRED:
 Power Drill
 12mm (1/2”), 10mm (3/8”) or 7mm (1/4”) Drill Bit
 Phillips Head Screw Driver
 Spirit Level
 17mm (11
/16”) Socket Wrench or Shifter
Supports a maximum load of 91kgs (200lbs).
Suits displays with mounting hole patterns from 180mm to 810mm wide (7”-313/4”) by 125mm to 500mm
high (5-191/2”).
The manufacturer does not accept responsibility for incorrect installation.
Security Bracket
Mounting Screws
M8x15mm / M8x35mm / M8x45mm (x4 each)
M6x15mm / M6x35mm / M6x45mm (x4 each)
M5x15mm / M5x35mm / M5x45mm (x4 each)
M4x15mm / M4x35mm / M4x45mm (x4 each)
Cross Recessed Screws
Coach
Screw (x4)
Masonry Wall
Plug (x4)
Washer (x4)
Multi
Washer (x4)
Dry Wall
Anchor (x6)
Mounting the Wall Plate
A
Masonry Wall
Washer
Masonry
Wall Plug
Wall Plate
12mm (1/2)
Hole
Coach Screw
Dry Wall Timber Stud Wall
TIP: Use a spirit level to
ensure the wall plate is
horizontal
TIP: Use a spirit level to
ensure the wall plate is
horizontal
TIP: Use a spirit level to
ensure the wall plate is
horizontal
Wall Plate
Coach Screw Washer
Timber
Stud10mm (3/8)
Hole
Wall Plate
Dry Wall
Anchor
Dry Wall
Anchor Screw
Dry Wall
Anchor Washer Use a stud finder to precisely
locate the timber stud and
ensure that the mounting holes
are located in the centre of
the stud.
It is recommended when
mounting directly into masonry
wall, that the mounting holes
are positioned as far apart as
possible.
7mm (1/4”)
Hole
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
The dry wall anchors provided in
the bit bag have been tested for
this wall mount application and will
each hold in excess of 30kg per
anchor.
Before using the expanding
anchors, please ensure that you:
· Check the plaster board wall (dry
wall) is in good condition with no
cracks, peeling paper or signs of
water damage etc.
· Take care installing the anchors,
that they are not over tightened
or driven into the wall during
installation.
· Minimum thickness of drywall
should be no less than 12mm (1/2”)
· Recommend to use all 6 anchors
even with light monitor applications.
· Only use the anchors supplied
in the kit.
· Make sure the 10mm (3/8) pre-
drilled hole is as recommended and
no smaller or larger.
· The anchors during expansion
should not interfere with studs or
noggins (cross strengtheners).
13mm Spacer
Bush (x4)
20mm Spacer
Bush (x4)
