Audibax Spark 600 Manual

Audibax Effekt maskine Spark 600

Læs gratis den danske manual til Audibax Spark 600 (4 sider) i kategorien Effekt maskine. Denne vejledning er vurderet som hjælpsom af 24 personer og har en gennemsnitlig bedømmelse på 4.4 stjerner ud af 12.5 anmeldelser. Har du et spørgsmål om Audibax Spark 600, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/4

Spark 600

Please read the manual before using the product

USER´S

MANUAL

Spark 600

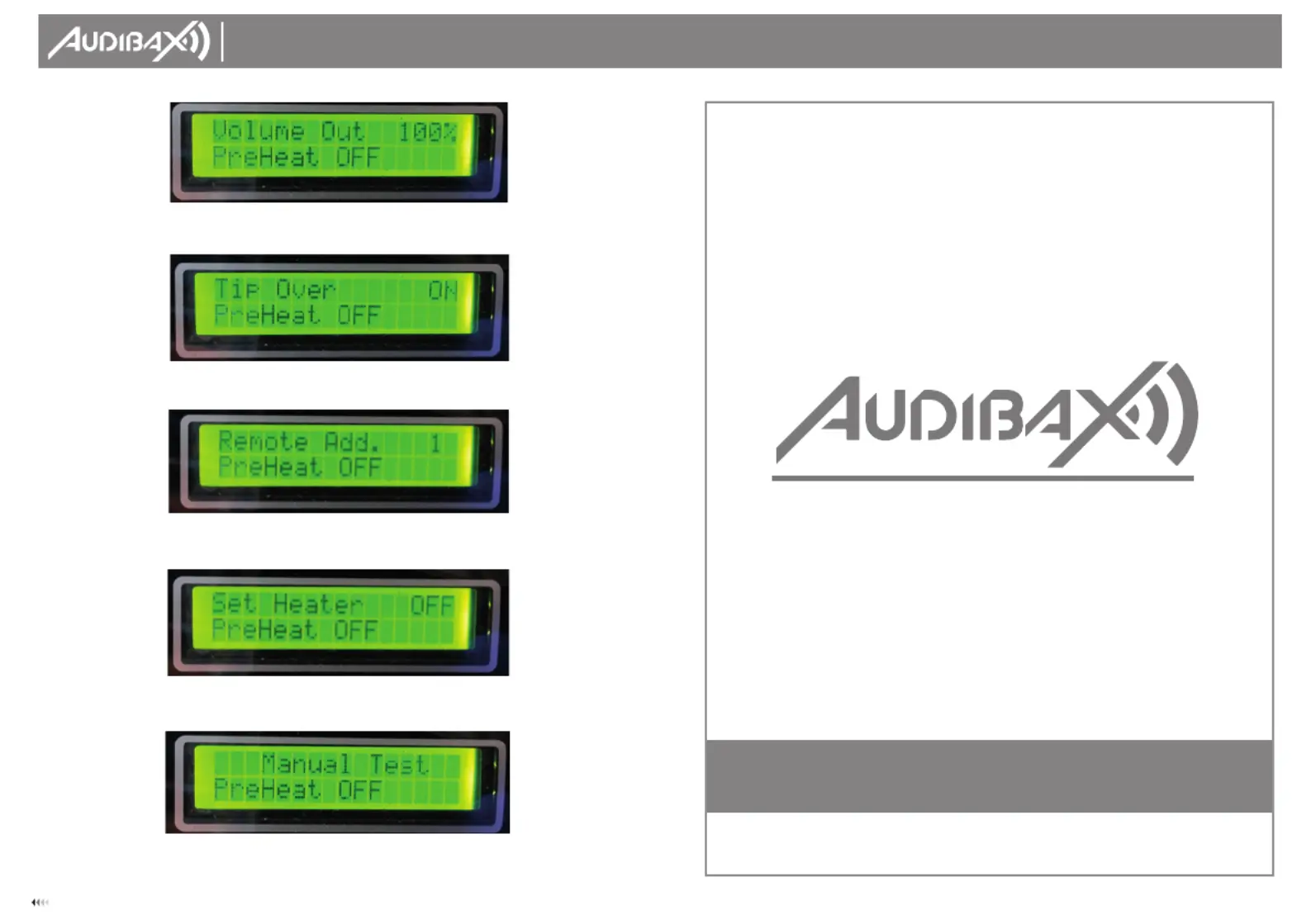

Press to select the volume output (between 0 to 100%)

In the ON position (default and recommended), the device stop working if it is roll over

Select the wireless remote as control. You can assign o group several units under the same

address and control this group from the selected button.

Select this function to initialize the heater. When the temperature reaches the correct value,

the device is prepared to operate.

Press it to make a manual test.

USER´S

MANUAL

Spark 600

1 6

DMX channel

OPERATION

Press MENU to select the DMX mode and set the DMX start channel under this mode, the

remote control does not work.

Control button area:

The display shows the different options in the menu, use the downside buttons to navigate

through the different options:

(MENU): Short press it to switch the setting interfaces

(UP): Increase value.

(DOWN): Reduce value

(ENTER): Confirm and save values.

The LEDs placed in the upper side of the display show the state:

DMX: It lights when DMX signal is present

READY: It lights when the heater reaches the operating temperature

UPDATE: It lights during update process

HEAT: This LED lights during the heating process

The USB port is use for internal firmware update functions.

Wireless remote controller mode:

The unite can be controlled by both DMX and remote controller. If a DMX is applied, wireless

remote controller will not work.

Warning:

- The spark machine must be placed at least 100 cm away from inflammable materials such

as curtains, books, etc. Make sure that the housing cannot be touched by accident.

- Outdoor use is recommended. Can be used indoors respected all security measures.

- During installation, nobody should stand beneath the mounting area.

- Prior to the first use, have the unit checked by a qualified person.

- The unit contains voltage carrying parts. DO NOT open the spark machine

- Never plug or unplug the unit with wet hands.

- If the plug and/or mains lead are damaged, they need to be repaired by a qualified

technician.

- If the unit is damaged to an extent that you can see internal parts, do not plug the unit into

a mains outlet. It needs to be repaired by a qualified technician.

- Only connect this unit to an earthed mains outlet of 220-240Vac/50Hz.

- Always unplug the unit during a thunderstorm or when it is not in use.

- If the unit has not been used for a longer period of time, condensation can occur inside the

housing. Please let the unit reach room temperature prior to use.

- When you unplug the unit from the mains always pull the plug, never the lead.

- In order to prevent dropping of the unit, a safety fastening needs to be installed. This can

be a solid chain, a steel cable, etc. which has to be fastened separately from the mounting

bracket.

- The supplied bracket is the main fixing and must be used to solidly mount the light effect.

- In order to avoid accidents in public premises, the local legal requirements and safety

regulations/warnings must be fulfilled.

- Keep out of the reach of children.

- It is recommended to use Audibax consumables, other consumables may be larger and

may block the system.

- Caution: it is recommended to transport the product vertically and with the consumable

tank empty. Failure to do so will cause problems not covered by the warranty due to

mishanding.

Technical data:

INSTALLTION AND USE

Electrical connections

Connect the fixture to the mains with the enclosed power cable and plug. The earth must

be connected.

DMX connection

Make sure that you use shielded cable and XLR 3 pin connectors.

Power supply

220-240V 50/60Hz

Power

500W

Fountain height

2 m to 5 m

Tank capacity

200g

Max. continuous duration

20 s (100% output)

Control modes

Wireless controller, DMX, manual

DMX channels

2 channels

Dimensions (WxHxD)

200x270x200 mm

Weight

5Kg

Channel

Value

Function

No sparks

1-255

Out volume from minimum to maximum

0-249

Stop heating

250-255

Start heating

Value

Function

Value

Function

Turn ON

Addr 2

Address 2 for remote

OFF

Turn OFF

Addr 3

Address 3 for remote

Output during 5s

High

Maximum output

10s

Output during 10s

Mid

Medium output

20s

Output during 20s

Clear

Clear the remain powder

Addr 1

Address 1 for remote

STOP

Stop output

Produkt Specifikationer

Mærke:	Audibax
Kategori:	Effekt maskine
Model:	Spark 600
