AXBUCH-T3 AXBUCH-T3
INSTALL ATION INSTRUCTIONS INSTALL ATION INSTRUCTIONS
REV. 12/12/19 REV. 12/12/19© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
Integrate • AxxessInterfaces.com Integrate • AxxessInterfaces.com
INTERFACE FEATURES
• Retains the factory back-up camera to an aftermarket radio
• Allows an aftermarket camera to be added to the factory screen*
* Display and navigation model radios only
INTERFACE COMPONENTS
• AXBUCH-T3 harness
Toyota Back-Up Camera Retain/Add-On 2013-2016
Scion
FRS 2016
iM 2016
tC 2016
Toyota
4-Runner 2014-2016
4-Runner (without NAV) 2013
Toyota (Cont)
Avalon 2015-2016
Camry 2014-2016
Corolla 2014-2016
Highlander 2014-2016
Prius C 2015
Prius V 2015
Rav-4 2015-2016
Toyota (Cont)
Rav-4 (after build
date Nov. 2013) 2014
Sienna 2015
Sequoia 2014-2016
Tacoma 2014-2016
Tundra 2014-2016
Venza 2015-2016
• Cutting tool • Tape • Crimping tool
• Connectors (example: butt connectors, bell caps, etc.)
APPLICATIONS
TOOLS REQUIRED
Connections to be made
The AXBUCH-T3 can be connected two different ways
To retain the factory back-up camera to an aftermarket radio:
Connect the wire to chassis ground.Black
Connect the Yellow wire to accessory power. *
Connect the male Yellow RCA jack to the rear camera input of the aftermarket radio.
Connect the reverse wire from the aftermarket radio, to the reverse signal in the vehicle.
Disregard the loose wire, it will not be used in this application.Green/Purple
* It is highly recommended to use the AXCSD-6V (sold separately) to provide the camera with
the proper voltage.
To allow an aftermarket camera to be added to the OEM screen:
• Connect the
Black
wire to the ground wire of the aftermarket camera.
• Connect the power wire of the aftermarket camera to accessory power.
• Tape off and disregard the
Yellow
wire, it will not be used in this application.
• Connect the female
Yellow
RCA jack to the aftermarket camera.
The following (2) steps are only required if a wire is
not present in the factory harness.
*Except Avalon 2013-2014 and Venza 2013-2014
If a wire is not present in pin-2 of the 28-pin
connector of the factory radio, unplug the
connector, then insert the metal pin of the
loose wire into it. Connect the Green/Purple
harness back into the radio.
Connect the other end of the loose Green/
Purple
wire to the reverse wire of the vehicle.

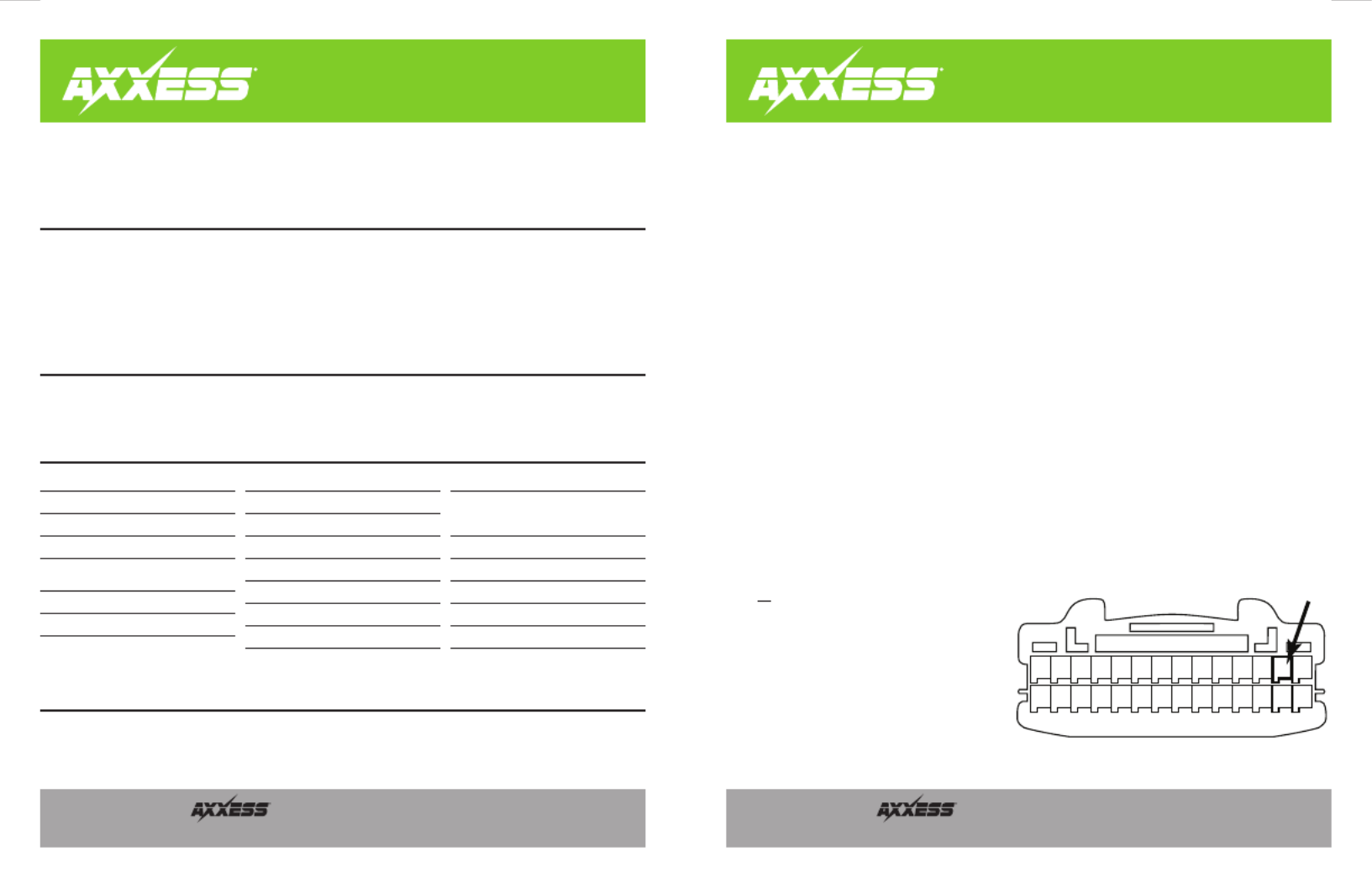

14 13 12 11 10 9 8 7 6 5 3 2 4 1
28 27 26 25 24 23 22 21 20 19 18 17 16 15
This is the wire view of the connector
in the vehicle
28 Pin Harness
