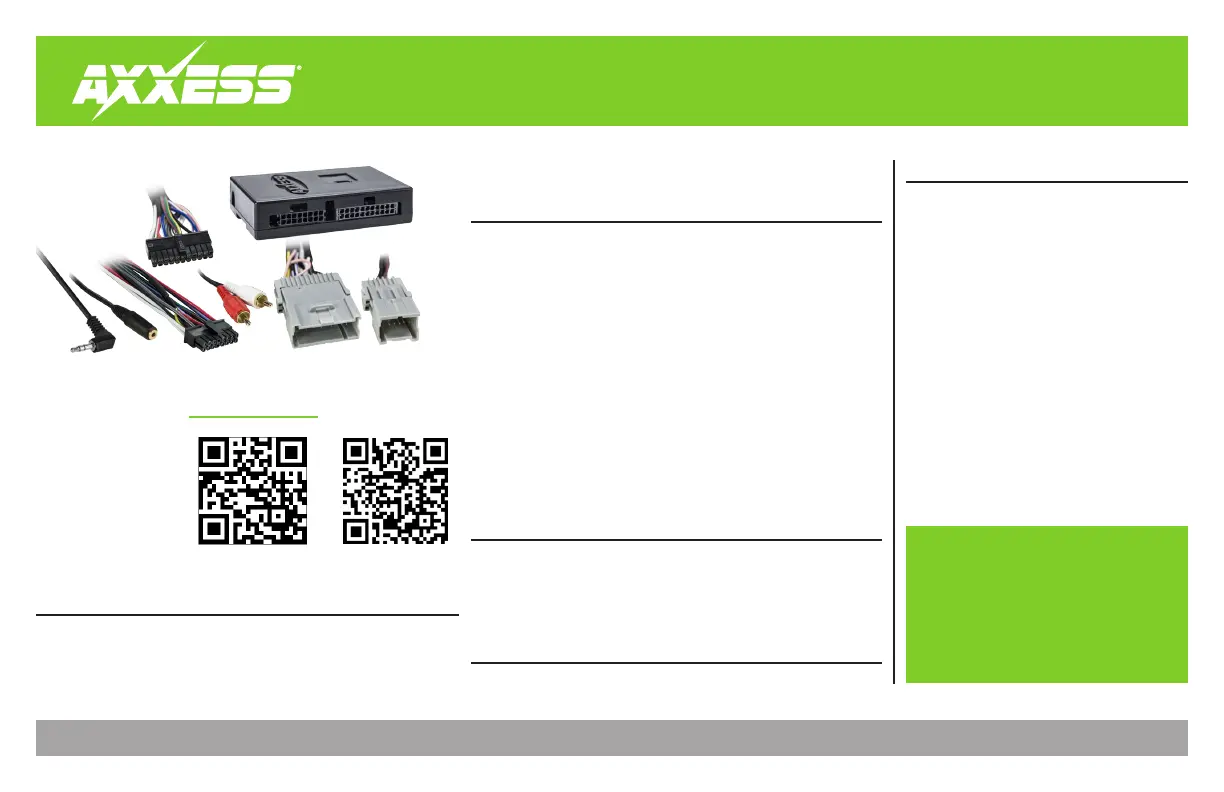

AXDIS-CL2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/18/24 INSTAXDIS-CL2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun
• Tape • Small flat-blade screwdriver
• Connectors (example: butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections
Non-amplified Models 3 ........................................
Amplified Models 4 ................................................
Installation 5 .............................................................
Programming 5-6 .....................................................
Adjusting the AXDIS-CL2 7 .......................................
Extra features 7-8 .....................................................
Steering wheel control settings 9-12 ......................
L.E.D. feedback 9 ....................................................
Changing radio type 10 .........................................
Remapping 10 ........................................................
Dual assignment instructions 11-12 .....................
Troubleshooting....................................................12
GM Data Interface with SWC 2000-2013
APPLICATIONS
See inside front cover
Designed for non-amplified, or
analog/digital amplified models
Provides accessory power
(12-volt 10-amp)
Retains R.A.P. (Retained
Accessory Power)
Provides NAV outputs (parking
brake, reverse, speed sense)
Retains chimes
Retains audio controls on the
steering wheel
Retains OnStar®/OE Bluetooth®
Adjustable OnStar® level
Retains the factory AUX-IN jack
Retains RSE
(Rear Seat Entertainment) *
Retains SAT (satellite radio)
Retains balance and fade
(excludes digital amplified
models)
Micro “B” USB updatable
• AXDIS-CL2 interface • AXDIS-CL2 harness
• 16-pin harness with stripped leads • 4-pin to 4-pin resistor pad
• Female 3.5mm connector with stripped leads
* The RSE must be activated by the factory radio
Product Info
www.MetraOnline.com
MetraOnline.com may be
used to assist with dash
assembly instructions.
Simply enter your Year,
Make, Model vehicle into
the vehicle fit guide and
look for the Dash Kit
Installation Instructions.
