AXPIOB-CH5
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/12/24 INSTAXPIOB-CH5
TABLE OF CONTENTS
Interface Installation.................................................2
TPMS Visual.................................................................3
Radio Operation.....................................................4-5
Applicable Radio Models...........................................6
Chrysler Pioneer Basic Package 2013-UP
Note:
This kit will function in both Single-Zone and Dual-Zone vehicles:
• All HVAC functions will be retained.
• Single-Zone vehicles will only get status feedback of the HVAC functions,
while Dual-Zone vehicles can also be controlled through the radio screen.
• Compass is only retained on vehicles equipped with the UConnect 3
(5" touchscreen).
• The External Speaker is only required in vehicles with safety group features.
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with Kit
Antenna Adapter: Included with Kit
GPS Antenna Adapter: Included with Kit
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TOOLS REQUIRED
Designed for select Pioneer receivers
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Provides NAV outputs (parking brake, reverse, speed sense)
Allows visual of HVAC and gauges on Pioneer screen
Allows adjustment of HVAC functions through Pioneer screen
Retains audio controls on the steering wheel
Allows for auto stop/start override (if equipped)
Works in both Single and Dual-zone vehicles
Retains safety chimes (speaker sold separately)
Designed for amplified or non-amplified vehicles
Micro-B USB updatable
Allows the retention and adjustment of the OE Personalization Settings
Plug-n-Play installation
Includes radio antenna adapter & antenna adapter for GPS
FEATURES
• LD-CH5-PIO • LD-CHRYHAZ2T • LD-CAN3T
• Radio
interface • PR04AVIC-PIO and PR04-PIORCA Harness
• LD-AX-SPK • AD-EU5 • 40-GPS-PIO

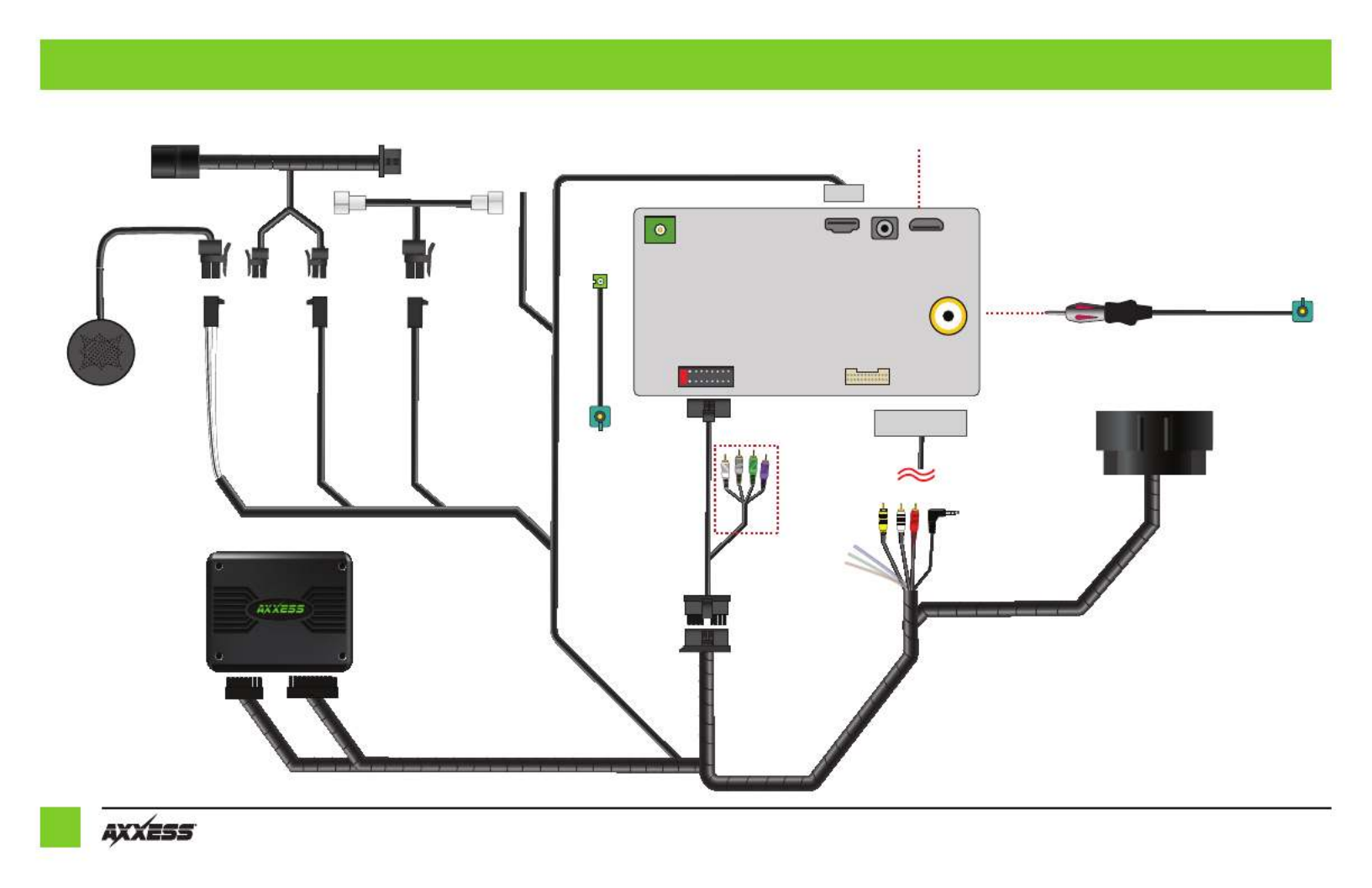

KIT COMPONENTS
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Visit AxxessInterfaces.com for more detailed informaon
about the product and up-to-date vehicle specic applicaons
**
