Side 1/75

RP6503/RP7503/RP8603

Interactive Flat Panel

User Manual

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect

to the contents of this document. BenQ Corporation reserves the right to revise this publication and to

make changes from time to time in the contents thereof without obligation to notify any person of such

revision or changes.

HDMI trademark disclaimer

The terms HDMI, HDMI High-Denition Multimedia Interface, HDMI Trade Dress and the HDMI Logos

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby Audio™ trademark disclaimer

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are

trademarks of Dolby Laboratories Licensing Corporation.

transmitted, transcribed, stored in a retrieval system or translated into any language or computer

language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission of BenQ Corporation.

Product Support ii

Product Support

This document aims to provide the most updated and accurate information to customers,

and thus all contents may be modified from time to time without prior notice. Please

visit the website for the latest version of this document and other product information.

Available files vary by model.

• Make sure your computer is connected to the Internet.

• Visit the local website from www.BenQ.com. The website layout and content may vary

by region/country.

• User manual and related document: www.BenQ.com > Business > SUPPORT >

Downloads > model name > User Manual

• (EU only) Dismantled information: Available on the user manual download page. This

document is provided based on Regulation (EU) 2019/2021 to repair or recycle your

product. Always contact the local customer service for servicing within the warranty

period. If you wish to repair an out-of-warranty product, you are recommended

to go to a qualified service personnel and obtain repair parts from BenQ to

ensure compatibility. Do not disassemble the product unless you are aware of the

consequences. If you cannot find the dismantled information on your product, contact

the local customer service for assistance.

Table of contents

Product Support ii .......................................................................................................

Safety warnings and precautions 1 ............................................................................

Important safety instructions 2 .................................................................................

Notes on this display 2 .......................................................................................................................

Notes on the LCD panel of this display 3 ......................................................................................

Safety notice for remote control 3 ..................................................................................................

Battery safety notice 4 ........................................................................................................................

BenQ ecoFACTS 4 ..............................................................................................................................

Package contents...................................................................................................... 5

Setting up the display 6 ..............................................................................................

Installing the display on a wall 6 ........................................................................................................

Installing an external PC 7 .................................................................................................................

Installing a camera mount 8 ...............................................................................................................

Parts of the display and their functions 9 .................................................................

Front panel 9 .........................................................................................................................................

Input/output terminals 10 ..................................................................................................................

Remote control 12 ..............................................................................................................................

Using the remote control 13 .............................................................................................................

Connections 16 ............................................................................................................

Connecting power 16 .........................................................................................................................

Connecting the VGA input 17 ...........................................................................................................

Connecting the touch module 18 ....................................................................................................

Connecting the digital inputs 19 .......................................................................................................

Connecting the video output 20 ......................................................................................................

Connecting to serial port 20 .............................................................................................................

Basic operations 21 .....................................................................................................

Turning the display on or off 21 ........................................................................................................

Initial setup 22 .......................................................................................................................................

OSD Settings 22 ...................................................................................................................................

Switching input signals 22 ...................................................................................................................

Account Information 23 .....................................................................................................................

User Management 24 ..........................................................................................................................

Setting up the Internet connection 26 ............................................................................................

Updating software 28 ..........................................................................................................................

Adjusting audio volume level 28 .......................................................................................................

Using the touch screen 29 .................................................................................................................

Menu operations.....................................................................................................31

Settings menu 32 ..................................................................................................................................

Proxy setting 40 ....................................................................................................................................

Startup & Shutdown 41 ......................................................................................................................

Android system interface 43 ......................................................................................

Main interface 43 ..................................................................................................................................

Side tool bar 44 ....................................................................................................................................

AMS le manager overview ......................................................................................................... 46

Multimedia les ............................................................................................................................... 48

Apps 53 .........................................................................................................................

BenQ App Store ............................................................................................................................. 54

InstaShare 2...................................................................................................................................... 55

InstaQPrint 56 .......................................................................................................................................

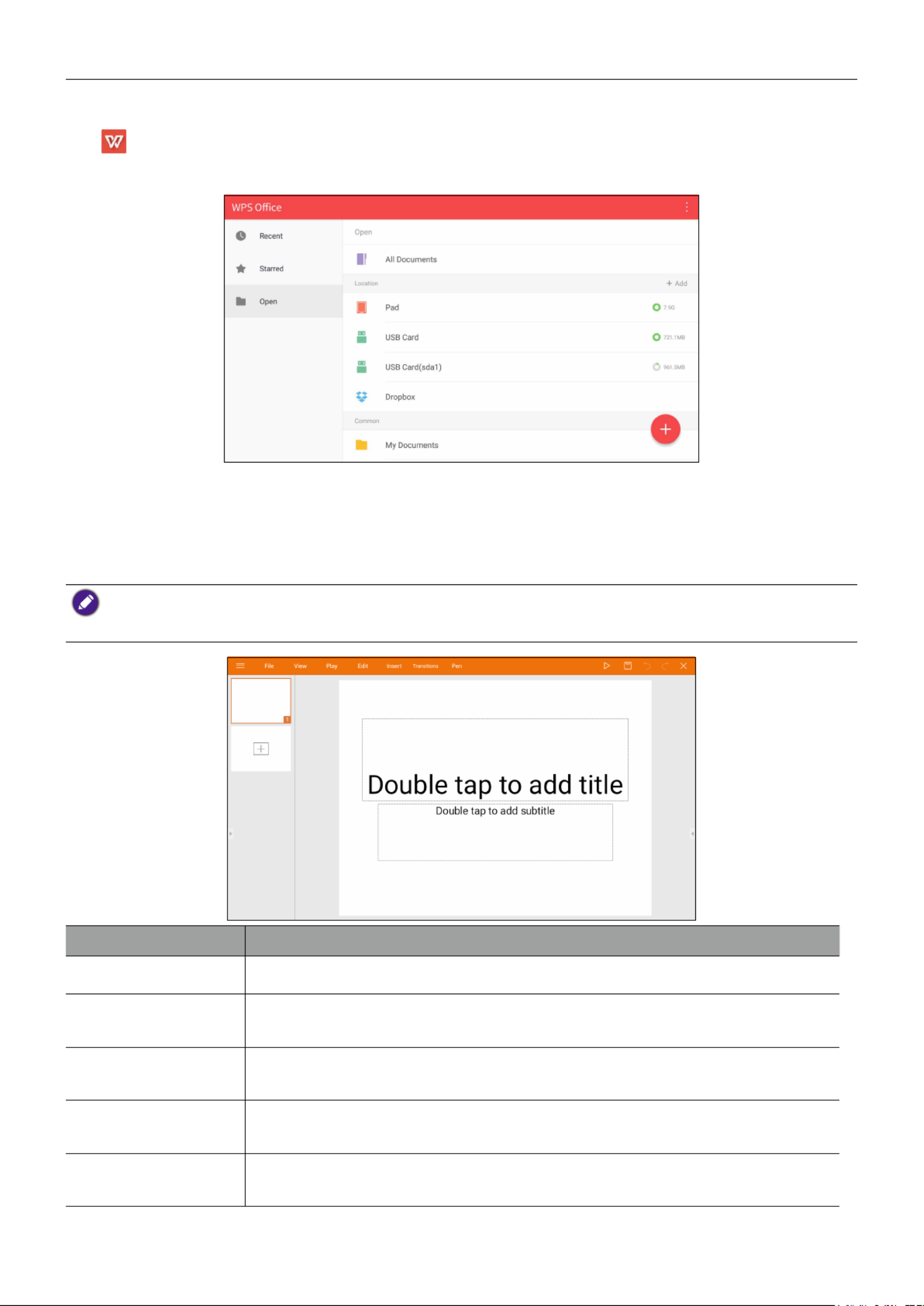

WPS Ofce ...................................................................................................................................... 57

Saf .................................................................................................................................................... 59

Product information 61 ..............................................................................................

Dimensions(RP6503) 65 .....................................................................................................................

Dimensions(RP7503) 66 .....................................................................................................................

Dimensions(RP8603) 67 .....................................................................................................................

Supported input signal resolution 68 ...............................................................................................

Troubleshooting......................................................................................................69

11/02/22

Safety warnings and precautions 1

Safety warnings and precautions

THIS EQUIPMENT MUST BE GROUNDED

To ensure safe operation, the three-pin plug

must be inserted only into a standard three-

pin power outlet which is effectively grounded

through normal household wiring. Extension

cords used with the equipment must have

three cores and be correctly wired to provide

connection to the ground. Wrongly wired

extension cords are a major cause of fatalities.

The fact that the equipment operates

satisfactorily does not imply that the power

outlet is grounded or that the installation is

completely safe. For your safety, if you are in

any doubt about the effective grounding of

the power outlet, please consult a qualified

electrician.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended

to alert the user to the presence of

uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The mains plug of the power supply cord shall remain readily operable. The AC receptacle

(mains socket outlet) shall be installed near the equipment and shall be easily accessible.

To completely disconnect this equipment from the AC mains, disconnect the power cord

plug from the AC receptacle.

• Do not place this display on an uneven, sloping or unstable surface (such as a trolley)

where it may fall and cause damage to itself or others.

• Do not place this display near water, like a spa or pool, or in a position which will allow

the splashing or spraying of water onto the display, like in front of an open window

where rain water may enter.

• Do not install this display in a confined space without proper ventilation and air

circulation, such as in a closed cabinet. Allow proper space around the display for

dissipating heat inside. Do not block any openings and vents on the display. Overheating

may result in hazards and electric shock.

• Installation of this display should only be performed by a qualified technician. Failure to

install this display properly may cause injuries and damages to the personnels and the

display itself. Check the installation regularly and maintain the display periodically to

ensure the best working condition.

• Use only the accessories approved or recommended by the manufacturer to mount

this display. Using wrong or unsuitable accessories may cause the display to fall and

result in serious personal injuries. Make sure that the surface and fixing points are

strong enough to sustain the weight of the display.

• To reduce the risk of electric shock, do not remove covers. No user serviceable parts

inside. Refer servicing to qualified service personnel.

• To prevent personal injuries, mounting the display or installing desktop stands is

required before use.

Important safety instructions2

Important safety instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding-type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet, consult an electrician

for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate normally, or has been dropped.

Notes on this display

• To prevent the risk of physical injuries, do not attempt to lift the display alone.

• Make sure you have four or more people available to help lift or a flat cart to transport

the display to its final location.

• Keep the display horizontal as much as possible.

• Clear a floor space before unpacking.

Important safety instructions 3

Notes on the LCD panel of this display

• The Liquid Crystal Display (LCD) panel of this display has a very thin protective layer

of glass which is liable to marking or scratching, and cracking if struck or pressured.

The liquid crystal substrate is also liable to damage under excessive force or extreme

temperatures. Please handle with care.

• The response time and brightness of the LCD panel may vary with the ambient

temperature.

• Avoid placing the display in direct sun or where direct sun or spot lighting will shine

onto the LCD panel, as the heat may damage the panel and the external casing of the

display, and the bright light will make viewing the display more difficult than necessary.

• The LCD panel consists of individual pixels to display images and is manufactured

according to the design specifications. While 99.9% of these pixels work normally, 0.01%

of the pixels may remain constantly lit (in red, blue or green) or unlit. This is a technical

limitation of the LCD technology and is not a defect.

• LCD screens, like plasma (PDP) and conventional CRT (Cathode Ray Tube) screens,

are also susceptible to ‘screen burn-in’ or ‘image retention’ which can be found on

the screen as visible fixed lines and shades. To avoid such damage to the screen, avoid

displaying still images (like On-Screen Display menus, TV station logos, fixed/inactive

text or icons) for more than 30 minutes. Change the aspect ratio from time to time.

Fill the entire screen with the image and eliminate the black bars whenever possible.

Avoid displaying images in 16:9 aspect ratio over a long period of time, otherwise there

may be visible burn marks on the screen as two vertical lines.

• Note: Under certain circumstances, condensation may occur on the inner side of the

cover glass, it’s a natural phenomenon and will not affect the operation of the display.

This condensation will usually disappear after around 2 hours of normal operation.

• RP series does not offer image retention function. For more information, please refer

to installation guide. If a still image is required for a display, it is recommended to

enable Pixel shift.

• RP series does not support portrait use; portrait use may cause display damage. BenQ

warranty will not cover faulty usage.

Safety notice for remote control

• Do not put the remote control in the direct heat, humidity, and avoid fire.

• Do not drop the remote control.

• Do not expose the remote control to water or moisture. Failure to do so could result

in malfunction.

• Confirm there is no object between the remote control and the remote sensor of the

product.

• When the remote control will not be used for an extended period, remove the

batteries.

Package contents 5

Package contents

Open the sales package and check the contents. If any item is missing or damaged, please

contact your dealer immediately.

LCD display Power cord

(by region) VGA cable x1 2.4 GHz remote

control

HDMI cable x1 Touch USB cable x1 USB Type-C cable x1 AAA battery x2

(by region)

Touch pen x2 Quick start guide Wall mount USB cover

Camera mounting kit

• The type of power cord supplied may differ from that illustrated depending on your region of

purchase.

• Before discarding the package, check that you haven’t left any accessories inside the box.

• Dispose of packaging materials wisely. You can recycle the cardboard carton. Consider storing the

package (if possible) for future transport of the display.

• Do not leave plastic bags within reach of young children or babies

Setting up the display6

Setting up the display

Please pay attention to the following notes during installation:

• This display should be installed by at least two adult persons. Attempting to install this display by

only one person may result in danger and injuries.

• Refer the installation to qualified technicians. Improper installation may cause the display to fall or

malfunction.

• Stability Hazard: The flat panel may fall, causing serious personal injury or death. To prevent

injury, this flat panel must be securely attached to the wall in accordance with the installation

instructions.

Installing the display on a wall

1. Placeaclean,dryandlint-freeclothonaat,horizontalandobject-freesurface.Make

sure that the size of the cloth is larger than the display.

2. Gently lay the display on the cloth with the LCD screen facing down.

3. Identify the wall mounting screw holes on the back of the display as shown in the

illustration.

Dimension VESA spec. (A x B) Screw type Quantity

65" 4600 x 400 mm M8 x 25L

75" 4800 x 400 mm M8 x 25L

86" 4800 x 600 mm M8 x 25L

Setting up the display 7

4. Install the wall mounting bracket on the display and attach the display to the wall

according to the mounting bracket’s instructions. The length of the screw should exceed

the thickness of the wall mounting bracket by at least 25 mm. Make sure that all screws

are tightened and secured properly. (Recommended torque: 470 - 635N•cm). The

mounting means should be strong enough to bear the weight of the display.

Thickness of the wall

mounting bracket

25 mm

(0.39")

LCD display

• To maintain proper ventilation, keep at least 10 mm of clear space from

the back cover of the display to the wall.

• Please consult a professional technician for wall mount installations. The

manufacturer accepts no liability for installations not performed by a

professional technician.

10mm

(0.39")

Installing an external PC

The back of the display has four screw holes at its bottom-left side with a dimension

of VESA mount 100x100mm. You can secure the PC onto the display with four screws

(maximum torque: 4-5 kgf-cm).

Setting up the display8

Installing a camera mount

Check the mounting component list before installing:

Upper mount Lower mount 1/4" screw (8mm) M3x5 mm screw x 3

To install the camera mount:

1. Place your camera onto the upper mount

and secure the camera by screwing the

1/4" screw into the camera’s screw hole.

2. Install the lower mount with two

M3x5mm screws and secure it on the top

of the display.

3. Insert your camera with the upper mount

attached into the lower mount.

4. Secure the camera mount by screwing a

M3x5mm screw into the screw hole at

the left side of the upper mount.

Parts of the display and their functions 9

Parts of the display and their functions

Front panel

TYPE-C TOUCH-USB MIC-INPUBLIC-USB3.0HDMI

AIR IONIZER

1 2 3 4 5 6

89 10 11 12 13 14 15 16

No. Name Description

TYPE-C

Connects to USB-C devices for charging and data transfer.

Allows the transmission of video, audio, and touch

function.

2HDMI Connects to a source device using a HDMI cable.

3TOUCH-USB Supports touch signal input from an external computer.

4USB 3.0 Connect USB devices such as keyboards, mouse, and USB

ashdrives.

5MIC-IN Receives sound from a source device (e.g. microphone)

via an audio cable.

6AIR IONIZER Releases negative ions.

7Array microphones Receives and transmits sound from near the display.

8NFC sensor NFC reader & writer.

Ambient light sensor Detects the ambient light around the display.

10 IR signal receiver Receives infrared signals from remote control.

11 Power Tap to enter energy saving mode. Press and hold for 4

seconds or more to power off.

12 Home Press to return to the main screen.

Return Press to return to the previous menu.

Parts of the display and their functions10

No. Name Description

14 Menu Press to enter the function menu.

15 Volume down Press to decrease the volume.

16 Volume up Press to increase the volume.

Input/output terminals

See for connection details.Connections on 16

TYPE-C

TOUCH-USB

HDMI1

HDMI-OUT

RS232

USB2.0

TOUCH-USBHDMI2LAN-OUT LAN-IN LINE-OUT SPDIF AAUDIO-IN VG 910

1 2 3 4 5 6 7 8

No. Name Description

1LAN-OUT Supports LAN Out, 10/100/1000 Mbps for external

device.

2LAN-IN Supports LAN In , 10/100/1000 Mbps for Android system

and OPS.

3LINE-OUT Connects to external speakers or earphones.

4SPDIF Connects the SPDIF cable from external audio devices to

the display for audio out.

5AUDIO-IN Receives audio input from an external device.

VGA Receives input from an external device (such as a

computer).

Parts of the display and their functions 11

7HDMI 1/HDMI 2 Connects to PC with an HDMI output, a set-top-box, or

other video devices capable of realizing touch function.

8TOUCH-USB Supports touch signal input from an external computer.

9USB 3.0

Unscrew the USB cover to access the USB slot for the

wireless USB adapter and the remote control USB

receiver.

10 DP Connects to a PC, or audio/video equipment that

supports the DisplayPort interface.

11 RS232 Serial interface, used for mutual transfer of data between

devices.

12 HDMI-OUT Connects to display devices with an HDMI input.

13 TYPE-C Connects to USB-C devices for data transfer.

14 USB 2.0 Connects USB devices such as keyboards, mice, and USB

ashdrives.

15 OPS Slot (Port) Supports installation of an OPS (Open Pluggable

Specication)device.

16 USB 3.0 Connects to USB devices such as web cameras or USB

ashdrives.

• USB 2.0= 5V 500mA / USB3.0= 5V 900mA

• Rear Type-C = 5V 0.9A

• Front Type-C =5V 3A; 9V 3A; 12V 3A; 20V 3.25A

• OPS= 18V 5A; 90W

• : Direct Current / DC

• : Alternating Current /AC

• The maximum length for the cables to be used with the USB slots are 5m (USB 2.0) and 3m (USB

3.0).

Parts of the display and their functions12

Remote control

1 2

Direction key. Press for left selection.

Press to proceed

Direction key. Press for right selection.

Direction key. Press for downward selection.

Android system main screen button.

Return key

Voice command key. Press to activate Saffi

(BenQ Voice Assistant), hold the button and

say the supported command. Release the

button until you finish the command.

Speak directly to the microphone built into the

top portion of the remote control. Position the

microphone closer to your mouth or speak in a

loud and clear voice.

13 /

Volume up/down.

14 FREEZE

Freeze screen

15 BLANK

One key for blank screen.

Microphone

The USB receiver to pair with the remote

control. See Using the BenQ Interactive Flat

Panel by remote control on 14 for more

information.

Turns the display on or off.

Pointer key. Press to activate the spotlight

or pointer function and follow the

instructions on the screen.

Press to open Task Switcher to switch

between recent apps and input sources.

Press to open or close the menu.

Direction key. Press for upward selection.

Parts of the display and their functions 13

Using the remote control

Installing remote control batteries

1. Open the remote control battery cover.

2. Insert the supplied batteries, ensuring the

positive and negative ends are facing in the

correct direction.

The supplied batteries are provided for your

convenience so that you can operate the display

straight away. You should replace them as soon as

possible.

3. Put the cover back on.

Parts of the display and their functions14

Using the BenQ Interactive Flat Panel by remote control

Insert the remote control USB receiver into the USB ports at the bottom right corner of

the back of the display.

Wi-Fi Adapter

Remote control

USB receiver

For detailed function of each button, see Remote control on 12.

The remote control and the USB receiver have been paired by default.

• This remote control applies only to a specific model and operating systems. Contact your reseller

if you have any question.

Pairing remote control and the USB receiver

If you are experiencing issues using the function key on the remote control, please follow

the steps and pair again the remote control to resolve the issue:

1. Insert the USB receiver to Interactive Flat Panel’s USB port and place the remote

control near it.

2. Press the and BLANK at the same time, and the indicator light will start flashing.

3. The pairing is completed once the indicator stops flashing.

Parts of the display and their functions 15

Remote control usage tips

• To power on/off the display, aim the top front of the remote control directly at the

display’s remote control sensor window when you press the buttons.

• Avoid getting the remote control wet or store it in humid environments (like

bathrooms).

• If the display’s remote control sensor window is exposed to direct sunlight or strong

light, the remote control may not operate properly. In this situation, change the light

source, readjust the angle of the display, or operate the remote control from a location

closer to display’s remote control sensor window.

Max. 8 m

Connections16

Connections

Connecting power

Plug one end of the power cord into the power jack on the display and the other end into

an appropriate power outlet.

A C I N

• The supplied power cord is suitable for use with 110-240V AC power only.

• The power cord and outlet illustrated may differ from the ones used in your region.

• Only use an appropriate power cord for your region. Never use a power cord which appears

damaged or frayed, or change the plug type on the power cord.

• Be aware of the power loading when you use extension cords or multiple outlet power boards.

• There are no user serviceable parts in this display. Never unscrew or remove any covers. There

are dangerous voltages inside the display. Turn off the power and unplug the power cord if you

intend to move the display.

• The illustration is for your reference only.

Connections 17

Connecting the VGA input

1. Connect the VGA port on the display to the VGA output port on a computer using a

D-Sub (15-pin) cable.

2. Connect the computer’s audio output port to the jack on the display AUDIO-IN

using a suitable audio cable.

TOUCH-USBHDMI2LAN-OUT LAN-IN LINE-OUT SPDIF AAUDIO-IN VG

Audio cable D-Sub (15-pin) cable

Computer

Connections18

Connecting the touch module

Connect the TOUCH-USB port on the display to the USB port of a computer using

the supplied USB cable. The touch module of the display supports easy Plug-and-Play

operation. There is no need to install additional drivers on the computer.

• Connect port with the computer.TYPE-C

• must be used with HDMI TOUCH-USB at the front panel.

• must be used with HDMI 1 TOUCH-USB and DP.

• must be used with HDMI 2 TOUCH-USB VGA. and

TOUCH-USBHDMI2VGA

TYPE-C TOUCH-USB

HDMI

TOUCH-USBHDMI1DP

• Avoid blocking the touch screen frame (where sensors are located) when initiating the touch

module.

• It is highly recommended that you connect the display to the PC or laptop directly. Avoid

connecting the display to a face plate device which may cause failures in touch operations.

• If any ghost image occurs, please try to un-plug and then re-plug all USB cables. If the failure image

still exists, use another USB Type-A to Type-A cable.

Connections 19

Connecting the digital inputs

1. Connect the HDMI or DisplayPort output port of a computer or A/V device (such as

a settop box or DVD player) to the input port on the HDMI 1/HDMI 2/HDMI/DP

display using an HDMI or DisplayPort cable.

2. To view video from this input, press on the remote control to switch to the

respective input source.

TOUCH-USBHDMI2VGA

TYPE-C TOUCH-USB

HDMI

TOUCH-USBHDMI1DP

The applicable cable is not supplied and should be purchased separately.

Connections20

Connecting the video output

1. Use an HDMI cable to connect the port to the respective input port HDMI-OUT

on the device.

2. Plug in the power cord and switch the power on.

3. Press on the remote control to turn on the display.

HDMI-OUT

Connecting to serial port

Directly connect a computer to the port on the input/output terminals.RS232

RS232

• The applicable cable is not supplied and should be purchased separately.

• This connection is applicable to straight-through RS-232C cable only.

• After using serial port line to connect central control equipment and machine, certain function

of the machine can be controlled via central control equipment, such as: machine on/off, and

adjustment of sound volume, etc.

Basic operations 21

Basic operations

Turning the display on or off

1. Be sure to follow the instruction of Connecting power on 16.

2. At the back of the display, flip on the power switch located on the lower left side to

On. The system will enter standby mode.

• To turn on the display, press the power button on the control panel or on the remote

control.

• To turn off the display, press the power button on the control panel or on the remote

control. The system will automatically enter standby mode.

Signal receiver Power button

The display’s standby mode still consumes power. To completely cut off power supply, set the power

switch to OFF (O) and then disconnect the power cord from the power outlet.

Basic operations22

Initial setup

After you have connected the display to the power, you are ready to power on the display.

The first time you power on the display, you will be guided through a series of setup

screens. Follow the on-screen instructions or the steps below to start up your display and

complete the initial setup.

1. Turn on the display. Wait for the display to boot up with the BenQ screen. This may

take a moment.

2. Tap Next on the screen to begin. Follow the on-screen instructions to set up the

language, date and time, and network. Or your can skip some of these steps and

complete the setup later.

OSD Settings

Use one of the following methods to enter the OSD menu:

• Press on the remote control.

• Press the Menu button ( ) on the front panel.

• Drag the OSD menu up from the bottom-center of the screen.

See for more information on the OSD menus and their settings.Menu operations on 31

Switching input signals

Under the tab of the OSD menu, you can select a desired input source. See Connection

Input settings on 32for more information.

Basic operations 23

Account Information

Three types of accounts are provided: Guest, Admin, and Multiple users.

Guest

It’s for public use under Guest account. You are able to change the headshot, wallpaper,

volume and brightness.

Admin

password. You can also enable AMS service, set Available offline accounts, and check

Device information.

Multiple users

Before logging in as User, be sure to enter the correct email address and activate

AMS service.

To access your personal account, you have to ask the administrator to activate AMS

service first and create your account through service. See IAM User Management on

24for more information.

For more information and tutorial videos about the AMS service please visit https://www.

benq.com/en-us/business/ifp/account-management-system.html.

Basic operations24

User Management

To add a new user, please contact your IT manager to create your account through BENQ

IAM web service.

Creating a new account

1. As an administrator to create a new account for regular users, go to BenQ Service

website: . Suggested browsers are Chrome and Firefox.https://iam.benq.com

2. Log in and choose .IAM

3. Click Create New Account to continue.

Basic operations 25

4. Fill in the following fields. Be sure to enter the correct email address. Click Submit

to create a new account.

• If some members in your organization need more privilege to control the AMS service, you can

activate the users as other roles.

• You can also activate , and X-Sign, DMS Broadcast when creating user accounts. Switch to

different services, , or X-Sign, DMS Broadcast by clicking the icon on the upper right corner..

5. The account has been created and a verifying email is sent to the new account owner.

Basic operations26

Setting up the Internet connection

Your display must be connected to a network to conduct OTA updates or surf the

Internet.

To find the MAC address in Android OS, please go to > > > .Settings System About Status

Network setting

On the home screen, go to > > > . If there is no IP Settings System About Status

address shown, please connect the display to the Ethernet cable.

Wireless connection

You must use a wireless adapter in order to connect the display to the Internet wirelessly.

Please contact your local dealer for more information on configuring the wireless

connection.

1. Press on the remote control, or go to Network > Wi-Fi.

2. Insert the Wi-Fi dongle and the switcher will automatically change to . A list of ON

Basic operations 27

available networks will show on the screen.

3. Touch the network’s name to connect to the network. The password is needed if it

is your first time to use the network. Key in the password and press Connect. The

device is now connected to the WLAN.

• If you are connecting to a secured wireless network, enter the password for the wireless network

access when prompted and tap Connect.

• For wireless connection, BenQ shipment does not include wireless dongles; therefore, you may

purchase it separately via the local dealer.

Basic operations28

Updating software

Whenever a new version of software is available, the system will automatically detect the

update and will prompt you to download it every time you turn on the display. If you want

to update the software, choose NETWORK UPDATE USB UPDATEor to continue

the update. Or your can skip this step and update the software later.

To manually update the software:

1. Go to > System About > System updates.

2. If there is an update available, the system will begin updating.

• Software update process may take some time to complete.

• During the update process, do not turn off the device or disconnect the Internet connection.

Any interruptions during the software update process may permanently damage your display.

Adjusting audio volume level

To adjust the audio volume level do either one of the following:

• Press / on the remote control to adjust the volume.

• Press / on the front panel of the display.

• Go to > to adjust the volume. See for Settings General General settings on 32

more information.

Basic operations 29

Using the touch screen

You can use the optical touch screen to control your operating system. The following

table shows a list of gestures you can use on the touch screen.

Ensure that you have installed the USB cable on the display to a computer.

OS functions Gesture actions

Click

Tap the screen once.

Double-click

Tap the screen twice.

Right-click

1. Press on the target.

2. Hold and wait for a blue ring to appear.

3. Release your nger.

Drag

Drag one nger left or right.

Pan up / Pan down /

Back / Forward

Quickly drag your nger (Flick) in a desired direction.

Basic operations30

OS functions Gesture actions

Scrolling

Drag one or two ngers up or down.

Zoom

Move two ngers apart or toward each other.

Important instructions for using the touch screen

Please clean the frame when there is sign of malfunction on the touch screen.

• Before you clean the screen, make sure the display is turned off, and unplug the power

cord.

• Remove dust or dirt from the screen and the infrared plastic filter periodically. It is

suggested using a small amount of alcohol to clean the infrared plastic filter.

• To avoid damage to the screen, never use any type of abrasive materials to wipe the

screen.

• Use a neutral detergent to clean the touch screen. Avoid using detergents with erosive

substance, such as banana oil or ammonia.

• Moisten a clean soft, lint-free cloth with a neutral detergent and then clean the touch

screen.

• Do not spray a detergent on the screen surface or the body directly. It may result in a

short circuit to the touch screen.

• Keep the touch screen out of direct sunlight or spotlights.

Menu operations 31

Menu operations

To enter the OSD menu:

• Press on the remote control

• Press on the front panel

• Drag from the bottom-center of the screen

To make selections:

• Press / / / on the remote control and press to confirm or directly click OK

an item.

• Press on the remote control or click a blank area outside the menu to exit the

menu.

Under you can select a desired input source and adjust backlight. See Connection, Input

settings on 32for more information.

Menu operations32

Settings menu

Input settings

Under you can select a desired input source.Connection,

General settings

Go to to access the and General Audio Picture settings.

Audio

• Under Audio, use the volume bar to adjust the volume for the display.

• Directly swipe to enable or disable Mute.

• Go to More to enter the Audio menu.


• Under Picture, use the brightness bar to adjust the brightness for the display.

• Directly swipe to enable or disable .Auto Backlight

• Go to More to enter the Picture menu.

Menu operations 33

Eye-Care solutions (Hardware low blue light & Flick-free)

Blue light with wavelengths under 455 nm could affect vision. Eye-Care solution is

designed for eyesight protection: the display provides proprietary eye-care technology

with ultra-low blue light emission and no visible or invisible flicker within the range

of 0-3000Hz, preventing eyestrain caused by extended sessions in front of a display. In

addition, advanced anti-glare screen treatment minimizes distracting reflections and glare

for optimal productivity and comfort.

Suggestions for long-term use of the display:

• Rest your eyes for 10 minutes after 30 minutes of continuous use.

• For every 20 minutes of display viewing, look into the distance for 20 seconds.

• When your eyes get sore and strained, close your eyes for a minute and then roll your eyes in all

directions.

Low blue light & flicker free:

• The default setting of Picture Mode: Standard and Color Temperature:

Standard is in accord with Low blue light TUV certificate.

• The default setting is in accord with Flicker Free TUV certificate.

For more information about Picture settings, refer to Picture settings on 35.

What is Flicker-free?

The display with the Flicker-free technology maintains a stable backlight with a DC

dimmer that eliminates the primary cause of monitor flicker, making it easier on the eyes.

The flicker-free technology does not only give you a comfortable viewing experience but

also offers a safer choice that protects your eyes.

Menu operations34

Audio settings

Menu Descriptions

Balance Drag the knob to adjust the balance.

Sound Mode

• Touch a preset sound environment. Options are Standard

News Music Movie Sport, , , , or .User mode

• Under , you can adjust the level of frequency bands User mode

(10KHz, 5KHz, 1.5KHz, 500Hz).

Menu operations36

Device settings

Go to Device to access the Device settings.

Menu Descriptions

Display Allows you to adjust the display’s parameters.

Custom source name Allows you to set unique names for each input source.

Apps Accesses all the applications installed in the dispaly.

Storage Allows you to manage the display’s storage.

Advanced settings Accesses more device settings. See Advanced settings on 37

for more information.

Email accounts Sets the display’s email accounts.

Accessory Displays current microphone information.

Screen Allows you to adjust the display’s image settings. See Screen

settings on 38for more information.

Menu operations 37

Advanced settings

Menu Descriptions

Key lock Press OK on the remote control or click the switch to lock or

unlock the buttons on the front panel of the display.

IR lock

Press OK on the remote control or click the switch to lock or

unlock the remote control IR sensor on the front panel of the

display.

Touch lock Press OK on the remote control or click the switch to lock or

unlock the screen.

Pixel shift Press OK on the remote control or click the icon to set a

pixel shift preventing from image retention.

DCR Press OK on the remote control to enable or disable DCR.

• If keypad, IR and touch are locked all at once, please follow the steps to unlock: Press on

the remote control for five seconds.

• For image retention, please see Notes on the LCD panel of this display on 3for more

information.

Menu operations38

Screen settings

Menu Descriptions

Aspect ratio

Press / on the remote control or click an aspect ratio.Options

are 16:9 PTP. or You can also select to automatically adjust Auto

the image.

Use the , and functions to manually adjust H position, V position, Clock rate Phase

the image.

Menu Descriptions

H position Press to move the screen to the left or right.

V position Press to move the screen to the top or bottom.

Menu operations 39

System settings

On the home screen, select > to enter system settings.Settings System

Menu Descriptions

Date & Time Click to set date, time, and their formats in Android.

Language & Input Click to set Language, Keyboard & Input methods in

Android.

Startup & Shutdown

Click to set the Startup channel, OPS startup option,

Wake on Lan, and Power off reminder. See Startup &

Shutdown on 41 for more information.

Floating tool Click to open and close the oating tool. See EZ Floating Tool

on 45for more information.

About Click to view system information in Android.

The amount of available storage space for the user varies according to the amount of pre-

installed apps and images occupying the total storage space.

Menu operations40

Proxy setting

• Go to Network Ethernet. >

• Press Proxy to go to the proxy setting.

• Enter the proxy host name.

• Enter the using channel.

Menu operations 41

Startup & Shutdown

• Go to > System Startup & Shutdown.

• , you can choose or other sources.For Startup channel Last channel

• For you can choose OPS startup option, Startup only through OPS startup

Menu operations42

option Startup through any channel.or

• For Power off reminder, you can set on or off time. Schedules can be made by

choosing the days of the week.

Android system interface 43

Android system interface

Note that this is a closed Android OS. Download and use of unauthorized apps on this system are

not available.

Main interface

The display launches the Android main interface by default. To navigate the Android main

interface:

• Press on the remote control or Home button on the front panel to return to the main

interface.

• Press on the remote control or drag the OSD menu up from the bottom-center of the

screen to enter the OSD menu to select an input.

Icon Function Descriptions

Source Press to enter the Connection menu to set input source.

OSD Settings Press to open or close the OSD settings menu.

All Apps Press to access all apps and widgets.

Android system interface44

Side tool bar

Tap the side bars at the left or right of the Android main interface to access the side tool

bar.

You may drag the tool to the top or bottom of the screen to suit your preference.

Icon Function Descriptions

Home Tap to return to the main interface.

Back Tap to return to the previous screen.

Recent Tap to switch between recent apps and input sources.

EZWrite Tap to enter EZWrite annotation software.

Freeze Tap to freeze the current screen.

Floating Tool Tap to open the oating annotation tool.

Android system interface 45

EZ Floating Tool

The EZ Floating Tool allows you to quickly write or create annotations on any screen that

the display is showing.

To access the floating tool use either one of the following methods:

• In the Android interface, tap in the side tool bar.

• Under any input source or in the Android interface, touch and hold two fingers spaced

about 20 – 50 mm apart on the screen for more than two seconds to launch the EZ

Floating Tool menu as shown below.

Icon Function Descriptions

/ Minimize/Restore Click to minimize or restore the oating tool.

Close Click to close the oating tool.

Pen Click to enable the Pen tool.

Highlighter Click to enable the highlighter tool.

Laser pointer Click to enable the laser point on the screen.

Eraser Click to erase annotations on the screen. You may use

a nger eraser or choose to clear all annotations

Toolbox

Click to open the toolbox which includes the

Calculator, Timer, Stopwatch, Scoreboard, and Draw

tools.

Recording Click to start recording the screen.

Screenshot Click to take a screenshot of the screen.

Operation mode Click to hide all the annotations and operate the main

interface.

Android system interface46

AMS le manager overview

With this application, you can access your personalized workspace environment and

settings, and manage your files and accounts on any IFP that you have logged into.

To access the AMS files use either of the following methods:

• Tap the file manager shortcut .

• Tap the AMS shortcut ].

While logging in, you will see four main parts, as described in the table below:

Android system interface 47

Item Description

1. Source Selection

• You can open files from the cloud storage

services like Google Drive, Dropbox, or Network

Drive.

• You can also open files from the local devices like

Internal, My Folder, or connected USBs.

The icon next to Google Drive, Dropbox shows that

the account is bound to AMS service.

2. Folder Path You can browse the le folder in this area.

3. Listing Files You can see a list of les from the storage device you

select.

4. Operating Tab You can edit the les using the operating tabs here.

Regular users can only view their own files, while the local admin can view all users’ files in the

domain.

Android system interface48

Multimedia les

Multimedia files such as images, audio files, and videos can be played by directly tapping on

the file icon.


Select an image file you want to show on the display and perform any of the functions

shown on the screen.

Icon Function

Exits the image viewer.

/Plays the previous/next image file.

/Magnifies/Shrinks the current image.

Rotates the current image clockwise.

Plays in slideshow mode.

Opens slideshow settings.

Changes the position of toolbar.

Android system interface 49

Audio/Video

Select an audio/video file you want to play on the display and perform any of the functions

shown on the screen.

Icon Function

Changes cycle mode.

/ Plays the previous/next file.

/Plays/pauses the current file.

Adjusts the volume level.

Android system interface50

Media player format

Extension Codec Detail Resolution

.3gp

MPEG-4 Visual 640x480

MPEG-4 320x240

H264 1920x1080

.avi

AVC 1920x1080

M-JPEG 1024x576

RealMagic MPEG-4

720x480

720x576

h264 1920x1080

FF mpeg MPEG4 640x480

.f4v AVC(H264) 1280x720

.flv

Sorenson Spark 1920x1080

VP6 800x342

.mp4

AVC(H264) 1920x1080

HEVC(H26 5) 1920x1080

4K HEVC(4K H265) 4096x2304

8K HEVC(8K H265) 8192x4320

.m2ts

AVC 1920x1080

VC-1 1920x1080

.m2v MPEG-2 480x576

.m4v 1280x720AVC

Android system interface 51

Extension Codec Detail Resolution

.mkv

WMV3 1280x720

MPEG-4 Visual 1920x1080

AVC 1920x1080

4K HEVC(4K H265) 3840x2160

8K HEVC(8K H265) 8192x4320

VP8 1920x1080

VP9 1920x1080

.mov

MPEG-4 Visual 1280x720

mjpa 640x480

M-JPEG 640x480

AVC(H264) 1920x1080

4K H264 3840x2160

.mpeg

MPEG-2 1920x1080

VC-1 1920x1080

MPEG-1 720x576

.mts 1440x1080AVC

.ogm XVID 640x480

.PMP H264 480x272

.rmvb

RealVideo1 1280x720

RealVideo2 1280x720

RealVideo3 1280x720

RealVideo4 1920x1080

.tp MPEG-2 1920x1088

Android system interface52

Extension Codec Detail Resolution

.ts

HEVC(H26 5) 1920x1080

4K HEVC(4K H265) 4096x2304

8K HEVC(8K H265) 8192x4320

MPEG-1 1920x1080

avs 720x576

avs+ 1920x1080

avs2 3840x2160

AVC 1920x1080

MPEG-2 1920x1080

.vob MPEG-2 720x576

.wmv

WMV1 640x480

WMV2 768x432

WMV3 1920x1080

.webm

VP8 1920x1080

VP9 1920x1080

4K VP9 4096x2160

8K VP9 8192x4608

AVC(H264) 4096x2304

HEVC(H26 5) 4096x2304

VP9 4096x2160

HEVC(H26 5) 8192x4320

VP9 8192x4608

Apps 53

Apps

Tap the desired app to launch the app.

Application Name Description

BenQ App Store ( )

Allows you to download recommended apps. See BenQ App

Store on 54 for more information.

BenQ Notication ( )

Allows you to receive upgrade notications of existing apps

and information of new apps available for download.

InstaShare 2 ( )

Allows screen mirroring and touch control for collaborative

meetings. See InstaShare 2 on 55 for more information.

InstaQPrint ( ) Allows you to print a le or website image using a Wi-Fi or

remote printer.

WPS Ofce ( )

Allows you to read PDF les or edit les created in Microsoft

Ofce, PowerPoint, or Excel. See WPS Ofce on 57 for

more information.

TeamViewer Meeting ( )

Gives you access to instant or scheduled group meetings with

any other TeamViewer Meeting users.

Saf ( )See Saf on 59 for more information.

Apps54

BenQ App Store

Tap to launch BenQ App Store. With this application, you can view apps suggested

by BenQ for download.

Tap the category on the left panel to browse the suggested apps.

Function Description

Search ( ) Search for an app.

Update Center ( ) Allows you to update the BenQ Store app.

Education ( )Lists th suggested apps in the Education category

Corporation ( ) Lists the suggested apps in the Corporation category

BenQ Apps ( ) Lists the available BenQ apps.

Exit ( )Close BenQ Store.

Apps 55

InstaShare 2

InstaShare 2 ( ) is a software-based solution for multi-user collaboration, which lets

users to share contents with all devices in a meeting wirelessly.

Two ways are provided for you to access InstaShare 2:

• On the Android main interface, select Wireless Projection ( ).

• Select All Apps( ) > InstaShare 2 ( )

Before launching the application, make sure your display is properly connected to lnternet.

When you enter , the main interface is shown as below:InstaShare 2

No DescriptionFunction

Tutorial window

Follow the guide to connect and pair your device with

the display. Select the device OS type below to see the

projection tutorial respectively.

2Information window Shows the display name, pairing code and connection

password while presenting.

3Host Controls window

Allows you to control the whole session and participant

actions. You can also install InstaShare 2 app to manage

the meeting session remotely

Apps56

InstaQPrint

Tap to launch InstaQPrint. With this application, you can print a file or website image

using a Wi-Fi or remote printer.

• Before launching the application, make sure your display is properly connected to lnternet.

• For the list of supported printers, see https://printhand.com/list_of_supported_printers.php.

1. Tap the option on the left panel and browse and select the desired file, photo, page, or

image you want to print.

2. Tap Manage Printers to choose which printer that you want to use.

3. To select a printer:

• Tap an option from the list of available printers on the left panel.

• Tap Scan for Wi-Fi Printers to search for printers automatically.

• Tap Manual Setup to add a new printer manually.

Apps 57

WPS Ofce

Tap to launch WPS Office. With this application, you can open document files including

PDFs as well as Microsoft Word, PowerPoint and Excel documents.

To edit a file with WPS Office:

1. Tap Open () on the left panel to browse and open a file located in either the display’s

internal memory, an external storage device, or cloud storage.

2. Tap the function menu on the top panel to access the file format’s various functions.

The description below is for a PowerPoint file, the function menus for other file formats will vary.

Function Description

File Tap to open, save, share, print, and manage your presentations.

View Tap to change or edit the presentation views.

Play Tap to start or set up a slide show.

Edit Tap to edit the content or format of the slides.

Insert Tap to insert tables, pictures, charts, comments, video, or audio.

Apps58

Function Description

Transitions Tap to apply or adjust the timing of a transition.

Pen Tap to write, draw, paint or sketch to the slides.

Play Tap to start a slide show.

Save As Tap to save the presentation le on either the display’s internal

memory, an external storage device, or cloud storage.

Undo Tap to undo an action.

Redo Tap to redo the last action.

Close Tap to close the presentation le.

Back Tap to return to the previous page.

Next Tap to go to the next page.

Exit Tap to exit WPS Ofce.

Supported Ofce versions and le formats

Supported Office versions: 97 / 2000 / XP / 2003 / 2007 / 2010 / 2013 / 2016

Supported Office software formats:

Office Software Supported file formats

Word wps / wpt / doc / docx / dot / dotx / txt / log / irc / c / cpp / h / asm /

s / java / asp / bat / bas / prg / cmd

Excel et / ett / xls / xlsx / xlt / xltx / csv / xlsm / xltm

PowerPoint ppt / pptx

Apps 59

Saf

How to start using Saf – BenQ Voice Assistant

The BenQ Interactive Flat Panel offers an extra level of flexibility for device control

through Voice Assistant. Voice Assistant lets users control the flow of meetings by allowing

them to start timers or search the Internet from anywhere in the room.

Already enable AMS service but did not bind your Amazon account to it

If you already enable Multi Account Mode and AMS service and you have not yet bind

your Amazon account to it, please follow the below steps:

1. Access AMS website to link the account with Amazon. For more detail on how to link

the account under AMS, please refer to AMS user manual.

2. Press the Voice command key ( ) to activate Saffi.

3. The screen will show the privacy agreement. Select AGREE AND NEXT to proceed.

4. It will then show the instruction for the setup. Follow the instruction on the screen to

complete the setup.

Apps60

5. Download and install Alexa app on your phone. Search Saffi and enable it.

6. The setup is completed. Press the Voice command key and speak the commands to

start using Saffi.

Product information 61

Product information

Specications

Item Specications

RP6503 / RP7503 / RP8603

Panel

Size RP6503: 65" / RP7503: 75" / RP8603: 86"

Light Source DLED

Aspect Ratio 16:9

Resolution 3840 x 2160

Pixel Pitch(mm)

RP6503: 0.37(H) x 0.37(V)

RP7503: 0.43(H) x 0.43(V)

RP8603: 0.49(H) x 0.49(V)

Brightness with Glass

(Typical)

RP6503: 350 (typical)

RP7503: 400 (typical)

RP8603: 400 (typical)

Brightness without Glass

(Typical)

RP6503: 400 (typical)

RP7503: 450 (typical)

RP8603: 450 (typical)

Contrast Ratio (Typical) 1200:1

Viewing Angle 178

Touch

Technology IR

Touch Method Finger & Stylus

System Windows 7/8/10/Vista/Linux/Mac/Android/Wince/

Chrome

Touch Point 40pts touch

Minimum Object Size 2 mm, pen tip is 4 mm/9 mm, supports 2 pens

writing with 2 colors simultaneously

Response Time <10 ms

Accuracy ±1 mm, 90% area

Glass 3.2 mm thickness, AG, 9H pencil, germ-resistant

Product information62

Item Specications

RP6503 / RP7503 / RP8603

Connectors

HDMI IN Rear: x 2, Front: x 1 (2.0)

HDMI Output x 1 (4K@60Hz with audio)

DP IN x 1

VGA IN x 1

PC-Audio IN (3.5 mm audio-

in) x 1

Mic IN x 1

SPDIF (Optical) x 1

Audio Output (3.5mm

Earphone) x 1

USB 2.0 (Type A) Rear I/O: x2

USB 3.0 (Type A) (OPS/

External Follow)

Front: x2

Top: x1

USB 3.0 (Type A) Wi-Fi dongle: x1

Remote control: x1

USB Touch Output (OPS/

External pass through MIC/

Camera/USB)

Rear: x 2, Front: x 1 (USB 3.0)

RS232 x1

LAN (RJ45)

OPS: 10M/100M/1000M

Android: 10M/100M/1000M

LAN IN x1 / LAN Out x1

USB Type-C Rear: Data

Front: Data/Power(65W)/Touch/DP

Android

System

System Version Android 11

CPU A73 x 4 + A53 x 4

GPU G52 MP8

RAM 8GB

ROM 64GB

Video / Audio Speaker Type Built in speaker

Output Power 16W x 2 w/ 16W subwoofer

Power

Power Requirements AC 100V-240V, 50/60 Hz

Standby Power <0.5W

Max Power Consumption (W)

RP6503: 411.2 W

RP7503: 461.4 W

RP8603: 587.6 W

Wake Up LAN/HDMI/VGA/DP

Others Array Mic x 8

Light Sensors Yes

Product information 63

Item Specications

RP6503 / RP7503 / RP8603

Mechanical

Dimension (WxHxD)

RP6503: 1489.3 x 934.3 x 121.5 mm

RP7503: 1717.1 x 1065.3 x 121.7 mm

RP8603: 1962.4 x 1203.4 x 121.5mm

Dimension (Package)

(WxHxD)

RP6503: 1660 x 1045 x 220 mm

RP7503: 1900 x 1160 x 225 mm

RP8603: 2160 x 1340 x 250 mm

Net Weight

RP6503: 43±1.5 kg

RP7503: 55.5±1.5 kg

RP8603: 70.2±1.5 kg

Gross Weight

RP6503: 56±1.5 kg

RP7503: 70±1.5 kg

RP8603: 87±1.5 kg

Thickness of Machine and

Wall Mount Wall mount (VESA Mount)

VESA for NUC 100 x 100 mm

Wall-Hanging Screw Spec M8*25L x 4

VESA

RP6503: 600 x 400 mm

RP7503: 800 x 400 mm

RP8603: 800 x 600 mm

Accessories

Power Cord By Region 3M x 1

VGA Cable 3M x 1

USB Cable (Type A-Type B)_

USB 3.0 3M x 1

Type C Cable 1.5 M x 1

HDMI Cable 3M x 1

Writing Pen 2 pcs

Wall Mount x 1

Remote Control 1 pcs (BenQ customized)

Features

Image Setting Yes

Source/Volume Control Yes

HDMI Daisy Chain Yes

RS232 Control Yes

Sharpness Enhancement Yes

Proof of Image Retention Yes

Multi Windows Yes

HDMI-HDCP Yes (2.2/1.4)

DP-HDCP Yes (1.2)

10 Bit Color Processing Yes

Product information64

Item Specications

RP6503 / RP7503 / RP8603

Features

(continued)

Video Wall OSD Setting No

Ambient Light Sensor Yes

Total Turn-on Time Yes

CEC Control Yes

RTC Function Yes

FW Update Yes (USB, OTA)

Freeze/Blank Yes

Front I/O Yes

Advanced Menu (Debug

Menu) Yes

Double Lan Bridging Yes

Public USB Port Auto Switch Yes

Auto Detect Channel Yes

All channel can loop out by

HDMI Yes

Button Lock Yes

Channel Lock Yes (Sinage mode)

Screen Lock Yes

Smart Sidebar Yes

BenQ Customer API Yes

Environment

Operating Temperature 0 - 40°C

Operating Humidity 20 - 80% (without condensation)

Storage Temperature -10 - 60°C

Storage Humidity 10 - 60% (without condensation)

Display Orientation Landscape Only

• Specifications and functions are subject to change without notice.

• The product supports OPS. Refer to BenQ OPS models as below: TEY21-10I5M8S4, TEY21-

10I5M8S5, TEY21-10I7M8S4, TEY21-10I7M8S5, TEY21B-10I5M8S5, TEY21B-10I7M8S5, TEY21Z-

10I5M8S5, TEY21Z-10I7M8S5.

• The OPS should be equipped with fire-resistant enclosures.

Product information 65

Dimensions(RP6503)

Unit: mm

Product information66

Dimensions(RP7503)

Unit: mm

Product information 67

Dimensions(RP8603)

Unit: mm

Produkt Specifikationer

Mærke:	BenQ
Kategori:	Ikke kategoriseret
Model:	RP8603
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50/60 Hz
Bredde:	1962.4 mm
Dybde:	121.5 mm
Højde:	1203.4 mm
Vægt:	70200 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	87000 g
Pakkedybde:	250 mm
Pakkebredde:	2160 mm
Pakkehøjde:	1340 mm
Skærm diagonal:	86 "
Skærmopløsning:	3840 x 2160 pixel
Berøringsskærm:	Ja
Wi-Fi:	Ja
HD-type:	4K Ultra HD
Naturligt aspektforhold:	16:9
Skærmens lysstyrke:	450 cd/m²
Responstid:	8 ms
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	-10 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 60 %
Antal HDMI-porte:	3
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	2
Ethernet LAN:	Ja
VESA montering:	Ja
Panel montering grænseflade:	800 x 600 mm
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	141.9 W
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Kabler inkluderet:	HDMI, Power, USB, USB Type-C, VGA
Operativsystem installeret:	Android 11
Fjernbetjening inkluderet:	Ja
Near Field Communication (NFC):	Ja
Certificering:	TÜVRheinland, SIAA ISO22196 for KOHKIN
Strømforbrug (maks.):	587.6 W
Energieffektivitetsskala:	A til G
Antal indbyggede højttalere:	2
Energieffektivitetsklasse:	G
Arbejdsområde:	1895 x 1066 mm
Maksimal intern hukommelse:	8 GB
Paneltype:	IPS
Indbygget mikrofon:	Ja
S/PDIF-udgang:	Ja
Tilslutning af hovedtelefoner:	3,5 mm
Antal USB type-C-porte:	2
RAM kapacitet:	64 GB
Højttalereffekt:	32 W
Kontrastforhold (typisk):	1200:1
Kontrastforhold (dynamisk):	30000:1
Lav Blue Light teknologi:	Ja
HDMI-version:	2.0
DisplayPort-version:	1.2a
Antal DisplayPorts:	1
Antal VGA-porte (D-sub):	1
Berøringsskærmstype:	Infrarød
Monteringssæt:	Ja
Berøringsteknologi:	Multi-touch
Indbygget processer:	Ja
Linie ud:	Ja
Line-in:	Ja
Indbygget subwoofer:	Ja
Grafikadapter:	Mali-G52
Subwoofer RMS-effekt:	16 W
Antirefleksskærm:	Ja
Strømkabellængde:	3 m
Tilslutning af mikrofon:	3,5 mm
Farveområde:	72 %
Processor arkitektur:	ARM Cortex A73 + ARM Cortex A53
Temperaturføler:	Ja
Antal simultane touchpunkter:	40
Antal HDMI-udgangsporte:	1
Antal lyspenne:	2
Lyspen inkluderet:	Ja
OPS slot:	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte:	5
Hårdhed:	9H
Antal mikrofonarrays:	8
Fugtighedssensor:	Ja
Antal USB 2.0 Type-B berøringsporte:	3
Overflademateriale:	Hærdet glas
Svartid for berøringsfølsomme systemer:	10 ms
