Side 1/2

and powerful colour mixing

P 21° beam and 35° field angles without diffuser

P Optional SnapMag® filter frames for 25°, 45° or 100° and elliptical

60° x 10° beam angle selection and installation without tools

or dismantling

P Built-in 2.4 GHz W-DMX™ transceiver

P Wireless master and slave operation,

P W-DMX™, RDM, DMX or IR control plus standalone modes with

automated programs

P IP65 rating for permanent outdoor use

P Low-noise temperature controlled fans for optimized operation

P 16-bit technology for high-resolution colours and dimming

SCRIPTION

pped with a total of twenty-one 15 W RGBW Cree LEDs for a huge

000 lm output, the Cameo ZENIT® W300 is a powerful IP65 rated wash

for demanding outdoor applications. In addition to RDM and standard

X capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wire-

Solution Sweden AB for convenient wireless control. The ﬁxture also

ides a rich variety of stunning automated programs for standalone or

less master-and-slave operation.

maximum versatility, the ZENIT®

W300 sports Cameo‘s innovative

pMag® technology. It allows you to add ﬁlter frames in less than a

ond without the need for tools or dismantling. Magnetic SnapMag®

mes with precision light shaping diffusers and a 4-way barn door are

lable as dedicated accessories.

uring advanced 16-bit technology for high-resolution colour mixing

dimming and an 21° beam spread, the ZENIT

® W300 projects highly

nse, uniform washes.

With colour temperature correction, selectable dimming curves and dim-

ming response, the ﬁxture is the perfect tool for truly professional lighting.

The ZENIT®

W300‘s die cast aluminium housing integrates temperature

controlled fans that ensure optimized, low noise operation while a bright

OLED display with four touch buttons permits easy, intuitive conﬁguration.

The ﬁxture comes with an IR remote control, omega mounting bracket and

power cord.

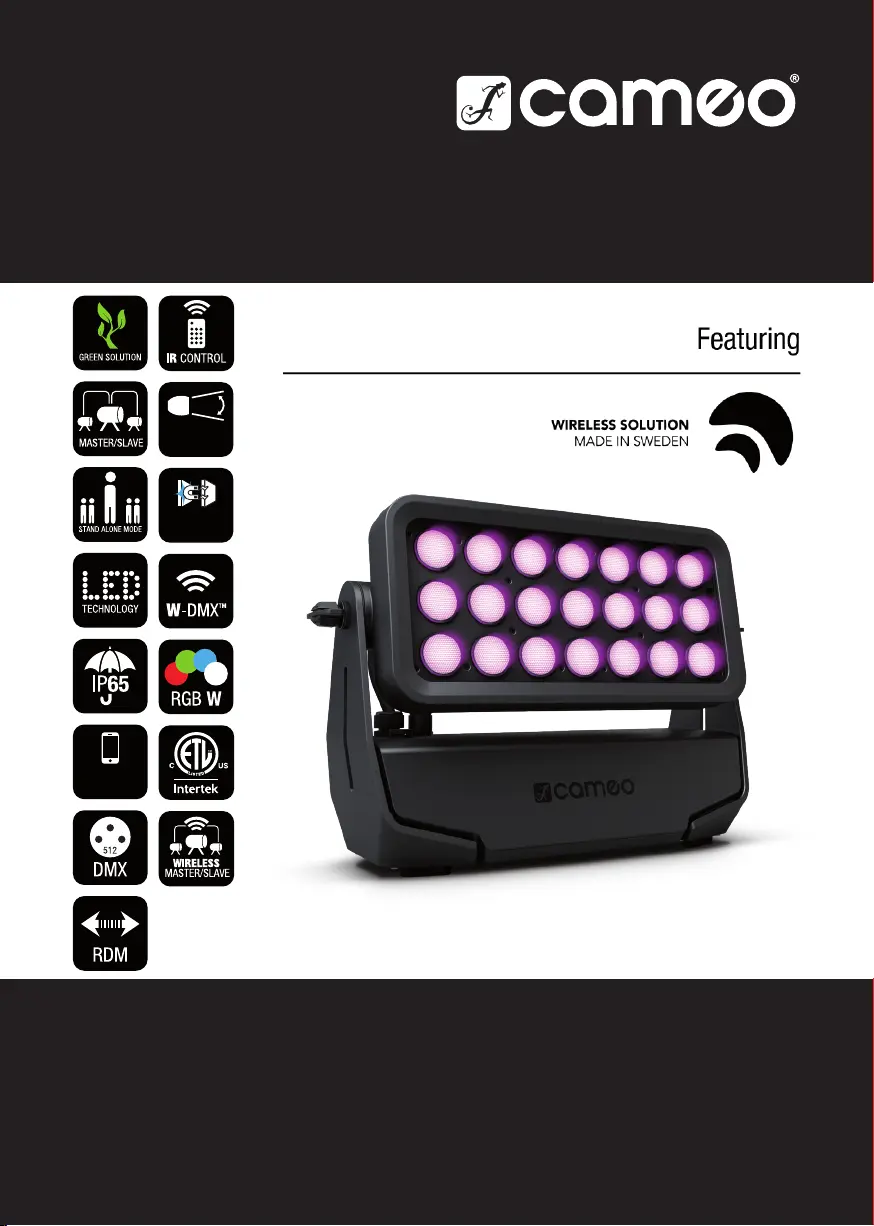

ZENIT® W300

LED OUTDOOR WASH LIGHT

adamhall.com

Features and speciﬁcations

subject to change without notice.

Product type LED Outdoor Wash Light

Type ZENIT

Colour spectrum RGBW

Number of LEDs 21

LED type 15 W Cree

Average LED lifetime 50000

Refresh rate Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz

Dispersion 21 ° Beam, 40 ° Field (without Diffusor) °

Lens PE and tempered glass

DMX input 5-pin IP65

DMX output 5-pin IP65

DMX mode 2-channel, 3-channel, 4-channel, 8-2 Channel, 10-channel, 15-channel, 8-1

Channel

DMX Functions colour macro, CTC (Colour Temperature Correction), Dimmer Fine, RGBW, RGBW

Fine, strobe, auto programs, Dimmer, Dimmer Curve, Dimmer Response

Standalone modes Device Settings, Tunable White, auto programs, colour macro, master / slave mode,

Static, system info, User Colours

Controls mode, Enter, Value Down, Value Up

Indicators OLED Display

Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz

Power consumption 300 W

power factor 0.99 PF (120V) / 0.96 PF (230V)

Power connector IP65

Power supply connection IP65

Housing material aluminium

Cabinet colour Black

Protection class IP IP65

Cooling IP65 temperature-controlled fans

Luminous ﬂux 10661 lm

Efﬁciency 35.3 lm/W

Operating Temperature -15 - 45 °C

Other features ETL certiﬁed

Total dimensions

Width 377 mm

Length 256 mm

Height 140 mm

Weight 8 kg

SPECIFICATIONS

ZENIT® W300

LED OUTDOOR WASH LIGHT

PHOTOMETRICAL DATA

377

256

48k

5.4k

105

218

1.9k

176

363

482

352

727

120

705

1455

Illuminance (full on) [lux]

Beam width (1/2 peak) [cm]

Beam width (1/10 peak) [cm]

Beam angle

(1/2 peak): 21.0˚

Field angle

(1/10 peak): 40.0˚

Distance (m) 13 51 02 0

CRI 73

CCT 6455 K 21.0˚ 40.0˚

400 500 600 700

Wavelength [nm]

UV IR

All LEDs on

Chromaticity coordinates

All LEDs on xy10660 lm 0.278 0.207

Red xy2400 lm 0.690 0.300

Green xy4000 lm 0.122 0.670

Blue xy880 lm 0.154 0.026

White xy3754 lm 0.310 0.320
