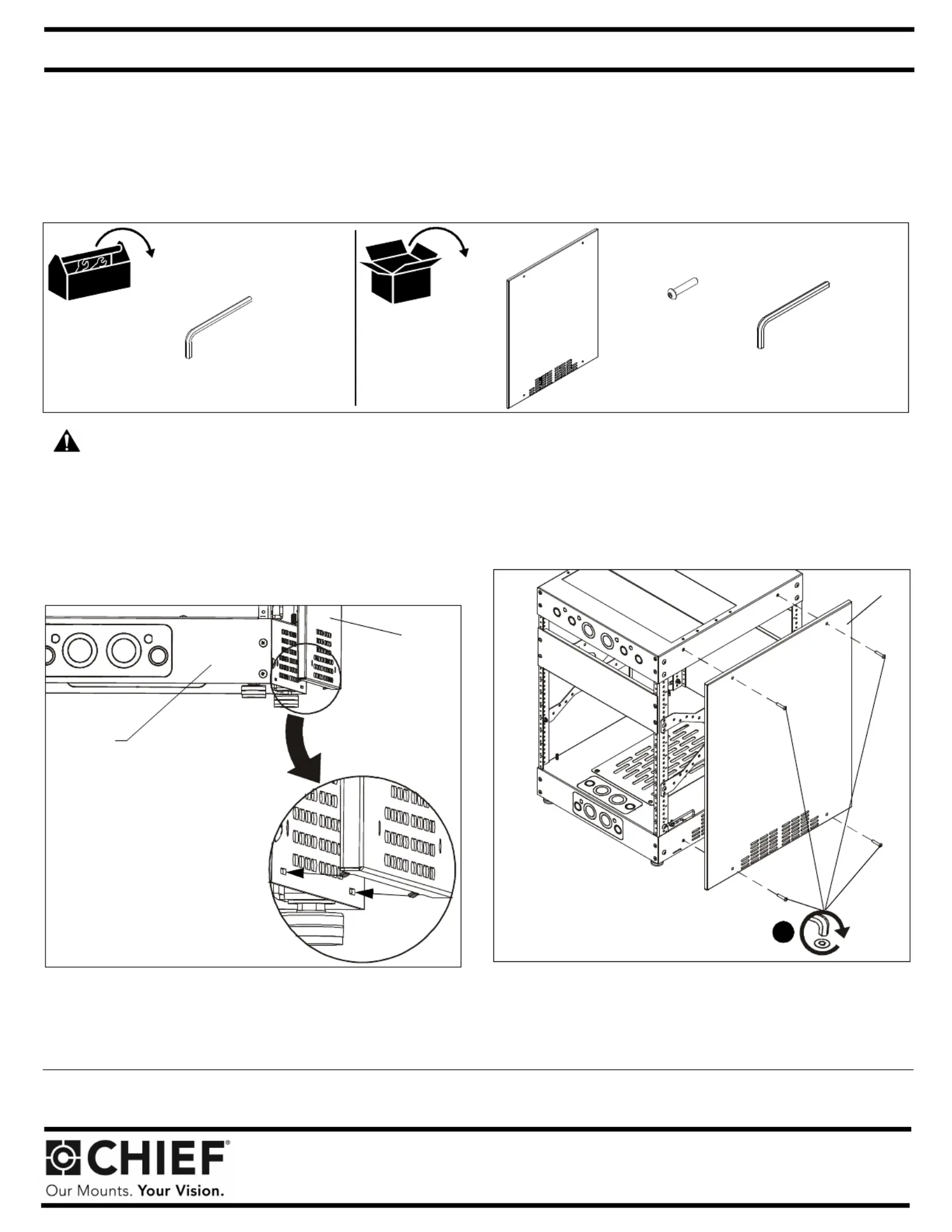

NS1S12/20/28/36/41 Side Panels
The NS1S side panels are designed for use with Chief® S1 Series racks. See the specific installation instructions provided with the rack for
additional installation information.
TOOLS REQUIRED / PARTS INCLUDED
WARNING: FAILURE TO READ, THOROUGHLY UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAN RESULT IN SERIOUS
PERSONAL INJURY, DAMAGE TO EQUIPMENT, OR VOIDING OF FACTORY WARRANTY! It is the installers responsibility to make
sure all components are properly assembled and installed using the instructions provided.
IMPORTANT ! : If installing doors (not included) and side panels on an S1 rack, the doors must be installed before installing
the side panels.
A (1)
[Side panel]
B (4)
5/32" [security]
(included)
1/4-20 x 1-1/4"
C (1)
5/32"
[security]
NS1S Side Panels Installation
1. Align two bottom tabs in side panel (A) with slots in S1 rack. (See
Figure 1)
Figure 1
2. Attach side panel (A) to S1 rack with four 1/4-20 x 1-1/4" security
buttonhead cap screws (B). (See Figure 2)
Figure 2
3. Tighten four screws (B) using the 5/32" security hex wrench (C).
4. Attach additional side panels as required.
®Chief is a registered trademark of Milestone AV Technologies. All rights reserved.
(A)
S1 rack
(NS1S1223 rack shown)
2
(A)
(B) x 4
(NS1S1223 rack shown)
