I N S T A L LA T I O N I N S T R U C T I O N S
CHIEF MANUFACTURING INC. 8804-000321
1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing
8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com
SAVAGE, MINNESOTA 55378 USA 07/06
ALL COMPONENTS MUST
BE SECURELY FASTENED
TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES
THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE
EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT THIS
WEIGHT, THE STRUCTURE MUST BE REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS
175 POUNDS (79.38 KG).
PSB-2126
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Plasma Side Bracket (2) Plasma Top/Bottom Cross Bracket
(4) Mounting Button - Tapped (4) 10-24 x .500 Button Head Cap Screw
(4) M8 x 35mm Phillips Pan Head Machine Screw (4) M8 x 30mm Phillips Pan Head Machine Screw
(1) 5/32 Allen Key (4) .680 x .390 x .625 Nylon Spacer
(4) ¼-20 x .500" Button Head Cap Screw (1) 1/8 Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
DISPLAYS ARE EXTREMELY FRAGILE.

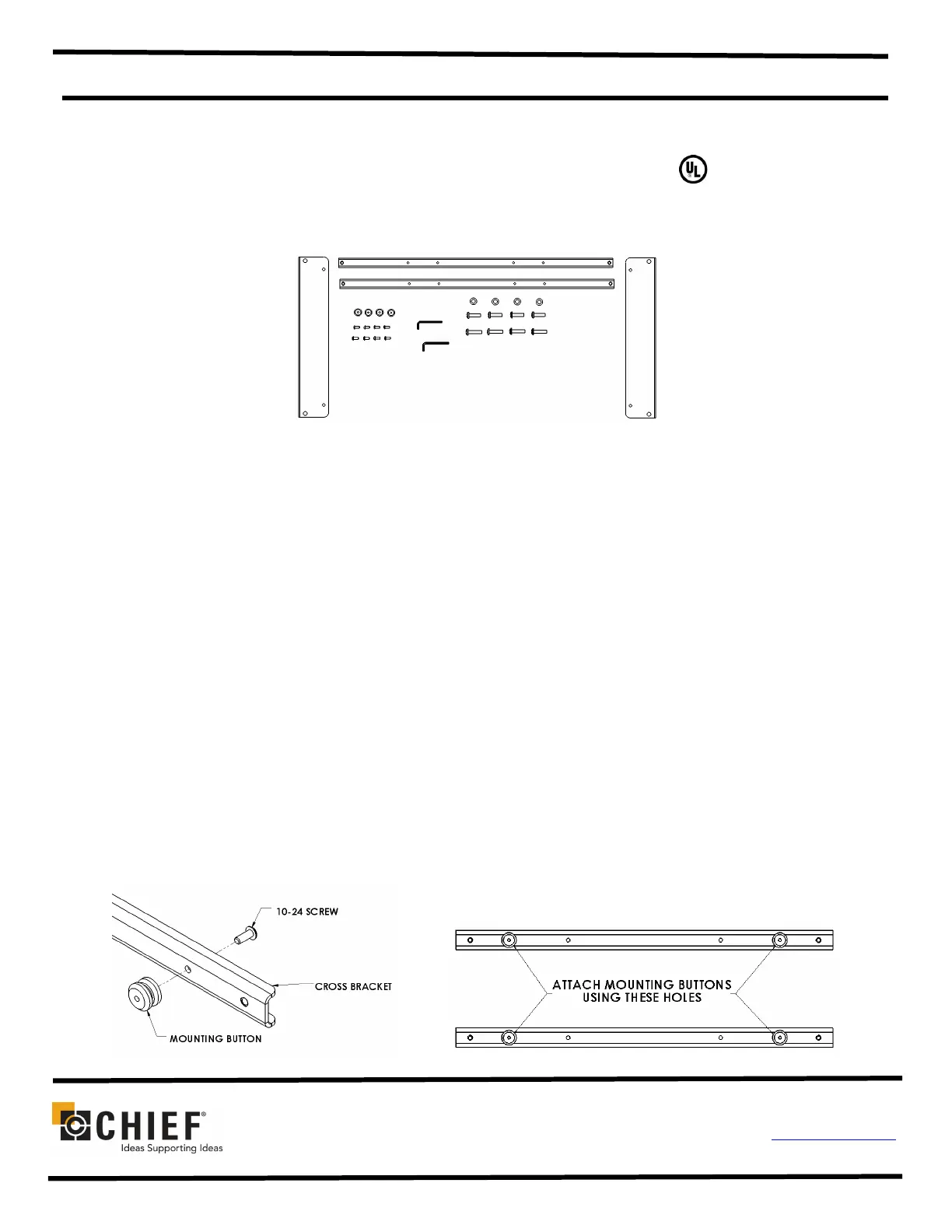

1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to top and bottom brackets (four places)
(see Figure 2 & Figure 3).
