CLICK
www.chiefmfg.com
CALL
800.582.6480
FAX
877.894.6918
SPECIFICATIONS
TECHNICAL DRAWINGS
WHAT YOU NEED TO KNOW
RECOMMENDED ACCESSORIES
FEATURES
13

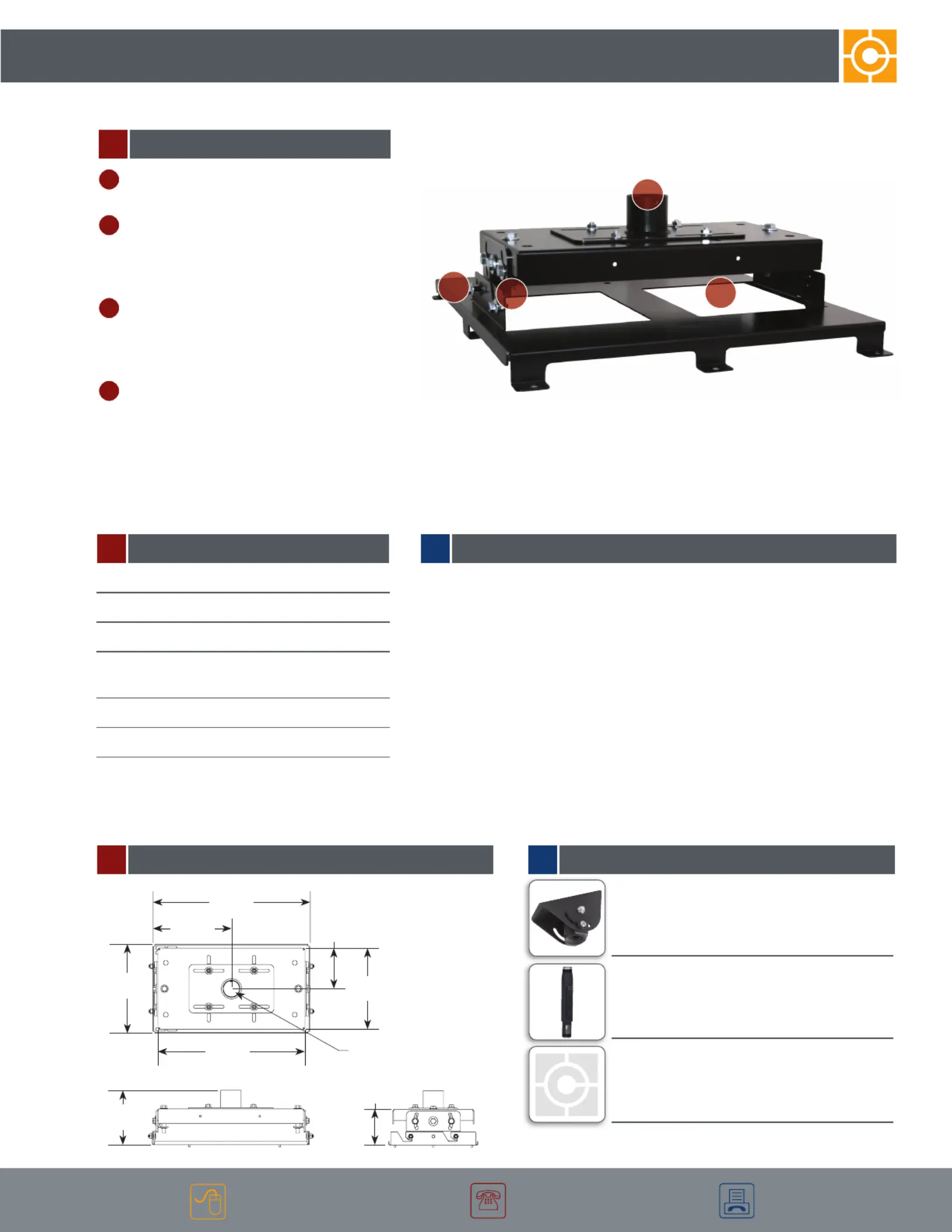

VCM HEAVY DUTY MOUNT
INDEPENDENT ROLL, PITCH AND YAW
For quick and precise projector registration.
MULTIPLE INSTALLATION OPTIONS
Mounting options include: fl ush mount to
ceiling, use 0.5” (12.7 mm) threaded rods or
use a 1-1/2” NPT threaded extension column.
QUICK CONNECT/DISCONNECT
Convenient lamp and fi lter access on most
projectors. Disconnecting maintains registration
and doesn’t affect pre-set adjustments.
CABLE MANAGEMENT
Route cables through top of mount without
additional accessories.
1
2
3
4
ABOUT VCM
Industry-fi rst microadjustable independent roll, pitch and yaw
Three mounting methods
Custom option only
Ships fully assembled with everything you need for installation
in one box
Compatible with a wide array of accessories
For a complete list of projector mount accessories see page .18
CMA STRUCTURAL ADAPTERS
CMS EXTENSION COLUMNS
LPK1 Flush Mount Kit
NOT
AVAILABLE
CEILING MOUNTS
4
3
2
1
* Dimensions don’t include interface bracket
Roll ±
Pitch 20˚±
Yaw 360˚
Dimensions* 3.8” x 14.6” x 12.3”
(HxWxD) (97 x 371 x 312 mm)
Color Black
Weight Capacity 250 lbs (113.4 kg)
17.36”
(441 mm)
8.13”
(206 mm)
9.86”
(250 mm)
6.04”
(153 mm)
4.5”
(114 mm)
3.97”
(101 mm)
9”
(229 mm)
16.25”
(413 mm)
1½” NPT
Threads
