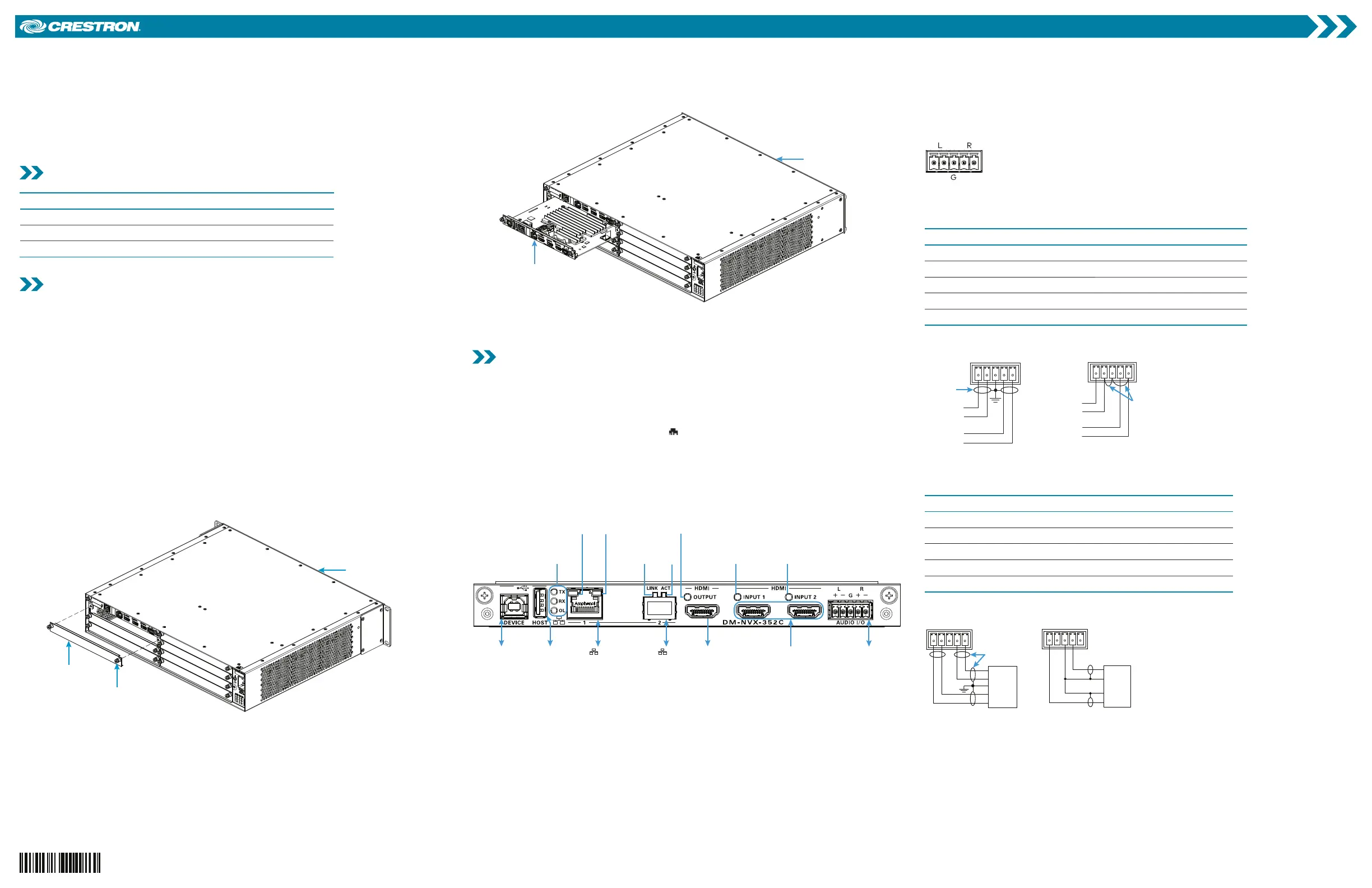

Quick Start
The Crestron® DM-NVX-352C network AV encoder/decoder card transports ultra high-definition
4K60 4:4:4 HDR video over standard Gigabit Ethernet. Engineered to function as either an
encoder or decoder, the DM-NVX-352C features secure web-based control and management,
two auto-switching HDMI® inputs and one HDMI output, an analog audio input or output, USB
and KVM integration, video wall processing, and support for copper and fiber LAN connectivity.
The DM-NVX-352C also supports Dante® audio networking and AES67.
Check the Box
Item Qty
DM-NVX-352C 1
Cable, USB 2.0, A - B, 6’ (1.83 m) (P/N 2014966) 1
Connector, 5-Pin (P/N 2003577) 1
Install the Card
The DM-NVX-352C is designed to occupy the DMF-CI-8 chassis.
CAUTIONS:
DM NVX™ cards are susceptible to damage from electrostatic discharge (ESD).
Observe standard ESD precautions when handling the cards. Wear an ESD wrist strap
that is connected to ground, and place the cards on grounded surfaces only.
To prevent damage to a card that is connected to cables, disconnect all cables from the
card before installing the card into a card slot or removing the card.
NOTES:
In a new installation of the DMF-CI-8, it is recommended that the cards be installed before
power is applied to the chassis. In an existing installation of the DMF-CI-8, the cards can
be added or replaced without the need to shut down the chassisthe cards are
hot swappable.
When installing the cards into a partially populated DMF-CI-8, install the cards into slots
58 before using slots 14. Doing so ensures better cooling and lower power consumption.
In addition, always cover empty slots using the filler plates included with the chassis.
To install a card into the DMF-CI-8:
1. Using a #2 Phillips screwdriver (not included) or your fingers, remove the filler plate of an
unused slot by loosening the two captive panel screws.
(2) Captive
panel screws
DMF-CI-8
Filler
plate
2. Carefully insert the card into the card guides of the selected slot, and then push the card
inward until it engages the chassis backplane.
DM NVX™ card
DMF-CI-8
3. Finger-tighten the two captive panel screws to secure the carddo not overtighten
the screws.
Connect the Card
Connect the card as required for the application.
NOTES:
The DM-NVX-352C can be configured to use either the DEVICE port or the HOST port.
Both ports cannot be used simultaneously.
The DM-NVX-352C provides two LAN ( ) ports. LAN port 1 is a 10BASE-T/100BASE-TX/
1000BASE-T port. LAN port 2 is an SFP port that connects to a fiber-optic network using
the appropriate SFP-1G transceiver module. (Refer to the SFP-1G Series Installation Guide
[Doc. 7979] for information about installing Crestron SFP-1G Series transceiver modules.)
Only one LAN port at a time can be used as the primary LAN connection to stream
network video, allowing the other port to be used for connection to a local network device
or to another DM NVX device. When a LAN port is used as the primary LAN connection,
the port must connect to a 1000BASE-T switch in order to stream network video.
DEVICE:
To
USB
host
HOST:
To
USB
device
HDMI
OUTPUT:
To
HDMI
display
HDMI
INPUTS 1–2:
From
audio/video
sources
AUDIO I/O:
Balanced/
unbalanced
stereo line
level audio
input or
output
10BASE-T/
100BASE-TX/
1000BASE-T to
Ethernet switch,
local network
device, or
other DM NVX
device
1:
To SFP
port of
Ethernet
switch or
other
DM NVX
device
2:
TX, RX,
and OL
LEDs
Green
LED
Amber
LED
LINK
LED
ACT
LED
HDMI®
OUTPUT LED
HDMI
INPUT 1 LED
HDMI
INPUT 2 LED
AUDIO I/O Connector Pin Assignments
The AUDIO I/O connector uses a 5-pin terminal block for balanced or unbalanced analog audio
input or output.
AUDIO I/O Connector
+ +
Balanced/Unbalanced Audio Input
Refer to the following table and diagrams for analog audio input pin assignments and
connection information.
Signal Name Balanced Audio Input Unbalanced Audio Input
+ L+ L+ In
L– signal return, jumper to GNDL
G Shield/ground Ground
+ R+ R+ In
R– signal return, jumper to GNDR–
Jumpers
+ -
G
+ -
+
+
L R
Source L
Source R
Shield
Shield
+ -
G
+ -
+
+
Shield
L R
Source L
Source R
Unbalanced Input
Balanced Input
Balanced/Unbalanced Audio Output
Refer to the following table and diagrams for analog audio output pin assignments and
connection information.
Signal Name Balanced Audio Output Unbalanced Audio Output
+ L+ L+ Out
– OpenL
G Shield/ground Common ground
+ R+ R+ Out
– OpenR–
AMP
Left
Right
+ - G + -
Unbalanced Output
L R
+
+
Shield
AMP
Left
Right
+ - G + -
Balanced Output
L R
+
+
DM-NVX-352C
DM NVX™ Network AV Encoder/Decoder Card
