Side 1/4

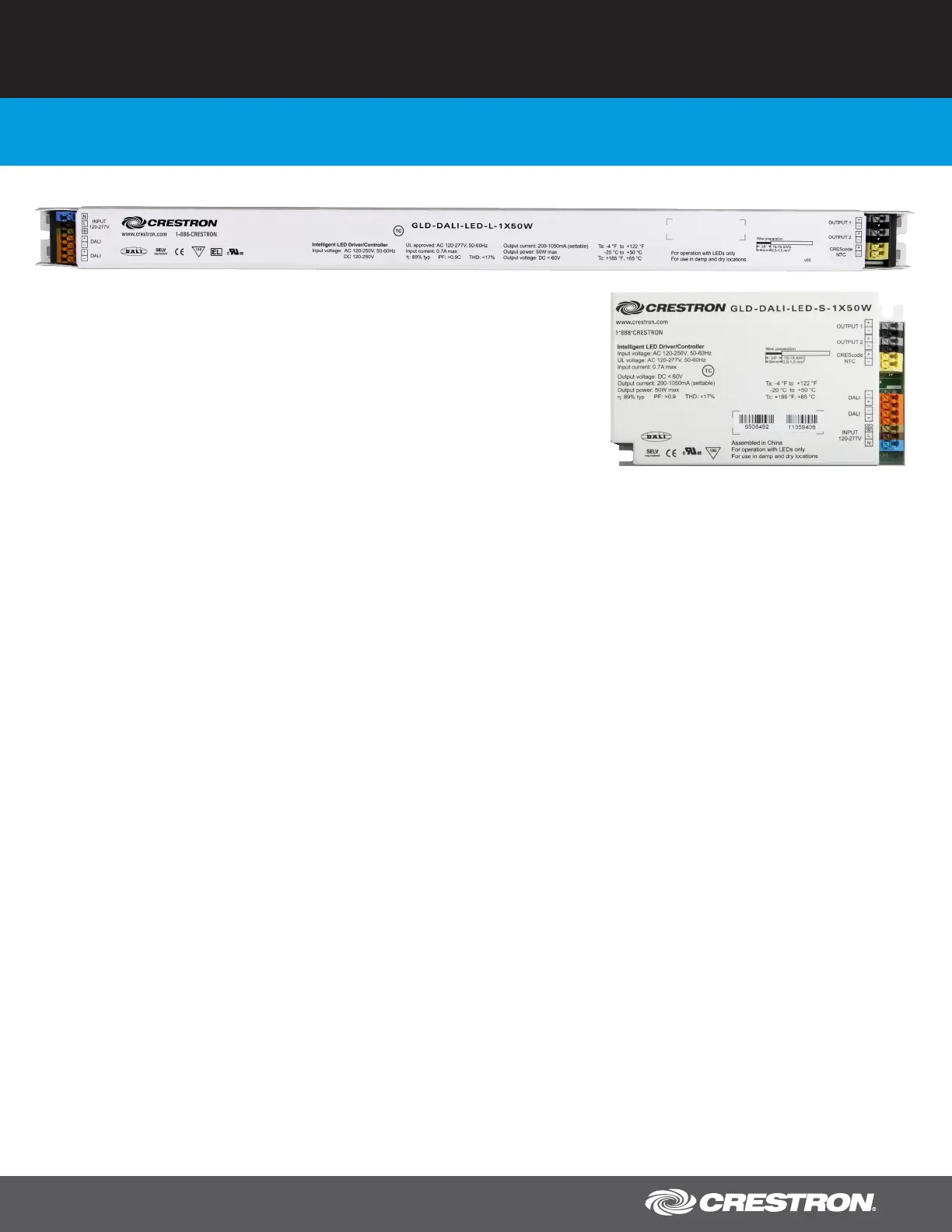

GLD-LED-50W
Crestron Green Light® 50W Dimmable LED Drivers
crestron.com | 800.237.2041
>Programmable, dimmable, high-power LED drivers
>DALI® or 0-10 Volt controllable
>Superior, smooth dimming to below 1%
>Excellent color stability, even at low dimming levels
>Linear or logarithmic dimming curve
>High efficiency over a wide power and voltage range
>CREScode programmable for use with a wide variety of
LED fixtures
>Cost-reducing due to fewer inventory requirements
>Multiple outputs with independent LED current settings
>2-channel models that support tunable white lighting and
direct-indirect fixtures
>NTC interface for robust thermal management
>Available in long or short case form factors
>Compatible with 120 Volt, 230 Volt, and 277 Volt AC systems
>50 Watt power rating (100 Watt also available)
Crestron Green Light® Dimmable LED Drivers (GLD-LED Series) provide
manufacturers of dimmable LED lighting fixtures with a high-performance,
cost-saving LED driver solution. Offered in two compact case styles, the
GLD-LED series fits easily in a wide range of enclosures and fixture
designs. The choice of DALI® or 0-10 Volt control enables compatibility
with virtually any lighting control system. All models are operable between
120 and 277 Volts, reducing inventory costs for manufacturers serving
multiple regions.
Superior, High-Power Dimming
Employing a combination of duty-cycle and current-dimming technologies,
Crestron Green Light LED drivers provide smooth, deep dimming with
excellent color stability to below 1%. A choice of 50 Watt and 100 Watt
models affords high-power capability for use with a wide range of LED
fixtures. (Refer to the GLD-LED-100W spec sheet for 100 Watt models.)
2-Channel Option
Models featuring DALI control are available in either single or
2-channel configurations. The 2-channel option provides two
independently-controllable channels in one housing, offering a cost-saving,
space-efficient solution for use with tunable white lighting and fixtures
with separate direct and indirect lighting components.
Multiple Outputs
To support a wider variety of fixture configurations, the single-channel 50
Watt models include two LED outputs. The two outputs are controlled as
one; however, the output current for each can be separately set by the
fixture manufacturer. The 2-channel 50 Watt models provide just one
output per channel.
DALI Lighting Control
DALI (Digital Addressable Lighting Interface) is a lighting control protocol
that allows multiple lighting fixtures to be networked using a single
daisy-chained control wire. Up to 64 fixtures can exist on a single DALI
channel. DALI provides a bidirectional interface enabling independent
control and monitoring of each individual fixture. DALI is optimal for use
in applications that require granular control of each fixture, such as open
office floor plans, AV-equipped conference rooms, and daylight harvesting.
In addition to DALI dimmable LED drivers, Crestron
® offers a full line of
lighting control products utilizing DALI technology.
0-10 Volt Dimming Control
This simple interface affords essential dimming control using a 0 to 10 Volt
DC control signal. Crestron Green Light 0-10 Volt dimmable LED drivers
afford high-quality, single-channel dimming, and are compatible with both
current sink and current source controls.
CREScode Programmability
Crestron Green Light Dimmable LED Drivers are programmable using the
CREScode LED Driver Configuration Tool, allowing each LED driver to be
matched perfectly to its fixture at the factory. The hardware and software
utility provides a simple means of selecting the dimming curve and setting
the minimum dimming level, NTC temperature and output current. The
output current can be set individually for each LED output. The use of
programmable LED drivers reduces inventory requirements, allowing a
single driver model to be used with numerous different fixtures.
OEM Fixture Partner Program
Crestron® works directly with leading global fixture manufacturers to
provide complete access to its entire line of ballasts and drivers. Crestron
works with each partner to ensure excellence in quality, performance, and
function and to deliver superior dimming, ease of commissioning, and
complete control. All Crestron products are backed by our unparalleled
design assistance and support services.
This product is for sale to Crestron OEM Fixture Partners Only. To
learn more about our OEM Fixture Partners or to become one, please
contact .OEM@crestron.com
