DO GUIDE
The brightness of the SSW may be custom programmed as follows:
If the SSW is connected to a touch screen, brightness is controlled by sending a custom
property to the touch screen in Crestron Fusion® software. For more information, refer to
the embedded Crestron Fusion help le.
If the SSW is connected to a control system, brightness is controlled via custom
programming in SIMPL Windows or Crestron Studio. For more information, refer to the
embedded SIMPL Windows or Crestron Studio help les.
DO Install the Device
The SSW installs over a standard 1-gang U.S. electrical box. Once installed, the touch screen
protrudes 8.43 in (214 mm) from the mounting surface.
To install the SSW:
1. Once all cable connections have been made, attach the device assembly to the electrical
box using the two included 6-32 x 5/16 in screws and a Phillips screwdriver.
NOTE: For retrot installations, the SSW may be installed over a 1-gang plaster ring using
the same installation method described above.
SSW Series
Room Availability Hallway Sign, Wall Mount
DO Connect the Device
The Crestron® SSW room availability hallway sign may be powered and controlled by a Crestron
TSS-7, TSS-10, TSW-760 or TSW-1060 touch screen via USB, or by a Crestron control system or
DMPS3 device via a Cresnet® network connection. Both connection methods are described below.
NOTE: All cable connections must be made prior to installing the SSW.
Use the included USB cable to connect the SSW to the touch screen. Connect USB:
the cable’s USB A connector to the touch screen and the micro USB connector to the
SSW assembly. Out-of-the-box functionality is established via the touch screen room
scheduling application, with no programming required.
NOTE: The TSS-7 and TSW-760 may use either PoE (Power over Ethernet) or PoE+ to
supply power to the SSW over USB , but the TSS-10 and TSW-1060 must use only PoE+ to
supply power to the SSW.
Use any standard Cresnet cable and the included 4-pin terminal block to Cresnet:
connect the SSW to a Crestron control system or DMPS3 device. The SSW is powered and
controlled over Cresnet via programming in SIMPL Windows or Crestron Studio® software.
NOTE: The button on the front of the assembly is used to identify the device on the CNET ID
network using the Network Device Tree View in Crestron Toolbox™ software. For more information,
refer to the embedded Crestron Toolbox help le.
DO Check the Box
QTY ITEM PART NUM.
1 Bezel, Wall Sign 4525866
1 Cable, USB 2.0, A - micro B, 6 ft (1.83 m) 2038114
1 Connector, 4-Pin 2003576
2 Screw, 4-40 x 1/2 in, SEMS, Pan Head, Phillips 2011592
2 Screw, 6-32 x 5/16 in, Pan Head, Phillips 2007221

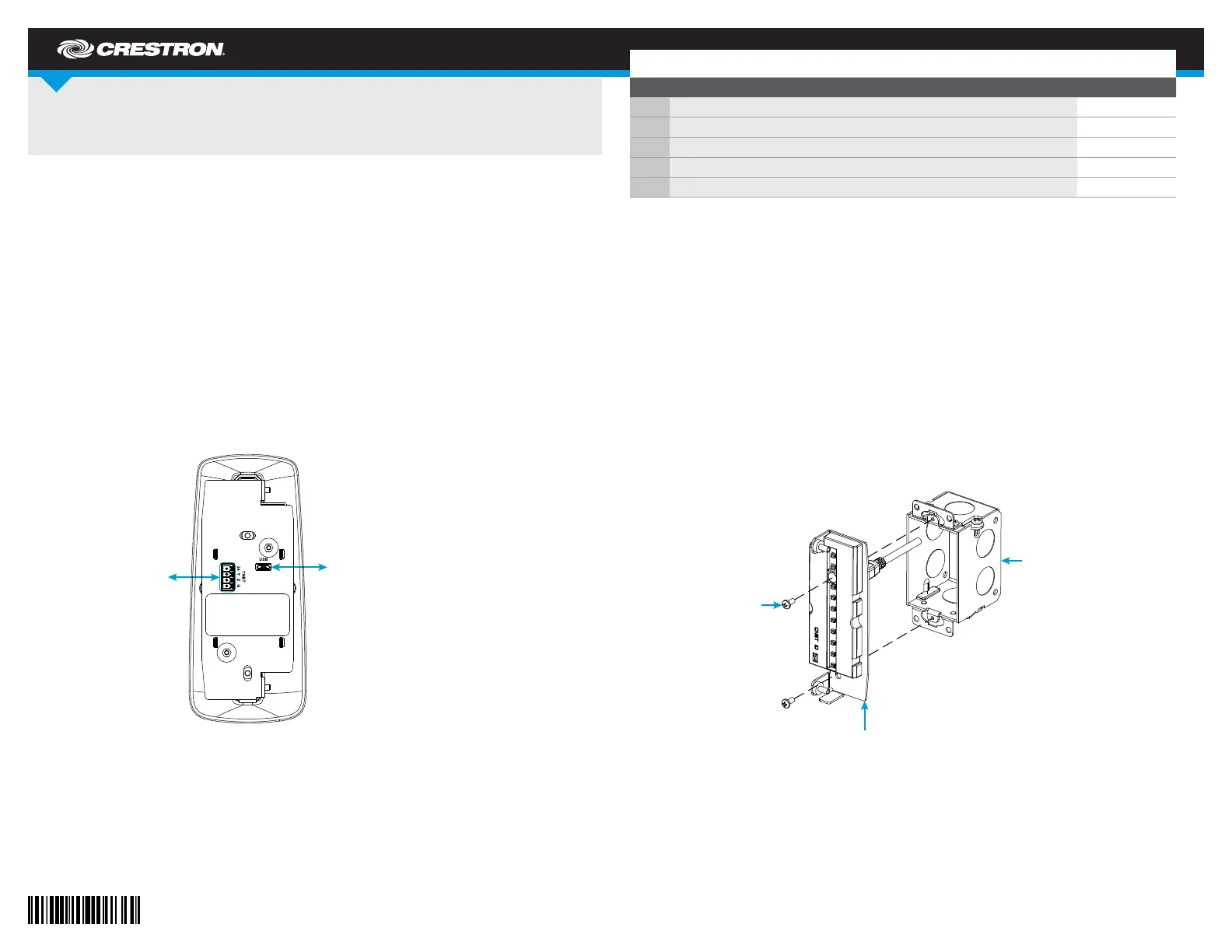

CNET (24 Y Z G):
To Cresnet®
network device
USB (Micro):
To touch screen
Assembly
1-gang U.S.
electrical
box
Screws (2):
6-32 x 5/16 in
