CRUX 2444A Manual


Læs nedenfor 📖 manual på dansk for CRUX 2444A (1 sider) i kategorien Ikke kategoriseret. Denne guide var nyttig for 9 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/1
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.03202023
1 of 1
R O P LA TADI RE CEMEN
SW E T TIONC R EN
+
R
INTERFACING SOLUTIONS
- Retains the factory Rear Seat Entertainment Screen when adding an aftermarket radio.
- Retains the use of the factory rear panel AV inputs when used with an aftermarket radio with AV Inputs
PRODUCT FEATURES:
PARTS INCLUDED:
CRUX 2444A
Rear Seat Entertainment Screen Retention Harness
For Select GM LAN 29 Bit Trucks and SUVs 2012 - 2014
NOTE:
The CRUX 2444A Rear Seat Entertainment screen retention harness & camera retention harness is used in conjunction
with Crux part numbers SOOGM-16W, SWRGM-49A & DKGM-49A when installing an aftermarket radio.
AV INPUT
TO FACTORY
OVERHEAD
SCREEN
To AV
Input
To AV
Output
To Factory
20-Pin
Connector
- Retains factory camera & microphone if equipped

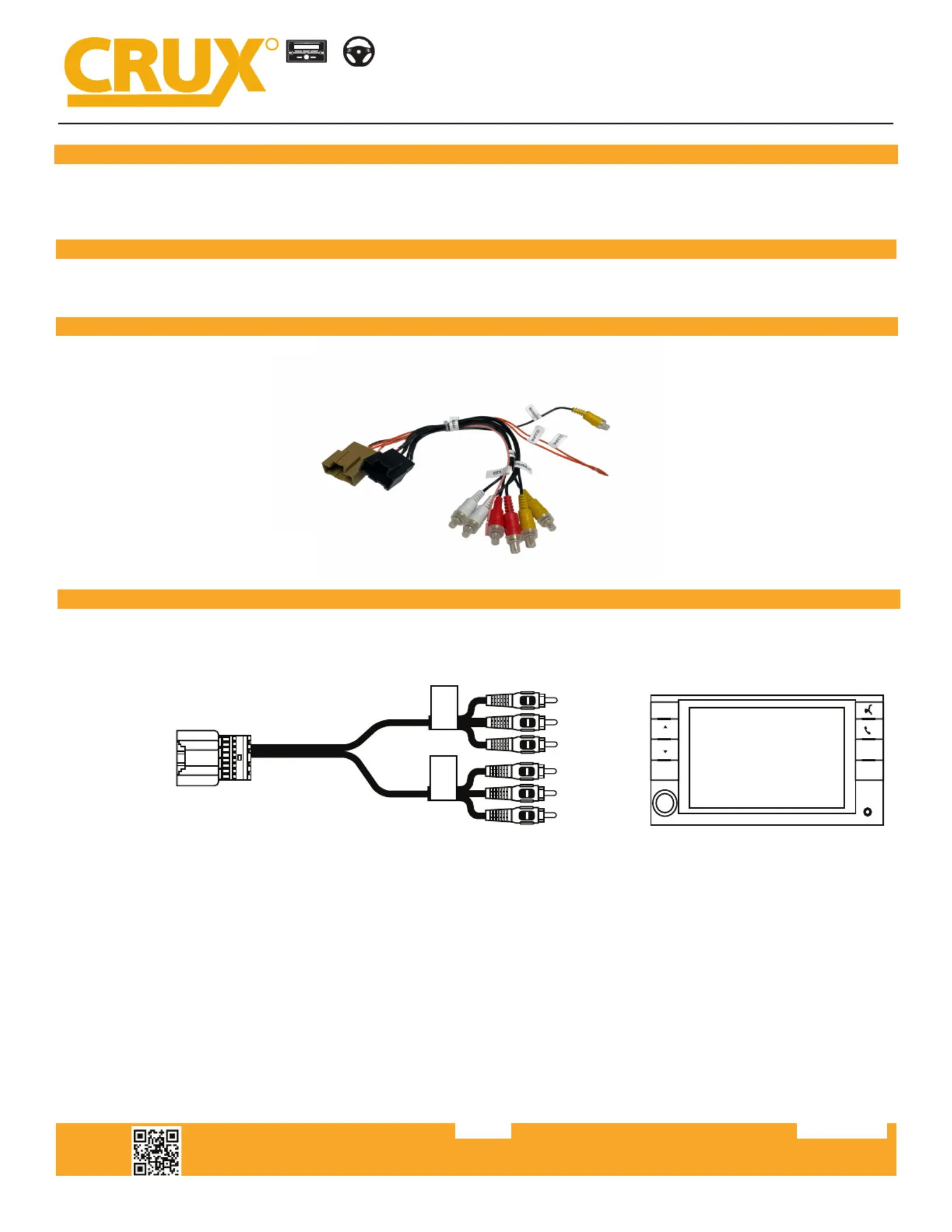

Installation Diagram
1. Remove the OEM radio and plug the CRUX 2444As 20 pin connector to the vehicles 20 pin factory RSE
connector at the factory radio location. Use one of the Crux parts listed in the Note section.
2. To view videos from the aftermarket radio on the factory overhead screen, connect the RCAs lebeled
TO FACTORY OVERHEAD SCREEN” to the aftemarket radio AV output .
3. To retain the use of the factory rear panel AV inputs, plug the RCAs labeled AV INPUT to the aftermarket
radios AV input (optional).
4 Test the audio & video on the overhead screen before installing the radio back into the dashboard
AUDIO
MENU
SEEK
SEEK
RADIO
MEDIA
VOLUME
OPEN
CLOSE
