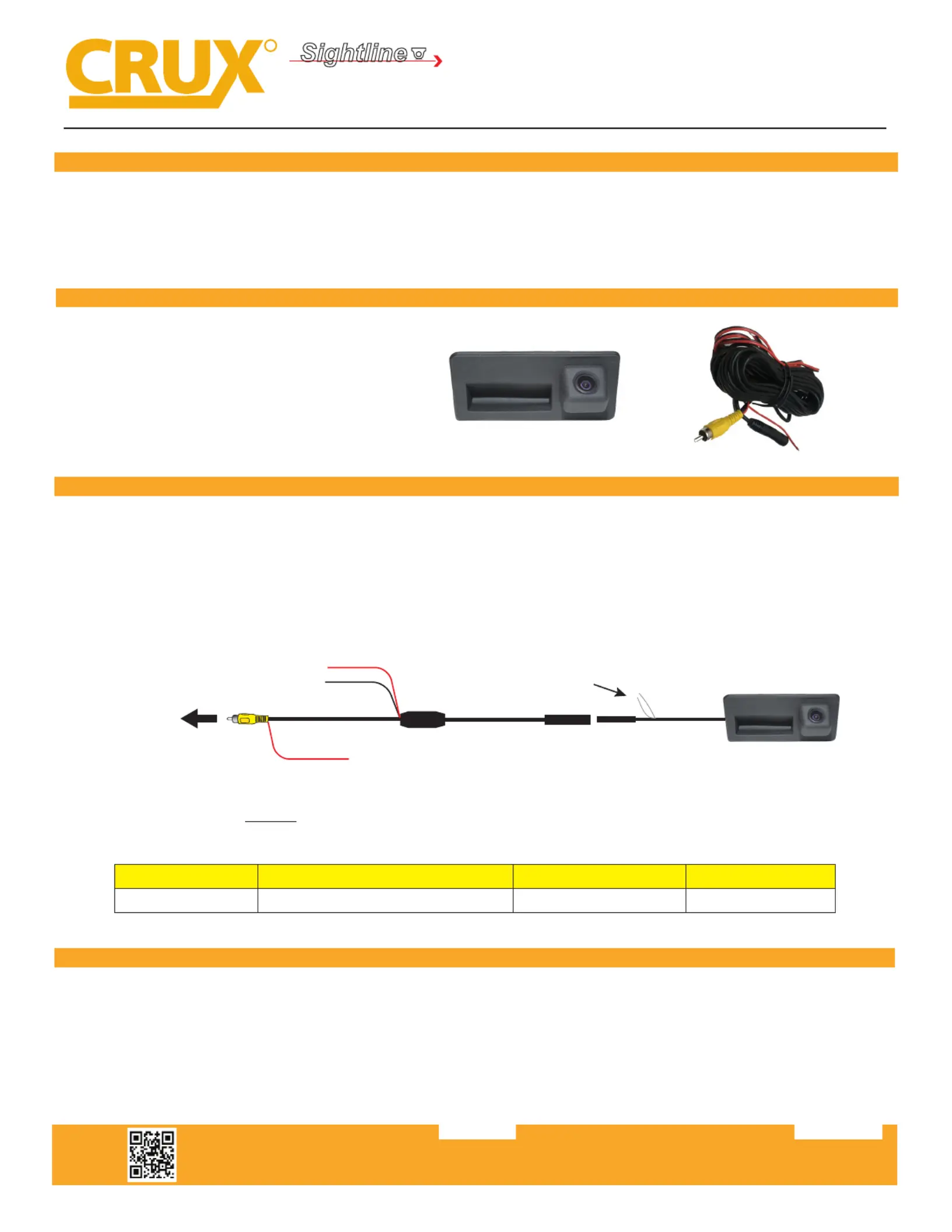

CAD-05T
Trunk Handle Camera for
AUDI and VOLKSWAGEN Vehicles 2009-2017
- Replaces factory trunk handle assembly.
- Retains push buon trunk release switch funcon.
- Selectable Parking Guide Line ON or OFF.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Trunk handle camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Carefully remove the factory trunk handle. It is held in place by 2 screws behind the handle.
2. Unplug the trunk release switch connector.
3. Run the CAD-05T camera cable to the inside of the cabin towards the radio.
4. Make the power and video connecons to the RVC interface or the aermarket radio.
5. Test the camera for funconality
6. Plug the factory trunk release connector to the CAD-05T.
7. Install the new trunk handle camera.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020419
VEHICLE APPLICATIONS:
AUDI
2015-2018 A3
2009-2016 A4
2009-2016 A5
2012-2016 A6
2009-2014 A8
1
2009-2017 Q3
2009-2017 Q5
2009-2017 S4
2009-2017 S5
2009-2014 S8
VOLKSWAGEN
2010-2016 Golf SEL
2011-2016 Jea
2011-2016 Passat
Converbles may need Crux part# CAD-05R
