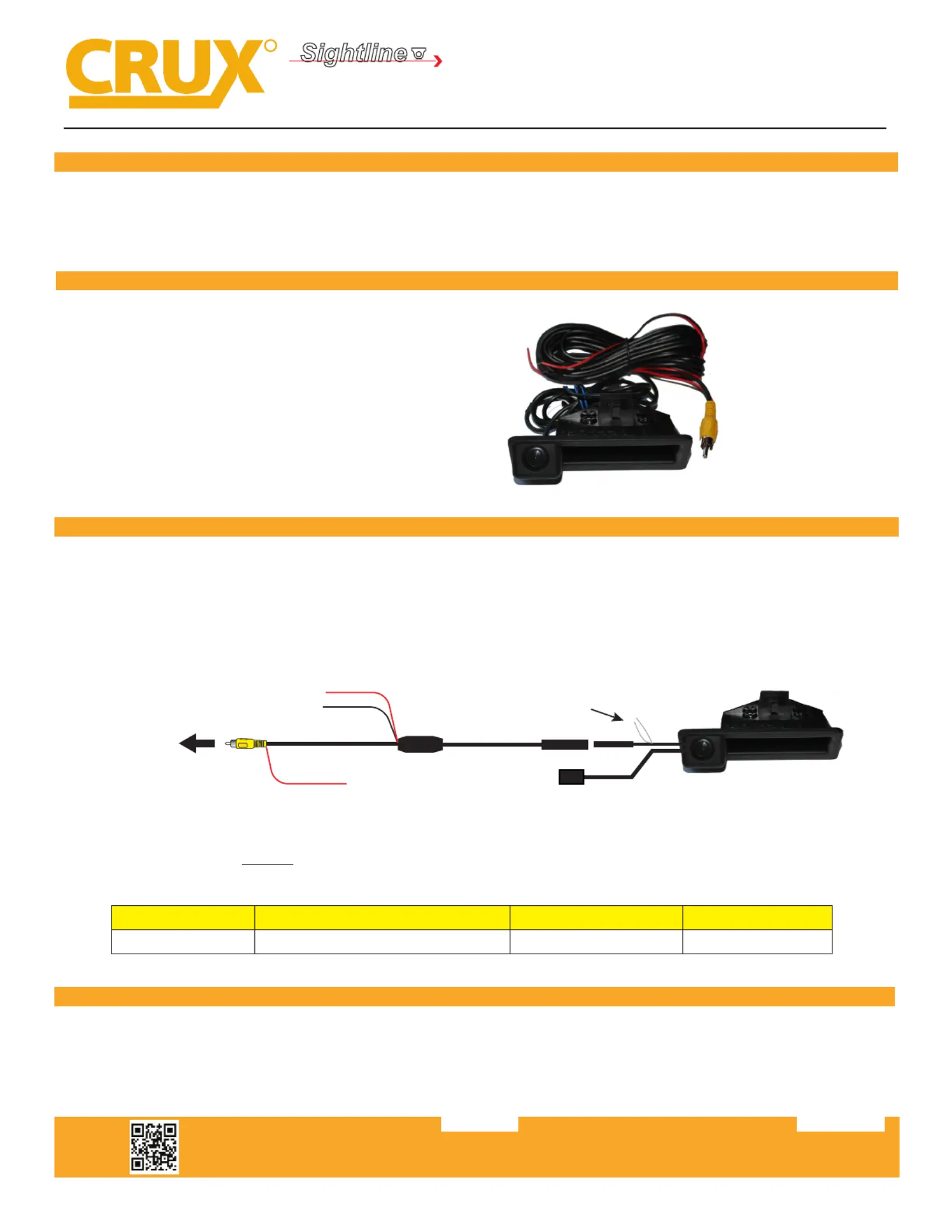

CBM-02T
Trunk Handle Camera with Trunk Release Switch for
Select BMW Vehicles 2004-2016
- Replaces factory trunk handle.
- With built-in trunk release switch.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Trunk handle camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Carefully remove the factory trunk handle using a plasc panel removal tool.
2. Unplug the trunk release connector.
3. Run the cable to the inside of the cabin towards the radio.
4. Make the power and video connecons to the RVC interface or the aermarket radio.
5. Plug the factory trunk release switch to the new trunk handle camera.
6. Test the camera for funconality and snap in the new trunk handle.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Trunk Release Switch Connector
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020419
VEHICLE APPLICATIONS:
2004-2012 1 Series
2005-2013 3 Series
2004-2010 5 Series
1
2010-2016 X1
2007-2013 X5
2008-2014 X6
