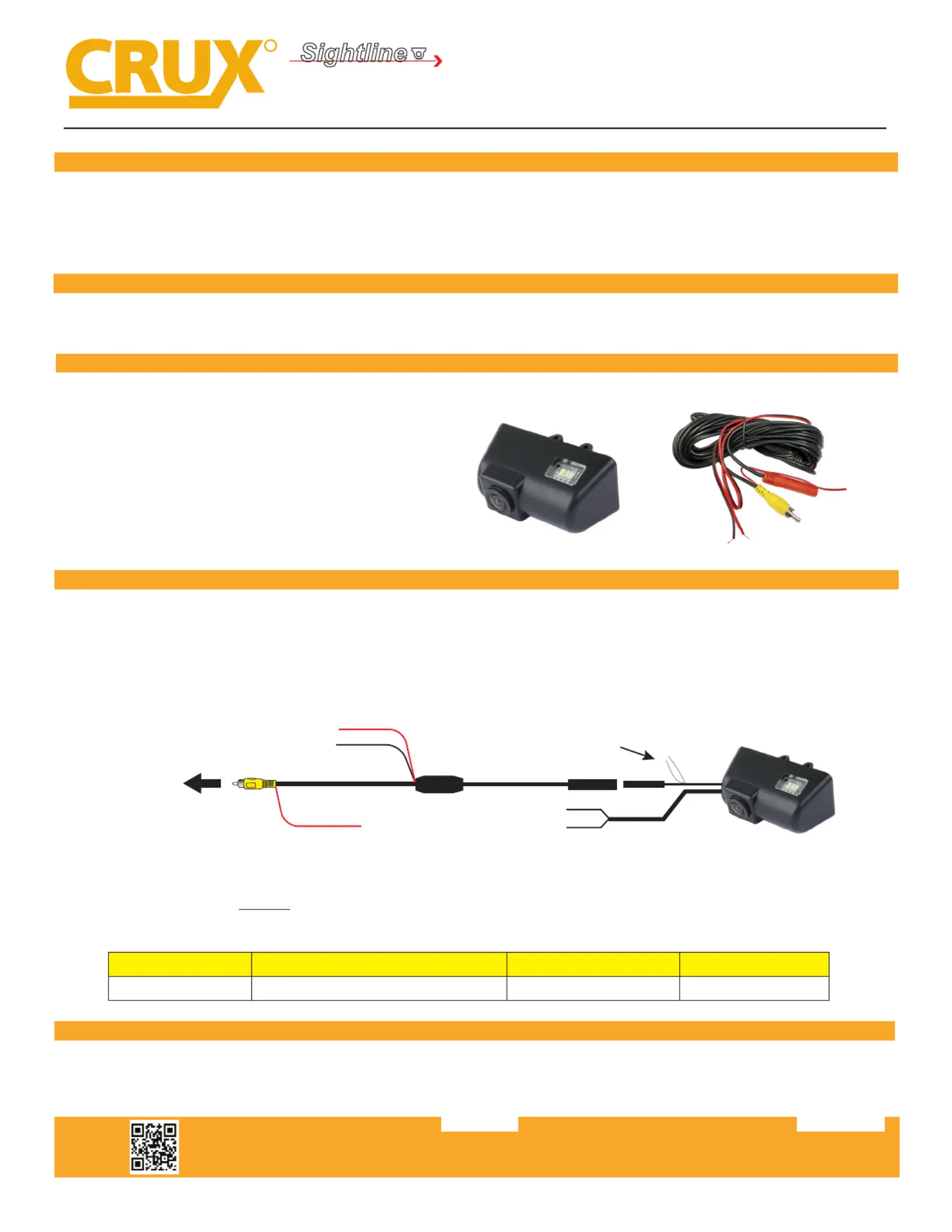

CFD-04T
License Plate Light Camera for
FORD TRANSIT CONNECT 2010-2016
- Replaces factory license plate light.
- Maintains the OEM look.
- With parking guide lines (can be turned on or o)
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
NOTE:
- Replace the license plate light closest to the middle of the van for a beer viewing angle.
1. License plate light camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Carefully remove the factory license plate light. You may need to push on the locking tabs from inside the rear door.
2. Mount the CFD-04T with the LED light facing down.
3. Run the cable to the inside of the cabin towards the radio.
4. Connec the power and ground wires of the LED to the factory license plate light wires.
4. Make the power and video connecons to the RVC interface (i.e. Crux part# RVCFD-79A, sold separately) or the aermarket radio.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Red wire +12V
Black wire Ground
(to factory license plate light wiring)
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020419
VEHICLE APPLICATIONS:
2010 - 2016 Ford Transit Connect
1
