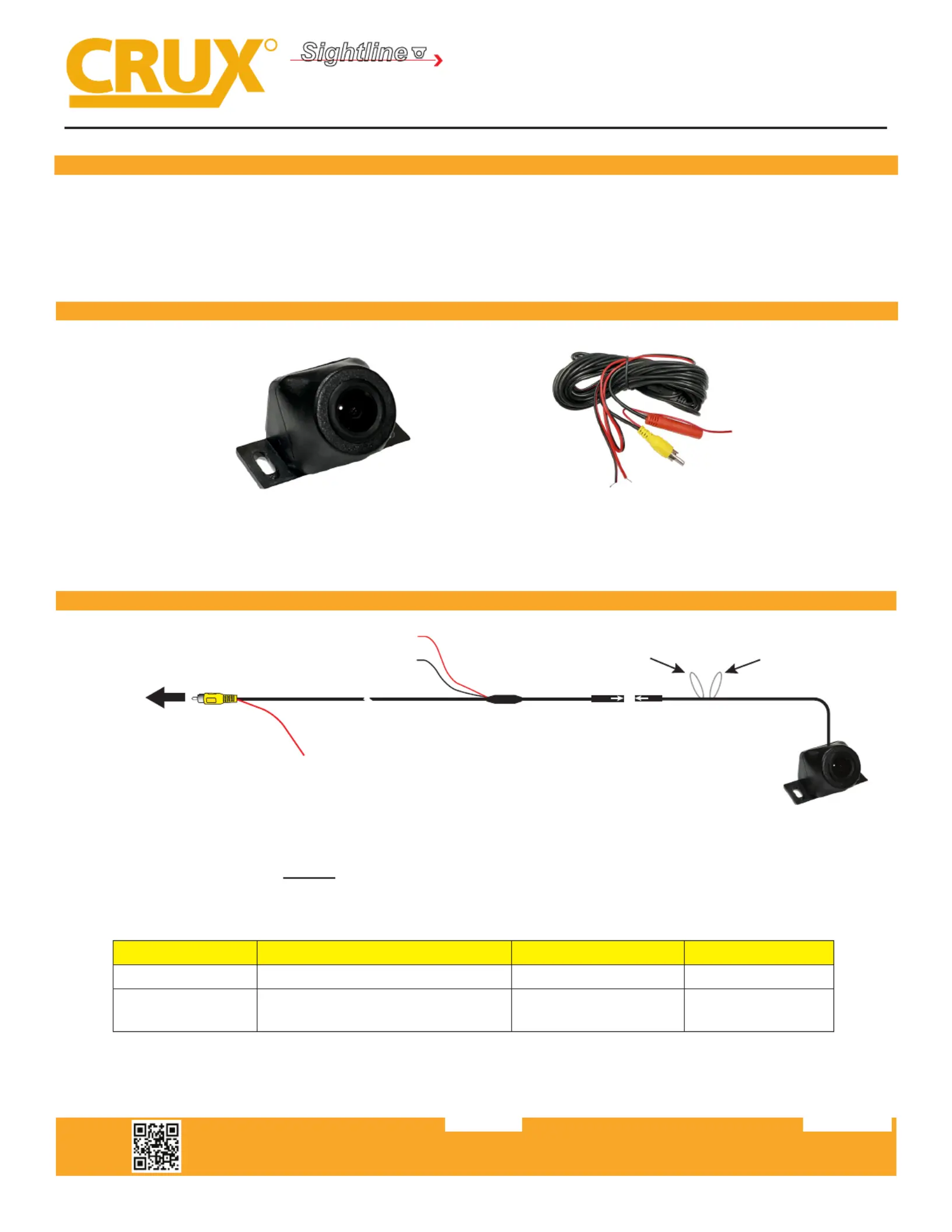

CFF-03
Universal Front or Rear facing Camera
with Parking Guide Lines
1
- Parking guide lines with on/o󰀨 function.
- For front or rear view use.
- With 45 degree mount.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CFF-03 CAMERA EXTENSION CABLE
WHITE Wire
Parking Guideline
(see below)
Regulator
Extension Coax Cable
Black Wire
(Ground)
RED Wire (A)*
Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
BLUE Wire
Flip Image
(see below)
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse
light wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not
being used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
Blue Flip Image horizontally to use
as a front camera OFF (default) ON
NOTE: Reset the camera by disconnecng the power wire aer cung or joining the loop wires for the opon to take eect.
