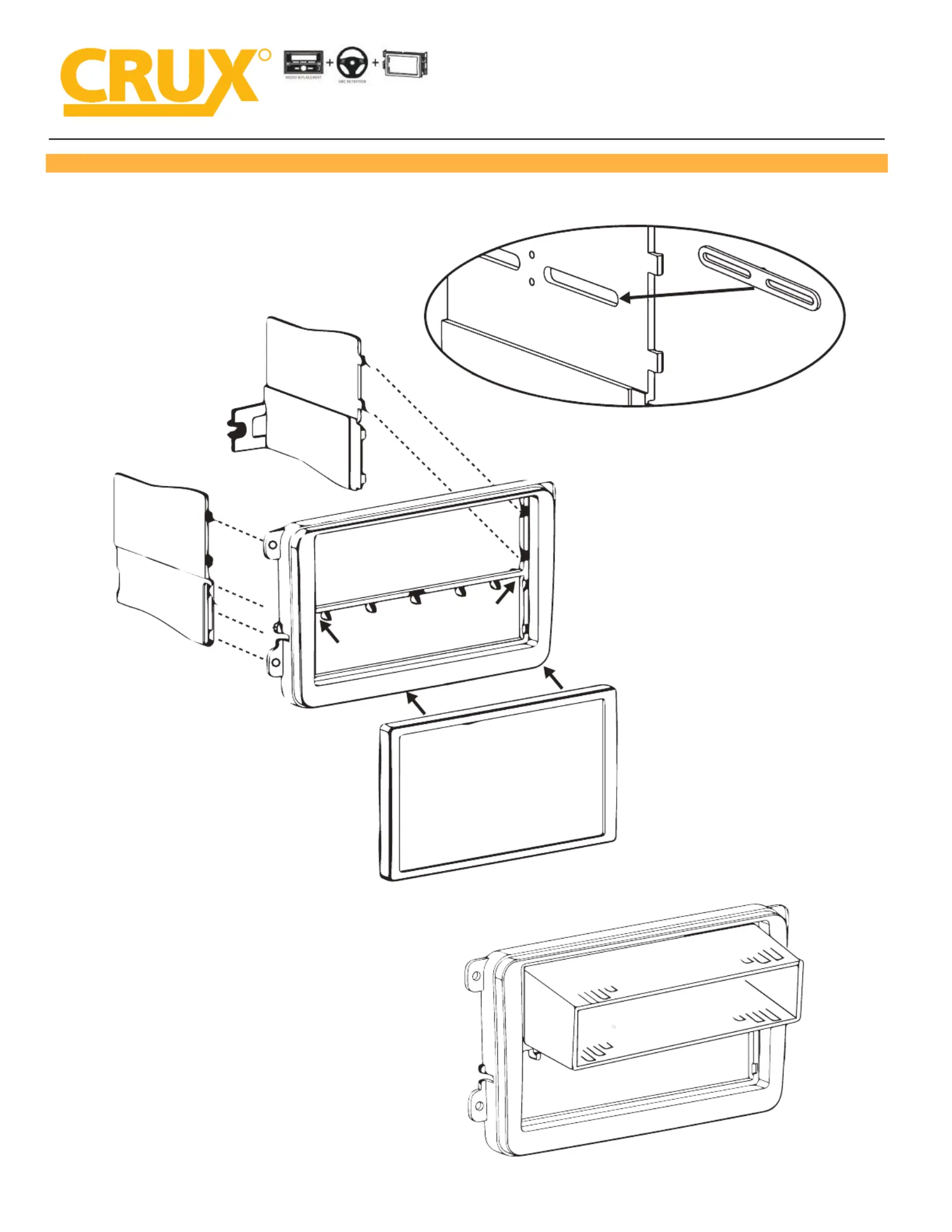

SWRVW-52 ModuleSingle DIN/ISO with pocket
or Double DIN Dash Kit
SWRVW-52 Harness SWC Cables
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322

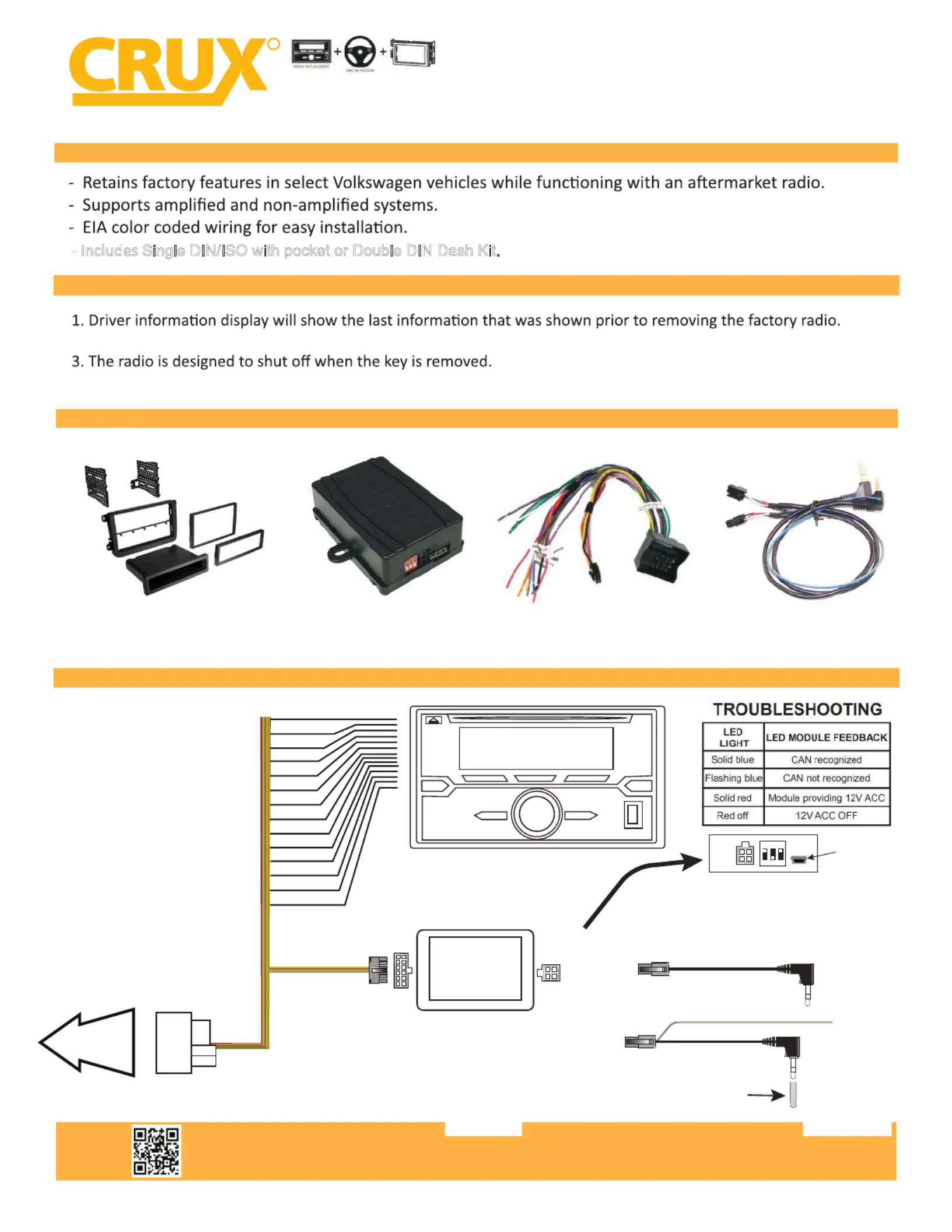

DKVW-52
Radio Replacement with Steering Wheel Control Retention
and Dash Kit for Select VW Vehicles
1 of 2
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Red/White
Illuminaon (+) Orange
Amplifier Turn-on Blue
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
TO FACTORY
HARNESS
12-Pin
Connector
1 2 3
ON
4-Pin
Connector
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin
port on the module. See “DIP SWITCH SETTINGS” section.
mini USB
Not Used
CRUX
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
Insulate with
tape if not
being used
NOTES:
2. This interface does not retain the factory Bluetooth or Sirius Satellite Radio.
4. 2010 and Up vehicles with a premium sound system do not retain the RAP feature.
- Includes Single DIN/ISO with pocket or Double DIN Dash Kit.
