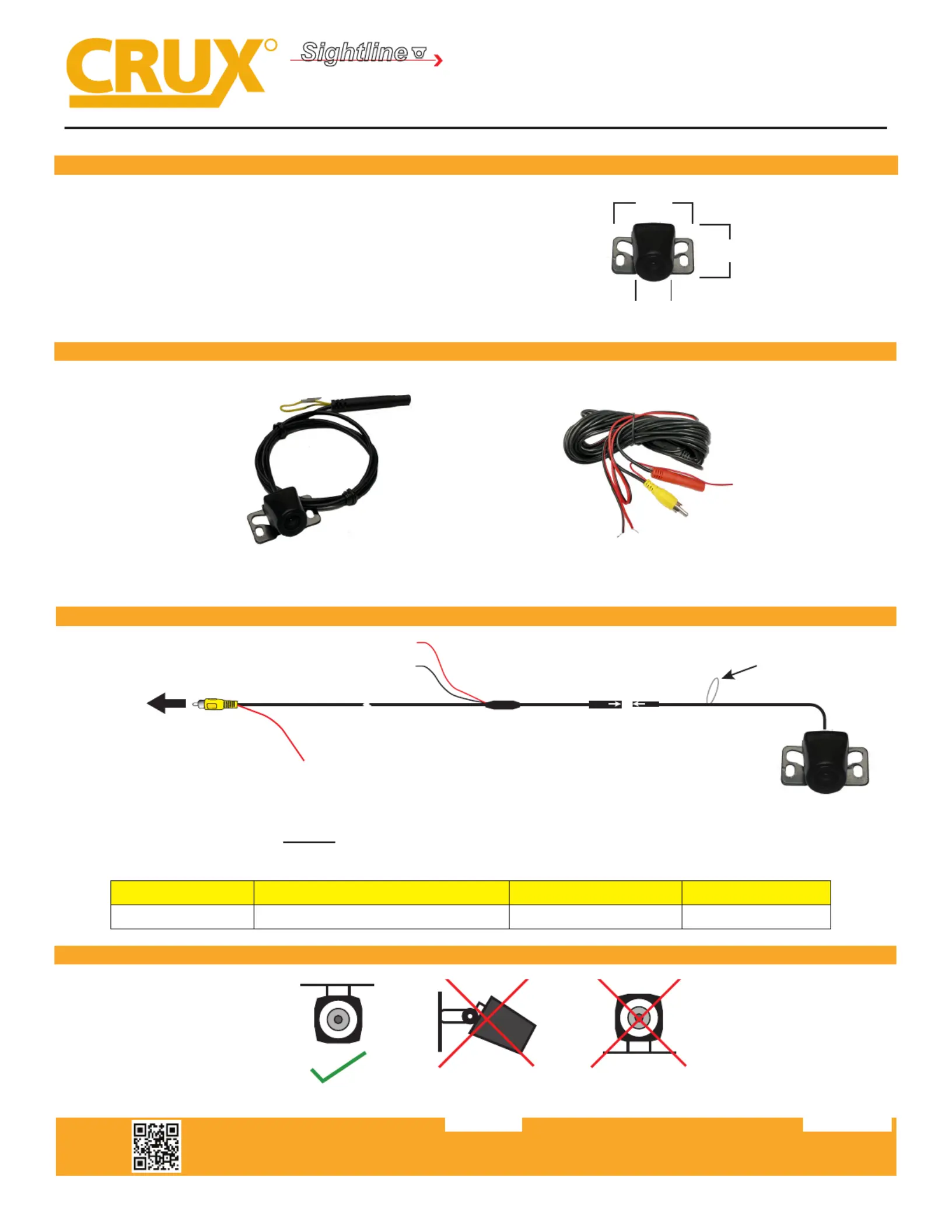

MM-CML21
Universal Buttery Mount Mini Camera
with Parking Guide Lines
1
- With Parking Guide Lines that can be turned on and o󰀨.
- Underlip mount with a tiny footprint.
- 100 degree horizontal viewing angle.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
MM-CML21 CAMERA EXTENSION CABLE
YELLOW Wire
Parking Guideline
(see below)
Regulator
Extension Coax Cable
Black Wire
(Ground)
RED Wire (A)*
Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse
light wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not
being used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
Yellow Parking Lines ON (default) OFF
0.48”
1.11”
0.57”
MOUNTING OPTIONS:
Under Lip Mount Horizontal Mount Top Mount
