RVCTY-71A
Rear View Integration with Lip Mount Camera for
Toyota Avalon (2013-2015) and Highlander (2014-2015)
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.053019
1 of 1
- Automacally switches to rear-view when vehicle is in reverse gear.
- Aermarket lip mount rear-view camera included.
- Plug & Play Installaon.
PRODUCT FEATURES:
4-PIN BARREL
CONNECTOR FOR CAMERA
POWER AND SIGNAL
4-PIN
(male plug)
Extension Cable
FACTORY
4-PIN
CONNECTOR
BLUE WIRE
(cut to ip image horizontally)
WHITE WIRE
(cut to remove guide lines)

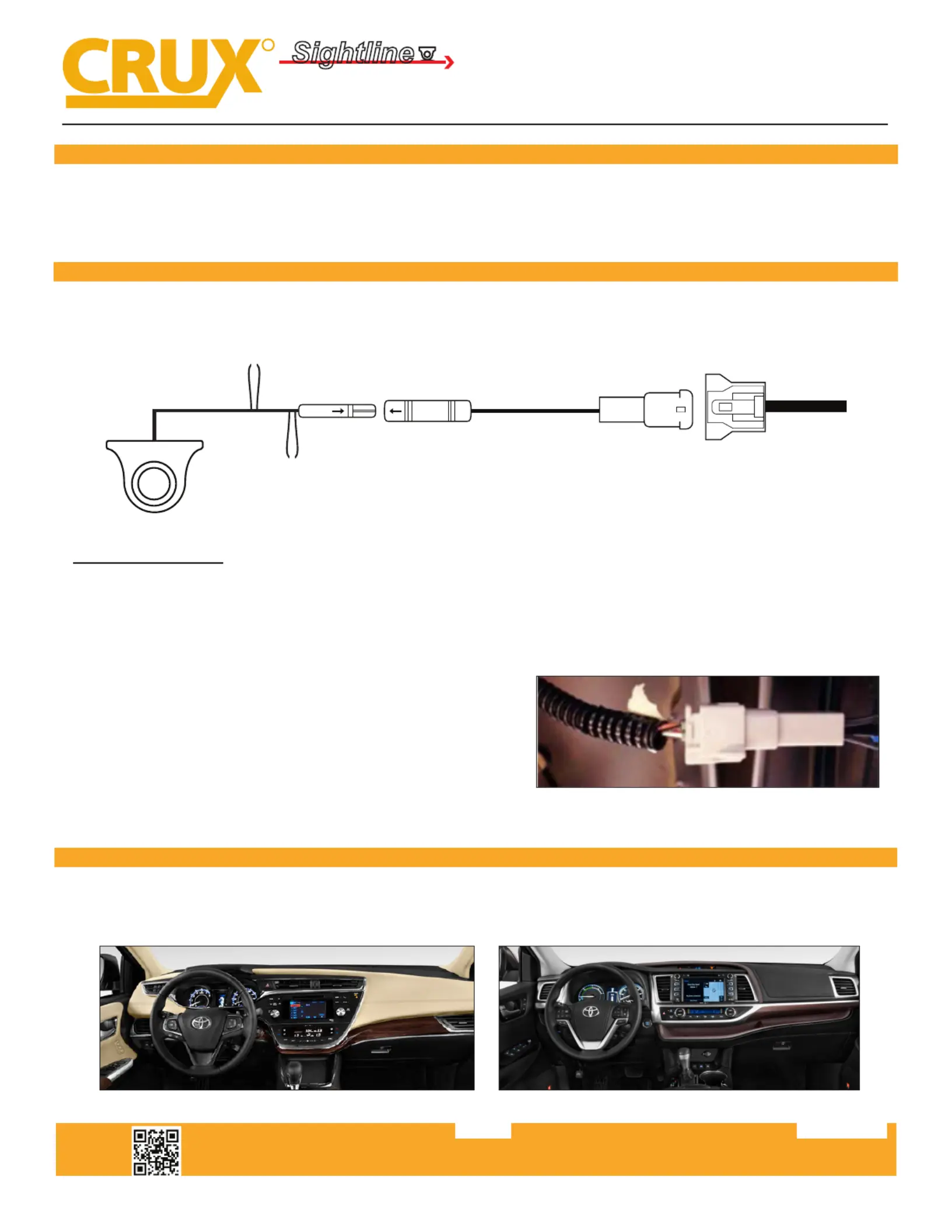

INSTALLATION DIAGRAM:
Installing the Camera
1. Remove the trunk panel cover and locate the factory 4-pin camera pre-wire cable.
2. Find a spot to mount the camera and drill a 5/8” hole using the hole saw included.
3. Route the camera power and video connecons through 5/8” hole. Do not secure the camera yet unl aer
tesng the viewing angle.
4. Connect the 4-Pin plug of the RVCTY-71A camera harness to the factory 4-pin connector.
5. Disconnect the negave baery terminal for a few seconds
and reconnect to reset the factory system and recognize the
new camera.
6. Test the camera by pung the vehicle in reverse gear.
7. Check the camera viewing angle before securing it.
8. Re-install the trunk panel cover.
Factory 4-Pin connector
VEHICLE APPLICATIONS:
2013 - 2014 Avalon
2014 Highlander
2014 Avalon 2014 Highlander
