YOUR ULTIMATE ALLY IN POWER
CP1000PFCRM1U / CP1500PFCRM1U
USER MANUAL
Cyber Power Systems (USA), Inc. 4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS)
This manual contains important instructions that should be followed during installation
and maintenance of the UPS and batteries. Please read and follow all instructions
carefully during installation and operation of the unit. Read this manual thoroughly before
attempting to unpack, install, or operate.
CAUTION! To prevent the risk of fire
or electric shock, install in a temperature
and humidity controlled indoor area free
of conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION!
To reduce the risk of electric
shock, do not remove the cover. There are
no user serviceable parts inside except for
the battery.
CAUTION!
Hazardous live parts inside can
be energized by the battery even when the
AC input power is disconnected.
CAUTION!
The UPS must be connected
to an AC power outlet with fuse or circuit
breaker protection. Do not plug into an
outlet that is not grounded. If you need to
de-energize this equipment, turn off and
unplug the unit.
CAUTION!
To avoid electric shock, turn
off the unit and unplug it from the AC
power source before installing a computer
component.
CAUTION!
Not for use in a computer room
as defined in the Standard for the Protection
of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
CAUTION!
To reduce the risk of fire,
connect only to a circuit provided with
20 amperes maximum branch circuit over
current protection in accordance with the
National Electric Code, ANSI/NFPA 70.
DO NOT USE FOR LIFE SUPPORT
EQUIPMENT! CyberPower Systems
does not sell products for life support. DO
NOT use in any circumstance that would
affect operation and safety of life support
equipment.
CAUTION! DO NOT USE WITH OR
NEAR AQUARIUMS! To reduce the risk
of fire or electric shock, do not use with or
near an aquarium. Condensation from the
aquarium can cause the unit to short out.
CAUTION! DO NOT USE THE UPS
ON ANY TRANSPORTATION! To
reduce the risk of fire or electric shock, do
not use the unit on any transportation such
as airplanes or ships. The effect of shock
or vibration caused during transit and the
damp environment can cause the unit to
short out.
CAUTION! DO NOT USE WITH
LASER PRINTERS! The power demands
of laser printers are too large for a UPS.
CAUTION! To reduce the risk of electric
shock, do not remove the cover, except
to service the battery. There are no
serviceable parts inside, except for the
battery.
CAUTION! For PLUGGABLE
EQUIPMENT, the socket-outlet shall be
installed near the equipment and shall be
easily accessible.
WARNING: This product can expose
you to chemicals including Styrene, which
is known to the State of California to
cause cancer, and Bisphenol-A, which
is known to the State of California to
cause birth defects or other reproductive
harm. For more information, go to www.
P65Warnings.ca.gov.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box
should contain the following:
(a) UPS unit
(b) User’s manual
(c) Rack mount brackets
(d) USB A+B type cable
*PowerPanel® Business software is
available on our website. Please visit
CyberPowerSystems.com and go to the
Software Section for free download.
OVERVIEW
The CP1000PFCRM1U / CP1500PFCRM1U
provides automatic voltage regulation
to correct for inconsistent utility power.
The CP1000PFCRM1U / CP1500PFCRM1U
features 1150 Joules of surge protection,
and provides battery backup during
power outages. The CP1000PFCRM1U /
CP1500PFCRM1U ensures consistent power
to your computer system and its included
software will automatically save your open
files and shutdown your computer system
during a utility power loss.
HOW TO DETERMINE THE POWER
REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into
the UPS does not exceed the UPS unit’s
rated capacity. If the rated capacities
of the unit are exceeded, an overload
condition may occur and cause the UPS
unit to shut down or the circuit breaker
to trip.
2. There are many factors that can
affect the amount of power that your
electronic equipment will require. For
optimal system performance keep the
load below 80% of the unit’s rated
capacity.
AUTOMATIC VOLTAGE REGULATOR
The CP1000PFCRM1U / CP1500PFCRM1U
stabilizes inconsistent utility power. The
incoming utility power may be damaging
to important data files, but with Automatic
Voltage Regulation, the computer will not
experience damaging voltage levels. An
Automatic Voltage Regulator automatically
increases low voltage to a consistent,
computer safe 110v/120v. The unit’s
powerful sealed lead-acid batteries will
provide power only if the incoming voltage
drops below 100v.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving
a new UPS, to ensure the battery’s
maximum charge capacity, it is
recommended that you charge the
battery for at least 8 hours. Your UPS is
equipped with an auto-charge feature.
When the UPS is plugged into an AC
outlet, the battery will automatically
charge whether the UPS is turned on or
turned off.
2. If you will use the software, connect the
USB cable to the USB port on the UPS.
3. With the UPS unit turned off and
unplugged, connect your computer,
monitor, and any other peripherals
requiring battery backup into the
battery power supplied outlets. Plug the
other peripheral equipment (e.g. printer,
scanner, speakers, etc.) into the full-time
surge protection outlets. DO NOT plug
a laser printer, paper shredder, copier,
space heater, vacuum cleaner, sump
pump, or other large electrical device
K01-00001049-01

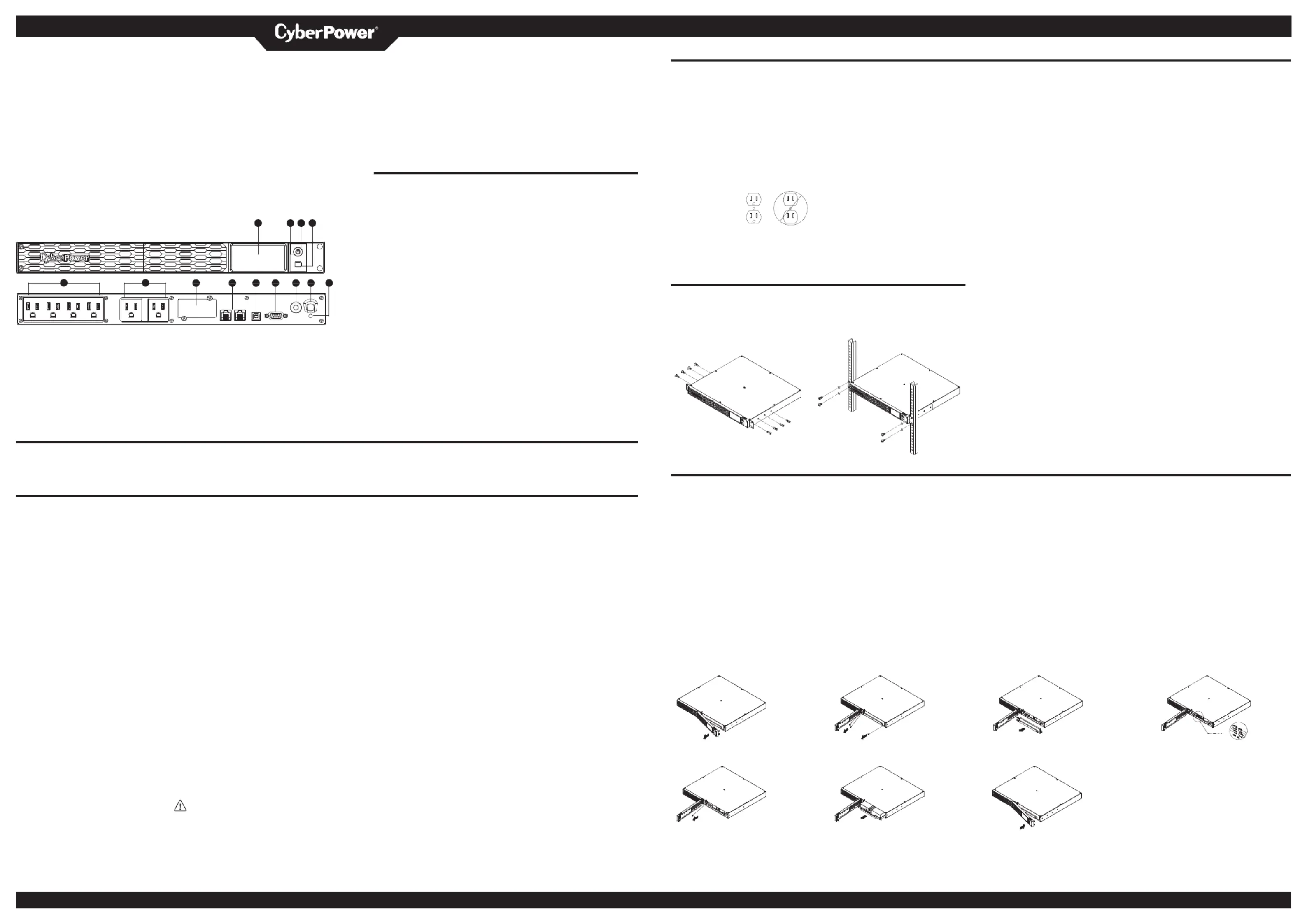

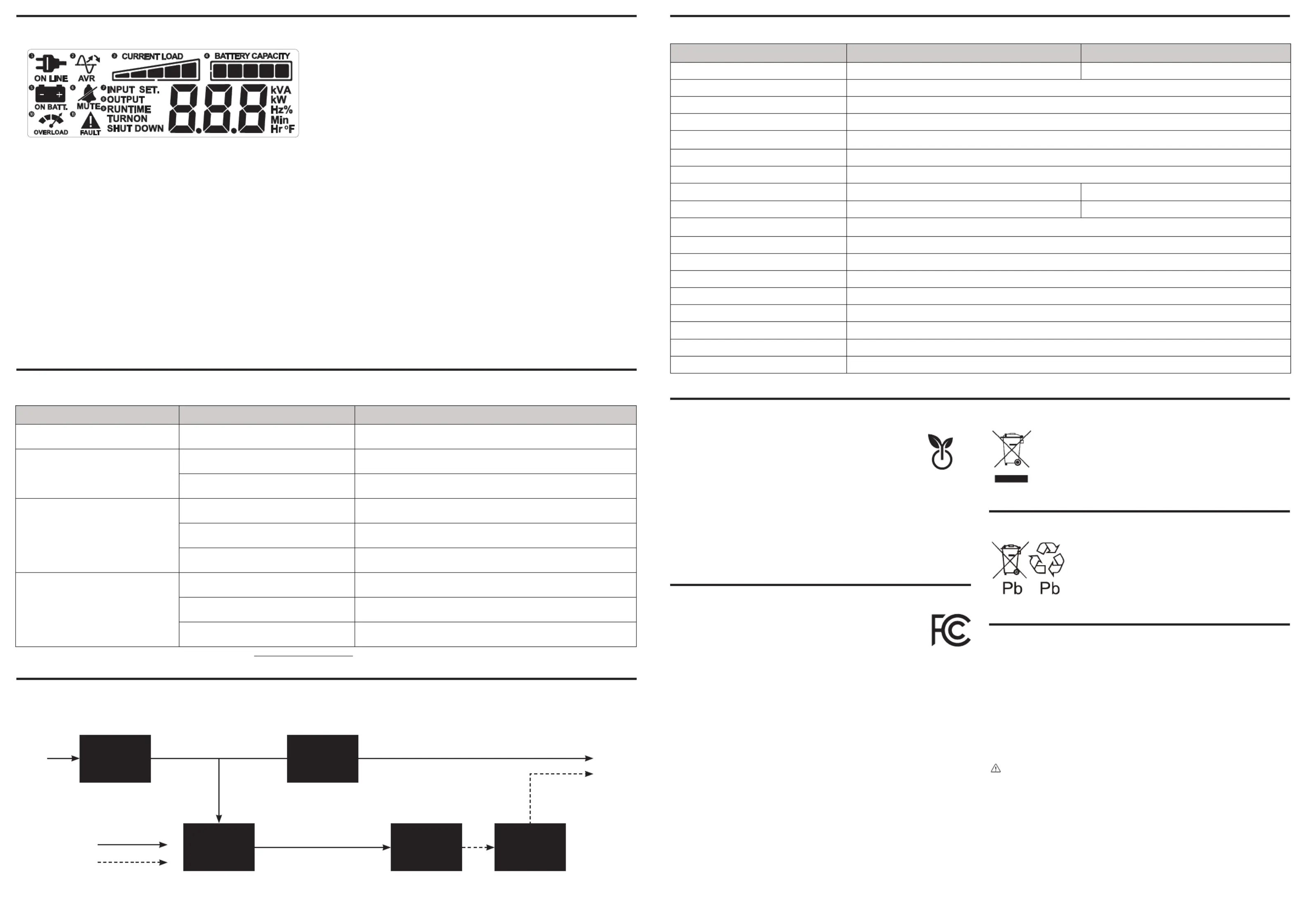

1. LCD module display
LCD Screen shows all the UPS information
with icons and messages.
2. Power On Indicator
This LED is illuminated when the utility
condition is normal and the UPS outlets are
providing power, free of surges and spikes.
3. Power Switch
Master on/off switch for equipment
connected to the battery power supplied
outlets.
4. LCD Function Selected Switch
The switch can be used to select the LCD
display contents Including input/output
voltage and estimated run time, etc.
5. Battery and Surge Protected Outlets
The unit has four battery powered/surge
protected outlets for connected equipment
to ensure temporary uninterrupted
operation of your equipment during a
power failure. (DO NOT plug a laser printer,
paper shredder, copier, space heater,
vacuum cleaner, sump pump or other
large electrical devices into the “Battery
and Surge Protected Outlets”. The power
demands of these devices may overload
and damage the unit.)
6. Full-Time Surge Protection Outlets
The unit has two surge protected outlets.
7. SNMP/HTTP Network Slot
Remove the cover panel to install an
optional RMCARD provides remote
monitoring and management of your UPS
over a network.
8. Communication Protection Ports RJ45
Communication protection ports, bi-
directional, will protect a 10/100/1000
ethernet connection. (RJ45).
*Not for telecommunication (telephone)
network.
9. USB Port to PC
This port allows connection and
communication from the USB port on
the computer to the UPS unit. The UPS
communicates its status to the PowerPanel®
Business software.
10. DB9 Port
This port is used for connecting between
the UPS and equipment designed to
operate with contact signals.
11. Circuit Breaker
Located on the back of the UPS, the circuit
breaker serves to provide overload and
fault protection. Under normal operating
conditions, the circuit breaker is depressed.
12. AC Input
Connect the AC Power cord to a properly
wired and grounded outlet.
13. Electrical Wiring Fault Indicator (Red)
This LED indicator will illuminate to warn
the user that a wiring problem exists,
such as a bad ground, missed ground
or reversed wiring. If this is illuminated,
disconnect all electrical equipment from
the outlet and have an electrician check
to ensure the outlet is properly wired.
The unit will not provide surge protection
without being plugged into a grounded
and properly wired wall outlet.
BASIC OPERATION
into the “Battery and Surge Protected
Outlets”. The power demands of these
devices will overload and possibly
damage the unit.
4. Plug the UPS into a 2 pole, 3 wire
grounded receptacle (wall outlet). Make
sure the wall branch outlet is protected
by a fuse or circuit breaker and does
not service equipment with large
electrical demands (e.g. air conditioner,
refrigerator, copier, etc.). The warranty
prohibits the use
of extension cords,
outlet strips, and
surge strips in
conjunction with the UPS unit.
5. Press the power switch to turn the unit
on. The Power On indicator light will
illuminate green and the unit will “beep”
twice.
6. If an overload is detected, an audible
alarm will sound and the unit will emit
one long beep. To correct this, turn the
UPS off and unplug at least one piece
of equipment from the battery power
supplied outlets. Make sure the circuit
breaker is depressed and then turn the
UPS on.
7. To maintain optimal battery charge,
leave the UPS plugged into an AC outlet
at all times.
8. To store the UPS for an extended period
of time, cover it and store with the
battery fully charged. While in storage,
recharge the battery every three months
to ensure optimal battery life.
9. Ensure the wall outlet and UPS are
located near the equipment being
attached for proper accessibility.
INSTALLING YOUR UPS SYSTEM - Continued
HARDWARE INSTALLATION GUIDE
PRODUCT REGISTRATION
Thank you for purchasing this CyberPower product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/Registration. Registration certifies your product's
warranty, confirms your ownership in the event of a product loss or theft and entitles you to free technical support. Register your product now to receive the benefits of CyberPower
ownership.
Read and follow the important safety instructions before servicing the batteries. Visit
CyberPower official website www.cyberpowersystems.com or contact your dealer for
more information about replacement batteries.
CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing
the battery. Service the battery under the supervision of personnel knowledgeable of
batteries and their precautions.
CAUTION! When replacing batteries, replace with the same number of the following
battery: CyberPower/RB0670X4 for CP1000PFCRM1U and CyberPower/ RB0690X4 for
CP1500PFCRM1U. See your dealer for replacement batteries.
CAUTION! Risk of Energy Hazard, 24 V, maximum 9 Ampere-hour battery. Before
replacing batteries, remove conductive jewelry such as chains, wrist watches, and rings.
High energy through conductive materials could cause severe burns.
CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
CAUTION! The battery may present the risk of electrical shock. Do not dispose of
batteries in a fire, the batteries may explode. Follow all local ordinances regarding proper
disposal of batteries.
REPLACING THE BATTERY
FEATURES
1 . LCD module display
2 . Power On Indicator
3 . Power Switch
4 . LCD Function Selected Switch
5 . Battery and Surge Protected Outlets
6 . Full-Time Surge Protection Outlets
7 . SNMP/HTTP Network Slot
8 . Communication Protection Ports RJ45
9 . USB Port to PC
10 . DB9 port
1 1 . Circuit Breaker
12 . AC Input
13 . Electrical Wiring Fault Indicator (Red)
1.
Remove the right-side of the faceplate.
2.
Remove the three retaining screws on
the cable protection cover.
5.
Disconnect the black and red cables.
3.
Remove the cable protective cover.
6.
Replace the new battery pack.
4.
Remove the retaining screw of the
battery tray.
7.
Assemble the screws, cover, cable and front
panel in the reverse sequence of above steps.
Recharge the unit for 8 hours to ensure the UPS
performs expected runtime.
1 2 3 4
1312111098765
RACK INSTALLATION (OPTION)
1. Use the provided pan head screws to attach the hanging brackets to the UPS.
2. Use the provided truss head screws to secure the UPS to your existing rack system.
CAUTION! Do not open or mutilate batteries. Released material is harmful to the skin and eyes.
It may be toxic.
CAUTION! A battery can present a risk of electrical shock and high short-circuit current.
Contact with part of a grounded battery can result in electrical shock. The following
precautions should be observed when working on batteries:
1. Remove all watches, rings or other metal objects.
2. Only use tools with insulated handles.
3. lay tools or other metal parts on top of battery or any battery terminals. DO NOT
4. Wear rubber gloves and boots.
5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove
source of ground.
CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK! The
likelihood of such shock will be reduced if such grounds are removed during installation and
maintenance (applicable to a UPS and a remote battery supply not having a grounded circuit).
CAUTION! The used batteries are considered hazardous waste and must be disposed through
recycling. Most retailers that sell lead-acid batteries collect used batteries for recycling, as
required by local regulations.
Produkt Specifikationer
| Mærke: | CyberPower |
| Kategori: | UPS |
| Model: | CP1000PFCRM1U |
Har du brug for hjælp?
Hvis du har brug for hjælp til CyberPower CP1000PFCRM1U stil et spørgsmål nedenfor, og andre brugere vil svare dig
UPS CyberPower Manualer
8 December 2024
2 Oktober 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
UPS Manualer
- UPS Ikea
- UPS AEG
- UPS HP
- UPS GYS
- UPS Lenovo
- UPS Gembird
- UPS Tripp Lite
- UPS Digitus
- UPS Dell
- UPS EnerGenie
- UPS Voltcraft
- UPS APC
- UPS JUNG
- UPS Eaton
- UPS V7
- UPS Conceptronic
- UPS Emerson
- UPS LC-Power
- UPS SurgeX
- UPS Equip
- UPS Murr Elektronik
- UPS Furman
- UPS Block
- UPS Liebert
- UPS Avocent
- UPS Minute Man
- UPS Middle Atlantic
- UPS Minuteman
- UPS Riello
- UPS Maruson
- UPS Phoenix Contact
- UPS Puls Dimension
- UPS Vanson
- UPS Altronix
- UPS Ditek
- UPS Bxterra
- UPS FSP
- UPS Atlantis Land
- UPS PowerWalker
- UPS FSP/Fortron
- UPS Online USV
Nyeste UPS Manualer
14 December 2024
14 December 2024
11 December 2024
11 December 2024
10 December 2024
10 December 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
