YOUR ULTIMATE ALLY IN POWER
CP1350/1500AVRLCD3
USER MANUAL
Cyber Power Systems (USA), Inc. 4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
IMPORTANT SAFETY WARNINGS (SAVE THESE INSTRUCTIONS)
When using electrical appliances, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and/or injury to persons including the following. This
Manual Contains Important Instructions that should be followed during installation and
maintenance of the UPS and batteries.
CAUTION! To prevent the risk of fire or
electric shock, install in a temperature
and humidity controlled indoor area free
of conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION! To reduce the risk of electric
shock, do not remove the cover except to
service the battery. Turn off and unplug the
unit before servicing the batteries. There
are no user serviceable parts inside except
for the battery.
CAUTION! Hazardous live parts inside can
be energized by the battery even when the
AC input power is disconnected.
CAUTION! The UPS must be connected
to an AC power outlet with fuse or circuit
breaker protection. Do not plug into an
outlet that is not grounded. If you need to
de-energize this equipment, turn off and
unplug the unit.
CAUTION! To avoid electric shock, turn off
the unit and unplug it from the AC power
source before servicing the battery.
CAUTION! Not for use in a computer
room as defined in the Standard for the
Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
CAUTION! To reduce the risk of fire,
connect only to a circuit provided with
20 amperes maximum branch circuit over
current protection in accordance with the
National Electric Code, ANSI/NFPA 70.
DO NOT USE FOR MEDICAL OR LIFE
SUPPORT EQUIPMENT! CyberPower
Systems does not sell products for life
support or medical applications. DO NOT
use in any circumstance that would affect
the operation and safety of life support
equipment, medical applications, or patient
care.
DO NOT USE WITH OR NEAR
AQUARIUMS! To reduce the risk of fire
or electric shock, do not use with or near
an aquarium. Condensation from the
aquarium can cause the unit to short out.
DO NOT USE THE UPS ON ANY
TRANSPORTATION! To reduce the risk of
fire or electric shock, do not use the unit
on any transportation such as airplanes
or ships. The effect of shock or vibration
caused during transit and the damp
environment can cause the unit to short
out.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt.
The box should contain the following:
(a) UPS
(b) User’s manual
(c) USB A+B type cable
(d) Function Setup Guide
*PowerPanel® Personal software is
available on our website. Please visit
cyberpowersystems.com and go to the
Software Section for free download.
OVERVIEW
The CP1350/1500AVRLCD3 provides
complete power protection from utility
power that is not always consistent. The
CP1350/1500AVRLCD3 features 1500
Joules of surge protection. The unit
provides long lasting battery backup
during power outages with maintenance
free batteries. The CP1350/1500AVRLCD3
ensures consistent power to your computer
system and includes software that will
automatically save your open files and
shutdown your computer system during a
utility power loss.
AUTOMATIC VOLTAGE REGULATOR
The CP1350/1500AVRLCD3 stabilizes
inconsistent utility power voltage to
nominal levels that are safe for equipment.
Inconsistent incoming utility power may
be damaging to important data files and
hardware, but with Automatic Voltage
Regulation (AVR), damaging voltage
levels are corrected to safe levels. AVR
automatically increases low utility power
to a consistent and safe 110/120 volts.
DETERMINE THE POWER REQUIREMENTS
OF YOUR EQUIPMENT
1 . Ensure that the equipment plugged into
the outlet does not exceed the UPS’s
rated capacity. If the rated capacity
of the unit is exceeded, an overload
condition may occur and cause the UPS
to shut down or the circuit breaker to
trip.
2 . There are many factors that can
affect the amount of power that your
computer system will require. It is
suggested that the load placed on the
battery outlets not exceed 80% of the
unit’s capacity.
REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell lead-acid batteries collect used batteries for recycling, as required by
local regulations.
K01-0000946-00

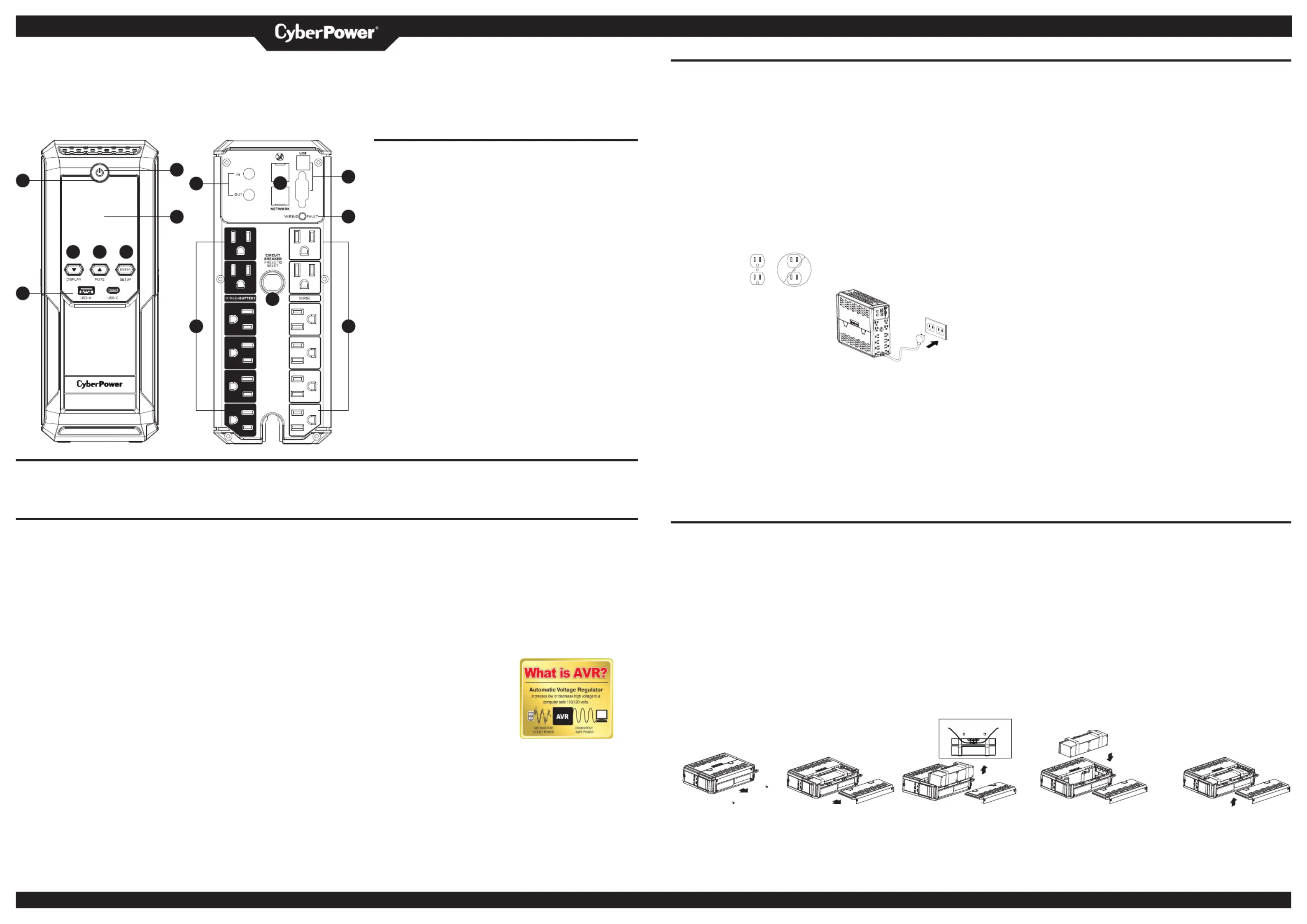

1 . Power Switch: Used as the master on/
off switch for equipment connected to
the battery power supplied outlets.
2 . Power On Indicator: This LED is
illuminated when the utility power
is normal and the UPS outlets are
providing power, free of surges and
spikes.

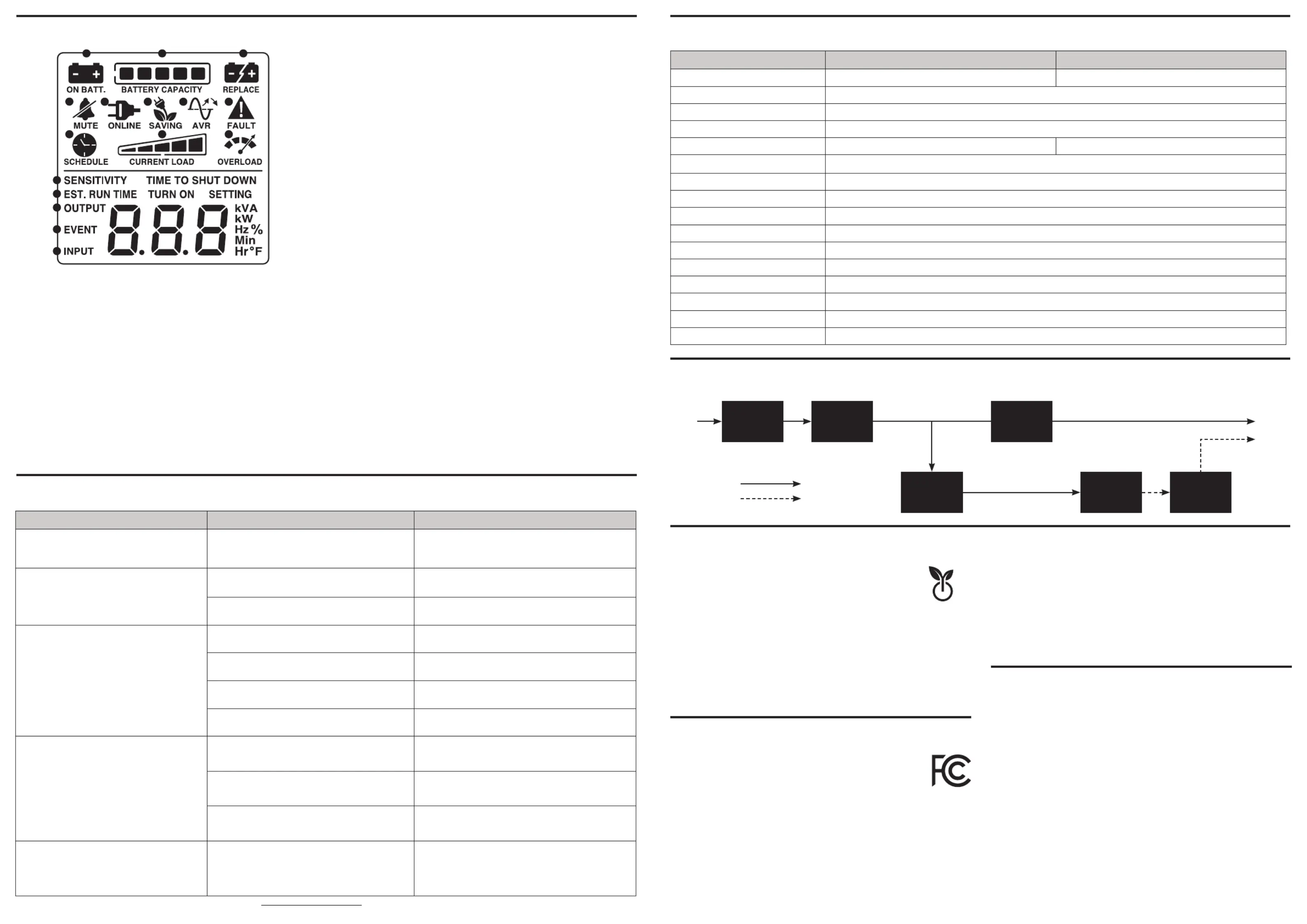

3 . LCD module display: The LCD
display shows all the UPS information
using icons and messages. For
more information please review the
“Definitions for Illuminated LCD
Indicators” section.
4 . Down/Display button: The button
can be used to select the LCD display
contents including Input Voltage,
Output Voltage, and Estimated Run
Time. Short press the button to scroll
down the function menu. Pressing the
button for 2 seconds will keep the
LCD display always on or turn the LCD
display off while in AC/Utility power
mode. For more information about the
Down/Display Button, please refer to
the Function Setup Guide.
5 . Up/Mute button: Short press the
button to scroll up the function menu.
Holding the button for more than 2
seconds will silence the alarm. For
more information about the Up/Mute
Button, please refer to the Function
Setup Guide.
6 . Enter/Setup button: Press the button
for 2 seconds to enter the setup menu
and then select the functions for
configuration. For more information
about the Enter/Setup Button, please
refer to the Function Setup Guide.
7 . USB Charging Ports: The USB
Charging ports provide 5Vdc,3A
Max(USB-C), and 5 Vdc, 2.4A
Max(USB-A). Total Output Current:4A
8 . Battery and Surge Protected
Outlets: The UPS has six battery
powered/surge suppression outlets
for connected equipment to ensure
temporary uninterrupted operation
of your equipment during a power
failure. (DO NOT plug a laser printer,
paper shredder, copier, space heater,
vacuum, sump pump or other large
electrical devices into the “Battery
and Surge Protected Outlets”. The
power demands of these devices may
overload and damage the unit.)
9 . Full-Time Surge Protection Outlets:
The UPS has six surge suppression
outlets.
10 . Circuit Breaker: Located on the back
of the UPS, the circuit breaker serves to
provide overload and fault protection.
11. USB Port to PC: The USB port allows
connection and communication
between the USB port on the computer
and the UPS unit.
DB9 Port: The DB9 port is used for
connecting between the UPS and
equipment designed to operate with a
dry contact closure.
12. Wiring Fault Indicator (red): This LED
indicator will illuminate to warn the
user that a wiring problem exists, such
as bad ground, missing ground or
reversed wiring. If this is illuminated,
disconnect all electrical equipment
from the outlet and have an electrician
verify the outlet is properly wired. The
UPS will not provide surge protection
without being plugged into a grounded
and properly wired wall outlet.
13 . Communication Protection Ports
(RJ45): Communication protection
ports, bi-directional, will protect a
10/100/1000 Ethernet connection.
14 . Coax/Cable/DSS Surge Protection:
The Coax/Cable/DSS protection ports
will protect any cable modem, CATV
converter, or DSS receiver.
BASIC OPERATION
HARDWARE INSTALLATION GUIDE
1 . Your new UPS may be used
immediately upon receipt. However,
after receiving a new UPS, to ensure
the battery’s maximum charge capacity,
it is recommended that you charge the
battery for at least 8 hours. Your UPS is
equipped with an auto-charge feature.
When the UPS is plugged into an AC
outlet, the battery will automatically
charge whether the UPS is turned on or
off.
Note: This UPS is designed with a
safety feature to keep the system from
being turned on during shipment. The
first time you turn the UPS on, you will
need to have it connected to AC power
or it will not power up.
2 . With the UPS
unit turned off
and unplugged,
connect your
computer, monitor,
and any other peripherals requiring
battery backup into the battery power
supplied outlets. DO NOT plug a
laser printer, paper shredder, copier,
space heater, vacuum, sump pump
or other large electrical devices into
the “Battery and Surge Protected
Outlets”. The power demands of these
devices may overload and damage the
UPS.
3 . Plug the UPS into a 2 pole, 3 wire
grounded receptacle (wall outlet).
Make sure the wall branch outlet is
protected by a fuse or circuit breaker
and does not service equipment with
large electrical demands (e.g. air
conditioner, copier, etc.). The warranty
prohibits the use of extension cords,
outlet strips, and surge strips.
4 . Press the power switch to turn the unit
on. The Power On indicator light will
illuminate and the unit will “beep”. If an
overload is detected, an audible alarm
will sound and the unit will emit one
long beep. To correct this, turn the
UPS off and unplug at least one piece
of equipment from the battery power
supplied outlets. Make sure the circuit
breaker is depressed and then turn the
UPS on.
5 . To maintain optimal battery charge,
leave the UPS plugged into an AC
outlet at all times.
6 . To store the UPS for an extended
period, cover it and store with the
battery fully charged. While in storage,
recharge the battery every three
months to ensure battery life.
7 . Ensure the wall outlet and UPS are
located near the equipment being
attached for proper accessibility.
INSTALLING YOUR UPS SYSTEM - Continued
PLUG IN
PRODUCT REGISTRATION
Thank you for purchasing a CyberPower product. Please take a few minutes to register your product at: cyberpowersystems.com/registration. Registration certifies your product's warranty,
confirms your ownership in the event of a product loss or theft and entitles you to free technical support. Register your product now to receive the benefits of CyberPower ownership.
FEATURES
1 . Power Switch
2 . Power On Indicator
3 . LCD module display
4 . Down/Display button
5 . Up/Mute button
6 . Enter/Setup button
7 . USB Charging Ports
8 . Battery and Surge Protected Outlets
9 . Full-Time Surge Protection Outlets
10 . Circuit Breaker
1 1 . USB Port to PC/DB9 Port
12 . Wiring Fault Indicator (red)
13 . Communication Protection Ports
14 . Coax/Cable/DSS Surge Protection
3
1
4 5 6
13
7
211
12
10
9
14
8
Replacement of batteries located in an OPERATOR ACCESS AREA.
1 . When replacing batteries, replace with the same number of the following battery:
CyberPower / RB1290x2E
2 . CAUTION! Risk of Energy Hazard, 24 V, maximum 9 Ampere-hour battery. Before
replacing batteries, remove conductive jewelry such as chains, wrist watches, and rings.
High energy conducted through these materials could cause severe burns.
3 . CAUTION! Do not dispose of batteries in a fire. The batteries may explode.
4 . CAUTION! Do not open or mutilate batteries. Released material is harmful to the skin
and eyes. It may be toxic.
5 . CAUTION: A battery can present a risk of electrical shock and high short circuit current.
The following precautions should be observed when working on batteries:
1 ) Remove watches rings, or other metal objects.
2) Use tools with insulated handles.
CAUTION - RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATIONS.
REPLACING THE BATTERY BATTERY REPLACEMENT PROCEDURE
1 . Switch off and unplug all the connected equipment.
2 . Switch off the UPS and disconnect it from the wall outlet.
3 . Place the product on its side, on a solid and stable surface.
4 . Loosen the battery compartment cover screws.
5 . Press on the locking latch and slide the battery compartment cover.
6 . Using the handles on both sides of the battery pack, lift the battery pack 30 degrees
upward to expose the battery connector. Connect the wires as shown above.
7 . Replace the new battery pack into the unit and connect the wires as above steps
8 . Align the side rails on the cover with the rails on the UPS and slide the cover till it locks
and screws in position.
9 . Recharge the UPS for 8-16 hours to fully charge the battery.
(+) RED (-) BLACK
CONNECT BATTERY
1 2 3 4 5

Produkt Specifikationer

Mærke: CyberPower
Kategori: Ikke kategoriseret
Model: CP1350AVRLCD3

Har du brug for hjælp?

Hvis du har brug for hjælp til CyberPower CP1350AVRLCD3 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret CyberPower Manualer

CyberPower

CyberPower CPS3500PIE Manual

8 November 2024
CyberPower

CyberPower CPS5000PIE Manual

8 November 2024
CyberPower

CyberPower BPS240V9A Manual

7 November 2024
CyberPower

CyberPower Essential B704 Manual

10 Oktober 2024
CyberPower

CyberPower Rackbar RKBS20ST6F8R Manual

7 Oktober 2024
CyberPower

CyberPower RMCARD305 Manual

4 Oktober 2024
CyberPower

CyberPower Professional CSP708T Manual

4 Oktober 2024
CyberPower

CyberPower SB0602BA-DE-B50 Manual

24 September 2024
CyberPower

CyberPower SB0802AD-DE-W24 Manual

24 September 2024
CyberPower

CyberPower SB0502BA-DE-B70 Manual

24 September 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Gigabyte

Gigabyte ODIN GT 550W Manual

23 November 2024
Vitec

Vitec MGW Diamond-HX OG Manual

23 November 2024
Stamos

Stamos SWG-PTABLE-100PCT Manual

23 November 2024
Stamos

Stamos S-PLASMA 60U Manual

23 November 2024
Velbus

Velbus VMBPIRO-W-20 Manual

23 November 2024
Honor

Honor 90 Pro Manual

23 November 2024
Honor

Honor 80 SE Manual

23 November 2024
Medela

Medela Safe & Dry Manual

22 November 2024
Stamos

Stamos S-PLASMA 70-IGBT Manual

22 November 2024
Jane

Jane First Potty Manual

22 November 2024
