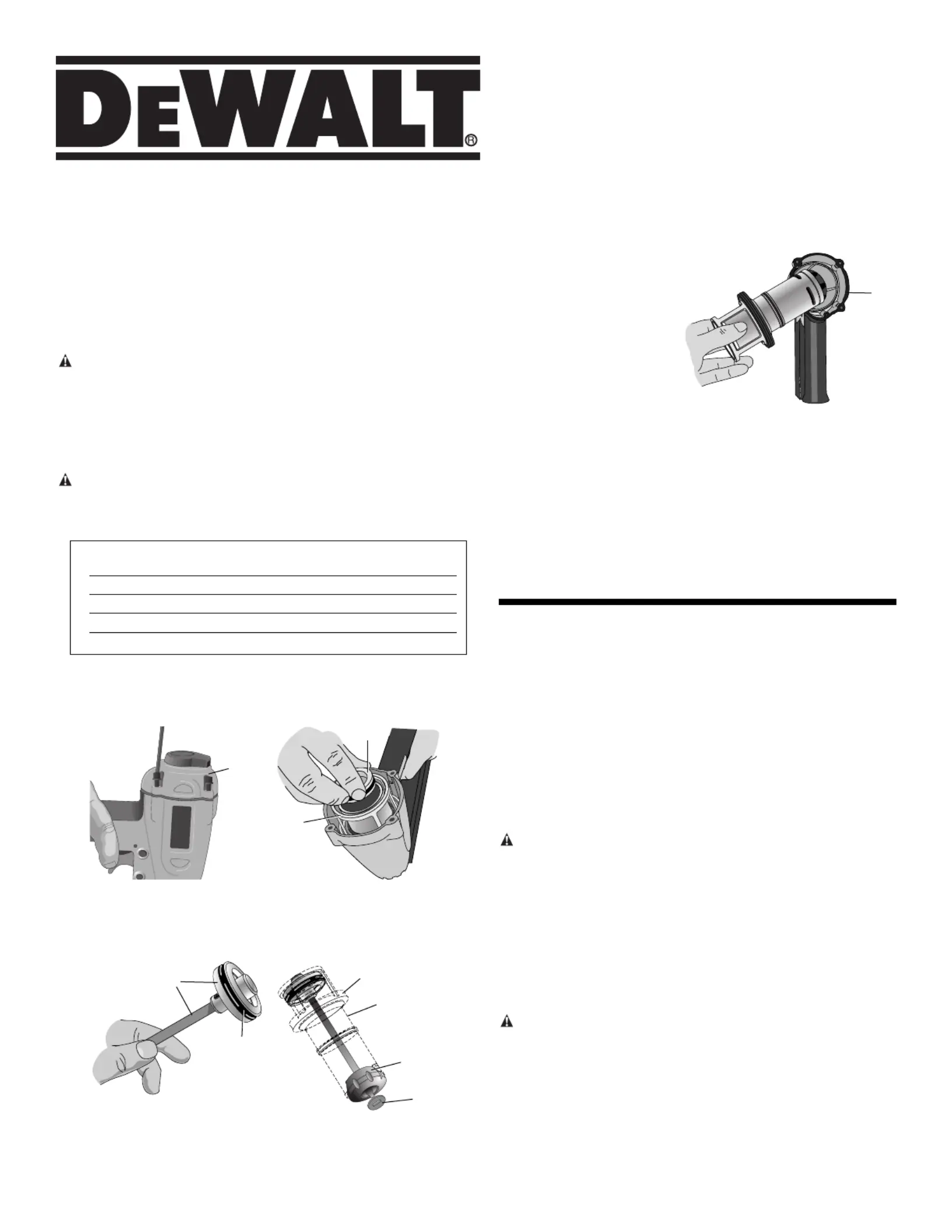

D512382, D514222

18 Gauge Piston/Driver

Assembly Instructions

FOR USE WITH D51238 18 GA. 2" BRAD NAILER

FOR USE WITH D51422 18 GA. 1/4" NARROW CROWN

STAPLER

If you should have difficulty understanding the following instruc-

tions contact a DEWALT service center or an authorized DEWALT

service person.

Important Safety Instructions

• Read and understand tool instruction manual before attempting

repairs.

• Use only genuine DEWALT replacement parts.

• Always wear ANSI compliant eye protection.

• Disconnect air from tool and remove all nails before servicing.

• Always point tool in safe direction when reconnecting air supply.

CAUTION:

• Do not allow dirt, dust or other foreign materials to enter the tool.

• Be careful not to scratch or damage the o-rings or any internal

surfaces.

PART # IN D512382 D514222

DESC. KIT PART # PART #

Driver Blade SA 1 395499-00 643228-00

O-Ring 25.7 x 3.5 1 398170-00 398170-00

Grease Tube 1 606112-00 606112-00

Bumper Plate 1 395501-00 643229-00

1. Disconnect air from tool before servicing or repairing.

2. Remove all nails from tool.

3. Remove four screws from top cap (A) with 3 mm Allen wrench

provided in kit box.

4. Remove cylinder hold-down (B) from tool.

5. Remove piston/driver subassembly (C), cylinder (D), bumper (E),

bumper plate (F), and bulkhead (G) from the tool.

6. Lubricate piston/driver o-ring (H) with the grease provided.

7. Replace piston/driver subassembly (C), cylinder (D), bumper

(E), bumper plate (F), and bulkhead (G) back into the tool.

Make sure the bulkhead is properly seated.

8. D51238 ONLY

Making sure the piston/driver subassembly’s flat (smooth)

side is facing FRONTWARD, slide the piston/driver sub-

assembly down the driver blade channel into the nosepiece.

D51422 ONLY

Making sure the piston/driver subassembly’s flat (smooth)

side is facing BACKWARDS, slide the piston/driver sub-

assembly down the driver blade channel into the nosepiece.

9. Replace cylinder hold-down (B) onto top of bulkhead (G).

10. Ensure top gasket (I) is

properly placed between

the top cap and frame

before fastening the top

cap.

11. Replace top cap (A) and

fasten four screws with

a 3 mm Allen wrench.

12. Tighten screws snugly

to prevent leaks.

13. Ensure trigger and contact trip are working smoothly.

14. Set pressure on compressor or air line at 80 psi.

15. Pointing tool in safe direction, connect tool to air supply. Tool

must not leak air.

16. Check for proper operation of tool. If tool continues to leak

air or if problems persist, take nailer to a DEWALT service

center.

17. If warning labels are missing or damaged, request replace-

ments from a DEWALT service center.
