Side 1/12

Minimum Gage for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

240V 0-50 51-100 101-200 201-300

Ampere Rating

More Not more AWG

Than Than

0 - 6 18 16 16 14

6 - 10 18 16 14 12

• OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, use only extension

cords intended for use outdoors and so marked.

•STAY ALERT. Watch what you are doing. Use common sense. Do not operate tool when you

are tired.

• CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is dam-

aged should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment of moving parts, binding of moving parts, breakage

of parts, mounting, and any other conditions that may affect its operation. A guard or other

part that is damaged should be properly repaired or replaced by an authorized service cen-

ter unless otherwise indicated elsewhere in this instruction manual. Have defective switches

replaced by authorized service center. Do not use tool if switch does not turn it on and off.

Specific Safety Rules

• Hold tool by insulated gripping surfaces when performing an operation where the tool

may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts

of the tool “live” and shock the operator.

• Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.

• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

• Wear ear protectors when hammering for extented periods of time. Prolonged exposure

to high intensity noise can cause hearing loss. Temporary hearing loss or serious ear drum

damage may result from high sound levels generated by hammerdrilling.

• Wear safety goggles or other eye protection. Hammering and drilling operations cause

chips to fly. Flying particles can cause permanent eye damage.

• Always use the side handle supplied with the tool. Keep a firm grip on the tool at all

times. Do not attempt to operate this tool without holding it with both hands.

• Hammer bits and tools get hot during operation. Wear gloves when touching them.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other con-

struction activities contains chemicals known to cause cancer, birth defects or other reproduc-

tive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To

reduce your exposure to these chemicals: work in a well ventilated area, and work with

approved safety equipment, such as those dust masks that are specially designed to filter out

microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,

and other construction activities. Wear protective clothing and wash exposed areas

with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may

promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disburse dust, which may cause serious and

permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection

appropriate for the dust exposure. Direct particles away from face and body.

CAUTION: Wear appropriate hearing protection during use. Under some conditions

and duration of use, noise from this product may contribute to hearing loss.

• The label on your tool may include the following symbols. The symbols and their definitions

are as follows:

V ..................volts A..............amperes

Hz ................hertz W ............watts

min ..............minutes ..........alternating current

............direct current n o ............no load speed

................Class II Construction ............earthing terminal

................safety alert symbol .../min ......revolutions per minute

Grounding Instructions

This tool should be grounded while in use to protect the operator from electric shock. The tool

is equipped with a 3-conductor cord and 3-prong grounding type plug to fit the proper ground-

ing type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire.

Never connect the green (or green and yellow) wire to a live terminal. If your unit is intended for

use on less than 150 V, it has a plug that looks like that shown in sketch A. If it is for use on 150

to 250 V, it has a plug that looks like that shown in sketch D. An adapter, sketches B and C, is

available for connecting sketch A type plugs to 2-prong receptacles. The green-colored rigid ear,

lug, or the like, extending from the adapter must be connected to a permanent ground, such as

a properly grounded outlet box. No adapter is available for a plug as shown in sketch D.

ADAPTER SHOWN IN FIGURES B and C IS NOT FOR USE IN CANADA.

SAVE THESE INSTRUCTIONS

Motor

Your DEWALT tool is powered by a D WALT built motor. Be sure your power supply agrees withE

the nameplate marking. The markings; 120 volts, 50/60 Hz or “AC/DC”, mean that your drill will

operate on alternating or direct current.Voltage decrease of more than 10% will cause loss of

power and overheating. All DEWALT tools are factory tested; if this tool does not operate, check

the power supply.

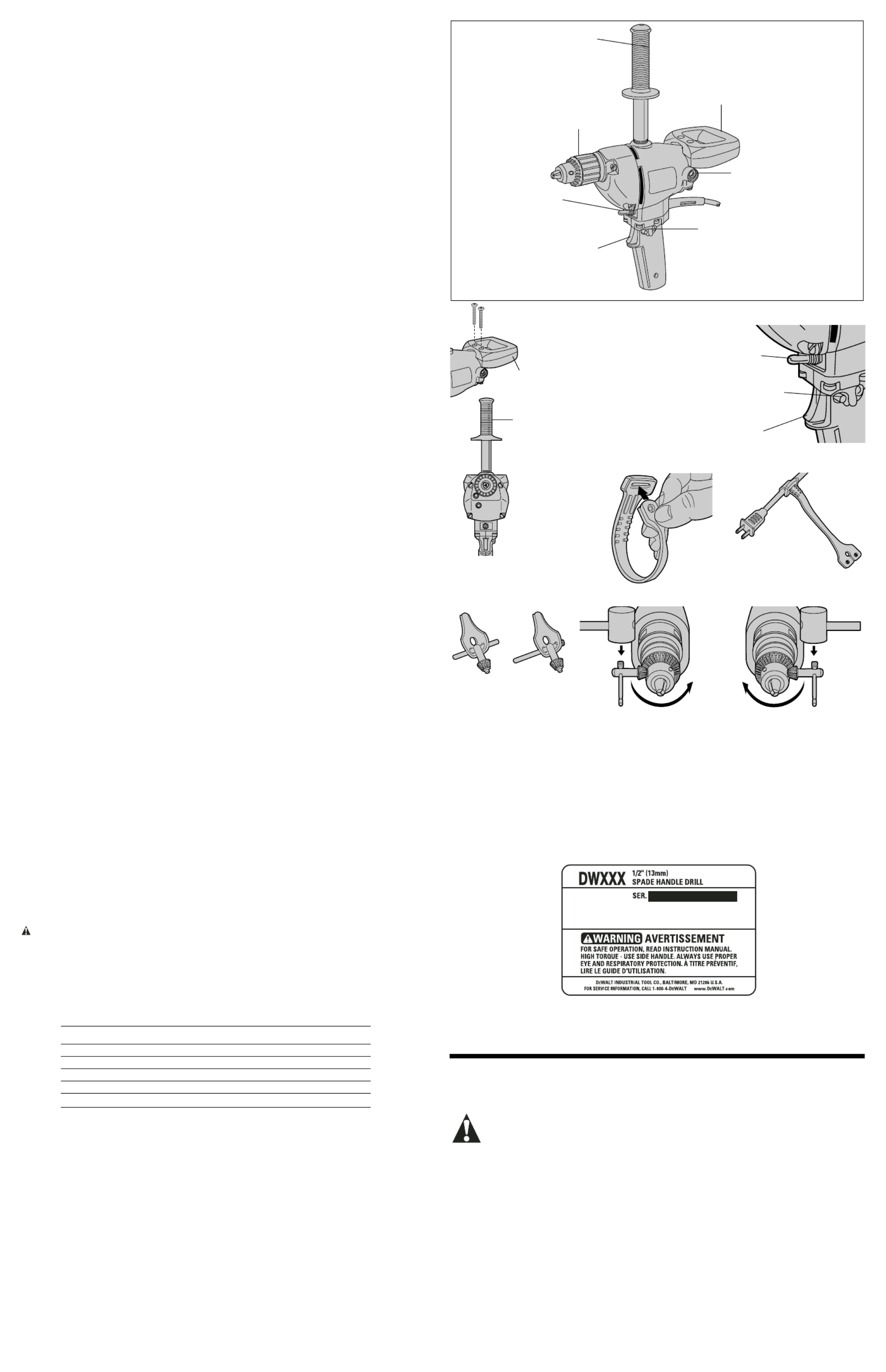

Spade Handle

The spade handle is installed as shown in Figure 1. Tighten the two screws securely.

NOTE: The spade handle can be removed from the tool if additional working clearance is need-

ed. Always operate drill with side handle or spade handle. Either handle may be removed but

never remove both handles at once!

Side Handle

CAUTION: Always use and hold the side handle or spade handle firmly . This is a high-

torque drill, always hold it with both hands when operating. The side handle screws into the

large hole in the top of the tool.

Switch

To turn the tool ON, depress the trigger switch. To turn the tool OFF, release the trigger switch.

(See Figure 2).

The toggle switch above the trigger is the

reversing switch

. Switch this toggle only when the

tool is not running or coasting. After reversing operations are completed, switch the toggle back

to forward position.

To lock the tool ON, depress the trigger and push in the

lock button.

Then, while holding the

lock button in position, gently release the trigger. To release locking mechanism, depress trig-

ger fully, then release it. Do not lock the switch ON when drilling by hand so that you can instant-

ly release the trigger switch if the bit binds in the hole. The locking feature is for use when the

A B C D

GROUNDING PIN

GROUNDED

OUTLET

BOX GROUNDING

MEANS

GROUNDING PIN

ADAPTER

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA

DE GARANTÍA. LÉASE ESTE INSTRUCTIVOADVERTENCIA:

ANTES DE USAR EL PRODUCTO.

DEWALT Industrial Tool Co., 701 Joppa Road, Baltimore, MD 21286

The following are trademarks for one or more D WALT power tools: the yellow and black color scheme; theE

“D” shaped air intake grill; the array of pyramids on the handgrip; the kit box configuration; and the array of

lozenge-shaped humps on the surface of the tool.

DW131, DW132

1/2" (13mm) Spade Handle Drills

Perceuses de 13 mm (1/2 po) à poignée-bêche

Taladros 13 mm (1/2 ") Mango tipo espada

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-4-DEWALT • www.dewalt.com

Important Safety Instructions

WARNING! Read all instructions. Failure to follow all instructions listed below

may result in electric shock, fire and/or serious injury. The term “power tool” in all

of the warnings listed below refers to your mains-operated (corded) power tool or bat-

tery-operated (cordless) power tool.

READ ALL INSTRUCTIONS

Safety Instructions For All Tools

•KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.

•CONSIDER WORK AREA ENVIRONMENT. Don’t expose power tools to rain. Don’t use

power tools in damp or wet locations. Keep work area well lit. Do not use tool in presence of

flammable liquids or gases.

•GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces. For

example; pipes, radiators, ranges, and refrigerator enclosures.

•KEEP CHILDREN AWAY. Do not let visitors contact tool or extension cord. All visitors should

be kept away from work area.

• STORE IDLE TOOLS. When not in use, tools should be stored in dry, and high or locked-up

place — out of reach of children.

• DON’T FORCE TOOL. It will do the job better and safer at the rate for which it was intended.

• USE RIGHT TOOL. Don’t force small tool or attachment to do the job of a heavy-duty tool.

Don’t use tool for purpose not intended.

• DRESS PROPERLY. Do not wear loose clothing or jewelry. They can be caught in moving

parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear

protective hair covering to contain long hair. Air vents often cover moving parts and should also

be avoided.

•USE SAFETY GLASSES. Also use face or dust mask if operation is dusty.

• DON’T ABUSE CORD. Never carry tool by cord or yank it to disconnect from receptacle.

Keep cord from heat, oil, and sharp edges.

• SECURE WORK. Use clamps or a vise to hold work. It’s safer than using your hand and it

frees both hands to operate tool.

• DON’T OVERREACH. Keep proper footing and balance at all times.

• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer perfor-

mance. Follow instructions for lubricating and changing accessories. Inspect tool cords peri-

odically and if damaged, have repaired by authorized service facility. Inspect extension cords

periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.

• DISCONNECT OR LOCK OFF TOOLS when not in use, before servicing, and when chang-

ing accessories, such as blades, bits, cutters.

• REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys

and adjusting wrenches are removed from tool before turning it on.

• AVOID UNINTENTIONAL STARTING. Don’t carry tool with finger on switch. Be sure switch

is off when plugging in.

• EXTENSION CORDS. Use only 3-wire extension cords that have 3-prong grounding-type

plugs and 3-pole receptacles that accept the tool’s plug. Replace or repair damaged cords.

Make sure your extension cord is in good condition. When using an extension cord, be sure

to use one heavy enough to carry the current your product will draw. An undersized cord will

cause a drop in line voltage resulting in loss of power and overheating. The following table

shows the correct size to use depending on cord length and nameplate ampere rating. If in

doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.
