IR Sensor Installation Guide, Continued
21' (6.4 m) max.
IR Sensor
40 40
30'
max.
The IR Sensor has a 6-foot (1.8-meter)
cord. Do not extend the IR Sensor
cable beyo nd 21 feet (6.4 meters).
Extron
IR Remote Contr
ol

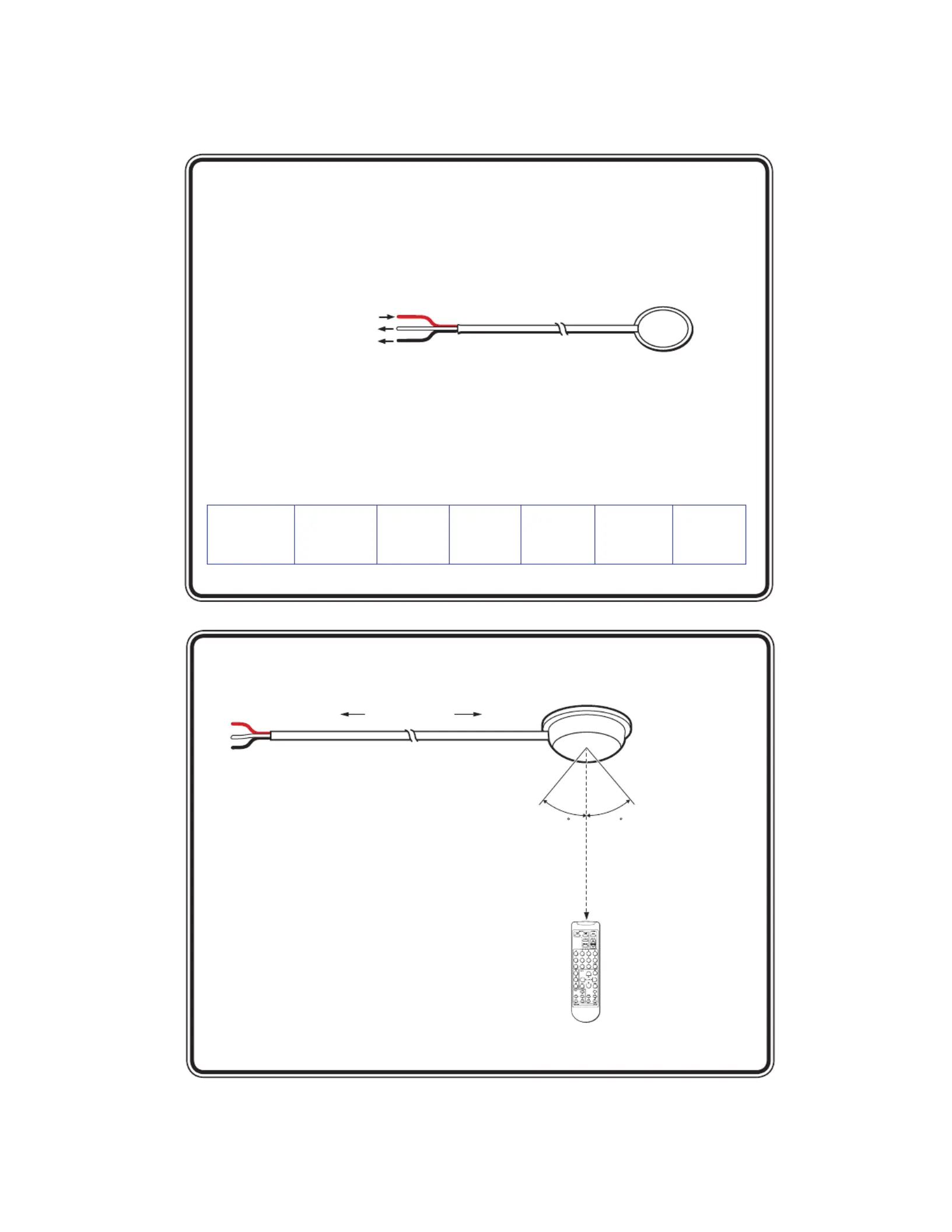

IR Sensor Installation Guide
The Extron IR Sensor can be used as an accessory for the SMD 202 Streaming
Media Decoder or the IR 102 Universal Remote Control Kit. The diagram below is
a reference for wire assignments during installation.
IR Sensor
+5 VDC input (red)
Demodulated IR signal (white)
Ground (black)
The diagram on the other side of this card shows the maximum accepted input
signal angle and distance from an Extron IR remote control to the IR Sensor.
