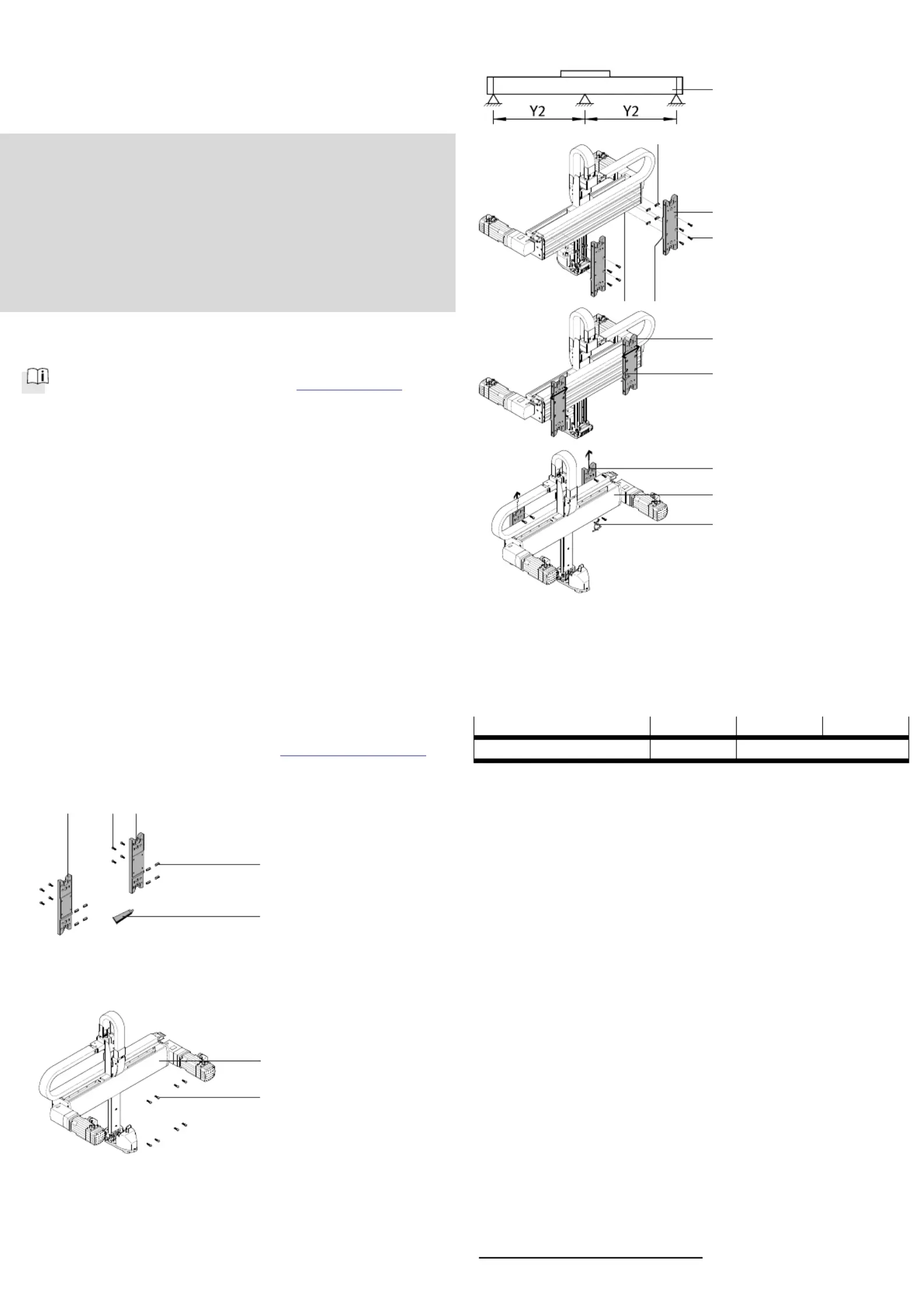

Assembly instructions (Original instructions)
8079037
2017-09a
[8079039]
†‡
Mounting kit
EAHM-E17-K1
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
1. Further applicable documents
All available documents for the product www.festo.com/pk
Observe further applicable documents:
Description of the linear gantry 5
2. Safety
Switch off power supply and compressed air before mounting work.
Observe tightening torques.
Lock screws 2 4 with adhesive .
Observe the safety data sheet of the adhesive 4 from the original
manufacturer.
3. Use for intended purpose
Mounting kit EAHM-E17-K1:
Fastening of the linear gantry 5 to vertical mounting surface.
4. Further information
Dimensions of the EAHM-E17-K1 and EXCT www.festo.com/catalogue
5. Scope of delivery
21881d_1
1 Adapter plate
2 Screw
M6 x 20
3 Slot nut
4 Adhesive
LOCTITE 243
(A) Transport bracket
(2x)
(8x)
(8x)
(1x)
(4x)
6. Not in scope of delivery
5 Linear gantry
EXCT
6 Screw
(1x)
(8x)
21881d_2
7. Mounting
20359d_3
Comply with number n
and support spacing Y2
( Further applicable
documents).
21881d_3
Reverse side:
Attach adapter plates 1
with slot nuts 3 and
screws 2 on the
Y-profile (B).
Place stop strip (C) against
the Y-profile (B).
21881d_4
Place adapter plates 1.
Evenly tighten screws 2.
21881d_5
Prepare mounting surface
( Further applicable
documents).
Attach suitable lifting gear
to the transport
brackets (A).
Lift linear gantry 5
( Further applicable
documents).
Fasten the linear gantry 5
with suitable screws 61).
8. Screw sizes
EAHM-E17-K1- 15 30 100
6 Screw1) M6 M8
1) Select screws 6 suitable for the installation.
1
2
3
4
A
5
1
3
2
B C
1
2
A
5
6
10 Nm
_ 20 %
5
6
