Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product www.festo.com/sp.è
Document Product
User documents Actuator
User documents Proximity switches
Tab. 1
2 Safety
2.1 Safety instructions
Only mount the product on components that are in a condition to be safely
operated.
Observe tightening torques.
2.2 Intended use
2.2.1 Use
Triggering the switching function of an inductive proximity sensor for query of the
slide position of an actuator.
2.2.2 Permissible components
Switch lug Actuator Proximity switches
EAPM-L9-90-SLS ELGT-BS-90
EAPM-L9-120-SLS ELGT-BS-120
EAPM-L9-160-SLS ELGT-BS-160
SIES-8M
Tab. 2

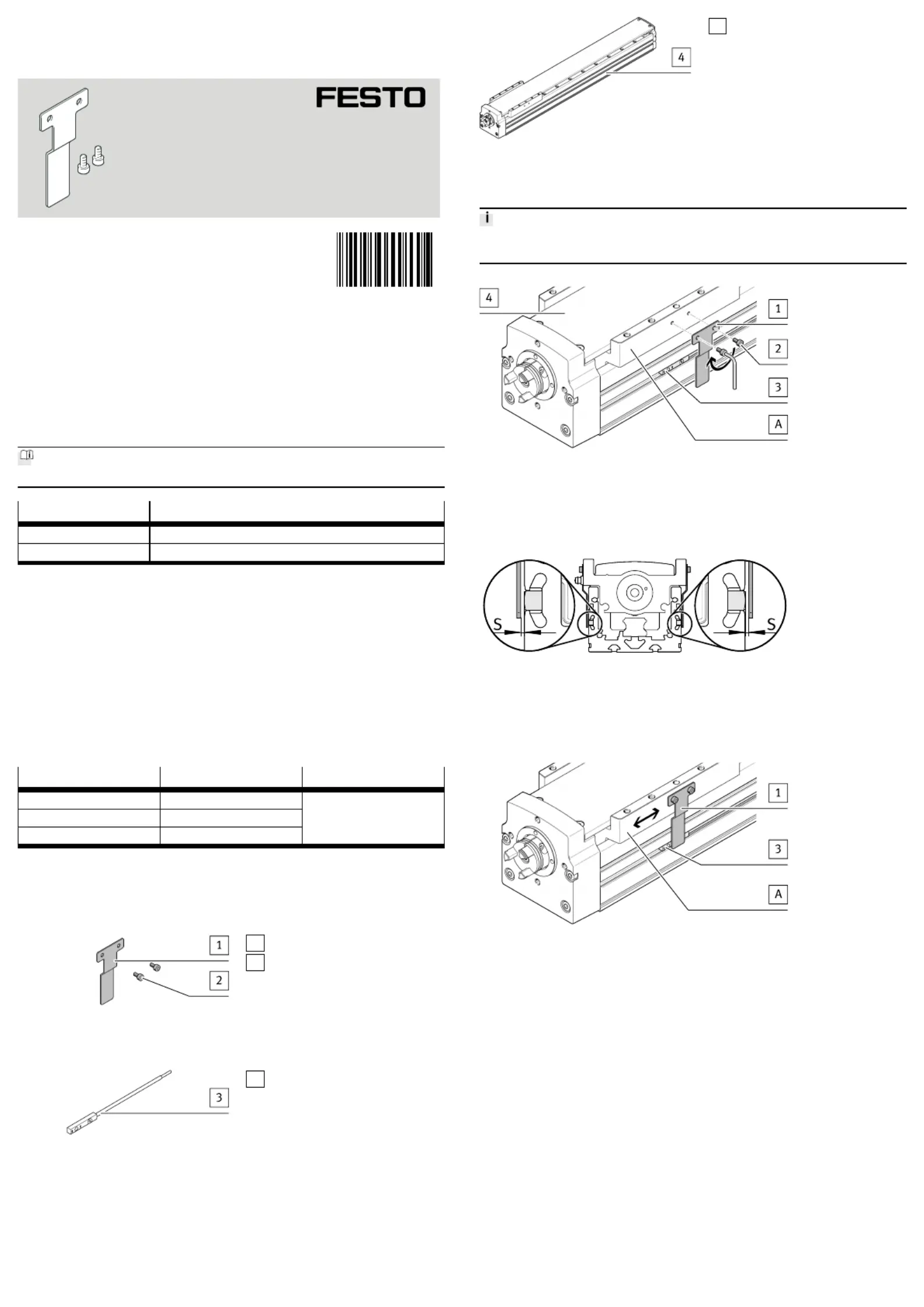

3 Product Range Overview
3.1 Scope of delivery
1Switch lug (1x)
2Screw (2x)
M3x6
Fig. 1
3.2 Not in scope of delivery
3Proximity switches
Fig. 2
4Actuator (1x)
ELGT-BS
Fig. 3
4 Assembly
The switch lug and proximity switch can be mounted on the left or right of the
actuator .4
Fig. 4 Mount the switch lug on the actuator
1. Fasten the switch lug with screws to the slide[A]. Tightening1 2
torque:1.2Nm±10%
2. Mount proximity switch Applicable documents.3è
3. Ensure compliance with the sensor distanceS=1±0.3mm.
Fig. 5 Sensor distance
5 Test run
1. Switch on power supply.
2. In case of motors with a brake: release the brake.
Fig. 6 Test run
Move slide[A] slowly with the switch lug over the proximity switch .1 3
ÄProximity switch switches.3
8140663
EAPM-L9-...-SLS
Switch lug
8140663
2020-08
[8140665]
Assembly instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
