VABA-C13-100-...-F90-G12
Adapter plate
Festo SE & Co. KG
Ruiter Stre 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Assembly instructions
8202509
2023-11a
[8202511]
8202509
Translation of the original instructions
© 2023 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product
èwww.festo.com/sp.
Document Product Content
Operating instruction Semi-rotary driveDFPD
Tab. 1: Applicable documents
2 Safety
2.1 Safety instructions
Only mount the product on components that are in a condition to be safely
operated.
2.2 Intended use
In accordance with VDI/VDE3847-2 the adapter plate acts as an inter-
face between a positioner, a valve terminalVTOP and a semi-rotary
driveDFPD-...-C-VDE2.
VABA-C13-100-...-F90-G12 -1 -2
DFPD-...-C-VDE2 -240…-900 -1200…-2300
Tab. 2: Permissible semi-rotary drives
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with electropneumatic (open-loop) control technology.
3 Additional information
Contact the regional Festo contact if you have technical problems
èwww.festo.com.
Accessories and spare parts èwww.festo.com/catalogue.

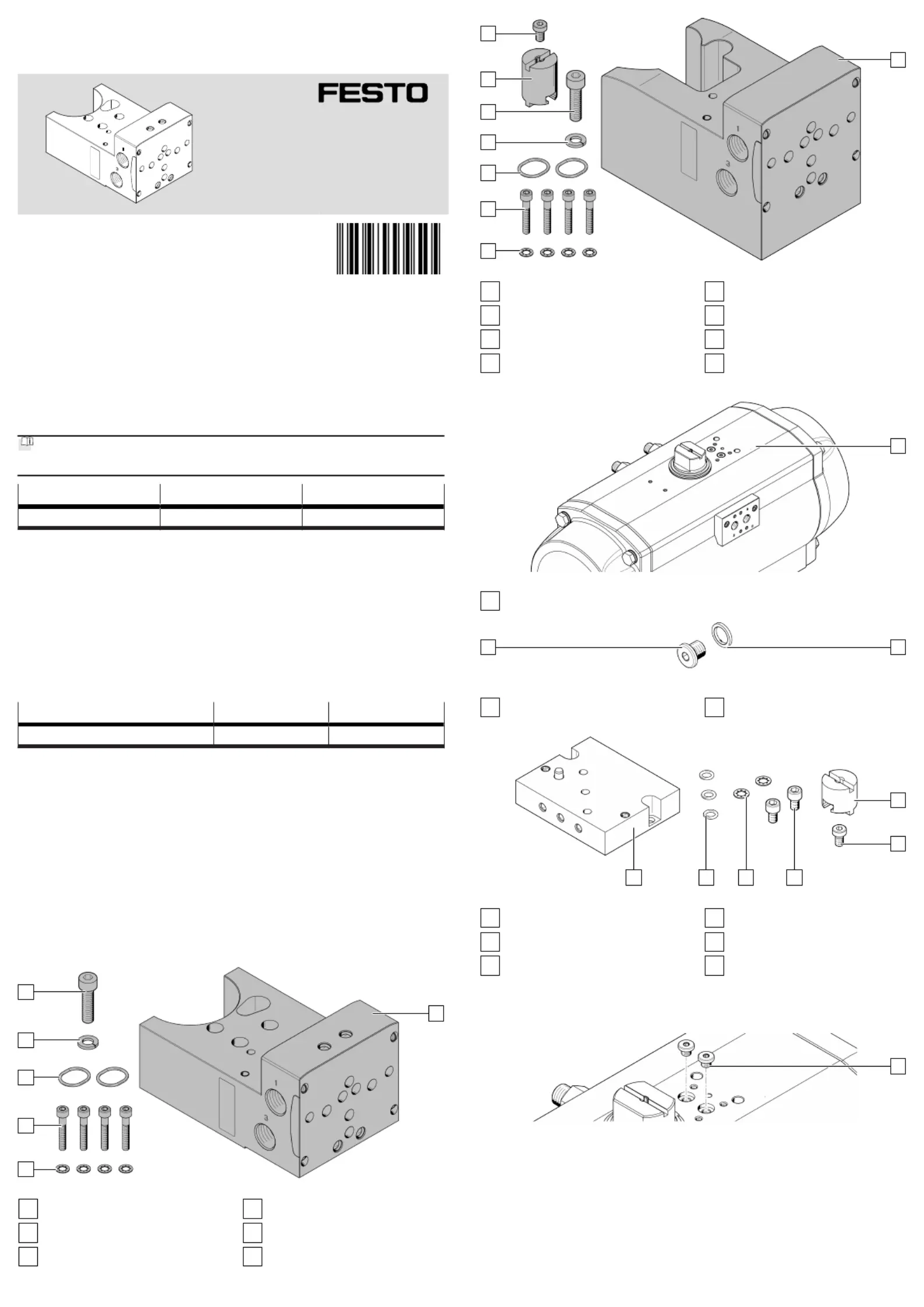

4 Product Range Overview
4.1 Scope of delivery
1
2
3
4
5
6
Fig. 1: Adapter plate VABA-C13-100-1-F90-G12
1
Bridge (1x)
2
Toothed disc (4x)
3
Screw (4x)
4
O-ring (2x)
5
Split washer (1x)
6
Screw (1x)
7
8
9
10
11
12
13
14
Fig. 2: Adapter plate VABA-C13-100-2-F90-G12
7
Bridge (1x)
8
Toothed disc (4x)
9
Screw (4x)
10
O-ring (2x)
11
Split washer (1x)
12
Screw (1x)
13
Adapter (1x)
14
Screw (1x)
4.2 Not in scope of delivery
15
Fig. 3: Semi-rotary drive DFPD-...C-VDE2
15
Semi-rotary drive (1x)
1617
Fig.4
16
Sealing ring (2x)
17
Screw (2x)
G1/4
18
19
20212223
Fig. 5: Adapter kit DADG-AK-F9-2 for DFPD-2300-...-C-VDE2
18
Adapter (1x)
19
Screw (1x)
20
Screw (2x)
21
Toothed disc (2x)
22
O-ring (3x)
23
Adapter plate (1x)

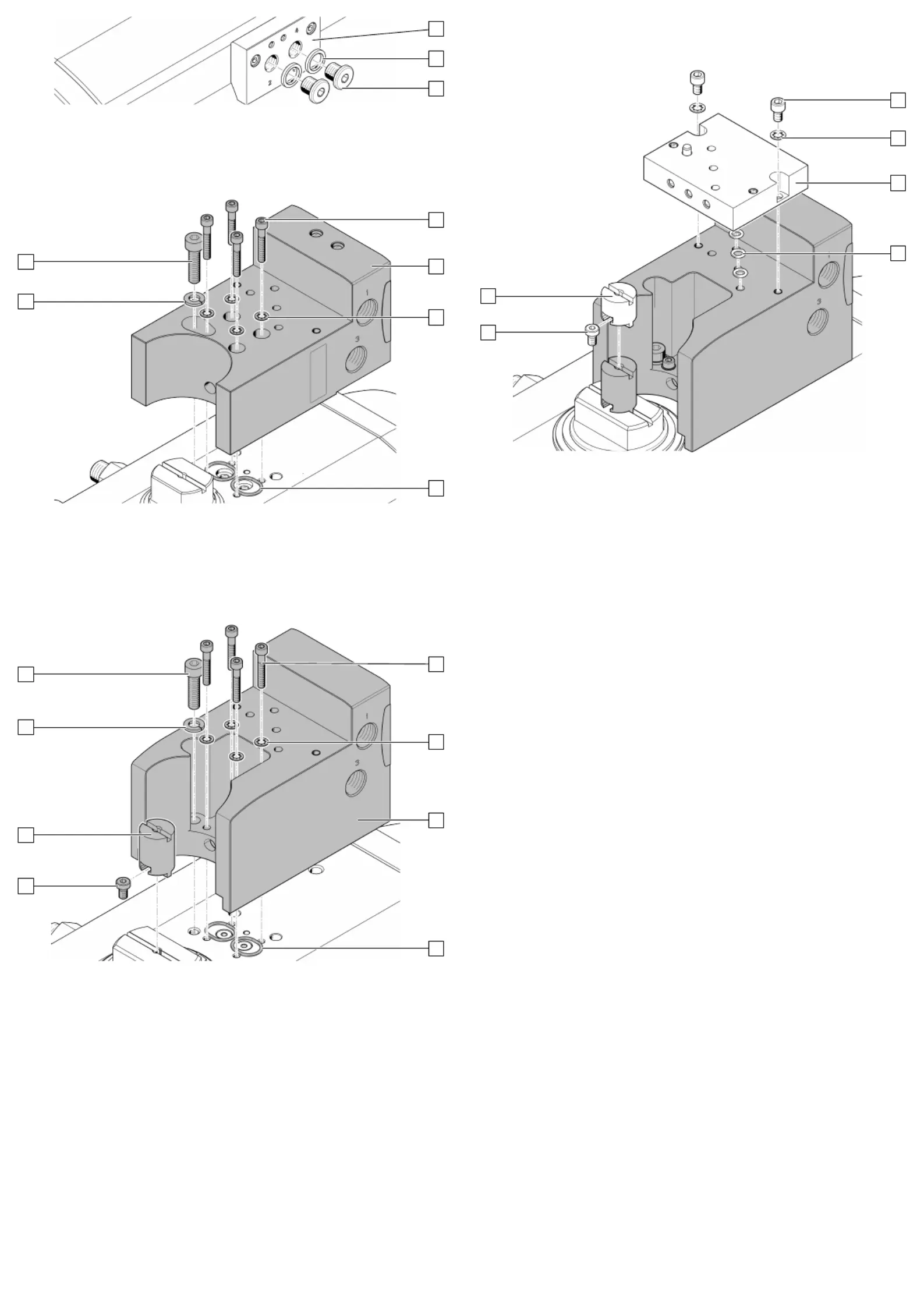

5 Assembly
5.1 Preparing assembly
24
Fig. 6: Removing screws
Remove the screws[24].
