Side 1/2
VABA-C13-100-...-F90-G12-G14
Adapter plate
Festo SE & Co. KG
Ruiter Stre 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Assembly instructions
8202819
2023-11
[8202821]
8202819
Translation of the original instructions
© 2023 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product
èwww.festo.com/sp.
Document Product Content
Operating instruction Semi-rotary driveDAPS
Operating instruction Semi-rotary driveDFPD
Tab. 1: Applicable documents
2 Safety
2.1 Safety instructions
Only mount the product on components that are in a condition to be safely
operated.
2.2 Intended use
The adapter plate acts as an interface between a positioner, a valve terminalVTOP
and a semi-rotary drive.
The interface between the valve terminal and the semi-rotary drive corresponds
to VDI/VDE3845-1.
The interface between the valve terminal and the positioner corresponds to
VDI/VDE3847-2.
VABA-C13-100-...-F90-G12-G14 -1 -2
DAPS -0180…-0720 -0960…-1920
DFPD -240…-900 -1200…-2300
Tab. 2: Permissible semi-rotary drives
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with electropneumatic (open-loop) control technology.
3 Additional information
Contact the regional Festo contact if you have technical problems
èwww.festo.com.
Accessories and spare parts èwww.festo.com/catalogue.
4 Product Range Overview
4.1 Scope of delivery

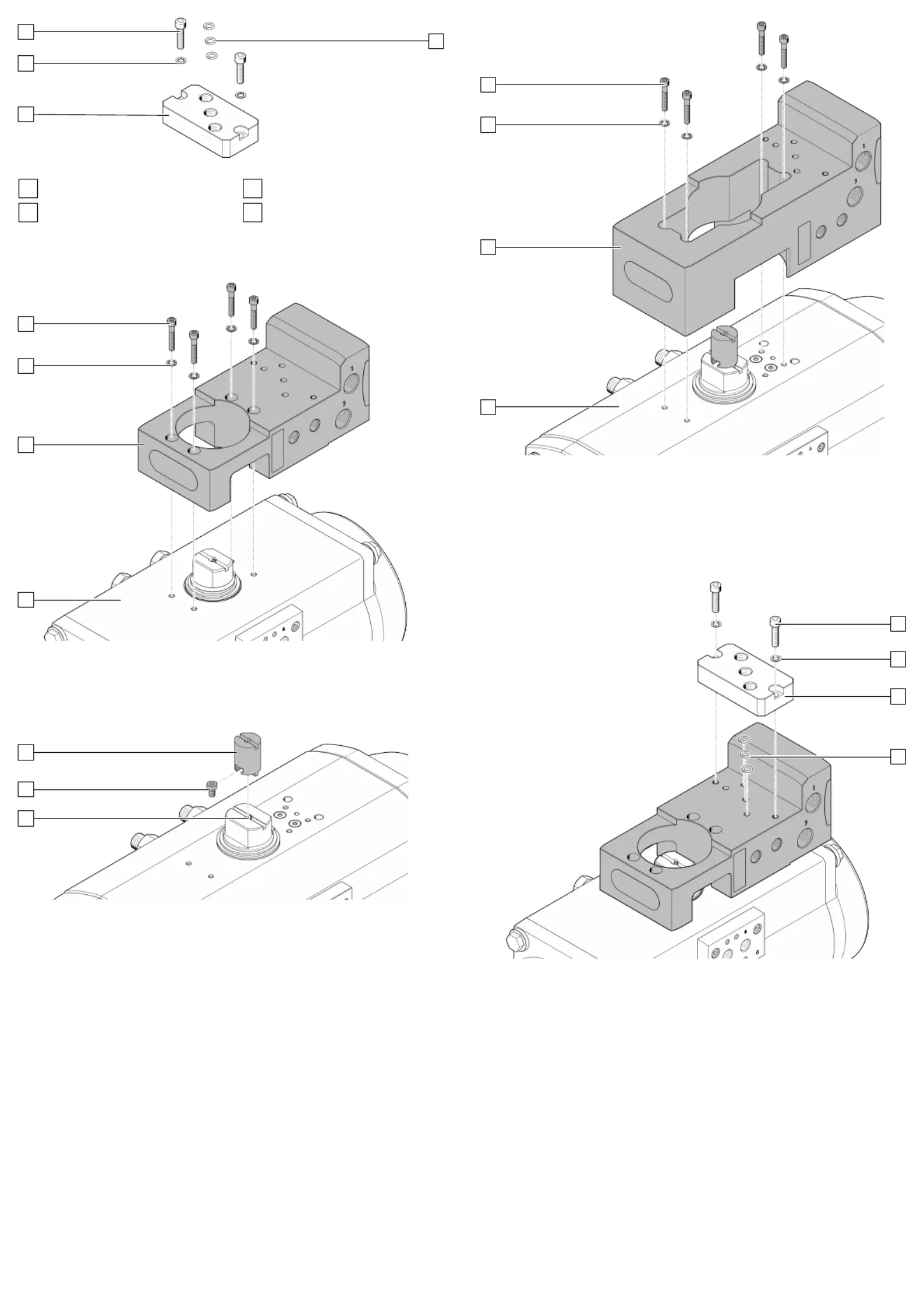

1
2
3

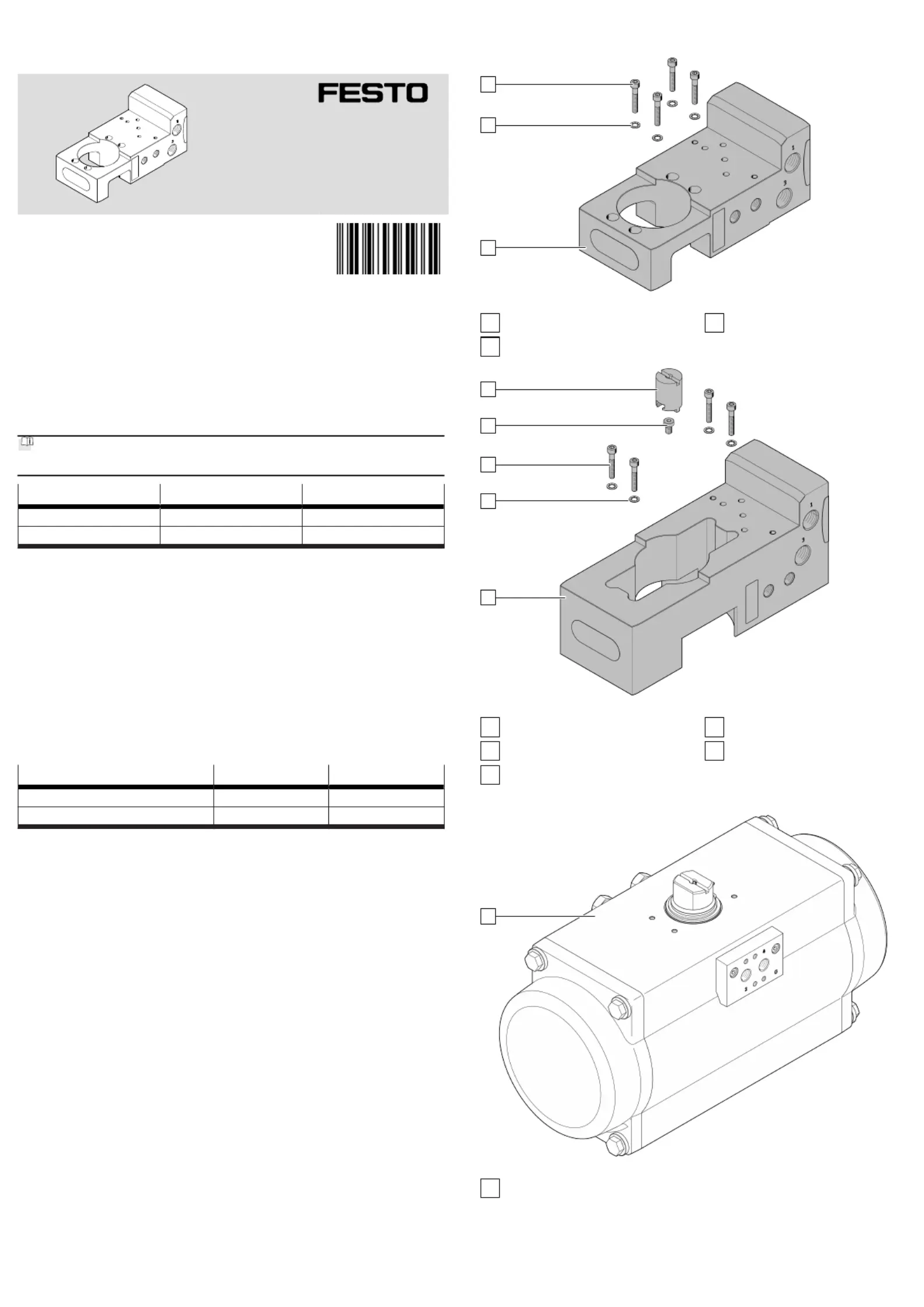

Fig. 1: Adapter plate VABA-C13-100-1-F90-F12-G14
1
Bridge (1x)
2
Toothed disc (4x)
3
Screw (4x)
1
2
3
4
5
Fig. 2: Adapter plate VABA-C13-100-2-F90-F12-G14
1
Bridge (1x)
2
Gear ring (4x)
3
Screw (4x)
4
Screw (1x)
5
Adapter (1x)
4.2 Not in scope of delivery
6
Fig. 3: Semi-rotary drive DFPD
6
Semi-rotary drive (1x)
DAPS, DFPD
