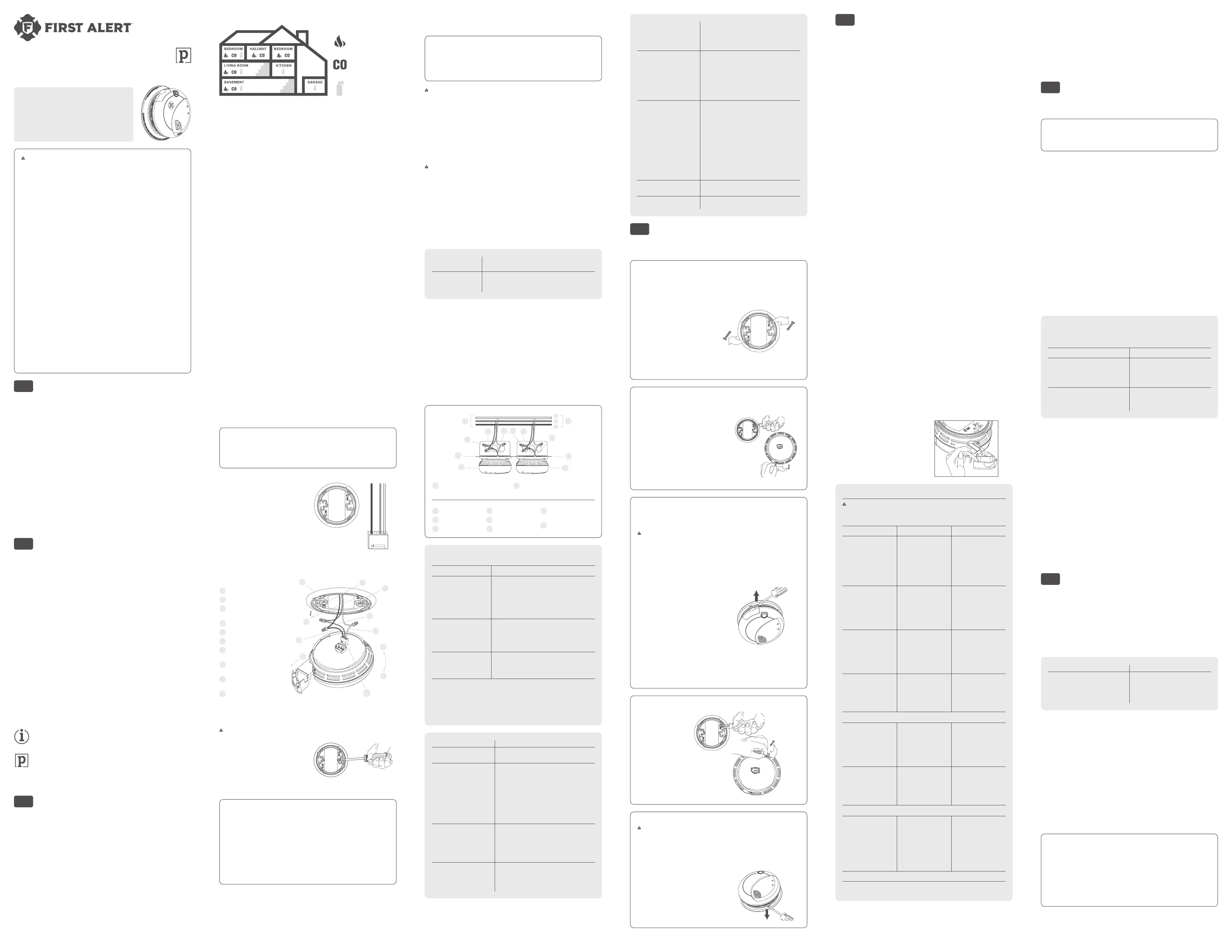

USER’S MANUAL

SMOKE & CARBON MONOXIDE ALARM

AC POWERED WITH VOICE & LOCATION

Model SMCO100V-AC

IMPORTANT! PLEASE READ CAREFULLY AND SAVE.

The warnings/limitations card and manual contains important

information about your Smoke Alarm’s operation. If you are

installing this Alarm for use by others, you must leave this

manual—or a copy of it—with the end user.

Para el manual del usuario en español, por favor

visite rstalert.com

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Smoke Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power

rst may result in serious electrical shock, injury or death.

! WARNING!

• This unit will not alert hearing impaired residents.

• It is recommended that you install special units which use devices like ashing strobe

lights to alert hearing impaired residents.

• Installation of this unit must conform to the electrical codes in your area; Articles 210

and 300.3 (B) of NFPA 70 (NEC), NFPA 72, NFPA 101; SBC (SBCCI); UBC (ICBO); NBC

(BOCA); OTFDC (CABO), and any other local or building codes that may apply. Wiring and

installation must be performed by a licensed electrician. Failure to follow these guidelines

may result in injury or property damage.

• This unit must be powered by a 24-hour, 120VAC pure sine wave 60Hz circuit. Be sure the

circuit cannot be turned off by a switch, dimmer, or ground fault circuit interrupter. Failure

to connect this unit to a 24-hour circuit may prevent it from providing constant protection.

• This Alarm must have AC or battery power to operate.

• If the AC power fails, battery back-up will allow the alarm to sound for at least 4 minutes.

If AC power fails and the battery is weak, protection should last for at least 7 days.

• If AC power fails and the battery is dead or missing, the alarm cannot operate.

• Never disconnect the power from an AC powered unit to stop an unwanted alarm. Doing

so will disable the unit and remove your protection. In the case of a true unwanted alarm

open a window or fan the smoke away from the unit.

• The alarm will reset automatically when it returns to normal operation. Never remove

the batteries from a battery operated unit to stop an unwanted alarm (caused by cooking

smoke, etc.). Instead open a window or fan the smoke away from the unit. The alarm will

reset automatically.

! CAUTION!

• Connect this unit ONLY to other compatible units. See “How To Install This Smoke Alarm”

for details. Do not connect it to any other type of alarm or auxiliary device.

• Connecting anything else to this unit may damage it or prevent it from operating properly.

• This Smoke/CO Alarm has a battery drawer which resists closing unless a battery is

installed. This warns you the unit will not operate under DC power without a battery.

• Do not stand too close to the unit when the alarm is sounding. It is loud to wake you in an

emergency. Exposure to the horn at close range may harm your hearing.

• Do not paint over the unit. Paint may clog the openings to the sensing chambers and

prevent the unit from operating properly.

01 INTRODUCTION

Thank you for choosing First Alert

for your Smoke and Carbon Monoxide Alarm needs. You have

purchased a state-of-the-art Smoke & Carbon Monoxide Alarm designed to help provide you with early

warning of a smoke and/or carbon monoxide danger. Please take the time to read this manual and

make the Smoke & Carbon Monoxide Alarm an integral part of your family’s safety plan.

BASIC SAFETY INFORMATION

IMPORTANT!

• Dangers, Warnings, and Cautions alert you to important operating instructions or to potentially

hazardous situations. Pay special attention to these items.

• This smoke and co alarm is approved for use in single-family residences. It is designed for NOT

marine or RV use.

! CAUTION!

• The Smoke Alarm will only indicate the presence of smoke that reaches the sensor.

• The Smoke Alarm is not designed to sense gas, heat or ames.

! WARNING!

• This Smoke Alarm cannot operate without working batteries. Removing the batteries for any

reason, or failing to replace the batteries at the end of their service life, removes your protection.

• ignore any alarm. See “If Your Smoke Alarm Sounds” for more information on how to NEVER

respond to an alarm. Failure to respond can result in injury or death.

• The Silence Features are for your convenience only and will not correct a problem. See “Using the

Silence Features” for details. Always check your home for a potential problem after any alarm.

Failure to do so can result in injury or death.

• Test this Smoke Alarm once a week. If the alarm ever fails to test correctly, have it replaced

immediately! If the alarm is not working properly, it cannot alert you to a problem.

02 ABOUT SMOKE ALARMS

TYPES OF ALARMS

All these Smoke Alarms are designed to provide early warning of res if located, installed and cared

for as described in the user’s manual, and if smoke reaches the Alarm. If you are unsure which type of

Smoke Alarm to install, refer the National Fire Protection Association (NFPA) Standard 72 (National Fire

Alarm and Signaling Code) and NFPA 101 (Life Safety Code). National Fire Protection Association, One

Batterymarch Park, Quincy, MA 02269-9101. Local building codes may also require specic units in

new construction or in different areas of the home.

Battery (DC) operated Smoke Alarms: Provide protection even when electricity fails, provided the

batteries are fresh and correctly installed. Units are easy to install, and do not require professional

installation. However, they do not provide interconnected functionality.

AC powered Smoke Alarms: Can be interconnected so if one unit senses smoke, all units Alarm.

They do not operate if electricity fails. will operate if electricity fails, AC with battery (DC) back-up:

provided the batteries are fresh and correctly installed. AC and AC/DC units must be installed by a

qualied electrician.

Smoke Alarms for solar or wind energy users and battery backup power systems: AC powered

Smoke Alarms should only be operated with true or pure sine wave inverters. Operating this Alarm

with most battery-powered UPS (uninterruptible power supply) products or square wave or “quasi sine

wave” inverters . If you are not sure about your inverter or UPS type, please will damage the Alarm

consult with the manufacturer to verify.

Smoke Alarms for the hearing impaired: Special purpose Smoke Alarms should be installed

for the hearing impaired. They include a visual Alarm and an audible Alarm horn, and meet the

requirements of the Americans With Disabilities Act. Can be interconnected so if one unit senses

smoke, all units Alarm.

Smoke Alarms are not to be used with detector guards unless the combination has been evaluated

and found suitable for that purpose.

All First Alert

Smoke Alarms conform to regulatory requirements, including UL217 and are

designed to detect particles of combustion. Smoke particles of varying number and size are

produced in all res.

Ionization technology is generally more sensitive than photoelectric technology at

detecting small particles, which tend to be produced in greater amounts by aming res,

which consume combustible materials rapidly and spread quickly. Sources of these res

may include paper burning in a wastebasket, or a grease re in the kitchen.

Photoelectric technology is generally more sensitive than ionization technology at

detecting large particles, which tend to be produced in greater amounts by smoldering

res, which may smolder for hours before bursting into ame. Sources of these res may

include cigarettes burning in couches or bedding.

For maximum protection, use both types of Smoke Alarms on each level and in every

bedroom of your home.

03 INSTALLATION

WHERE TO INSTALL THIS ALARM

Minimum coverage for Smoke Alarms, as recommended by the National Fire Protection Association

(NFPA), is one Smoke Alarm on every oor, in every sleeping area, and in every bedroom (See

“Regulatory Information For Smoke Alarms” for details on the NFPA recommendations).

For CO Alarms, the National Fire Protection Association (NFPA) recommends that a CO Alarm

should be centrally located outside of each separate sleeping area in the immediate vicinity of the

bedrooms. For added protection, install additional CO Alarms in each separate bedroom, and on every

level of your home.

NOTE: For added protection, install an additional Smoke/CO Alarm at least 15 feet (4.6 meters) away

from the furnace or fuel burning heat source where possible. In smaller homes or in manufactured

homes where this distance cannot be maintained, install the Alarm as far away as possible from the

furnace or other fuel burning source. Installing the Alarm closer than 15 feet (4.6 meters) will not harm

the Alarm, but may increase the frequency of unwanted alarms.

IN GENERAL, INSTALL COMBINATION SMOKE AND CARBON MONOXIDE ALARMS:

• On every level of your home, including nished attics and basements.

• Inside every bedroom, especially if people sleep with the door partly or completely closed.

• In the hall near every sleeping area. If your home has multiple sleeping areas, install a unit in each.

If a hall is more than 40 feet (12 meters) long, install a unit at each end.

• At the top of rst-to-second oor stairs and at the bottom of the basement stairs.

• For additional coverage, install Alarms in all rooms, halls, and storage areas, where temperatures

normally remain between 40˚ F and 100˚ F (4.4˚ C and 37.8˚ C).

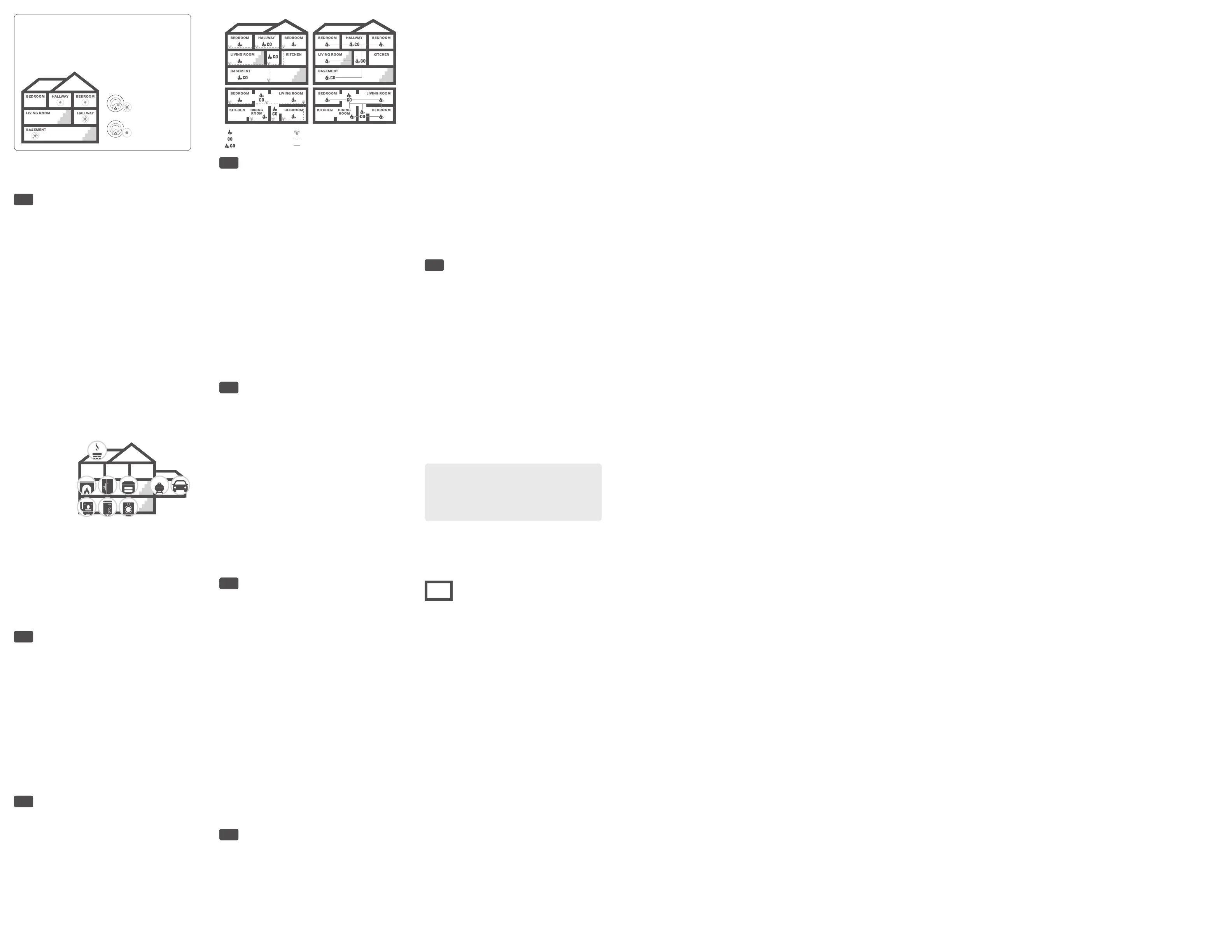

RECOMMENDED PLACEMENT:

Smoke Alarm

One on every level and

in every bedroom

Carbon Monoxide Alarm

One on every level and

in every bedroom

Fire Extinguisher

One on every level, plus

kitchen and garage

• When installing on the ceiling, place the Alarm as close to the center as possible.

• When installing on the wall, the top edge of Smoke Alarms should be placed between 4 inches

(102 mm) and 12 inches (305 mm) from the wall/ceiling line.

• In either case, install at least 4 inches (102 mm) from where the wall and ceiling meet. See

“Avoiding Dead Air Spaces” for more information.

NOTE: For any location, make sure no door or other obstruction could keep carbon monoxide or smoke

from reaching the Alarm.

WHERE NOT TO INSTALL THIS ALARM

FOR BEST PERFORMANCE, IT IS RECOMMENDED YOU AVOID INSTALLING SMOKE/CO ALARMS

IN THESE AREAS:

• In garages, furnace rooms, crawl spaces and unnished attics. Avoid extremely dusty, dirty

or greasy areas.

• Where combustion particles are produced. Combustion particles form when something burns.

Areas to avoid include poorly ventilated kitchens, garages, and furnace rooms. Keep units at

least 20 feet (6 meters) from the sources of combustion particles (stove, furnace, water heater,

space heater) if possible. In areas where a 20-foot (6 meter) distance is not possible – in modular,

mobile, or smaller homes, for example – it is recommended the Smoke Alarm be placed as far

from these fuel-burning sources as possible. The placement recommendations are intended

to keep these Alarms at a reasonable distance from a fuel-burning source, and thus reduce

“unwanted” Alarms. Unwanted Alarms can occur if a Smoke Alarm is placed directly next to a

fuel-burning source. Ventilate these areas as much as possible.

• Within 5 feet (1.5 meters) of any cooking appliance. In air streams near kitchens. Air currents can

draw cooking smoke into the smoke sensor and cause unwanted Alarms.

• In extremely humid areas. This Alarm should be at least 10 feet (3 meters) from a shower, sauna,

humidier, vaporizer, dishwasher, laundry room, utility room, or other source of high humidity.

• In direct sunlight.

• In turbulent air, like near ceiling fans or open windows. Blowing air may prevent smoke from

reaching the sensors.

• In areas where temperature is colder than 40˚ F (4.4˚ C) or hotter than 100˚F (37.8˚ C). These

areas include non air-conditioned crawl spaces, unnished attics, uninsulated or poorly insulated

ceilings, porches, and garages.

• In insect infested areas. Insects can clog the openings to the sensing chamber.

• Less than 12 inches (305 mm) away from uorescent lights. Electrical “noise” can interfere

with the sensor.

• In “dead air” spaces.

AVOIDING DEAD AIR SPACES

“Dead air” spaces may prevent smoke from reaching the Smoke Alarm. To avoid dead air spaces,

follow installation recommendations below.

On ceilings, install Smoke Alarms as close to the center of the ceiling as possible. If this is not

possible, install the Smoke Alarm at least 4 inches (102 mm) from the wall or corner.

For wall mounting (if allowed by building codes), the top edge of Smoke Alarms should be placed

between 4 inches (102 mm) and 12 inches (305 mm) from the wall/ceiling line, below typical

“dead air” spaces.

On a peaked, gabled, or cathedral ceiling, install the rst Smoke Alarm within 3 feet (0.9 meters) of

the peak of the ceiling, measured horizontally. Additional Smoke Alarms may be required depending

on the length, angle, etc. of the ceiling’s slope. Refer to NFPA 72 for details on requirements for sloped

or peaked ceilings.

HOW TO INSTALL THIS ALARM

IMPORTANT!

This Smoke/CO Alarm is designed to be mounted on any standard wiring junction box up to a 4-inch

(10 cm) size, on either the ceiling or wall (if allowed by local codes). Read “Where to Install This Alarm”

and “Where This Alarm Should Not Be Installed” before you begin installation.

Tools you will need: needle-nose pliers or utility knife, standard athead screwdriver, wire strippers

! WARNING!

Make sure the Alarm is not receiving excessively noisy power. Examples of noisy power could

be major appliances on the same circuit, power from a generator or solar power, light dimmer

on the same circuit or mounted near uorescent lighting. Excessively noisy power may cause

damage to your Alarm.

THE PARTS OF THIS ALARM

The Mounting Bracket: To remove the mounting

bracket from the Alarm base, hold the Alarm

base rmly and twist the mounting bracket

counterclockwise. The mounting bracket installs

onto the junction box. It has a variety of screw slots

to t most boxes.

The Power Connector: The power connector plugs

into a power input block on the Alarm. It supplies

the unit with AC power.

• The black wire is “hot.”

• The white wire is neutral.

• The orange wire is used for interconnect.

If you need to remove the power connector, turn rst. Insert a at screwdriver blade POWER OFF

between the power connector and the security tab inside the power input block. Gently pry back the

tab and pull the connector free.

THE PARTS OF

THIS SMOKE/CO ALARM

1 Mounting Bracket

2 Mounting Slots

3 Locking Pins

(break out of bracket)

4 Hot (Black) AC Wire

5 Neutral (White) AC Wire

6 Interconnect (Orange) Wire

7 Quick-Connect

Power Connector

8 Turn this way to

remove from bracket

9 Turn this way to

attach to bracket

10 Slide-Out Battery Drawer

FOLLOW THESE SIMPLE STEPS

The basic installation of this Smoke/CO Alarm is similar whether you want to install one Alarm, or

interconnect more than one Alarm. If you are interconnecting more than one Alarm, you read MUST

“Special Requirements For Interconnected Alarms” below before you begin installation.

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off power to

the area where you will install this unit at the

circuit breaker or fuse box before beginning

installation. Failure to turn off the power before

installation may result in serious electrical

shock, injury or death.

1. Remove the mounting bracket from the base,

and attach it to the junction box.

2. Using wire nuts, connect the power connector to

the household wiring.

STAND-ALONE ALARM ONLY:

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

• Tuck the orange wire inside the junction box. It is used for interconnect only.

INTERCONNECTED UNITS ONLY:

• Strip off about 1/2" (12 mm) of the plastic coating on the orange wire on the

power connector.

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

•

Connect the orange wire on the power connector to the interconnect wire in the junction box.

Repeat for each unit you are interconnecting. Never connect the hot or neutral wires in the

junction box to the orange interconnect wire. Never cross hot and neutral wires between Alarms.

3. If there’s a battery pull tab, activate the battery back-up by removing the “Pull to Activate Battery

Back-Up” tab. If batteries are not installed, install battery back-up. Battery back-up cannot work

until you install the battery in the correct position (Match “+” to “+” and “-” to “-”).

4. Plug the power connector into the back of the Alarm.

5. Position the base of the Alarm over the mounting bracket, and turn the Alarm clockwise (right) until

the unit is in place. If wall mounted, adjust unit so words are level.

6. Check all connections.

! WARNING!

Improper wiring of the power connector or the wiring leading to the power connector will cause

damage to the Alarm and may lead to a non-functioning Alarm.

STAND-ALONE ALARM ONLY:

• If you are only installing one Alarm, restore power to the junction box.

INTERCONNECTED UNITS ONLY:

• If you are interconnecting multiple Alarms, repeat steps 1-6 for each Alarm in the series.

When you are nished, restore power to the junction box.

DANGER!

ELECTRICAL SHOCK HAZARD. Do not restore power until all Alarms are completely installed.

Restoring power before installation is complete may result in serious electrical shock,

injury or death.

7. Turn AC power back on. Under normal operation, the Green power indicator light will

shine continuously.

8. If the Green power indicator light does not light, and TURN OFF POWER TO THE JUNCTION BOX

recheck all connections. If all connections are correct and the Green power indicator still does not

light when you restore the power, the unit should be replaced immediately.

9. Test each Alarm. Press and hold the Test/Silence button until the unit Alarms. When testing a

series of interconnected units you must test each unit individually. Make sure all units

Alarm when each one is tested.

DANGER!

If any unit in the series does not Alarm, TURN OFF POWER and recheck connections. If it does

not Alarm when you restore power, replace it immediately.

SPECIAL REQUIREMENTS FOR INTERCONNECTED ALARMS

! WARNING!

• Failure to meet any of the above requirements could damage the units and cause them to

malfunction, removing your protection.

• AC and AC/DC Alarms can be interconnected. Under AC power, all units will Alarm when

one senses smoke or CO. When power is interrupted, only the AC/DC units in the series will

continue to send and receive signals. AC powered Alarms will not operate.

Interconnected units can provide earlier warning of re than stand-alone units, especially if a re

starts in a remote area of the dwelling. If any unit in the series senses smoke, all units will Alarm. To

determine which Alarm initiated an Alarm, see table:

During an Alarm On Initiating Alarm(s): Red LED(s) ashes (ash) rapidly

On All Other Alarms: Red LED is Off

After an Alarm (Latching)

On Initiating Alarm(s): Red LED(s) On for

2 seconds/Off for 2 seconds

On All Other Alarms: Green LED(s) On, Red LED(s) Off

COMPATIBLE INTERCONNECTED UNITS

IMPORTANT!

Interconnect units within a single family residence only. Otherwise all households will experience

unwanted alarms when you test any unit in the series. Interconnected units will only work if they are

wired to compatible units and all requirements are met. This unit is designed to be compatible with:

First Alert

Smoke Alarm Model: SMI100-AC, and Smoke/CO Model: SMCO100V-AC; BRK Electronics

Smoke Alarm Models 9120, 9120B, SC9120B, 7010, 7010B; BRK Electronics

Heat Alarm Models

HD6135F; BRK Electronics

CO Alarm Models CO5120BN, CO5120PDBN; Smoke/CO Alarm Model

SC7010BV, SC7010B.

INTERCONNECTED UNITS MUST MEET ALL OF THE FOLLOWING REQUIREMENTS:

• A maximum of 18 compatible units may be interconnected (Maximum of 12 Smoke Alarms).

• The same fuse or circuit breaker must power all interconnected units.

• The total length of wire interconnecting the units should be less than 1000 feet (300 meters). This

type of wire is commonly available at Hardware and Electrical Supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA

101, and/or your local building code for further connection requirements.

A Unswitched 120VAC 60 Hz source B To additional units; Maximum =

18 total (Maximum 12 Smoke Alarms)

1 Alarm

2 Ceiling or Wall

3 Power Connector

4 Wire Nut

5 Junction Box

6 Neutral Wire (White)

7 Interconnect Wire

(Orange)

8 Hot Wire (Black)

STEP BY STEP GUIDE TO PROGRAMMING THIS ALARM

For First Time and When Changing Batteries

Action Alarm Will Say

Insert batteries (2, AA batteries)

“Welcome, First Alert Carbon Monoxide

and Smoke Alarm.”

“No location programmed” if rst time or “[Location,

example: “Basement”] location programmed” when

changing batteries.

“To select location, press and hold test button now.”

Press & hold test button if

you would like to program the

location or change the location

of the alarm. Release button

after alarm responds.

“To save location, press and hold test button

after location is heard.” Alarm will speak list of

locations (see below).

After you hear the location

of where you are placing

the alarm, press & hold

the test button.

“[Location, example: “Basement”] location saved.” If no

location is chosen: “No location saved.”

Your Alarm has now been programmed for the location of your choice.

Available Locations: Basement, Hallway, Ofce, Child’s Bedroom, Kitchen, Utility Room,

Dining Room, Living Room, Family Room, Master Bedroom, Guest Bedroom, No Location.

For Reprogramming: When it is necessary to reprogram the Alarm after the unit has been

activated and is in normal operation: Tap the test button 5 times to reset the Alarm to again

access the programming menu.

Action What You Will See & Hear

Normal Operations Voice: Power/Smoke LED: Silent; Constant Green;

Horn: CO LED: Silent; Off

When You Test the Alarm

Voice: “Testing.” Horn: 3 beeps, pause, 3 beeps;

Voice: “Warning, evacuate smoke in [Location,

example: “Basement”]. Evacuate.”; Power/Smoke

LED: CO Flashes Red in sync with the horn pattern;

LED: Horn: Off, followed by 4 fast beeps, pause, 4 fast

beeps; “Warning, evacuate carbon monoxide in Voice:

[Location, example: “Basement”]. Evacuate.” Pause.

“Highest carbon monoxide level was [CO level example:

_0_ ppm]”; Off; Flashes Power/Smoke LED: CO LED:

Red in sync with the horn pattern.

If Battery Becomes

Low or is Missing

Voice: “Replace battery in [Location, example

“Basement”].” Repeated every 5 hours; chirps Horn:

once a minute; Flashes Green On Power/Smoke LED:

for 2 seconds/Off for 2 seconds. Low Battery Latch is

now engaged. Flashes Green once a minute if AC power

is off; OffCO LED:

If Alarm is Not

Operating Properly

(MALFUNCTION SIGNAL)

Voice: “Detector error in [Location, example

“Basement”], please see manual.” Repeated every

5 hours; 3 chirps every minute; Horn: Power/

Smoke LED: 3 Green Flashes approximately once a

minute; OffCO LED:

Alarm has reached

its End of Life

Voice: “Detector error in [Location, example

“Basement”], please see manual.” Repeated every

5 hours; 5 chirps every minute; Horn: Power/

Smoke LED: 5 Green Flashes approximately once a

minute; OffCO LED:

Smoke is Detected

Horn: 3 beeps, pause, repeating 9 times; Voice:

“Warning, evacuate smoke in [Location, example:

“Basement”]. Evacuate.”; 3 beeps, pause, Horn:

repeating 2 times followed by Voice Warning above;

Power/Smoke LED: During Alarm: Flashes Red in sync

with the horn pattern. After Alarm: Flashes Red On for

2 seconds/Off for 2 seconds. Smoke Alarm Latch is now

engaged; OffCO LED:

Alarm Levels of CO are Detected

Horn: 4 fast beeps, pause, 4 fast beeps, pause*; Voice:

“Warning, evacuate carbon monoxide in [Location,

example: “Basement”]. Evacuate.” Pause. “Highest

carbon monoxide level was [CO level example: ___

ppm]”; 4 beeps, pause, 4 beeps, pause repeating Horn:

2 times followed by Voice Warning above; Power/

Smoke LED: CO LED: Off; During Alarm: Flashes Red

in sync with the horn pattern. After Alarm: Flashes Red

On for 2 seconds/Off for 2 seconds. CO Alarm Latch

is now engaged.

*NOTE: If unit goes into CO Alarm, the regular 4 beeps-

brief pause cycle will repeat for fteen minutes. After

fteen minutes, the pause will increase to one minute.

Smoke Alarm is Silenced Voice: “Horn silenced. Detector active.”; Off; Horn:

Power/Smoke LED: CO LED: Flashes Red; Off

CO Alarm is Silenced Voice: “Horn silenced. Detector active.”; Off; Horn:

Power/Smoke LED: CO LED: Off; Flashes Red

04 ALARM FEATURES

• Friendly voice tells you what the danger is and it’s location.Voice & Location Alerts:

• When one alarm sounds, all compatible* alarms sound.Early Warning Interconnect:

• Allows for easy installation. No need to rewire.Quick Connect Plug:

LOCKING FEATURES

The locking features are designed to discourage unauthorized removal of the batteries

or Alarm. It is not necessary to activate the locks in single-family households where

unauthorized battery or Alarm removal is not a concern.

These Alarms have two separate locking features: one to lock the battery compartment, and

the other to lock the Alarm to the mounting bracket. You can choose to use either feature

independently, or use them both.

Tools you will need: Needle-nose pliers,

Standard Flathead screwdriver.

Both locking features use locking pins, which

are molded into the mounting bracket. Using

needle-nose pliers, remove one or both pins

from the mounting bracket, depending on how

many locking features you want to use.

IMPORTANT!

To permanently remove either lock, insert a athead screwdriver between the locking

pin and the lock, and pry the pin out of the lock.

TO LOCK THE BATTERY COMPARTMENT

Do not lock the battery compartment until you have installed the battery and tested the

battery back-up.

1. Push and hold Test/Silence button until

the Alarm sounds.

IMPORTANT!

If the unit does not Alarm during testing, DO

NOT lock the battery compartment! Install a

new battery and test again. If the Alarm still

does not Alarm, replace it immediately.

2. Using needle-nose pliers, detach one locking pin

from the mounting bracket.

3. Push the locking pin through the hole near the

battery drawer on the back of the Alarm.

TO UNLOCK THE BATTERY COMPARTMENT

IMPORTANT!

Once the Alarm is installed, you must disconnect it from the AC power before unlocking

the battery compartment.

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power

rst may result in serious electrical shock, injury or death.

! WARNING!

Always discharge the branch circuit before servicing an AC or AC/DC Alarm. First, turn off

the AC power at the circuit breaker or fuse box. Next, remove the battery from Alarms with

battery back-up. Finally, press and hold the Test/Silence button for 5-10 seconds to discharge

the branch circuit.

1. Remove the Alarm from the mounting bracket.

If the unit is locked to the bracket, see the

section “To Unlock the Mounting Bracket.”

2. Disconnect the power connector by gently

prying it away from the back of the Alarm.

3. Insert a athead screwdriver under the head

of the locking pin, and gently pry it out of

the battery compartment lock. (If you plan

to relock the battery compartment, save

the locking pin.)

4. To relock the battery compartment, close the battery door and reinsert locking pin in lock.

5. Reconnect the power connector to the back of the Alarm, reattach the Smoke Alarm to the

mounting bracket, and restore the power.

IMPORTANT!

When replacing the batteries, always test the Alarm before relocking the battery compartment.

TO LOCK THE MOUNTING BRACKET

1. Using needle-nose

pliers, detach one

locking pin from

mounting bracket.

2. Insert the locking pin

into the lock located

opposite from the

battery drawer as

shown in the diagram.

3. When you attach

the Alarm to the

mounting bracket,

the locking pin’s head

will t into a notch

on the bracket.

TO UNLOCK THE MOUNTING BRACKET

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power

rst may result in serious electrical shock, injury or death.

! WARNING!

Always discharge the branch circuit before servicing

an AC or AC/DC Alarm. First, turn off the AC power

at the circuit breaker or fuse box. Next, remove the

battery from Alarms with battery back-up. Finally,

press and hold the Test/Silence button for 5-10

seconds to discharge the branch circuit.

1. Insert a athead screwdriver between the

mounting bracket pin and the mounting bracket.

2. Pry the Alarm away from the bracket by

turning both the screwdriver and the Alarm

counterclockwise (left) at the same time.

05 TESTING & MAINTENANCE

WEEKLY TESTING

! WARNING!

• use an open ame of any kind to test this unit. You might accidentally damage or set re NEVER

to the unit or to your home. use vehicle exhaust! Exhaust may cause permanent damage NEVER

and voids your warranty.

• If the Alarm ever fails to test properly, replace it immediately. Products under warranty may be

returned to the manufacturer for replacement. See “Limited Warranty” at the end of this manual.

! CAUTION!

It is important to test this unit every week to make sure it is working properly. Using the test

button is the recommended way to test this Smoke/CO Alarm.

You can test this Smoke/CO Alarm by pressing and holding the Test/Silence button on the Alarm

cover until Alarm Voice says “Testing” (typically 3-5 seconds).

Activate the Alarm test, reset or silence function by use of a nger or thumb. Use of any other

instrument is strictly prohibited.

During testing, you will see and hear the following sequence:

• The Alarm Voice will say “Testing.” The Horn will sound 3 beeps, pause, 3 beeps. The Alarm Voice

will say “Warning, evacuate smoke in [Location, example: “Basement”]. Evacuate.” The Power/

Smoke LED CO LED ashes Red and the will be Off.

• Next the Horn will sound 4 beeps, pause, 4 beeps. The Alarm Voice will say “Warning, evacuate

carbon monoxide in [Location, example: “Basement”]. Evacuate.” The Power/Smoke LED will be

Off and the ashes Red.CO LED

If the unit does not alarm, make sure the batteries are correctly installed, and test again. If the

unit still does not alarm, replace it immediately.

REGULAR MAINTENANCE

This unit has been designed to be as maintenance-free as possible, but there are a few simple things

you must do to keep it working properly:

• Test it at least once a week.

• Clean the Smoke/CO Alarm at least once a month; gently vacuum the outside of the Smoke/CO

Alarm using your household vacuum’s soft brush attachment. Test the Smoke/CO Alarm. Never use

water, cleaners or solvents since they may damage the unit.

• If the Smoke/CO Alarm becomes contaminated by excessive dirt, dust and/or grime, and cannot be

cleaned to avoid unwanted alarms, replace the unit immediately.

• If the green power LED ashes 2 times every minute (horn is silent) it means that the Alarm needs

to be cleaned as indicated above. If green light continues to ash, replace Alarm.

• Relocate the unit if it sounds frequent unwanted alarms. See “Where This Alarm Should Not Be

Installed” for details.

• When the battery back-up becomes weak, the Alarm will “chirp” about once a minute (the low

battery warning), and the will say “Replace battery in [Location, example “Basement”].” Voice

Repeated every 5 hours. This warning should last 7 days, but you should replace the battery

immediately to continue your protection. The Low Battery Latch feature will be engaged. The

Green Power/Smoke LED will ash On for 2 seconds/Off for 2 seconds.

• Protect or cover the alarm when doing any maintenance to home i.e. sanding oors, painting,

drywall patching, etc. to prevent contamination.

CHOOSING A REPLACEMENT BATTERY:

Your Smoke/CO Alarm requires two “AA” Duracell MN1500/LR6 and Energizer E91 batteries. These

batteries are available at many local retail stores.

! WARNING!

• Always use the exact batteries specied by this User’s Manual. use rechargeable DO NOT

batteries. Clean the battery contacts and also those of the device prior to battery installation.

Install batteries correctly with regard to polarity (+ and -).

• Please dispose of or recycle used batteries properly, following any local regulations. Consult your

local waste management authority or recycling organization to nd an electronics recycling facility

in your area. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

! WARNING!

• Keep battery out of reach of children. In the event a battery is swallowed, immediately contact

your poison control center, your physician, or the National Battery Ingestion hotline at

202-625-3333 as serious injury may occur.

IMPORTANT!

Actual battery service life depends on the Alarm and the environment in which it is installed. All

the batteries specied above are acceptable replacement batteries for this unit. Regardless of the

manufacturer’s suggested battery life, you replace the battery immediately once the unit starts MUST

“chirping” (the “low battery warning”).

To replace the batteries (without removing Alarm from the ceiling or wall):

1. Open the battery compartment.

2. Press tabs A and B as shown in the diagram

and remove each battery.

3. Insert the new batteries, making sure they

snap completely into the battery compartment.

Match the terminals on the ends of the

batteries with the terminals on the unit.

4. Close the battery compartment, and then test

the unit by pressing the Test/Silence button.

TROUBLESHOOTING GUIDE

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is installed

BEFORE removing it from the mounting bracket or checking any electrical connections!

Failure to turn off the power rst may result in electrical shock, injury or death.

IF THE ALARM... PROBLEM... YOU SHOULD...

Horn “chirps” and LED

ashes green about once

per minute, or LED ashes

Green On for 2 seconds/

Off for 2 seconds. (Low

Battery Latch is engaged.)

Voice: “Replace battery in

[Location]” every 5 hours

Low battery warning. Install two

new AA batteries*.

Horn “chirps” and Green

LED ashes 3 times

every minute. Voice:

“Detector error in [Location,

example “Basement”],

please see manual”,

repeated every 5 hours.

MALFUNCTION SIGNAL.

Device is not working

properly, and needs

to be replaced.

If unit is under warranty,

contact Consumer

Support to process a

warranty replacement.

Horn “chirps” and Green

LED ashes 5 times

every minute. Voice:

“Detector error in [Location,

example “Basement”],

please see manual”,

repeated every 5 hours.

END OF LIFE SIGNAL.

Alarm needs to

be replaced.

Immediately

replace the Alarm.

Power LED ashes Green 2

times every minute. Alarm requires cleaning.

Clean Alarm then press

and release the test button.

See Regular Maintenance

section. If Green LED

Continues to ash, contact

Consumer Support.

CARBON MONOXIDE ALARM ONLY

CO Alarm goes back into

alarm 4 minutes after

you Silence it.

CO levels indicate

a potentially

dangerous situation.

IF YOU ARE FEELING

SYMPTOMS OF CO

POISONING, EVACUATE

your home and call 911

or the Fire Department.

Refer to “If The CO Alarm

Sounds” for details.

CO Alarm sounds frequently

even though no high levels

of CO are revealed in

an investigation.

The CO Alarm may be

improperly located. Refer

to “Where to Install This

Alarm” for details.

Relocate your Alarm. If

frequent alarms continue,

have home rechecked for

potential CO problems. You

may be experiencing an

intermittent CO problem.

SMOKE ALARM ONLY

Smoke Alarm sounds when

no smoke is visible.

Unwanted alarm may be

caused by nonemergency

source like cooking smoke.

Silence Alarm using

manual button; clean the

Alarm’s cover with a soft,

clean cloth. If frequent

unwanted alarms continue,

relocate your Alarm. Alarm

may be too close to a

kitchen, cooking appliance,

or steamy bathroom.

*For a list of acceptable replacement batteries, see “Choosing a Replacement Battery.”

If you have questions that cannot be answered by reading this manual, call the

Consumer Support Team at 1-800-323-9005

FIRE SAFETY TIPS

Follow safety rules and prevent hazardous situations: 1) Use smoking materials properly. Never smoke

in bed. 2) Keep matches or lighters away from children; 3) Store ammable materials in proper

containers; 4) Keep electrical appliances in good condition and don’t overload electrical circuits;

5) Keep stoves, barbecue grills, replaces and chimneys grease- and debris-free; 6) Never leave

anything cooking on the stove unattended; 7) Keep portable heaters and open ames, like candles,

away from ammable materials; 8) Don’t let rubbish accumulate. Keep Alarms clean, and test them

weekly. Replace Alarms immediately if they are not working properly. Smoke Alarms that do not work

cannot alert you to a re. Keep at least one working re extinguisher on every level, and an additional

one in the kitchen. Have re escape ladders or other reliable means of escape from an upper level in

case stairs are blocked; 9) Have an escape plan and practice it regularly.

06 IF YOUR SMOKE/CO ALARM SOUNDS

WHAT TO DO FIRST: IDENTIFY THE TYPE OF ALARM SIGNAL

Refer to previous section “What You Will See And Hear With This Alarm”.

IF THE CO ALARM SOUNDS

“ALARM-MOVE TO FRESH AIR”

If you hear the Alarm horn sound 4 beeps, pause, 4 beeps, pause, and the RED CO light

is ashing, move everyone to a source of fresh air.

! WARNING!

Actuation of your CO Alarm indicates the presence of carbon monoxide (CO) which can kill you. In

other words, when your CO Alarm sounds, you must not ignore it!

IF THE CO ALARM SIGNAL SOUNDS:

1. Press the Test/Silence button.

2. Call your emergency services, re department or 911. Write down the number of your local

emergency service here:

____________________________________________________________________

3. Immediately move to fresh air—outdoors or by an open door or window. Do a head count to check

that all persons are accounted for. Do not re-enter the premises, or move away from the open door

or window until the emergency services responder has arrived, the premises have been aired out,

and your CO Alarm remains in its normal condition.

4. After following steps 1-3, if your CO Alarm reactivates within a 24-hour period, repeat steps

1-3 and call a qualied appliance technician to investigate for sources of CO from fuel-burning

equipment and appliances, and inspect for proper operation of this equipment. If problems are

identied during this inspection have the equipment serviced immediately. Note any combustion

equipment not inspected by the technician, and consult the manufacturers’ instructions, or contact

the manufacturers directly, for more information about CO safety and this equipment. Make sure

that motor vehicles are not, and have not, been operating in an attached garage or adjacent to the

residence. Write down the number of a qualied appliance technician here:

____________________________________________________________________

NOTE: A qualied appliance technician is dened as “a person, rm, corporation, or company that

either in person or through a representative, is engaged in and responsible for the installation, testing,

servicing, or replacement of heating, ventilation, air conditioning (HVAC) equipment, combustion

appliances and equipment, and/or gas replaces or other decorative combustion equipment.”

AFTER AN ALARM

After the emergency responders arrive, the premises aired out, and your CO Alarm

remains in its normal condition, you can check what the highest carbon monoxide

level sensed was:

Action Alarm Will Say

Press & Hold Test Button

“Highest carbon monoxide level was ___

ppm. Please see manual.”

“To clear highest carbon monoxide level,

press and hold test button now.”

Press & Hold Test Button, if you would like to

clear the highest level sensed. If you would

like to keep the highest level in memory, do

not press anything.

“Highest carbon monoxide

level cleared.”

Alarm will say nothing.

IF THE SMOKE ALARM SOUNDS:

RESPONDING TO AN ALARM

! WARNING!

• If the unit alarms and you are not testing the unit, it is warning you of a potentially dangerous

situation that requires your immediate attention. ignore any alarm. Ignoring the alarm may NEVER

result in injury or death.

• Never remove the batteries from a battery operated Smoke/CO Alarm to stop an unwanted alarm

(caused by cooking smoke, etc.). Removing batteries disables the alarm so it cannot sense smoke,

and removes your protection. Instead open a window or fan the smoke away from the unit. The

alarm will reset automatically.

• If the unit alarms get everyone out of the house immediately.

WHAT TO DO IN CASE OF FIRE

• Don’t panic; stay calm. Follow your family escape plan.

• Get out of the house as quickly as possible. Don’t stop to get dressed or collect anything.

• Feel doors with the back of your hand before opening them. If a door is cool, open it slowly. Don’t

open a hot door. Keep doors and windows closed, unless you must escape through them.

• Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.

• Meet at your planned meeting place outside your home, and do a head count to make sure

everybody got out safely.

• Call the Fire Department as soon as possible from outside. Give your address, then your name.

• Never go back inside a burning building for any reason.

• Contact your Fire Department for ideas on making your home safer.

! WARNING!

Alarms have various limitations. See “General Limitations of Smoke/CO Alarms” for details.

07 USING THE SILENCE FEATURES

! WARNING!

Never remove the batteries to quiet an unwanted alarm. Removing the batteries disables the

alarm and removes your protection.

• The Silence Feature is intended to temporarily silence the horn while you identify and correct the

problem. Do not use the Silence Feature in emergency situations. It will not correct a CO problem

or extinguish a re.

• The Silence Feature can temporarily quiet an unwanted alarm for several minutes. You can

silence this Smoke/CO Alarm by pressing the Test/Silence button on the alarm cover for at

least 3-5 seconds.

• After the Test/Silence button is released, the Alarm Voice will say “Horn silenced, detector active.”

The Red LED blinks during the silence mode.

When the Smoke Alarm is Silenced When the CO Alarm is Silenced

The Smoke Alarm will remain silent for up to

15 minutes, then return to normal operation.

If the smoke has not cleared–or continues to

increase–the device will go back into alarm.

The CO Alarm will remain silent for

up to 4 minutes.

After 4 minutes, if CO levels remain

potentially dangerous the horn will start

sounding again.

SILENCING THE LOW BATTERY WARNING

This Silence Feature can temporarily quiet the low battery warning “chirp” for up to 8 hours if AC power

is present. Press the Test/Silence button on the Alarm cover until you hear the acknowledge “chirp”.

Once the low battery warning “chirp” Silence Feature is activated, the unit continues to ash the

green light once a minute for 8 hours. After 8 hours, the low battery “chirp” will resume. The Alarm

will continue to operate as long as AC power is supplied. However, replace the batteries as soon as

possible, to maintain protection in event of a power outage.

To deactivate this feature: Press the Test/Silence button again. The unit will go into Test Mode and

the low battery warning will resume (LED ashes and unit sounds “chirp” once a minute).

To silence alarms in an interconnected series: To silence an interconnected series of Smoke/CO

Alarms, you must press the Test/Silence button on the initiating alarm (The unit with the ashing red

light; the red light will be off on all other Alarms.). If you press the Test/Silence on any other Alarm, it

will only silence that unit, not the whole interconnected series.

SILENCING THE END OF LIFE SIGNAL

This Silence Feature can temporarily quiet the End of Life warning “chirp” for up to 2 days. You can silence

the End of Life warning “chirp” by pressing the Test/Silence button. The horn will chirp, acknowledging that

the End of Life Silence Feature has been activated. After approximately 2 days, the End of Life “chirp” will

resume. The timer shall not be able to be reset after 14 days following the initial end-of-life signal.

LATCHING FEATURES

Alarm Latch is activated after an Alarm is exposed to alarm levels of smoke or carbon

monoxide. This feature will only work with AC power. See “Special Requirements for

Interconnected Alarms” for signaling. This feature helps emergency responders, investigators,

or service technicians identify which unit(s) in your home were exposed to alarm levels of

smoke or carbon monoxide. This can help investigators pinpoint the source of smoke or CO.

Interconnected Alarms. Latching Alarm Indicator shows which Alarm(s) in the series were

exposed to alarm levels of smoke or carbon monoxide. The Latching Alarm Indicator stays

ON until you clear it, so it can alert you to an alarm that occurred while you were away from

home, even though smoke or CO present in the air has dropped below alarm levels.

Produkt Specifikationer

Mærke:	First Alert
Kategori:	Røgdetektor
Model:	SMCO100V-AC

Har du brug for hjælp?

Hvis du har brug for hjælp til First Alert SMCO100V-AC stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Røgdetektor First Alert Manualer

First Alert HD6135FB Manual

14 Oktober 2024

First Alert SA410 Manual

1 Oktober 2024

First Alert SA710LCE Manual

29 September 2024

First Alert SA900 Manual

21 September 2024

First Alert CO600 Manual

12 September 2024

First Alert P1010 Manual

5 September 2024

First Alert SMCO210 Manual

4 September 2024

First Alert SMCO210V Manual

4 September 2024

First Alert SMCO100V-AC Manual

4 September 2024

First Alert SMICO100-AC Manual

4 September 2024

Røgdetektor Manualer

Nyeste Røgdetektor Manualer

TFA AirCo2ntrol Life Manual

8 Oktober 2024

Elro FS151021M Manual

8 Oktober 2024

Elro 2001-023 Manual

3 Oktober 2024

FireHawk FHB10 Manual

2 Oktober 2024

Smartwares RM149 1YR Manual

2 Oktober 2024

König SAS-SA2002 Manual

1 Oktober 2024

FireAngel ST-622 Manual

30 September 2024

Alecto SA-49/1 Manual

29 September 2024

KlikaanKlikuit ZCO-900 Manual

27 September 2024

Kidde 3SFWR Manual

24 September 2024
