This document should only be removed by customer after installation.

P/N: 241811505

Not satised with the installation of your refrigerator? Please contact the store you purchased it from.

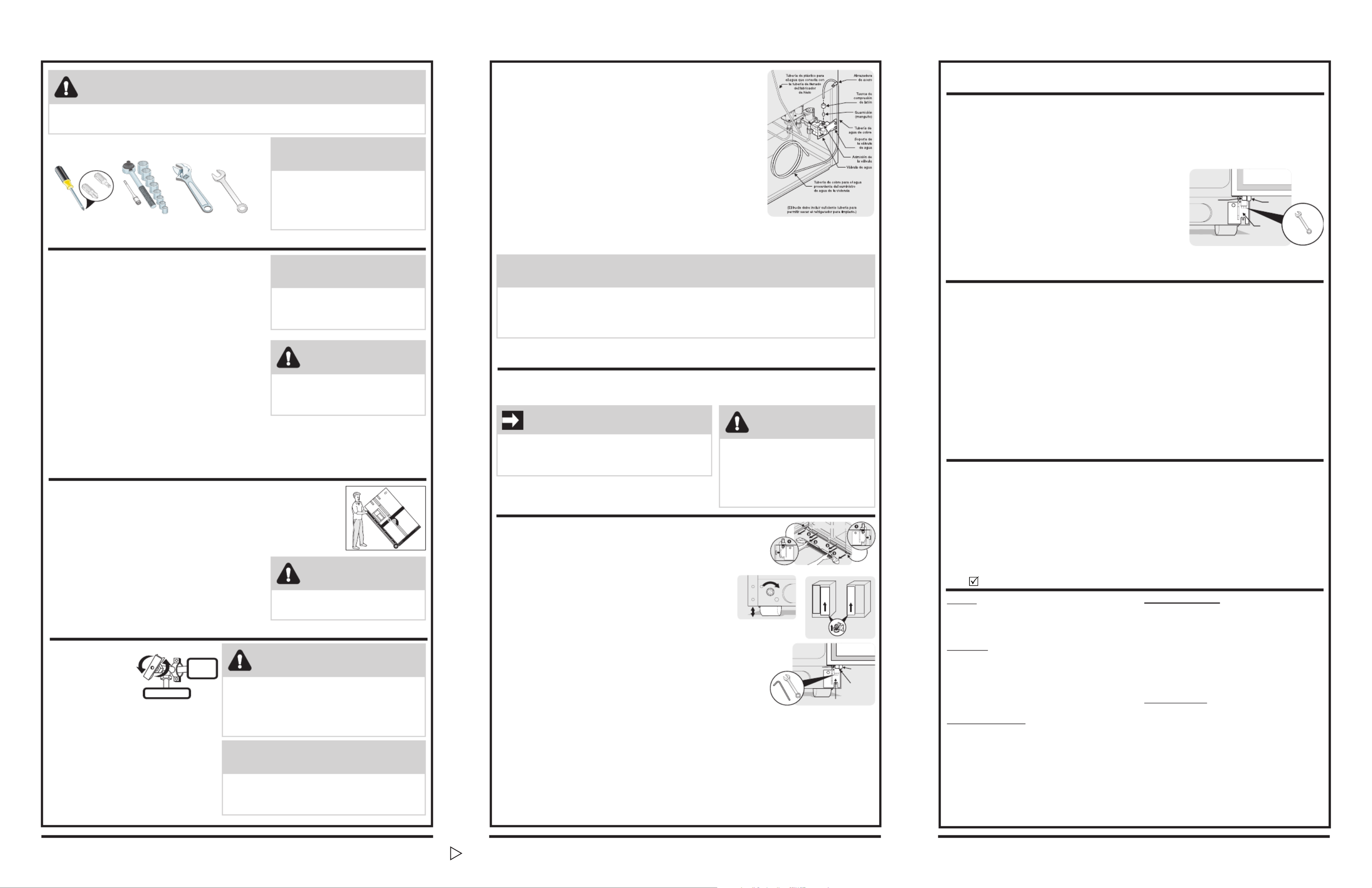

Installation Instructions for Side-by-Side Refrigerator

To connect the water supply to the rear of your refrigerator:

1 Ensure that the refrigerator is not plugged in.

2 Flush the supply line until water is clear by placing the end of the

copper tube in a sink or bucket and opening the shut-off valve.

3 Remove the plastic cap from the water valve inlet at the rear of

your refrigerator. Discard the cap.

4 Slide the brass compression nut, then the ferrule (sleeve) onto

copper tube.

5 Push the copper tube into water valve inlet as far as it will go

(1/4 inch).

6 Slide the ferrule (sleeve) into valve and nger-tighten the

compression nut onto valve. Tighten another half turn with a

wrench. Do not over-tighten.

7 Secure the copper tube to your refrigerator’s rear panel with a

steel clamp and screw (see illustration).

8 Coil the excess copper tubing (about 2½ turns) behind your

refrigerator as shown. Arrange coiled tubing to avoid vibration or wear against other surfaces.

9 Open water supply shut-off valve and tighten any connections that leak.

(continued)

Doors

 Door seals completely to cabinet on all

sides

 Doors are level

Leveling

 Refrigerator is level, side to side and tilted

1/4” (6mm) front to back

 Toe grille is properly attached to

refrigerator

 Cabinet is sitting solid on all corners

Electrical Power

 House power turned on

 Refrigerator plugged in

Ice Maker

 House water supply connected to

refrigerator

 No water leaks present at all connections

- recheck in 24 hours

 Ice Maker is turned ON.

 Ice & Water Dispenser operates correctly

 Front lter must be ush with lter

housing (some models)

Final Checks

 Shipping material removed

 Fresh Food and Freezer temperatures set

 Crisper Humidity controls set

 Registration Card sent in

Installation Checkoff List

Prepare The Installation Site

Transport Unpackaged Refrigerator To Site

Your refrigerator is designed to be part of a built-

in kitchen cabinet system. Be sure to coordinate

site preparation and installation with your kitchen

contractor. Include these minimum guidelines in your site

preparation:

• Choose a place near a grounded electrical outlet.

• Do not use an extension cord or an adapter plug.

• Avoid direct sunlight and close proximity to a range,

dishwasher or other heat source.

• Floor should be level and able to support a fully

loaded refrigerator.

• The refrigerator’s Ice & Water Dispenser requires

water supply access.

• Plan for easy access to counter tops when

removing food.

• For complete access to drawers and freezer

baskets, doors must be able to fully open.

Allow the following clearances for ease of installation, proper air circulation, and plumbing and

electrical connections: : 3/8 inch / : 1 inchSides & Top Rear

By now, you have already removed your refrigerator’s shipping carton.

You may still need to use a hand truck to move it through close spaces or

entrances. If the refrigerator is larger than an entrance, consider two options:

• Remove the entrance door if one exists.

• Remove the refrigerator doors (see how in your Use & Care Guide).

When using a hand truck:

• Load refrigerator from side of cabinet only.

• Do not run retaining straps over handles.

• Do not over-tighten retaining straps.

• Never use refrigerator handles to move the

refrigerator.

• Remove tape from doors only after unit is in place.

Connect Water Supply

What you will need:

• Access to a cold

water line with

pressure of

30-100 psi.

• Copper tubing

with ¼-inch

(6.4mm) OD.

Length for this tubing is the distance

from the rear of the refrigerator to your

household water supply line plus 7

feet (2.1 meters).

• A shut-off valve for the connection

between your household water line and

the refrigerator supply line. Do not use

a self-piercing shut-off valve.

• A compression nut and ferrule (sleeve)

for the water supply connection at the

rear of your refrigerator.

Place In Permanent Position

If possible, use a hand truck to position the refrigerator directly in front of its cabinet enclosure.

Be careful not to move the refrigerator beyond its water supply (copper tubing) connections.

Plug in the power cord, and push the refrigerator

straight back into place.

Level Refrigerator & Adjust Doors (if necessary)

Problems? Try These Suggetions

What’s Next?

Congratulations. You are ready to begin enjoying your new refrigerator.

• To become aware of important safety instructions and learn how to operate your

refrigerator, please read the entire Use & Care Guide.

• You may want to start with the “Normal Operating Sights & Sounds” section of the Guide to

learn more about what to expect during typical operation.

• Please register your product. You can register online at www.electroluxusa.com. or you can

simply send in the Registration Card.

And thank you for choosing Frigidaire.

WARNING

To avoid electric shock, which can cause death or severe personal injury, do not connect your

refrigerator to an electrical power source until you have completed Step 3 of these instructions.

CAUTION

Room temperatures below 55°F

(13°C) or above 110°F (43°C)

will impair cooling ability of your

refrigerator’s compressor. IMPORTANT

If you are installing your refrigerator without

connecting it to a water supply, make sure the ice

maker’s power switch is turned Off (see the Use &

Care Guide for more details).

NOTE

These installation instructions

are provided only as a possible

customer option. We recommend

that you use a service or kitchen

contracting professional to install

your refrigerator.

NOTE

Information about cabinetry

construction for your new appliance

is available for contractors. Call

1-877-435-3287.

CAUTION

Shifting the refrigerator from side to

side may damage ooring.

NOTE

Kit #53039117950, available from your dealer,

provides all materials for a water supply

installation, including 25 feet of copper tubing and

full instructions.

CAUTION

To avoid property damage:

• Use copper tubing for the water supply line (plastic

tubing is more likely to leak).

• Ensure water supply complies with local

plumbing codes.

CAUTION

• Shifting the refrigerator from side

to side may damage ooring.

• Do not block the toe grille on the

lower front of your refrigerator.

Sufcient air circulation is essential

for proper operation.

NOTE

• The ice maker’s ll valve may operate noisily if the household water supply is shut off.

• After ensuring no water leaks exist at any connection, be sure to check for leaks again in 24 hours.

• See your Use & Care Guide for detailed information about setting up and operating the Ice &

Water Dispensing system.

Hinge

Flange

Set Screw

(some models)

Door Stop

Flange

Hinge

Open Door

7/16” Wrench

and 3/32” Hex Key

(some models)

To level the doors using the adjustable lower hinge (Type 2 without set screw)

1 If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning

the adjustment screw clockwise using a 7/16 inch wrench. (See illustration 3.)

2 If the freezer door is lower than the refrigerator door, raise the freezer door by turning the

adjustment screw clockwise using a 7/16 inch wrench. (See illustration 3.)

3 After leveling, verify door stop contacts lower hinge and top of door does not contact upper

hinge through full movement of door (from fully closed to

fully open). (See illustration 5.)

4 To replace the toe grille, open both doors. Slide left and

right sides of toe grille over lower hinges of refrigerator.

While pushing toe grille rmly against cabinet, fasten

bottom clips of toe grille to cabinet. Fasten top clips to

cabinet. Close the doors. Fasten right and left side clips

into groove of bottom hinge.

Guidelines for nal positioning of your refrigerator:

• All four corners of the cabinet must rest rmly on the oor.

• The cabinet should be level at the front and rear.

• The sides should tilt ¼-inch (6 mm) from front to back (to

ensure that doors close and seal properly).

• Doors should align with each other and be level.

To level the cabinet using the front rollers:

1 With both doors closed, unfasten right and left side clips

of toe grille from bottom hinge groove Open both doors.

Press rmly on top of toe grille until top of toe grille pops

off. Pull toe grille outward toward your body and off of lower hinges.

(See illustration 1.)

2 Close the doors and use a at-blade screwdriver or 3/8

inch socket wrench to raise or lower the front rollers. (See

illustration 2.)

3 Ensure both doors are bind-free with their seals touching the

cabinet on all four sides.

To level the doors using the adjustable lower hinge (Type 1

with set screw):

1 Before leveling either door, remove set screw that locks door height into position. (The door

cannot be adjusted without set screw removed.)

2 If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning

the adjustment screw clockwise using a 7/16 inch wrench. (See illustration 3.)

3 If the freezer door is lower than the refrigerator door, raise the freezer door by turning the

adjustment screw clockwise using a 7/16 inch wrench. (See illustration 3.)

4 After leveling, verify door stop contacts lower hinge and top of door does not contact upper

hinge through full movement of door (from fully closed to fully open). (See illustration 4.)

5 Reinstall set screw, locking the door height.

6 To replace the toe grille, open both doors. Slide left and right sides of toe grille over lower

hinges of refrigerator. While pushing toe grille rmly against cabinet, fasten bottom clips of

toe grille to cabinet. Fasten top clips to cabinet. Close the doors. Fasten right and left side

clips into groove of bottom hinge.

Operation problems are possible if any of the installation tasks are not completed. Here is a list

of things to check for:

• Is the refrigerator’s power cord plugged in?

• Is the refrigerator connected to the household water supply?

• If you had to remove the refrigerator and freezer doors, did you reattach water and power

connectors at the door hinges? (See the Use & Care Guide for detailed instructions on

removing and replacing doors.)

• Is the ice maker power switch turned On?

Other possibilities to check:

• Is the power to the receptacle turned on?

• Is the water lter above the fresh food compartment fully seated (see Use & Care Guide for details)?

If you still have operation problems after checking these suggestions, please see the “Solutions

To Common Problems” section in your Use & Care Guide.

Produkt Specifikationer

Mærke:	Frigidaire
Kategori:	Køleskab
Model:	FRS3R5EMB

Har du brug for hjælp?

Hvis du har brug for hjælp til Frigidaire FRS3R5EMB stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Køleskab Frigidaire Manualer

Frigidaire FRSG2115AV Manual

24 Oktober 2024

Frigidaire PRDA1922AF Manual

24 Oktober 2024

Frigidaire FRS6KR5JSW Manual

14 Oktober 2024

Frigidaire FFPT12F3MM Manual

14 Oktober 2024

Frigidaire FFHT1826LS Manual

11 Oktober 2024

Frigidaire FFHS2313LP Manual

4 Oktober 2024

Frigidaire FRT17G5JSB Manual

4 Oktober 2024

Frigidaire FRFS2823AD Manual

4 Oktober 2024

Frigidaire GLHT184TJW Manual

4 Oktober 2024

Frigidaire PHS69EHSS Manual

3 Oktober 2024

Køleskab Manualer

Nyeste Køleskab Manualer

Faure FRA22800WA Manual

21 November 2024

Faure FRT23101XA Manual

21 November 2024

Faure FRT27103WA Manual

21 November 2024

Faure FRT27102XA Manual

21 November 2024

Faure FRT27102WA Manual

21 November 2024

Faure FRT27100WA Manual

21 November 2024

Eqtemp ACR22GLHD Manual

20 November 2024

Eqtemp ACR1011WNSF456LHD Manual

20 November 2024

Eqtemp ACR31WNSF456LHD Manual

20 November 2024

SanGiorgio SB54NFXD Manual

20 November 2024
